How Architects, Appraisers, and Builders Calculate Floor Area in Practice: A real-world look at how professionals measure, verify, and apply floor area across design, construction, and property valuation.

Direct Answer

Architects, appraisers, and builders calculate floor area using building plans, measurement standards, and project-specific rules. Architects measure space during design to control layout efficiency, appraisers follow standardized measurement guidelines for property valuation, and builders use floor area calculations to estimate materials, labor, and project costs.

Although the basic math seems simple, the interpretation of walls, circulation space, and structural elements often varies by industry.

Quick Takeaways

1. Architects calculate floor area early to test layouts and spatial efficiency.
2. Appraisers follow strict measurement standards for consistent property valuation.
3. Builders rely on floor area to estimate materials, labor, and construction cost.
4. Residential and commercial projects often use different reporting rules.
5. Misinterpreting walls, circulation, or mechanical space can distort area calculations.

Introduction

After working on residential remodels, multifamily housing, and a few commercial interiors, I can tell you that floor area calculation rarely means the same thing to every professional in the room.

An architect may count space one way to optimize a layout. A real estate appraiser may measure the same plan differently because valuation standards require it. Meanwhile, a builder often calculates area in a way that helps estimate labor and materials quickly.

This difference surprises many clients. They assume "square footage" is a fixed number. In reality, it's a professional interpretation of the plan.

In many early-stage projects, I use digital planning tools to generate a scaled layout before calculating usable building area. It helps reveal circulation waste, structural conflicts, and layout inefficiencies long before construction starts.

In this guide, I'll break down how architects, appraisers, and builders actually measure floor area in real workflows—and why those numbers sometimes differ.

save pin

Why Floor Area Measurement Matters Across Industries

Key Insight: Floor area is not just a measurement—it's a decision-making metric used differently by designers, valuers, and construction teams.

In practice, floor area affects three major decisions:

1. Design efficiency and layout planning
2. Property value and appraisal reports
3. Construction budgeting and cost estimation

For example, a developer evaluating two apartment layouts might look beyond total square footage and focus on usable space ratios. A design that wastes 10% less circulation space can significantly improve profitability.

Industry organizations such as ANSI and RICS publish measurement standards specifically to reduce inconsistencies. But even with guidelines, interpretation still varies based on project goals.

How Architects Calculate Floor Area During Design

Key Insight: Architects calculate floor area primarily to test spatial efficiency, not just to report a number.

During schematic design, I rarely calculate floor area only once. It evolves as layouts change.

Typical architectural workflow:

1. Create scaled floor plans.
2. Define exterior walls and structural grid.
3. Calculate gross floor area.
4. Subtract walls, shafts, and service spaces.
5. Evaluate net usable space.

In many residential projects, the goal is maximizing livable space while maintaining circulation flow.

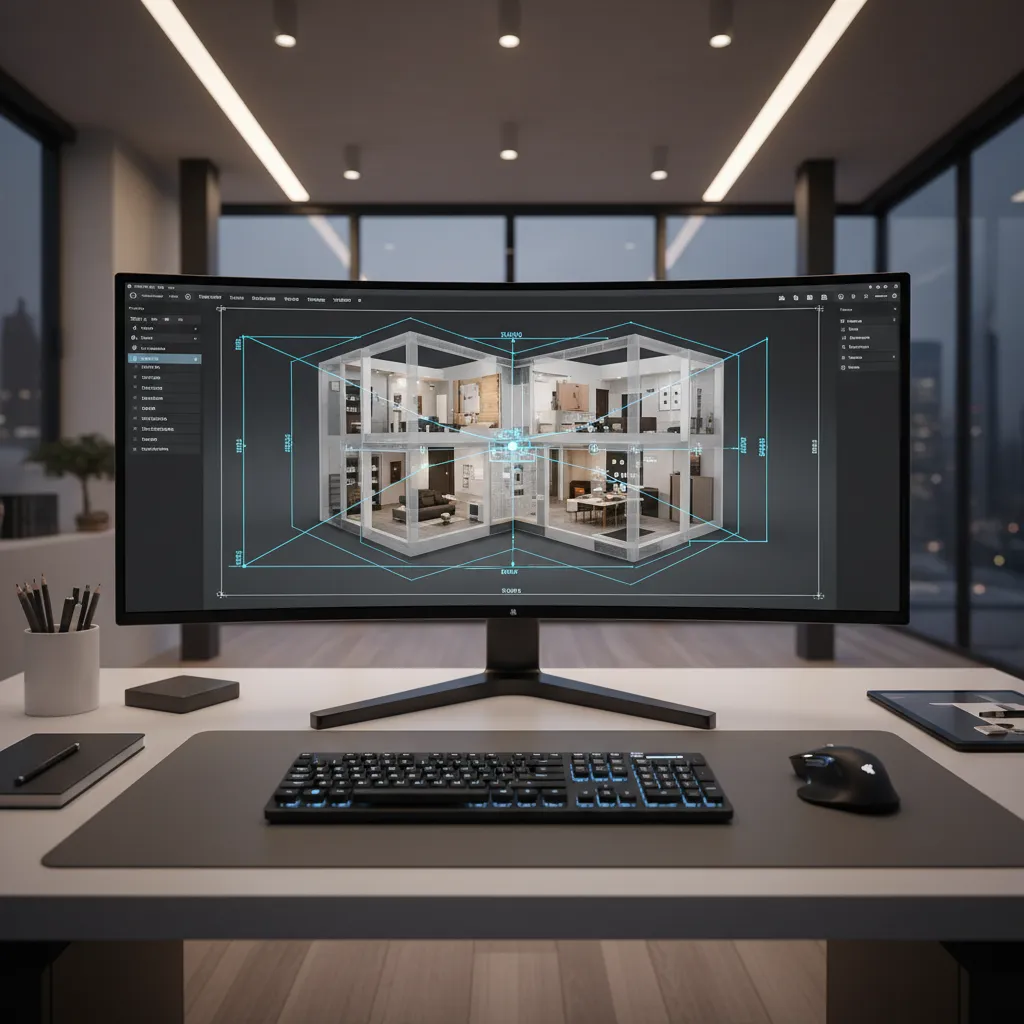

Modern planning platforms allow designers to visualize layouts and measure floor area directly from a 3D floor plan model, which reduces manual measuring errors.

save pin

A common mistake I see: Designers sometimes ignore wall thickness early in concept plans. On small homes, that oversight can shrink usable space by 5–8% once structural walls are added.

Real Estate Appraisal Measurement Standards

Key Insight: Appraisers follow standardized measurement rules to ensure comparable property valuation.

Unlike architects, appraisers cannot interpret measurements freely. Most residential appraisals in the U.S. follow ANSI Z765 standards.

Key rules include:

1. Measure exterior dimensions of finished spaces.
2. Exclude unfinished basements from gross living area.
3. Count stair openings only once.
4. Report finished attic space separately.

Because of these standards, the square footage reported in a property appraisal may differ from the architect's design drawings.

This difference is not an error—it reflects different reporting requirements.

Answer Box

Professionals calculate floor area differently because each industry serves a different purpose. Architects optimize layout efficiency, appraisers follow standardized measurement rules for valuation, and builders calculate area primarily for cost estimation and construction planning.

Construction Estimating Based on Floor Area

Key Insight: Builders use floor area calculations as a quick framework for estimating materials, labor, and project cost.

Contractors often begin cost estimates using price-per-square-foot benchmarks.

A simplified construction estimating process may include:

1. Total building floor area
2. Structural framing area
3. Exterior envelope surface area
4. Interior finish coverage

For example:

1. Framing cost: calculated from floor plate area
2. Flooring: measured by finished floor surface
3. HVAC: estimated by conditioned area

Accurate plan measurements are essential. Many builders now rely on tools that help teams extract accurate floor area measurements from digital building layoutsrather than manually scaling printed plans.

save pin

Building Codes and Reporting Requirements

Key Insight: Building codes often define which areas must be included or excluded when reporting floor area.

Planning authorities frequently use floor area to regulate:

1. Floor Area Ratio (FAR)
2. Maximum building coverage
3. Parking requirements
4. Occupancy limits

However, code definitions may differ from appraisal or design calculations.

Typical exclusions in zoning calculations:

1. Parking garages
2. Mechanical rooms
3. Open balconies
4. Unconditioned basements

This is one of the hidden complexities many property owners discover during permitting.

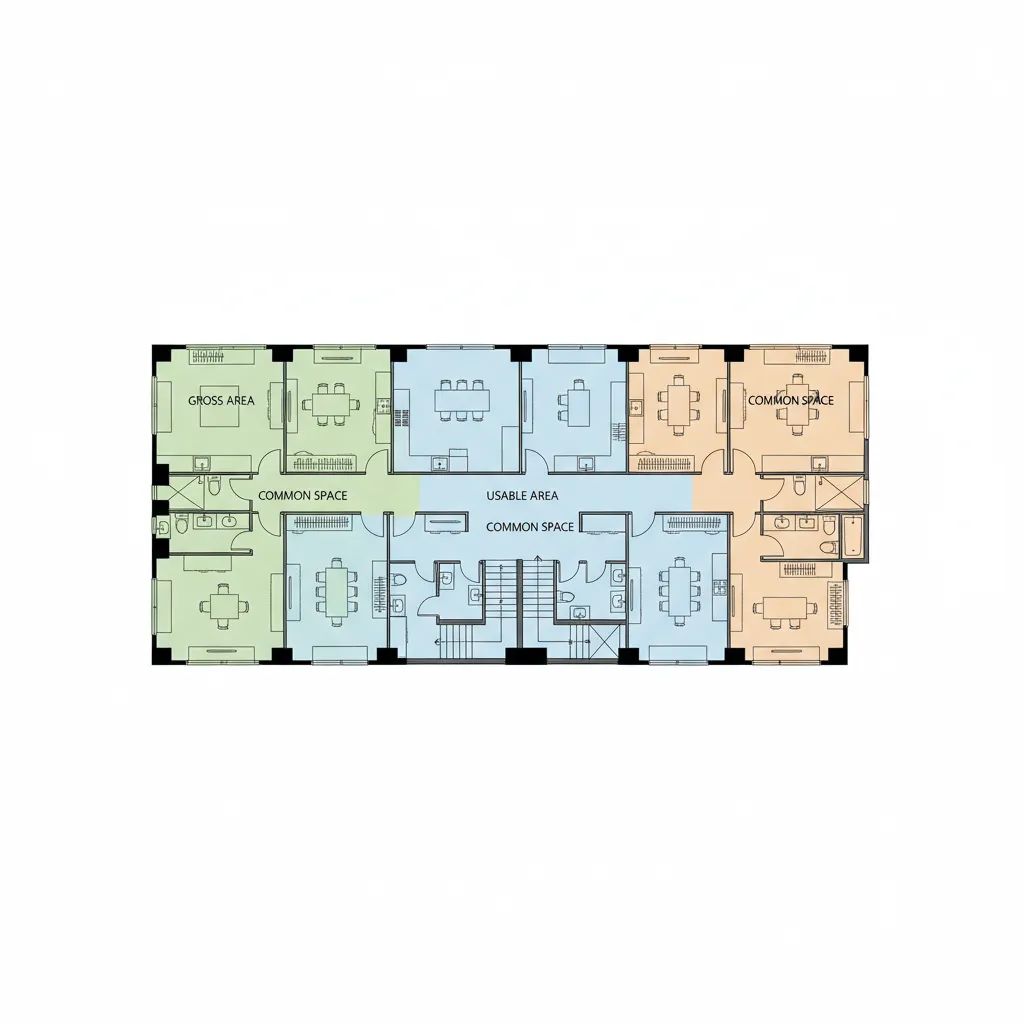

Differences Between Residential and Commercial Measurement

Key Insight: Commercial buildings rely far more on standardized rentable and usable area calculations.

Residential measurement usually focuses on total livable square footage.

Commercial real estate, however, distinguishes between:

1. Gross floor area (GFA)
2. Usable area
3. Rentable area
4. Common area factor

Office buildings often add a "load factor" that allocates shared spaces like corridors, lobbies, and restrooms across tenants.

That means a tenant leasing 5,000 square feet might actually occupy only about 4,200 square feet of physical office space.

save pin

Final Summary

1. Floor area calculation varies by professional purpose.
2. Architects focus on layout efficiency and spatial planning.
3. Appraisers follow strict measurement standards.
4. Builders rely on area measurements for construction cost estimation.
5. Commercial projects apply more complex area classifications.

FAQ

1. How do architects calculate building floor area?

Architects typically measure floor area from scaled plans, calculating gross and net areas to evaluate spatial efficiency during the design process.

2. What standard do appraisers use to measure square footage?

Most U.S. residential appraisers follow ANSI Z765 measurement standards to ensure consistent property comparisons.

3. Do builders calculate floor area differently?

Yes. Builders often calculate floor area primarily to estimate materials, labor, and project cost rather than valuation or reporting.

4. Is floor area the same as square footage?

In casual conversation they are similar, but professional floor area calculations may include or exclude specific structural elements.

5. Why do appraisal and design square footage sometimes differ?

Because appraisal standards exclude certain spaces such as unfinished basements or non‑habitable areas.

6. What affects the accuracy of floor area calculation?

Wall thickness, structural columns, stair openings, and mechanical spaces often change the final measured area.

7. How do builders estimate area from plans?

Builders measure floor plates from construction drawings and use them to calculate materials, framing quantities, and labor estimates.

8. What is the difference between gross and usable floor area?

Gross floor area includes walls and structural elements, while usable area reflects the actual occupiable interior space.
