How Bathroom Fixture Finishes Are Manufactured: Silver Plating and Coating Explained: Understand how silver bathroom finishes are produced, why some fail early, and what manufacturing quality really means for long‑term durability.

Direct Answer

Bathroom fixture finishes such as silver, chrome, or brushed metal are created through industrial coating processes like electroplating or PVD (Physical Vapor Deposition). These techniques bond a thin metal layer to brass or stainless steel fixtures to improve corrosion resistance, appearance, and durability.

When finishes peel, fade, or wear unevenly, the root cause is almost always linked to manufacturing quality—specifically surface preparation, plating thickness, or protective coating methods.

Quick Takeaways

1. Most silver bathroom fixtures are produced through electroplating or PVD coating.
2. Surface preparation is the most overlooked factor affecting finish durability.
3. PVD coatings typically last 5–10 times longer than basic electroplating.
4. Thin plating layers are the main reason budget fixtures wear out early.
5. Manufacturing standards vary widely between premium and low‑cost fixtures.

Introduction

After working on residential renovations for more than a decade, I've seen the same problem repeatedly: homeowners install beautiful silver bathroom fixtures, and within a few years the finish starts fading, spotting, or peeling.

The assumption is usually that the finish itself is fragile. In reality, the issue is almost always manufacturing quality.

Bathroom fixture finishes are not just decorative layers. They are engineered coatings applied through controlled industrial processes. Small differences in plating thickness, bonding technique, or protective sealing can determine whether a faucet lasts two years or twenty.

When I help clients visualize layouts using a realistic bathroom layout planning workflow, I often explain that finish durability should be evaluated just as carefully as layout and style.

This article breaks down how silver bathroom finishes are actually manufactured, why some coatings fail earlier than others, and what manufacturing signals separate premium fixtures from budget hardware.

save pin

How Bathroom Fixture Finishes Are Applied

Key Insight: Most bathroom fixtures receive their finish through electroplating, a chemical process that bonds a thin metal layer onto the base material.

In manufacturing, most faucets begin as solid brass or stainless steel castings. The decorative finish is applied afterward using controlled chemical or vacuum processes.

Typical manufacturing steps include:

1. Surface polishing to remove microscopic imperfections
2. Degreasing and ultrasonic cleaning
3. Electroplating with nickel, chrome, or silver layers
4. Protective sealing or clear coating

One surprising detail many people miss: the durability of the finish depends far more on preparation than on the metal itself. If oils or micro‑scratches remain on the fixture before plating, the coating bonds poorly and can fail years earlier.

According to finishing standards from the National Association for Surface Finishing (NASF), surface preparation accounts for the majority of coating failures in decorative metal products.

Silver Plating vs PVD Coating Technology

Key Insight: PVD coating is significantly more durable than traditional silver plating because it forms a molecular bond rather than a chemical deposit.

Two primary technologies dominate modern bathroom fixture finishing:

1. Electroplating – uses electric current to deposit metal ions onto a fixture.
2. PVD (Physical Vapor Deposition) – vaporizes metals in a vacuum chamber and bonds them directly to the surface.

Comparison:

1. Electroplated silver finish thickness: typically 0.1–0.3 microns
2. PVD coating thickness: often 2–5 microns
3. Scratch resistance: PVD is dramatically stronger
4. Cost: PVD fixtures are typically 20–40% more expensive

This is why many high‑end manufacturers shifted to PVD during the past decade. It produces finishes that resist scratching, discoloration, and chemical cleaners far better than traditional plating.

save pin

Manufacturing Standards for Bathroom Hardware

Key Insight: Fixture durability depends heavily on compliance with finishing standards such as ASTM B456 and ISO plating specifications.

High‑quality fixtures must meet strict coating durability standards before reaching the market.

Important industry benchmarks include:

1. ASTM B456 – nickel‑chrome plating standards
2. ASTM B117 – salt spray corrosion testing
3. ISO 4527 – decorative electroplating requirements

Premium brands often test finishes through accelerated corrosion chambers that simulate years of humidity exposure.

When planning full renovations using a photorealistic home interior rendering workflow, I advise clients to verify that fixtures meet these standards. Certification usually indicates thicker plating layers and better bonding.

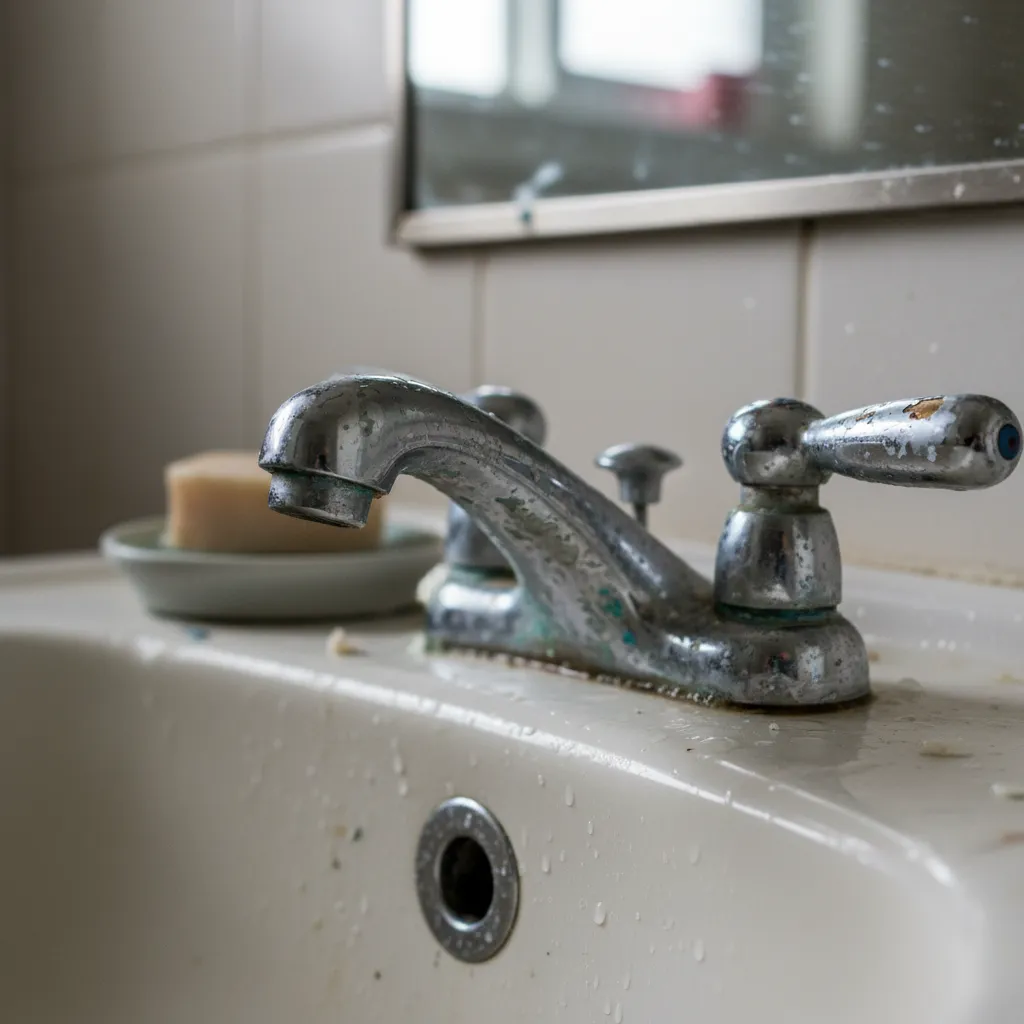

Why Some Silver Finishes Wear Out Faster

Key Insight: Early finish failure is usually caused by thin plating layers or poor surface bonding during manufacturing.

Across dozens of renovation projects, the fixtures that fail early usually share the same hidden issues.

Common manufacturing shortcuts include:

1. Extremely thin plating layers
2. Skipping multi‑layer nickel undercoats
3. Weak protective clear coatings
4. Inconsistent polishing before plating

The result is a finish that initially looks identical to premium hardware but begins to wear after exposure to water minerals, cleaning chemicals, or daily abrasion.

This explains why two faucets with nearly identical appearance can have completely different lifespans.

save pin

Quality Differences Between Budget and Premium Fixtures

Key Insight: The biggest difference between budget and premium fixtures is plating thickness and multi‑layer coating systems.

Most consumers assume cost differences come from design or brand reputation. In reality, much of the price difference comes from additional coating layers.

Typical construction comparison:

1. Budget fixturesSingle nickel layer
2. Thin chrome or silver plating
3. Minimal corrosion testing
4. Premium fixturesMultiple nickel layers
5. Thicker plating depth
6. Optional PVD top coating
7. Salt spray testing for durability

Those extra steps increase manufacturing cost, but they dramatically extend the life of the finish.

Answer Box

Bathroom fixture finishes last longer when manufacturers use thicker plating layers, multi‑stage surface preparation, and advanced coatings such as PVD. Most finish failures occur because budget fixtures reduce coating thickness to cut production costs.

How Manufacturing Impacts Long-Term Durability

Key Insight: Durability is determined long before a fixture reaches the showroom—it's decided during plating thickness, coating technology, and corrosion testing.

From a designer's perspective, the visual finish is only half the story. The manufacturing process determines how the fixture behaves after years of humidity, mineral deposits, and cleaning products.

Three manufacturing factors matter most:

1. Plating thickness
2. Bonding strength between layers
3. Protective top coatings

When planning new bathrooms or evaluating upgrades using a complete room layout planning approach, I always encourage clients to treat finish quality as part of long‑term durability planning, not just aesthetics.

save pin

Final Summary

1. Bathroom fixture finishes are created through electroplating or PVD coating.
2. Surface preparation strongly influences coating durability.
3. PVD coatings offer significantly better scratch resistance.
4. Thin plating layers are the most common cause of finish failure.
5. Manufacturing standards help predict long‑term durability.

FAQ

How are silver bathroom fixtures made?

Most silver bathroom fixtures are produced through electroplating, where metal ions bond to a brass or stainless steel base using electrical current.

What is the silver plated faucet manufacturing process?

The process typically includes polishing, cleaning, electroplating with nickel layers, applying a silver or chrome layer, and sealing with protective coatings.

Is PVD coating better than silver plating?

Yes. PVD coatings form stronger bonds and resist scratching and corrosion better than traditional electroplating.

Why do some faucet finishes peel?

Poor surface preparation or thin plating layers can cause finishes to detach over time.

How long should a bathroom fixture finish last?

High‑quality fixtures can maintain their finish for 10–20 years under normal use.

Do cleaning products damage faucet finishes?

Harsh acidic cleaners can degrade thin electroplated finishes over time.

Are expensive fixtures really more durable?

Often yes. Premium fixtures usually use thicker plating layers and better corrosion testing.

What causes silver bathroom fixtures to discolor?

Mineral buildup, oxidation, and weak protective coatings are common causes.
