How Builders Frame Rough Openings for Exterior Doors in Residential Construction: Professional framing standards, stud placement, and code practices contractors use for exterior door openings.

Direct Answer

Builders frame exterior door rough openings using a structural system of king studs, jack studs, and a header sized to carry the wall load above the opening. The rough opening is intentionally larger than the door unit to allow for shimming, leveling, and weatherproof installation. In most residential construction, contractors follow manufacturer specifications combined with local building codes.

Quick Takeaways

1. Exterior door rough openings are framed wider and taller than the door unit to allow installation adjustment.
2. King studs provide structural continuity while jack studs support the header above the door.
3. Headers distribute loads from the wall and roof above the opening.
4. Builders typically follow manufacturer specifications and local building codes for final dimensions.
5. Inspection focuses on structural support, header size, and proper load transfer.

Introduction

After working on residential remodels and new builds for more than a decade, I’ve noticed that exterior door framing is one of those areas where small mistakes can cause long‑term problems. A rough opening that’s even half an inch off can lead to doors that stick, leak air, or refuse to seal correctly.

In residential construction, builders rely on standardized rough opening methods to avoid these issues. But those standards are not just about size—they also include structural framing, load transfer, and inspection requirements.

If you're trying to understand builder standards for exterior door rough openings, it helps to see how contractors actually approach framing on site. For readers trying to visualize the layout process, this guide on planning accurate residential layouts before framing beginsshows how professionals map door locations before construction even starts.

Below, I’ll break down the real framing practices contractors use, where DIY guides often oversimplify the process, and what inspectors actually look for when evaluating exterior door framing.

save pin

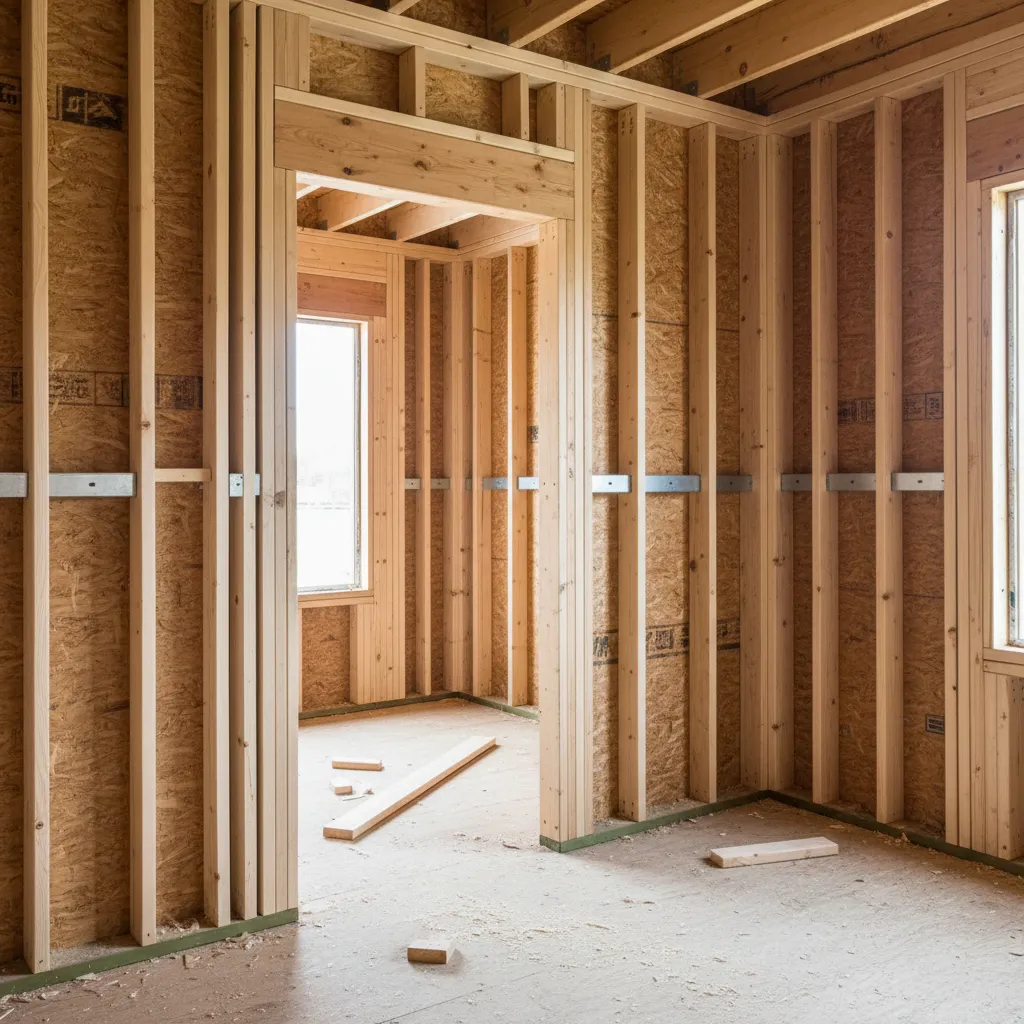

Standard Framing Practices for Exterior Door Openings

Key Insight: Builders frame exterior door openings using a structural stud system designed to transfer loads safely around the opening.

Many beginner guides treat a door opening as just a hole in the wall, but in real construction it's a load‑management system. When you remove studs to install a door, the structural load from above has to be redirected around the opening.

Typical framing components include:

1. King studs – full‑height studs running from bottom plate to top plate
2. Jack studs – shortened studs that support the header
3. Header – horizontal beam carrying loads across the opening
4. Cripple studs – small studs above the header restoring stud spacing

In most modern homes, headers are engineered lumber such as LVL or doubled dimensional lumber depending on span and wall load. According to the International Residential Code (IRC), header sizing depends on wall type and load conditions.

A common mistake I see in remodel projects is homeowners removing jack studs during alterations. That undermines the load path and can cause sagging above the door over time.

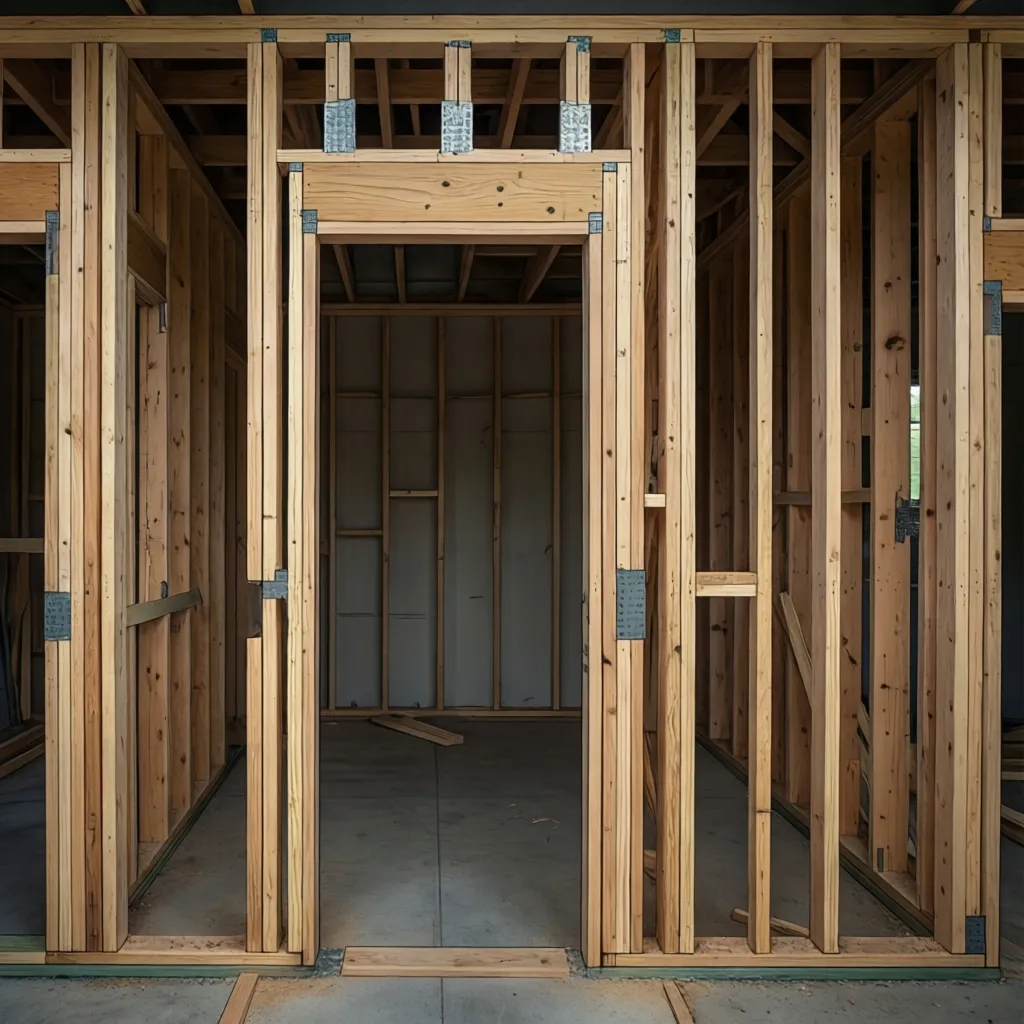

Header, Jack Stud, and King Stud Placement

Key Insight: Correct stud placement ensures loads are transferred vertically through the framing system instead of resting on the door frame.

In professional framing, the door unit itself should never carry structural weight. The framing assembly handles all loads.

Standard placement typically follows this layout:

1. Two king studs on either side of the opening
2. One jack stud under each end of the header
3. A structural header spanning the opening
4. Cripple studs spaced above the header

Framing crews often assemble these components on the floor before standing the wall upright. This keeps spacing accurate and speeds up construction.

In larger homes or multi‑story buildings, engineers may specify double jack studs or larger headers. That decision depends on load calculations rather than door size alone.

save pin

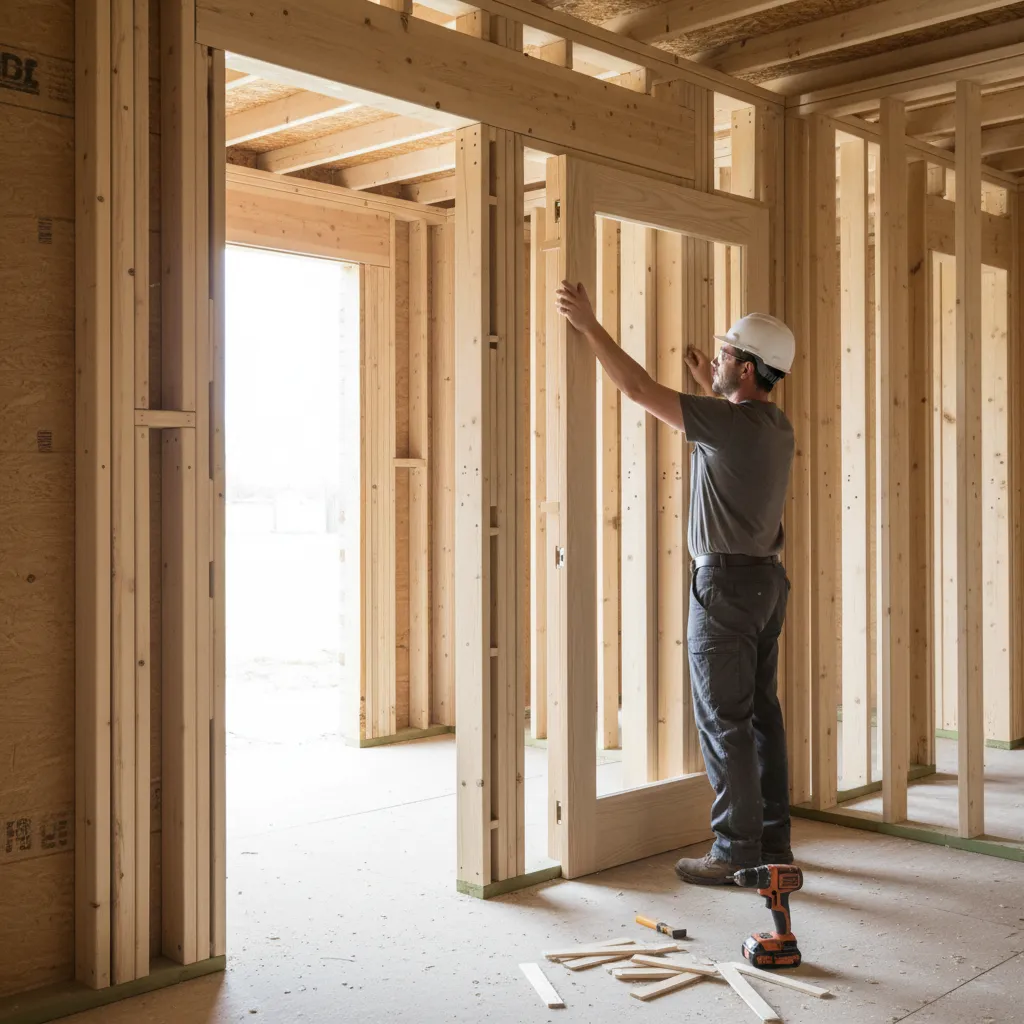

Rough Opening Standards Used by Builders

Key Insight: Rough openings are intentionally oversized to allow precise door installation and weather sealing.

One hidden detail most homeowners don't realize is that installers need space to adjust the door frame. That’s why the opening is larger than the door unit.

Typical contractor guidelines include:

1. 1/2 to 3/4 inch clearance on each side of the frame
2. Extra height for shimming and leveling
3. Sill space for flashing and waterproofing layers

The exact dimension depends on the door manufacturer. Builders always check installation specs before framing.

If you're comparing common exterior door dimensions and layout planning, this breakdown of visualizing door placement within a full house floor layoutshows how door clearances interact with circulation space.

Ignoring these tolerances is one of the most common framing mistakes I see in DIY installations.

save pin

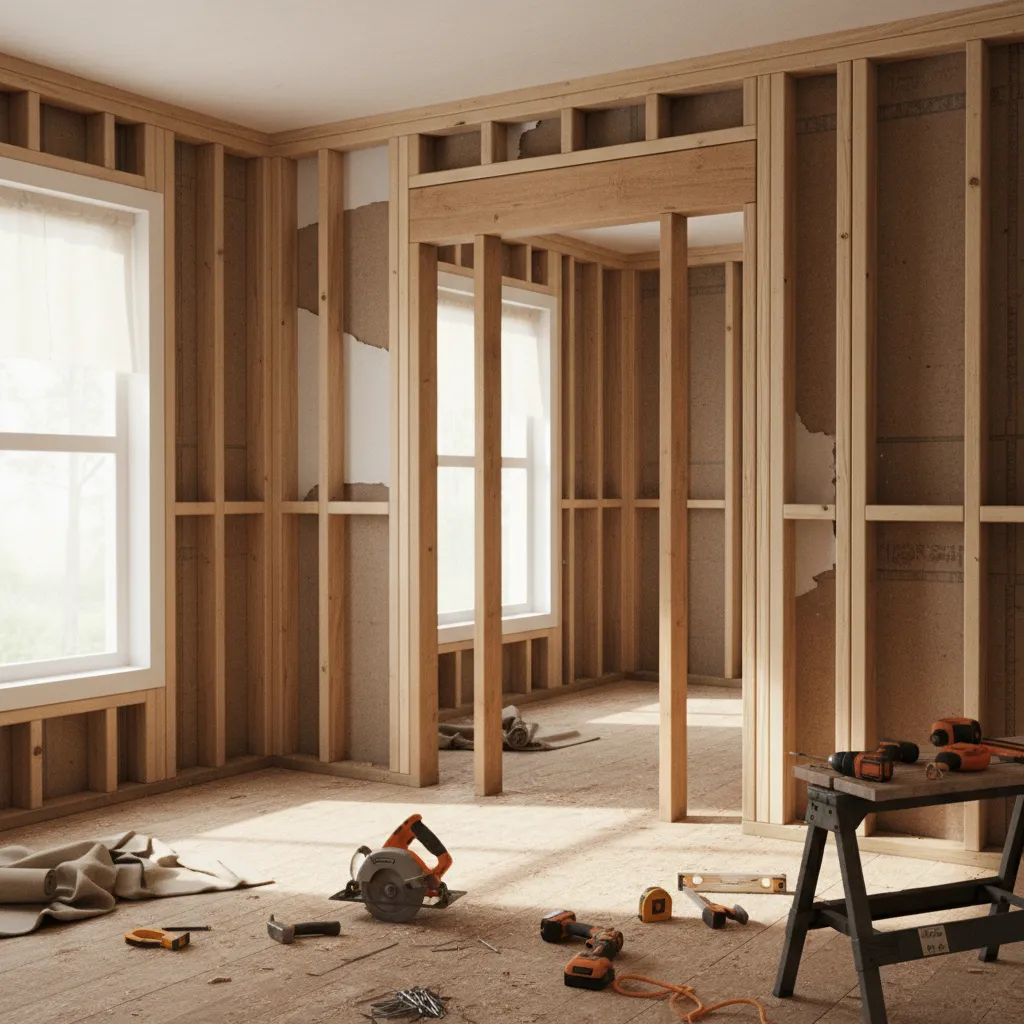

Differences Between Remodel and New Construction Framing

Key Insight: Remodeling projects often require structural adjustments because existing framing rarely matches modern door specifications.

In new construction, walls are framed specifically for the door unit being installed. Remodels are very different.

Typical remodel challenges include:

1. Non‑standard stud spacing
2. Older framing lumber sizes
3. Undersized headers
4. Walls that are no longer perfectly square

In houses built before the 1980s, it’s common to discover headers that were sized for interior doors but reused for exterior openings during renovations. That shortcut can violate modern structural requirements.

Contractors often reinforce these openings by adding new jack studs or installing engineered headers.

save pin

Building Code Considerations for Exterior Doors

Key Insight: Exterior door framing must meet structural load requirements and energy performance rules defined by local building codes.

The International Residential Code establishes baseline structural standards used across most U.S. jurisdictions.

Important code considerations include:

1. Minimum header sizing for load‑bearing walls
2. Proper structural load transfer
3. Weather‑resistant flashing at the door sill
4. Energy sealing around the frame

Many municipalities also require exterior doors to meet energy performance standards, especially in colder climates.

Answer Box

Professional builders frame exterior door openings using king studs, jack studs, and structural headers sized according to wall loads. The rough opening is larger than the door unit to allow shimming, alignment, and weatherproof installation while maintaining structural support.

Inspection Requirements for Door Framing

Key Insight: Inspectors focus primarily on structural support and proper load distribution rather than cosmetic installation details.

During framing inspections, officials typically check:

1. Header size and installation
2. Presence of jack studs
3. Stud spacing and structural continuity
4. Wall load classification

If a header is undersized or jack studs are missing, inspectors may require reframing before construction continues.

Understanding spatial planning early can prevent these issues. Many contractors now experiment with visualizing door and room layout decisions before framing begins to catch design conflicts earlier in the process.

Final Summary

1. Exterior door openings rely on king studs, jack studs, and headers for structural support.
2. Rough openings are intentionally larger than the door frame.
3. Header sizing depends on wall load conditions.
4. Remodel framing often requires structural reinforcement.
5. Building inspections focus on structural load transfer.

FAQ

What is a rough opening for an exterior door?

A rough opening is the framed space in a wall that allows a door unit to be installed. It includes structural studs and a header.

Why is the rough opening larger than the door?

Installers need room for shimming, leveling, and sealing. The extra space ensures the door frame can be aligned properly.

What studs support an exterior door opening?

King studs provide full‑height support while jack studs carry the header above the door.

Are headers required for exterior door framing?

Yes. Headers distribute structural loads around the opening and are required in load‑bearing walls.

Do building codes regulate exterior door framing?

Yes. Most U.S. jurisdictions follow the International Residential Code for structural framing standards.

Can you reuse an existing rough opening for a new door?

Sometimes, but remodels often require resizing the opening to match modern door units.

What are common exterior door framing mistakes?

Missing jack studs, undersized headers, and incorrect rough opening dimensions are common problems.

Do contractors follow manufacturer specifications?

Yes. Professional builders always check door manufacturer installation instructions before framing the opening.
