How Contractors Design Under-Deck Roof Systems to Avoid Structural Rot: Professional drainage, ventilation, and material strategies builders use to protect deck framing from moisture damage

Direct Answer

Contractors design under-deck roof systems to prevent structural rot by controlling water flow, maintaining airflow around joists, and selecting moisture‑resistant materials. The key is separating drainage layers from the structural framing so water is redirected away without trapping humidity against the wood.

Professional installations combine sloped drainage panels, ventilation gaps, and rot‑resistant materials to keep deck framing dry over the long term.

Quick Takeaways

1. Professional builders prioritize drainage slope before choosing ceiling finishes.
2. Airflow under the deck is critical to preventing trapped humidity and rot.
3. Hidden water channels are designed to keep joists from constant moisture contact.
4. Material selection often matters more than the drainage product itself.
5. Climate conditions heavily influence contractor design choices.

Introduction

Under‑deck roof systems can be incredibly useful. They turn the empty space beneath a deck into usable outdoor living space while protecting furniture and flooring from rain. But contractors know something many homeowners overlook: a poorly designed under‑deck system can accelerate structural rot.

I’ve worked with builders on renovation projects where decks were less than ten years old but already showing serious framing decay. In nearly every case, the issue wasn't the concept of an under‑deck roof—it was the installation details.

The difference between a system that lasts 25 years and one that causes structural problems usually comes down to drainage planning and airflow. Modern projects increasingly start with a digital layout process where designers map slopes and runoff paths before construction. You can see how layouts are typically visualized in a step‑by‑step deck and drainage layout planning example, which helps builders predict water movement before materials are installed.

In this article, I'll break down how professional contractors actually design under‑deck roof systems to protect structural framing. We'll look at water management strategies, code considerations, material choices, and the installation mistakes experienced builders deliberately avoid.

save pin

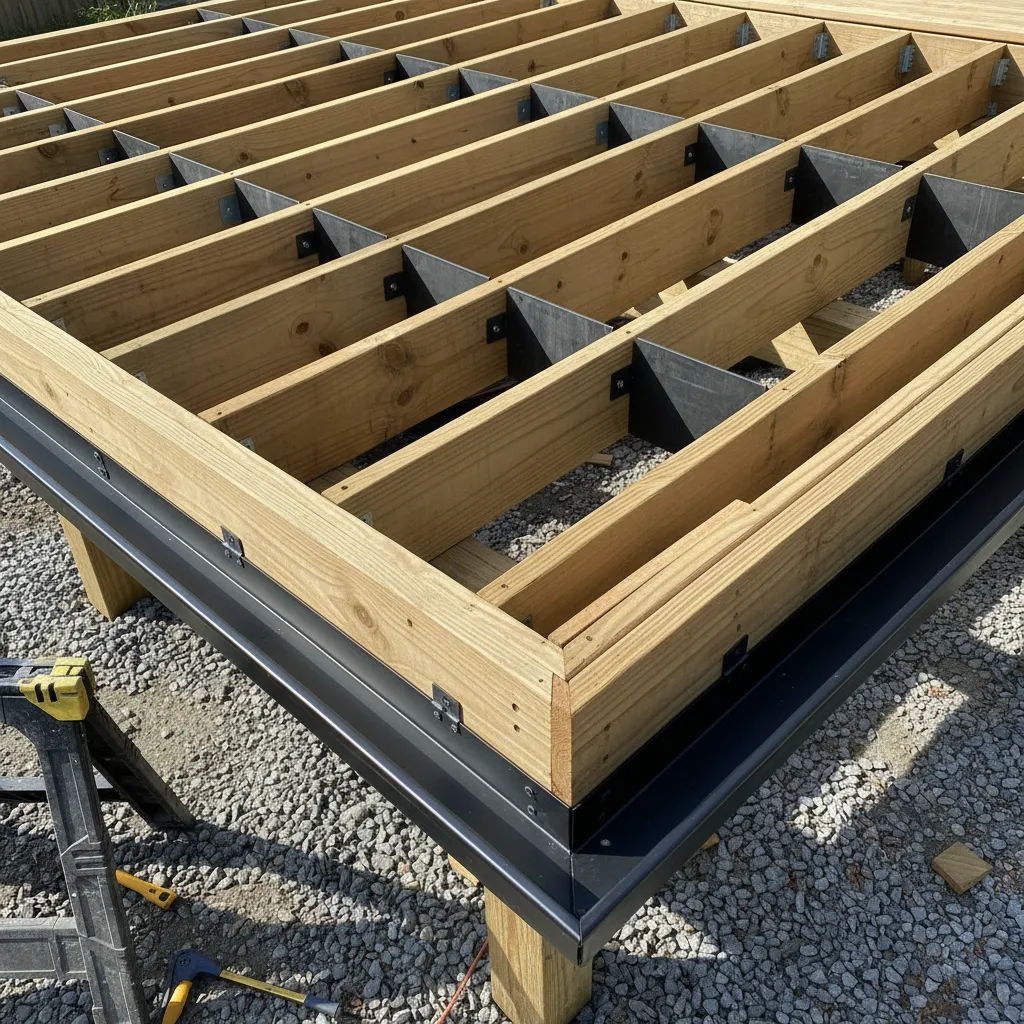

How Professional Builders Approach Under-Deck Water Management

Key Insight: Contractors design drainage paths first and decorative ceilings second.

Homeowners often think about the finished ceiling appearance under a deck, but builders start with water control. If water cannot move freely away from the structure, rot becomes inevitable.

Professional drainage planning usually includes three layers of protection:

1. Primary drainage slope – Panels or membranes angled away from the house.
2. Secondary water channels – Hidden gutters that collect runoff.
3. Edge discharge points – Downspouts or drains directing water away from foundations.

Most systems are designed with at least a 1/4 inch slope per foot. That small angle ensures rainwater moves continuously rather than pooling between joists.

In professional builds, contractors often simulate this slope during planning using digital deck layouts or spatial planning tools similar to a visual floor plan layout used for outdoor structure planning. This helps prevent common alignment mistakes that trap water.

Building Code Considerations for Deck Drainage Systems

Key Insight: Building codes focus more on structural safety and moisture exposure than the drainage system itself.

Most building codes in the U.S. don't specifically regulate under‑deck roof products. Instead, they regulate the framing conditions that affect structural durability.

Key code-related concerns include:

1. Pressure‑treated lumber requirements
2. Minimum joist spacing and load support
3. Fastener corrosion resistance
4. Drainage away from foundations

For example, the International Residential Code (IRC) requires that exterior structural lumber exposed to moisture be pressure treated or naturally decay resistant.

Contractors often exceed code requirements by adding flashing and waterproof membranes at ledger boards—one of the most common moisture failure points in deck construction.

Materials Contractors Use to Reduce Rot Risk

Key Insight: Rot prevention depends more on material combinations than on the drainage product itself.

Experienced contractors rarely rely on a single material to solve moisture problems. Instead, they combine protective layers that each handle a different part of the moisture cycle.

Typical material strategy:

1. Pressure‑treated joists for structural resistance to moisture
2. Aluminum or vinyl drainage panels to redirect rainwater
3. Flashing tape applied on top of joists
4. Exterior‑grade fasteners to prevent corrosion

A common hidden mistake is skipping joist tape. When water sits between decking boards, it often seeps directly into screw penetrations. Protective tape dramatically slows this process.

save pin

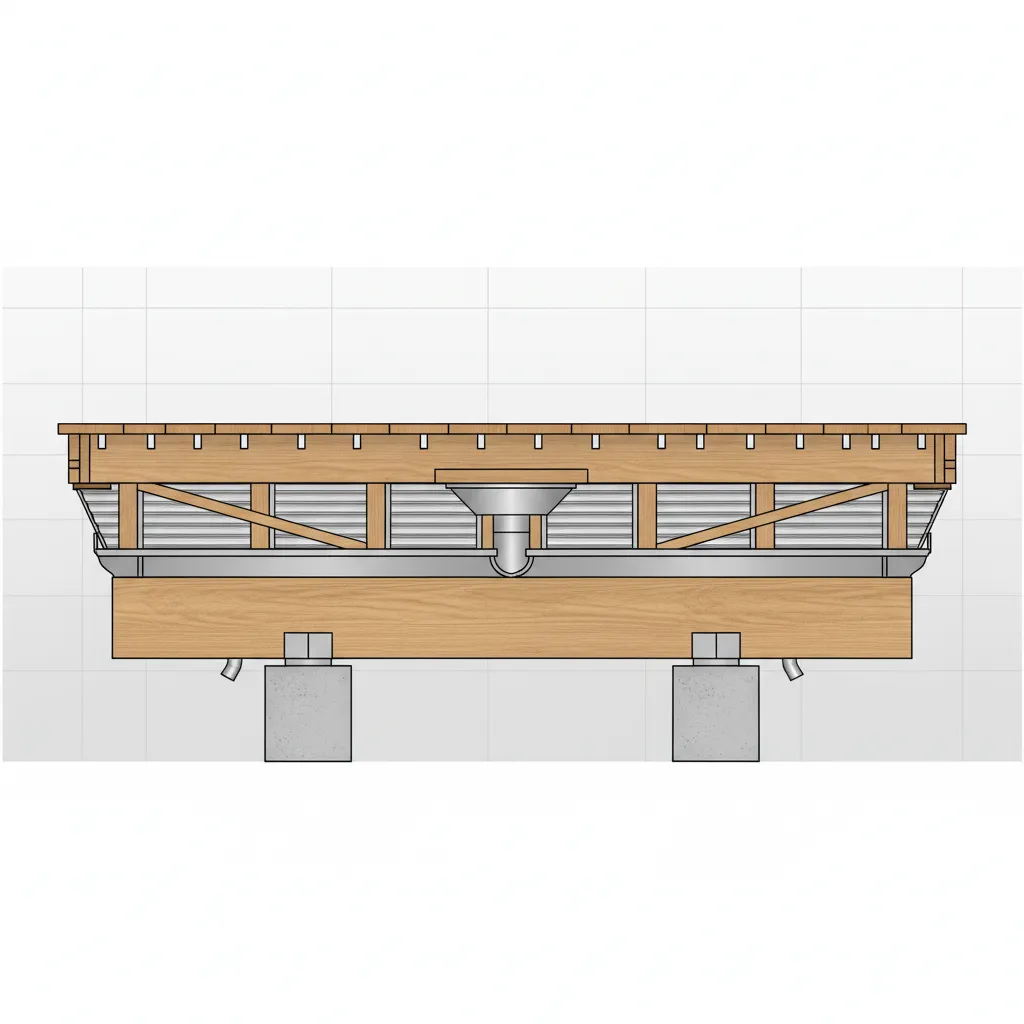

Ventilation and Drainage Planning in Professional Installations

Key Insight: Moisture trapped without airflow causes rot even when water drainage works correctly.

This is the detail most DIY installations miss.

Even when water is diverted away from the deck, humid air can accumulate inside enclosed ceiling systems. Over time, that humidity condenses on framing members and leads to fungal decay.

Professional installations usually include:

1. Vent gaps along perimeter edges
2. Soffit‑style vent panels
3. Open airflow paths between joists
4. Drainage outlets that allow air movement

Contractors often treat under‑deck ceilings the same way roof assemblies are designed: water control plus ventilation.

During design planning, airflow paths are sometimes visualized using layout models similar to an interactive room layout used to study structural spacing and clearance, which helps predict airflow obstructions before construction.

Common Installation Mistakes Contractors Avoid

Key Insight: Most rot problems come from small installation shortcuts rather than system design flaws.

After reviewing dozens of deck renovations, I’ve seen several repeat mistakes that experienced contractors rarely make.

Common failure points include:

1. Installing drainage panels flat without slope
2. Sealing the entire ceiling without ventilation
3. Attaching drainage systems directly to joists without protective tape
4. Failing to extend gutters beyond the deck perimeter
5. Using interior‑grade fasteners

One overlooked issue is maintenance access. Some under‑deck ceilings are installed so tightly that inspecting the joists later becomes impossible.

Answer Box

Professional under‑deck roof systems prevent structural rot by combining sloped drainage, protected framing materials, and consistent ventilation. Systems that redirect water but trap humid air still create long‑term rot risk.

How Climate Influences Professional Design Choices

Key Insight: The best under‑deck design depends heavily on local rainfall, humidity, and seasonal temperature changes.

Contractors in different climates use noticeably different approaches.

Examples:

1. Pacific Northwest – stronger emphasis on drainage slope and rot‑resistant lumber
2. Southeast U.S. – ventilation gaps prioritized due to humidity
3. Snow regions – systems designed to handle freeze‑thaw cycles
4. Dry climates – simpler drainage designs often perform well

Ignoring climate conditions is one of the biggest design mistakes homeowners make when copying online deck builds.

Final Summary

1. Contractors prioritize drainage slope before installing under‑deck ceilings.
2. Ventilation gaps are essential for preventing trapped moisture.
3. Material layers such as joist tape significantly extend deck lifespan.
4. Climate conditions influence drainage and airflow design.
5. Most structural rot issues come from installation shortcuts.

FAQ

Do under‑deck roof systems cause joist rot?

They can if installed incorrectly. Poor ventilation or trapped moisture may accelerate rot in deck framing.

How do contractors install under deck drainage systems?

Most professionals install sloped drainage panels or membranes between joists that guide water into gutters or downspouts.

What materials are best for preventing rot under a deck?

Pressure‑treated lumber, joist flashing tape, aluminum drainage panels, and corrosion‑resistant fasteners help reduce moisture damage.

Do under‑deck ceilings need ventilation?

Yes. Ventilation gaps allow humid air to escape and prevent condensation from forming on structural wood.

Is an under‑deck roof system worth installing?

When properly designed, it protects outdoor space below the deck and improves usability during rain.

How much slope should an under‑deck drainage system have?

Contractors typically use at least 1/4 inch of slope per foot to keep water flowing away from the structure.

Can DIY under‑deck systems match professional installations?

They can work, but DIY systems often miss ventilation planning and proper flashing details.

What is the biggest mistake with under‑deck roof systems?

Installing drainage panels without airflow gaps is one of the most common causes of hidden moisture damage.
