How Different 3D File Formats Affect Model Loading Performance: Understand how format structure, compression, and parsing impact real world 3D model loading speed and runtime memory use.

Direct Answer

Different 3D file formats affect model loading performance because their structure determines how quickly a runtime engine can parse geometry, textures, and metadata. Binary formats like glTF or FBX usually load faster than text formats such as OBJ because they require less parsing and allocate memory more efficiently. In real‑time applications, the file format can directly influence startup time, streaming performance, and overall memory usage.

Quick Takeaways

1. Binary 3D formats usually load faster because they reduce text parsing and memory conversions.
2. File structure determines deserialization cost, which directly impacts startup and runtime performance.
3. glTF is widely considered the most runtime‑efficient delivery format for modern engines.
4. Compression and streaming strategies often matter more than raw file size.
5. Choosing the wrong format can multiply loading time in large scenes.

Introduction

In performance‑sensitive projects, how different 3D file formats affect model loading performance becomes a very practical question. I have worked on residential visualization pipelines, real‑time demos, and web‑based scene viewers where a few seconds of extra loading time meant users abandoning the page entirely.

Many teams focus only on polygon count or texture resolution, but the file format itself can quietly become the biggest bottleneck. A poorly structured format forces the runtime to spend CPU time parsing text, rebuilding buffers, and allocating memory in inefficient patterns.

I first ran into this issue when optimizing a real‑time architectural walkthrough that loaded hundreds of furniture assets. The models themselves were lightweight, yet startup time was slow. The culprit turned out to be OBJ files that required expensive text parsing before they could become GPU‑ready meshes.

Modern pipelines increasingly rely on tools that automate spatial planning and asset visualization. If you want to see how structured model data improves workflow efficiency, explore how designers generate detailed spatial layouts from interactive 3D floor planning workflows. The same principles that speed up layout tools also influence asset loading performance.

In this guide, I will break down why some formats load dramatically faster, what hidden costs developers often overlook, and how to choose the right format for performance‑sensitive applications.

save pin

Overview of Popular 3D Model Formats

Key Insight: The most common 3D formats were designed for different purposes, and many were never optimized for real‑time loading.

When developers compare the fastest 3D model format for loading, they often evaluate formats that originated in completely different ecosystems. Some were built for interchange between modeling tools, while others were created specifically for runtime delivery.

Common formats used in production pipelines include:

1. OBJ – Simple text format widely supported but slow to parse.
2. FBX – Feature rich but complex, often requiring heavy processing.
3. glTF / GLB – Designed as a runtime delivery format for real‑time engines.
4. USD / USDZ – Increasingly used in large pipelines and AR workflows.
5. PLY – Often used in scanning and research contexts.

The Khronos Group describes glTF as the “JPEG of 3D,” specifically designed to transmit 3D scenes efficiently for runtime rendering. Unlike older formats, it separates buffers, textures, and scene graphs in a way that maps cleanly to GPU pipelines.

That design decision is one of the reasons glTF vs OBJ loading speed comparisons often show significant performance differences.

Binary Formats vs Text Formats in Runtime Performance

Key Insight: Binary formats typically load faster because they eliminate expensive string parsing and reduce memory transformations.

One of the biggest performance differences between formats is whether the data is stored as text or binary.

Text formats like OBJ store vertex data as strings:

1. Each number must be parsed from text.
2. Memory must be reallocated while reading.
3. Extra processing converts strings into floating point values.

Binary formats instead store raw numeric buffers that can be read directly into memory.

Performance comparison in practice:

1. OBJ parsing requires CPU heavy string processing.
2. Binary GLB can often be streamed directly to GPU buffers.
3. Binary layouts improve cache efficiency during loading.

Game engines such as Unreal Engine and Unity internally convert imported models into binary runtime formats for exactly this reason. Even if the source file is OBJ or FBX, the engine serializes optimized binary assets before shipping.

save pin

How Format Design Affects Deserialization Cost

Key Insight: File formats with deeply nested or loosely structured data dramatically increase deserialization time.

Loading a model is not just about reading the file. The runtime must rebuild a complete scene representation:

1. Vertex buffers
2. Index buffers
3. Material references
4. Texture bindings
5. Scene graph hierarchy

Formats differ in how directly this data maps to runtime structures.

For example:

1. OBJ stores geometry but lacks structured scene metadata.
2. FBX stores extensive metadata but requires heavy interpretation.
3. glTF mirrors modern GPU pipeline structures.

In practice, the more transformation required between file structure and runtime representation, the higher the deserialization cost.

This is why engines increasingly rely on preprocessed asset bundles. In visualization platforms where scenes contain hundreds of assets, optimized asset packaging dramatically reduces loading time. You can see similar optimization principles in systems that automatically generate interior scenes using AI assisted layout planning, where structured asset data enables faster rendering and interaction.

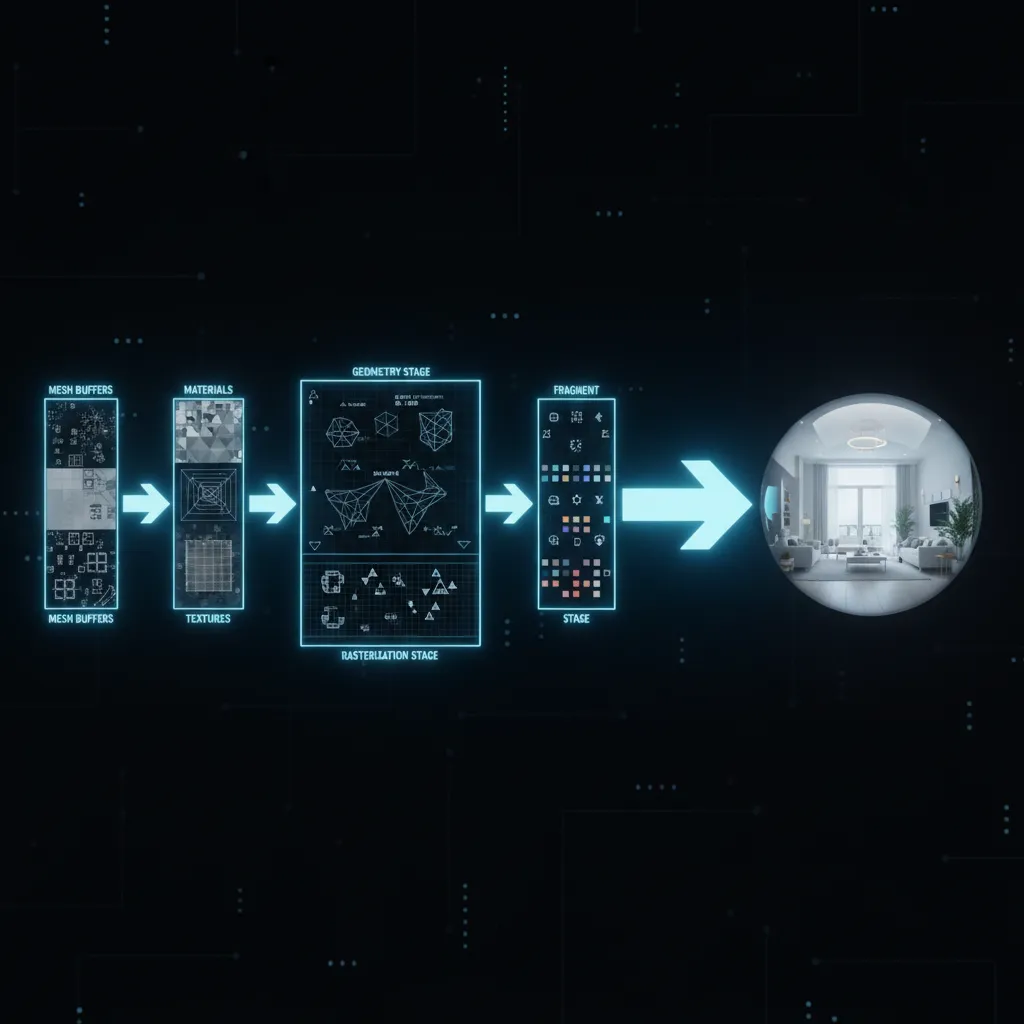

Optimizing Model Loading in Real Time Applications

Key Insight: The fastest format alone will not guarantee performance unless the entire loading pipeline is optimized.

Over the years I have seen teams switch file formats expecting dramatic improvements, only to find the loading time barely changed. The reason is simple: the format is only one part of the pipeline.

To reduce 3D model loading time, several optimizations work together:

1. Pre‑converted binary assets
2. Shared material libraries
3. GPU friendly vertex layouts
4. Texture atlases
5. Instancing for repeated geometry

Another overlooked issue is small file overhead. Hundreds of tiny assets can produce worse loading performance than a single combined asset bundle because each file triggers disk access and parsing.

save pin

Compression and Streaming Techniques for 3D Assets

Key Insight: Compression often reduces loading time more than smaller geometry because it lowers bandwidth and improves streaming behavior.

Modern 3D delivery pipelines rarely rely on raw file formats alone. Instead, they combine formats with compression systems designed for real‑time rendering.

Common optimization methods include:

1. Draco mesh compression
2. Meshopt compression
3. Texture compression such as KTX2
4. Progressive mesh streaming

The Khronos glTF ecosystem widely supports these techniques, which is why glTF has become a dominant format for web‑based viewers.

Streaming also matters in interactive environments. Large visualization platforms that deliver complete building scenes often stream geometry progressively rather than loading everything at startup. Systems that support workflows such as creating photorealistic home renderings from interactive 3D scenesdepend heavily on optimized streaming pipelines to keep navigation responsive.

save pin

Choosing the Right Format for Performance Sensitive Projects

Key Insight: The best format depends on your runtime environment, asset complexity, and delivery platform.

When selecting a format for performance‑sensitive applications, I usually evaluate three practical factors rather than just file size.

Key evaluation criteria:

1. Runtime parsing cost
2. Compatibility with rendering engines
3. Support for compression and streaming

Typical recommendations:

1. glTF / GLB – Best for web and real‑time delivery.
2. FBX – Strong for production pipelines but heavy for runtime.
3. OBJ – Useful for interoperability but inefficient for large scenes.
4. USD – Excellent for large collaborative pipelines.

Answer Box

The file format of a 3D model directly impacts loading speed because it determines parsing complexity, memory layout, and compatibility with GPU buffers. Binary formats like GLB typically load faster than text formats such as OBJ, especially in real‑time rendering environments.

Final Summary

1. Binary formats reduce parsing overhead and improve loading performance.
2. Format structure influences deserialization and memory allocation costs.
3. Compression and streaming strategies significantly reduce load times.
4. glTF is often the most efficient runtime delivery format.
5. Pipeline optimization matters more than file format alone.

FAQ

Which 3D file format loads the fastest?

Binary formats such as GLB typically load fastest because they avoid text parsing and map efficiently to GPU buffers.

Is glTF faster than OBJ for loading models?

Yes. In most engines glTF loads faster because it stores structured binary data instead of text vertex lists.

Why are text based 3D formats slower?

Text formats require converting strings into numbers during loading, which increases CPU processing and memory allocation overhead.

Does file size always determine loading speed?

No. Parsing complexity and memory layout often affect performance more than raw file size.

What is the best format for web based 3D viewers?

glTF or GLB is widely recommended because it supports compression, streaming, and GPU‑friendly data layouts.

How can I reduce 3D model loading time?

Use binary formats, compress meshes, combine small assets, and preprocess models into engine‑specific asset bundles.

Do game engines convert 3D formats internally?

Yes. Engines like Unity and Unreal convert imported models into optimized binary runtime formats.

Does compression affect 3D file format performance?

Yes. Techniques like Draco or Meshopt reduce bandwidth and improve streaming performance during loading.
