How Different Industries Modify 3D Models by Removing Components: Real professional workflows showing how engineers, designers, and medical teams edit 3D models by isolating or deleting parts before printing

Direct Answer

Industries modify 3D models by removing components to simplify prints, isolate functional parts, test prototypes, or customize designs for specific use cases. Engineers, designers, and medical professionals often delete unnecessary geometry from assemblies to improve printability, reduce material waste, and focus on critical structures.

In professional workflows, removing parts from a 3D model is rarely just cleanup—it is a strategic step in preparing models for manufacturing, prototyping, or analysis.

Quick Takeaways

1. Professionals remove components from 3D models to simplify assemblies before printing.
2. Product designers isolate parts to test form, fit, and mechanical relationships.
3. Medical teams customize anatomical models by deleting irrelevant structures.
4. Engineers reduce geometry complexity to accelerate prototyping cycles.
5. Makers and educators modify models to match specific learning or project goals.

Introduction

After working on dozens of residential visualization and product prototype projects that eventually moved into 3D printing, I realized something interesting: the original 3D model is almost never the one that actually gets printed. The production-ready version is usually edited, simplified, and refined first.

One of the most common adjustments professionals make is removing components from a 3D model. Assemblies often include screws, internal supports, decorative shells, or reference geometry that simply doesn't belong in a print file. Deleting those elements improves performance, reduces slicing errors, and shortens print times.

In many workflows, the preparation stage matters just as much as the modeling itself. If you're unfamiliar with the practical editing stage that happens before slicing, exploring a step‑by‑step workflow used to prepare models for fabrication and visualizationcan help clarify how professionals simplify complex geometry before production.

Across industries—from product design to dentistry—teams rely on mesh editing to isolate the parts that matter and remove everything else. Below are real-world examples of how different sectors approach this process.

save pin

Why Industries Modify 3D Models Before Printing

Key Insight: Most professional 3D printing failures originate from overly complex or unnecessary geometry inside the original model.

When models move from CAD or scanning software into printing pipelines, they often carry extra elements that are useful for design but problematic for fabrication. These include construction layers, internal hardware, decorative shells, or overlapping meshes.

Removing components before slicing solves several practical problems I see repeatedly across projects:

1. Reduces polygon counts and file size
2. Prevents mesh intersection errors
3. Improves slicing speed
4. Decreases print material usage
5. Allows focus on a specific functional part

Industry teams frequently perform these edits before sending models through simulation, visualization, or print preparation pipelines.

According to additive manufacturing guidelines published by NIST and ASTM committees, simplifying models before fabrication significantly reduces failure rates in rapid prototyping environments.

Product Design Workflows for Editing Assemblies

Key Insight: Product designers often isolate a single component from a full assembly to evaluate fit, ergonomics, or manufacturability.

In consumer product development, assemblies can contain dozens of components. But when testing prototypes, designers rarely print the entire structure. Instead, they isolate only the relevant parts.

Typical workflow used in product design studios:

1. Import full CAD assembly
2. Convert the target component to mesh
3. Delete surrounding hardware and reference bodies
4. Repair mesh surfaces
5. Export a simplified STL for slicing

I’ve seen teams print dozens of variations of a single handle, hinge, or enclosure section while ignoring the rest of the assembly entirely.

Another overlooked reason for removing parts is visualization. Designers often isolate a component so they can generate realistic renders or layout simulations using tools similar to a workflow that produces high‑quality 3D interior and product visualizations. Cleaner geometry produces cleaner renders.

save pin

Medical and Dental Model Customization

Key Insight: Medical teams remove anatomical structures from scan data to isolate exactly what needs to be studied or treated.

Medical 3D printing relies heavily on mesh editing. CT and MRI scans produce dense datasets that contain far more anatomical detail than necessary for a specific procedure.

For example:

1. Dental labs remove soft tissue from jaw scans
2. Orthopedic teams isolate bone structures
3. Surgeons extract tumor regions for planning models
4. Prosthetics designers remove surrounding anatomy

These edits transform raw medical scans into usable surgical planning tools.

Research published in the journal 3D Printing in Medicineshows that patient‑specific anatomical models can significantly improve surgical preparation accuracy when unnecessary anatomy is removed during the model preparation phase.

save pin

Answer Box

Across industries, removing components from 3D models helps professionals simplify geometry, isolate functional structures, and prepare files for reliable printing. Whether in product design, medicine, engineering, or education, model cleanup is a critical step before slicing or fabrication.

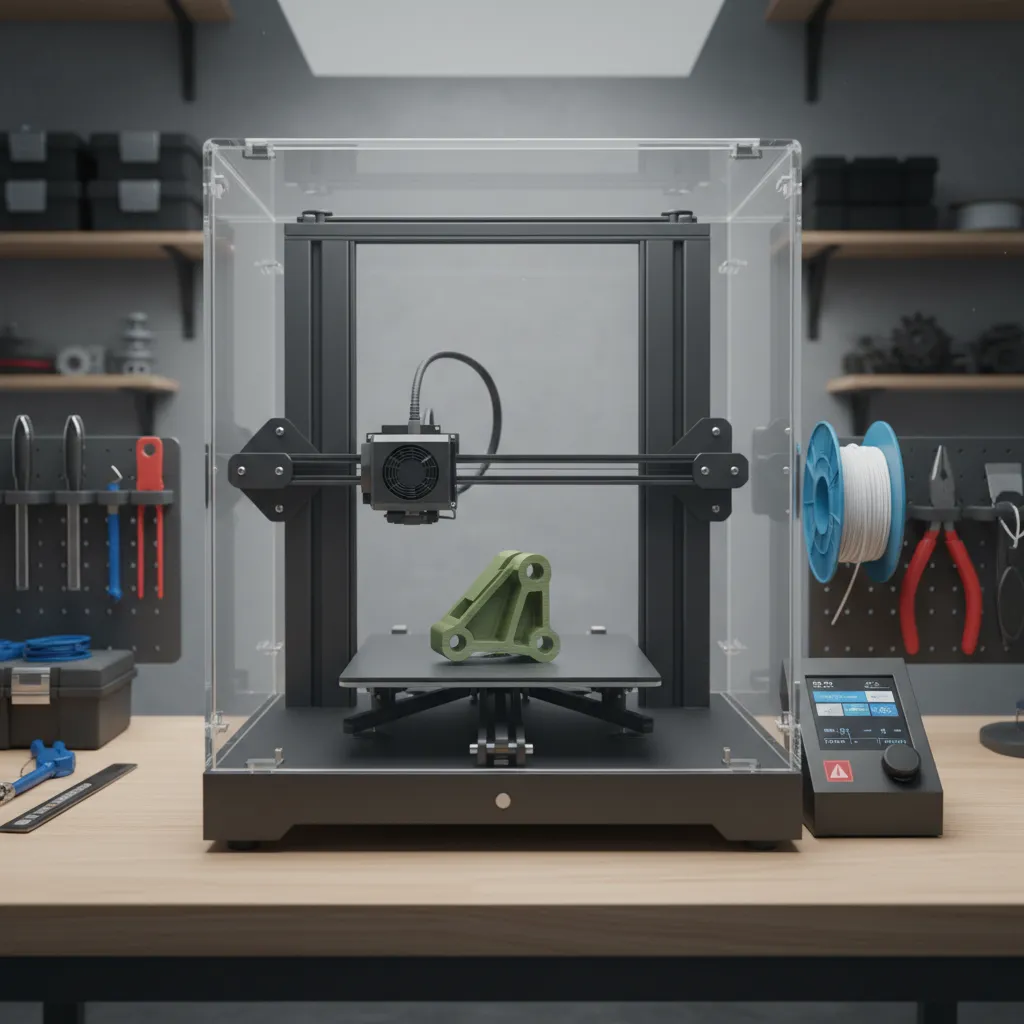

Engineering Prototyping and Component Isolation

Key Insight: Engineers remove components to test stress points and mechanical relationships without printing the full assembly.

Mechanical engineers frequently isolate small sections of large assemblies to run rapid prototyping cycles. Printing only the relevant area dramatically speeds up testing.

Common engineering scenarios include:

1. Testing gear teeth geometry
2. Evaluating hinge mechanisms
3. Printing structural brackets
4. Studying airflow channels

Instead of printing a full device housing, engineers extract just the mechanical interface where components interact.

This targeted prototyping approach reduces both time and cost during iterative design phases.

Education and Maker Community Use Cases

Key Insight: Makers often modify downloaded models by deleting unnecessary sections to fit their printer or project constraints.

In maker communities and classrooms, models rarely arrive perfectly suited for a specific printer or project.

Typical adjustments include:

1. Removing decorative shells
2. Splitting large models into printable sections
3. Deleting internal supports
4. Isolating mechanical components

Students and hobbyists frequently simplify models before printing to reduce material usage or shorten print times.

Many also combine editing with layout planning tools similar to a visual workspace used to organize and analyze 3D layouts, which helps them understand spatial relationships between components.

save pin

Lessons from Professional 3D Printing Pipelines

Key Insight: The biggest difference between hobby workflows and industrial pipelines is how aggressively professionals simplify models before production.

After observing several fabrication teams and service bureaus, I noticed a pattern: professionals treat model editing as a mandatory stage rather than an optional fix.

Professional preparation pipeline typically includes:

1. Geometry inspection
2. Component removal
3. Mesh repair
4. Scale and tolerance checks
5. Slicing simulation

The hidden mistake many beginners make is printing the entire assembly file directly. Professionals almost never do that.

Instead, they deliberately isolate only the parts required for testing or manufacturing.

Final Summary

1. Removing components is a core step in professional 3D printing workflows.
2. Designers isolate parts to evaluate functionality and ergonomics.
3. Medical teams customize scan data by deleting irrelevant anatomy.
4. Engineers prototype individual components instead of full assemblies.
5. Simplified models dramatically improve printing reliability.

FAQ

Why do professionals remove parts from 3D models before printing?

Removing parts simplifies geometry, prevents slicing errors, and focuses printing on functional components. This improves reliability and reduces material usage.

How do engineers modify STL models?

Engineers modify STL models by isolating components, repairing mesh surfaces, and removing unnecessary geometry before slicing.

Can you edit a 3D assembly for printing?

Yes. Assemblies are commonly simplified by deleting fasteners, internal structures, or unused parts before exporting the final print file.

Why are medical 3D models edited before printing?

Medical teams remove surrounding anatomy from scan data so surgeons can focus on the specific structure being studied or treated.

What is component isolation in 3D printing?

Component isolation means extracting a single functional part from a larger assembly to analyze, prototype, or print it independently.

Do makers edit downloaded STL files?

Yes. Makers frequently remove decorative elements, resize models, or split objects to fit smaller printers.

What tools are used for professional mesh editing before 3D printing?

Common tools include Meshmixer, Blender, and specialized mesh repair software used to prepare files for slicing.

Is removing components from 3D assemblies common in industry workflow for preparing 3D print models?

Yes. Removing components from 3D assemblies is a standard step in the industry workflow for preparing 3D print models.
