How Different Lighting Technologies Produce Lumens: Understand how LED, incandescent, and fluorescent lighting convert energy into visible brightness and why efficiency varies dramatically.

Direct Answer

Different lighting technologies produce lumens by converting electrical energy into visible light through different physical processes. Incandescent bulbs create light by heating a filament, fluorescent lamps excite gas to produce ultraviolet light that becomes visible light, and LEDs generate light through semiconductor electroluminescence. Because these mechanisms waste different amounts of energy as heat, their lumen efficiency varies dramatically.

Quick Takeaways

1. LED lighting produces the most lumens per watt because it converts electricity directly into photons with minimal heat loss.
2. Incandescent bulbs generate light by heating a filament, which wastes most energy as heat rather than light.
3. Fluorescent lamps use gas excitation and phosphor coatings to convert UV radiation into visible light.
4. Luminous efficacy determines how efficiently a lighting technology converts energy into lumens.
5. Modern LED fixtures can produce over five times more lumens per watt than traditional incandescent bulbs.

Introduction

Clients often ask me a simple question during lighting consultations: why do two bulbs with similar wattage produce completely different brightness levels? The answer almost always comes down to how different lighting technologies produce lumens.

After working on residential and commercial interiors for more than a decade, I've seen firsthand how misunderstood this topic is. Many homeowners still associate brightness with wattage, even though wattage only measures energy consumption. What actually determines brightness is the amount of visible light a source emits, measured in lumens.

This difference becomes obvious when comparing LED, incandescent, and fluorescent lighting. Each technology creates light using a completely different physical process, which means they produce lumens with dramatically different efficiency.

When we plan lighting for kitchens, offices, or living rooms, we often test brightness levels using realistic room simulations. A helpful way to visualize this is through interactive lighting render previews that show how brightness affects an entire space, because lumen output alone doesn't always tell the full story.

In this guide I'll break down exactly how each major lighting technology generates lumens, why efficiency varies so much, and what most product comparisons overlook.

save pin

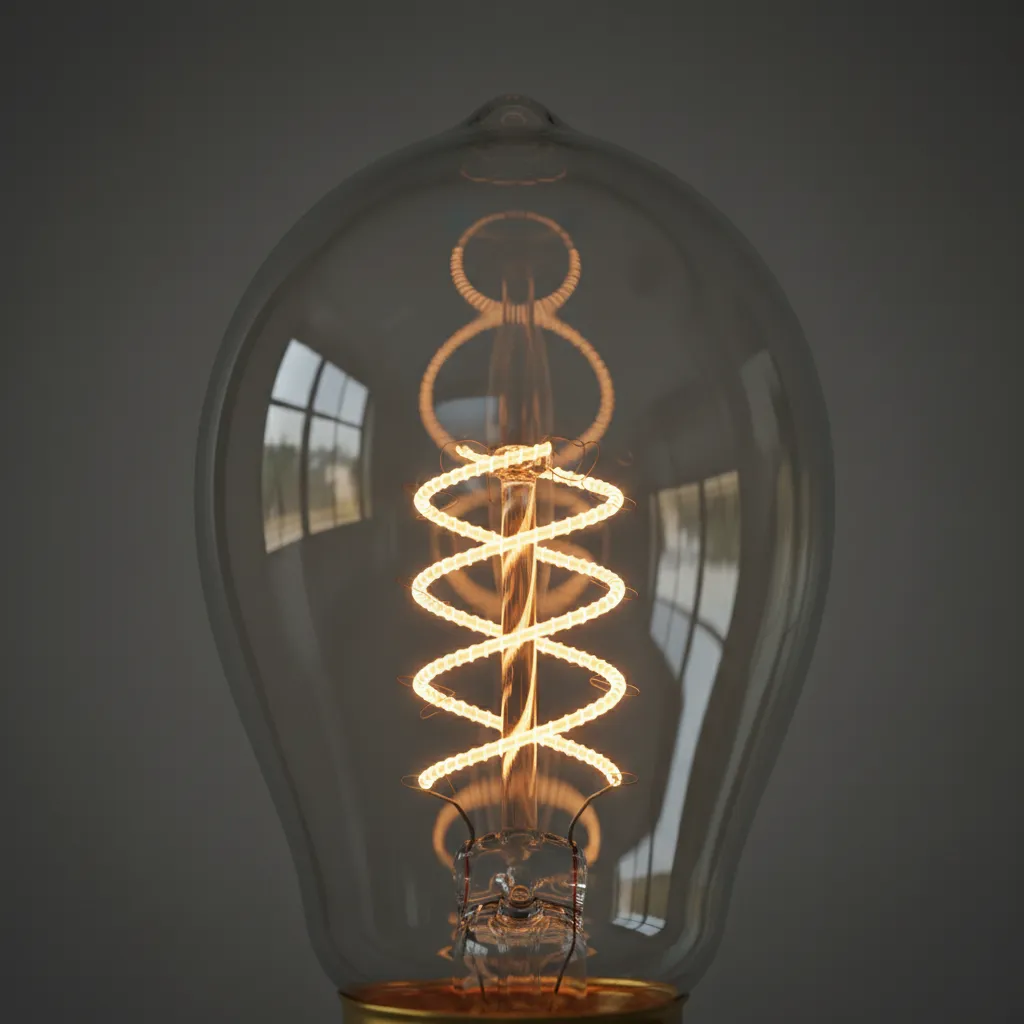

How Incandescent Bulbs Produce Light

Key Insight: Incandescent bulbs produce lumens by heating a tungsten filament until it glows, but most of the energy becomes heat instead of visible light.

The incandescent bulb is the oldest electric lighting technology still widely recognized. Inside the bulb, electrical current flows through a thin tungsten filament. As resistance builds, the filament heats to roughly 2,700–3,000 Kelvin and begins glowing.

This glowing filament produces visible light—but it also produces a huge amount of heat.

From an engineering perspective, this process is extremely inefficient.

1. Only about 5–10% of energy becomes visible light
2. About 90% becomes heat
3. Typical luminous efficacy: 10–17 lumens per watt

In older homes I renovate, incandescent fixtures often make rooms feel warmer because the bulbs literally act like miniature heaters. That's why switching to LEDs can noticeably reduce room temperature in smaller enclosed spaces.

Despite the inefficiency, incandescent lighting still has one advantage: continuous light spectrum. Designers sometimes use them for photography or vintage-style fixtures where warm color quality matters more than efficiency.

How LED Technology Generates Lumens

Key Insight: LEDs produce lumens through semiconductor electroluminescence, converting electrical energy directly into photons with minimal heat loss.

LED stands for Light Emitting Diode. Instead of heating a filament, LEDs use a semiconductor material that emits light when electrons move through it.

This process is called electroluminescence.

When electricity passes through the diode junction, electrons release energy in the form of photons. Those photons are the visible light we measure in lumens.

Compared with older lighting technologies, this method is dramatically more efficient.

1. Typical efficacy: 80–120 lumens per watt
2. High-performance LEDs exceed 150 lumens per watt
3. Very little energy wasted as heat

In practical design work, this efficiency gives us far more flexibility. For example, under-cabinet lighting in kitchens used to require careful ventilation because incandescent or halogen bulbs generated heat. Modern LED strips can deliver more brightness while staying cool.

If you're planning a layout that balances lighting and furniture placement, visualizing the lighting zones alongside the floor plan helps avoid uneven illumination. Many designers now test layouts using interactive floor layout planning that previews lighting coveragebefore installing fixtures.

save pin

Fluorescent Lighting and Lumen Efficiency

Key Insight: Fluorescent lights produce lumens by exciting mercury vapor to generate ultraviolet light, which phosphor coatings convert into visible light.

Fluorescent lighting sits between incandescent and LED technology in terms of efficiency.

Inside a fluorescent tube, electricity excites mercury vapor. This produces ultraviolet radiation rather than visible light. A phosphor coating on the inside of the tube then converts that UV radiation into visible light.

This two-step process is much more efficient than heating a filament.

1. Typical efficacy: 50–100 lumens per watt
2. Lower heat output than incandescent bulbs
3. Common in offices and commercial buildings

However, fluorescent lighting has some drawbacks that designers frequently encounter:

1. Color rendering can feel harsh or unnatural
2. Bulbs degrade faster when switched on and off frequently
3. Contains small amounts of mercury

Because of these limitations, many offices and schools have gradually transitioned to LED lighting systems.

save pin

Answer Box

Lighting technologies produce lumens using fundamentally different physical processes. Incandescent bulbs create light through heat, fluorescent lamps convert ultraviolet radiation to visible light, and LEDs generate photons directly through semiconductors. Because LEDs avoid large heat losses, they achieve the highest lumen efficiency.

Comparing Luminous Efficacy Across Technologies

Key Insight: Luminous efficacy reveals why newer lighting technologies produce far more lumens with less electricity.

Luminous efficacy measures how efficiently a lighting technology converts electrical power into visible light.

Here is a simplified comparison used frequently in lighting design planning:

1. Incandescent: 10–17 lumens per watt
2. Halogen: 15–25 lumens per watt
3. Fluorescent: 50–100 lumens per watt
4. LED: 80–150+ lumens per watt

In other words, a modern LED bulb can produce the same brightness as an incandescent bulb while using about one sixth of the electricity.

This efficiency difference becomes extremely important when lighting entire homes or offices, where dozens of fixtures operate simultaneously.

Why LEDs Deliver More Lumens per Watt

Key Insight: LEDs are more efficient because they avoid the heat-based energy loss that dominates older lighting technologies.

The biggest hidden factor in lighting efficiency is thermal waste.

Traditional bulbs rely on heat as part of the light production process. LEDs do not.

Three design advantages make LEDs dramatically more efficient:

1. Direct photon generation rather than heat radiation
2. Highly directional light output
3. Minimal energy lost as infrared radiation

That directional light is especially useful in interior design. Instead of lighting bouncing randomly around a room, LEDs can be aimed precisely at surfaces, which increases perceived brightness without increasing energy use.

save pin

Future Trends in High Efficiency Lighting

Key Insight: Next-generation lighting technologies aim to push lumen efficiency even higher while improving light quality.

The lighting industry is currently focusing on several emerging technologies.

1. Micro-LED displays and architectural lighting
2. Organic LED (OLED) panel lighting
3. Smart adaptive lighting systems
4. Ultra-high efficacy LEDs exceeding 200 lumens per watt

Another trend is integrating lighting design earlier in the spatial planning stage. Instead of adding fixtures after construction, designers now evaluate illumination while shaping the entire interior layout.

That approach is easier today thanks to AI-assisted interior visualization that predicts lighting distribution in real rooms, which allows designers to optimize lumen levels before any installation begins.

Final Summary

1. Incandescent bulbs generate lumens through heat-based filament glow.
2. Fluorescent lamps convert ultraviolet radiation into visible light.
3. LEDs produce light directly through semiconductor electroluminescence.
4. Luminous efficacy explains why LEDs deliver far more lumens per watt.
5. Future lighting technologies aim to increase efficiency and lighting control.

FAQ

Do LED bulbs produce more lumens than incandescent bulbs?

Yes. LEDs typically produce 80–150 lumens per watt, while incandescent bulbs produce about 10–17 lumens per watt.

Why are LEDs more efficient at producing lumens?

LEDs convert electricity directly into photons through semiconductor electroluminescence, avoiding the large heat losses seen in incandescent lighting.

Which bulb produces the most lumens?

High‑efficiency LED bulbs generally produce the highest lumen output relative to their energy use.

What is luminous efficacy?

Luminous efficacy measures how efficiently a light source converts electricity into visible light, expressed in lumens per watt.

Are fluorescent lights still efficient?

Yes, but they are less efficient than modern LEDs and are gradually being replaced in many buildings.

How do LED lights produce lumens?

LED lights produce lumens when electrons pass through a semiconductor diode and release energy as photons.

Does higher wattage mean more lumens?

Not necessarily. Wattage measures energy consumption, while lumens measure visible brightness.

Which lighting technology lasts the longest?

LED lighting typically lasts 15,000–50,000 hours, far longer than incandescent or fluorescent bulbs.
