How Dual-Filament Bulbs Work in Combined Tail and Brake Light Systems: A practical breakdown of how one automotive bulb creates two brightness levels for tail lights and brake lights.

Direct Answer

A dual‑filament bulb contains two separate filaments inside the same glass bulb, each connected to a different electrical circuit. One filament produces a dim glow for the tail light, while the other generates a brighter light when the brake pedal is pressed. Because both filaments share the same bulb housing, one bulb can perform two functions.

Quick Takeaways

1. Dual‑filament bulbs contain two independent filaments connected to separate circuits.
2. The dim filament powers the tail light; the brighter filament activates when braking.
3. Both filaments share a common ground but receive power from different inputs.
4. The classic 1157 bulb is the most common dual‑filament design used in vehicles.
5. This design reduces hardware complexity but has limitations compared to modern LED systems.

Introduction

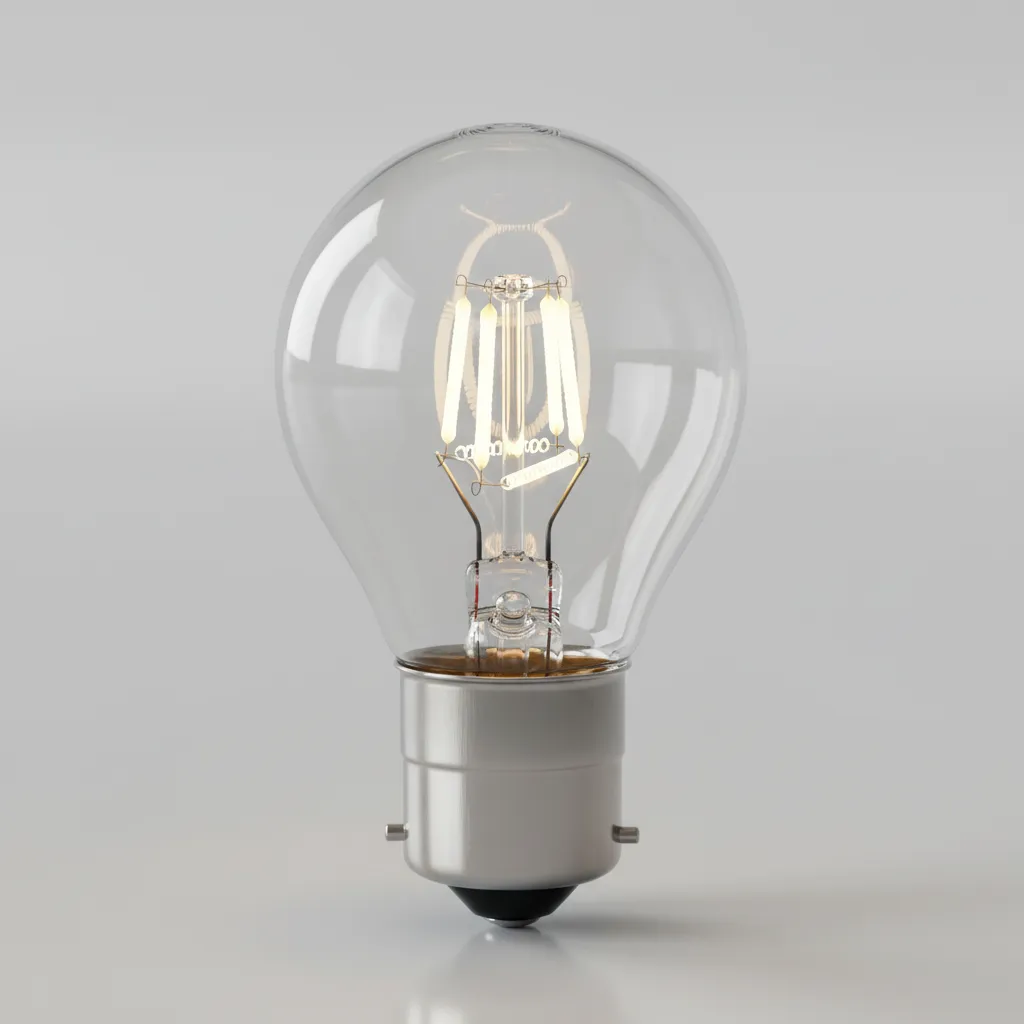

Many drivers are surprised when they learn that a single bulb can act as both a tail light and a brake light. The secret is the dual filament bulb tail brake light design used in millions of vehicles for decades. I first started paying attention to this when working with automotive lighting layouts during garage remodel projects for car collectors. When owners replaced fixtures or upgraded rear lighting systems, they often asked why one bulb suddenly stopped handling both functions.

Understanding how a dual‑filament system works makes troubleshooting much easier. In older cars especially, one filament burning out can make the brake light fail while the tail light still works—or the other way around.

If you're planning lighting upgrades or exploring how digital tools visualize lighting layouts in garages or workshops, it's also useful to see how lighting placement interacts with space planning. I often show clients examples using a visual 3D layout tool for planning lighting and garage layoutsso electrical placement aligns with real vehicle lighting positions.

In this guide, I’ll break down the electrical principle behind dual‑filament bulbs, how the wiring works, and why the design became an industry standard.

save pin

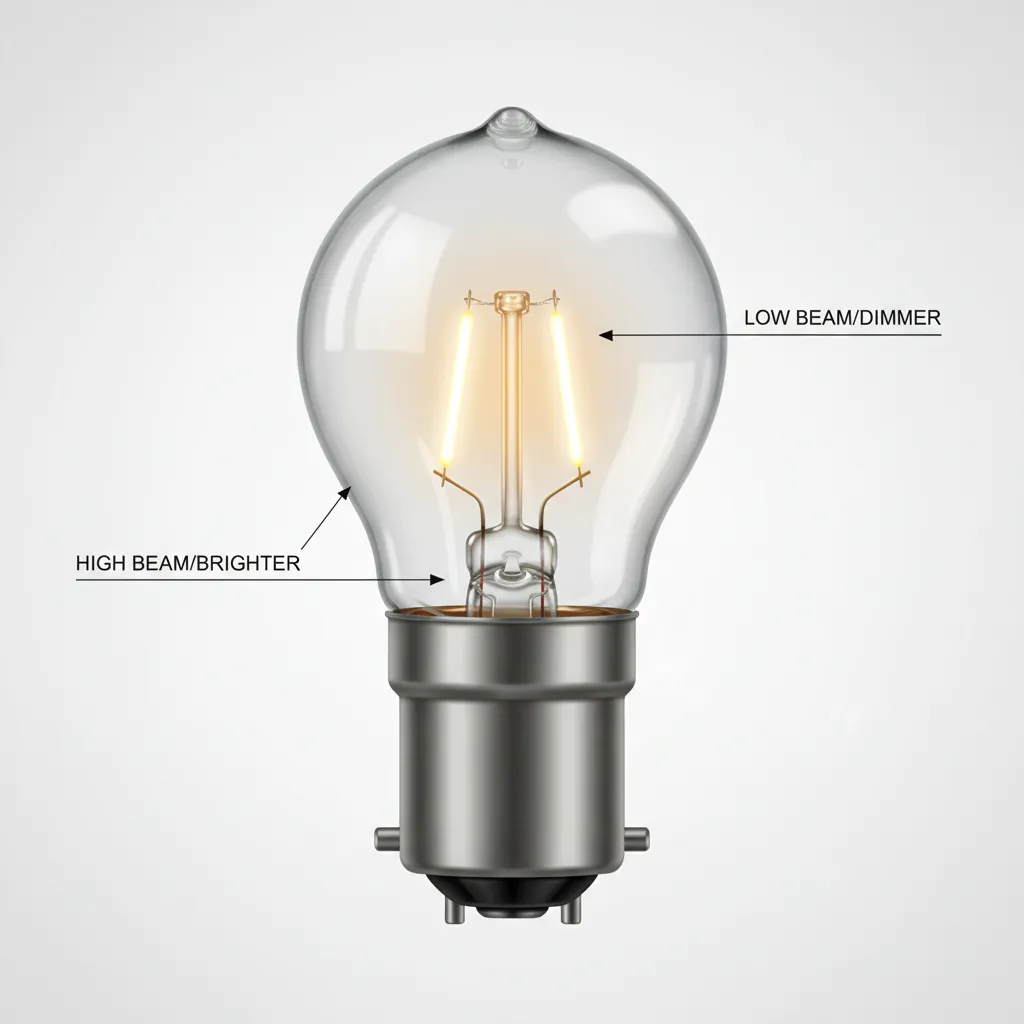

What Is a Dual-Filament Automotive Bulb

Key Insight: A dual‑filament automotive bulb is essentially two separate light sources sealed inside one bulb housing.

Each filament inside the bulb has its own electrical contact and resistance level. Because the two filaments are independent, they can be powered separately while sharing the same ground and glass enclosure.

This clever design allowed manufacturers to simplify rear lighting assemblies in the 1950s and 1960s when combined tail and brake lights became common.

Basic structure of a dual‑filament bulb:

1. Two tungsten filaments
2. Three electrical contacts (tail, brake, ground)
3. One shared bulb envelope
4. Offset pins to ensure correct socket installation

The two filaments are designed with different resistance values. The tail‑light filament draws less current and produces lower brightness, while the brake filament draws more current for stronger illumination.

The well‑known 1157 bulb dual filament explanation usually cited in repair manuals refers to this exact configuration.

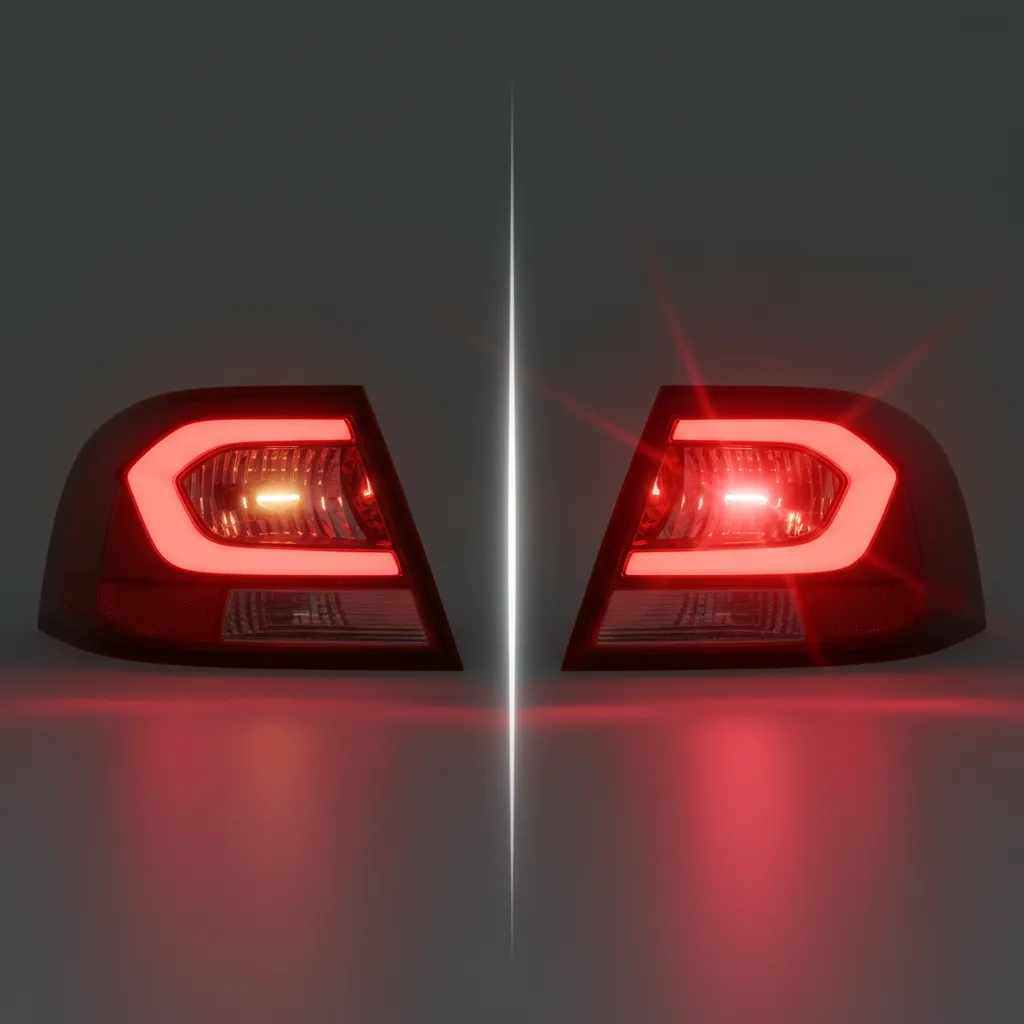

How One Bulb Produces Two Different Brightness Levels

Key Insight: Brightness differences come from two filaments with different power ratings.

Inside the bulb, the tail‑light filament typically operates around 5 watts, while the brake‑light filament operates around 21 watts. That four‑times difference in power creates the dramatic brightness change drivers rely on for safety.

Typical brightness configuration:

1. Tail light filament: about 5W
2. Brake light filament: about 21W
3. Shared ground connection
4. Independent power circuits

When the vehicle’s headlights are on, the low‑power filament glows continuously. When the brake pedal is pressed, the higher‑power filament activates instantly, producing the bright signal seen by drivers behind you.

This simple electrical approach helped standardize the combined tail brake light bulb designacross most North American vehicles.

save pin

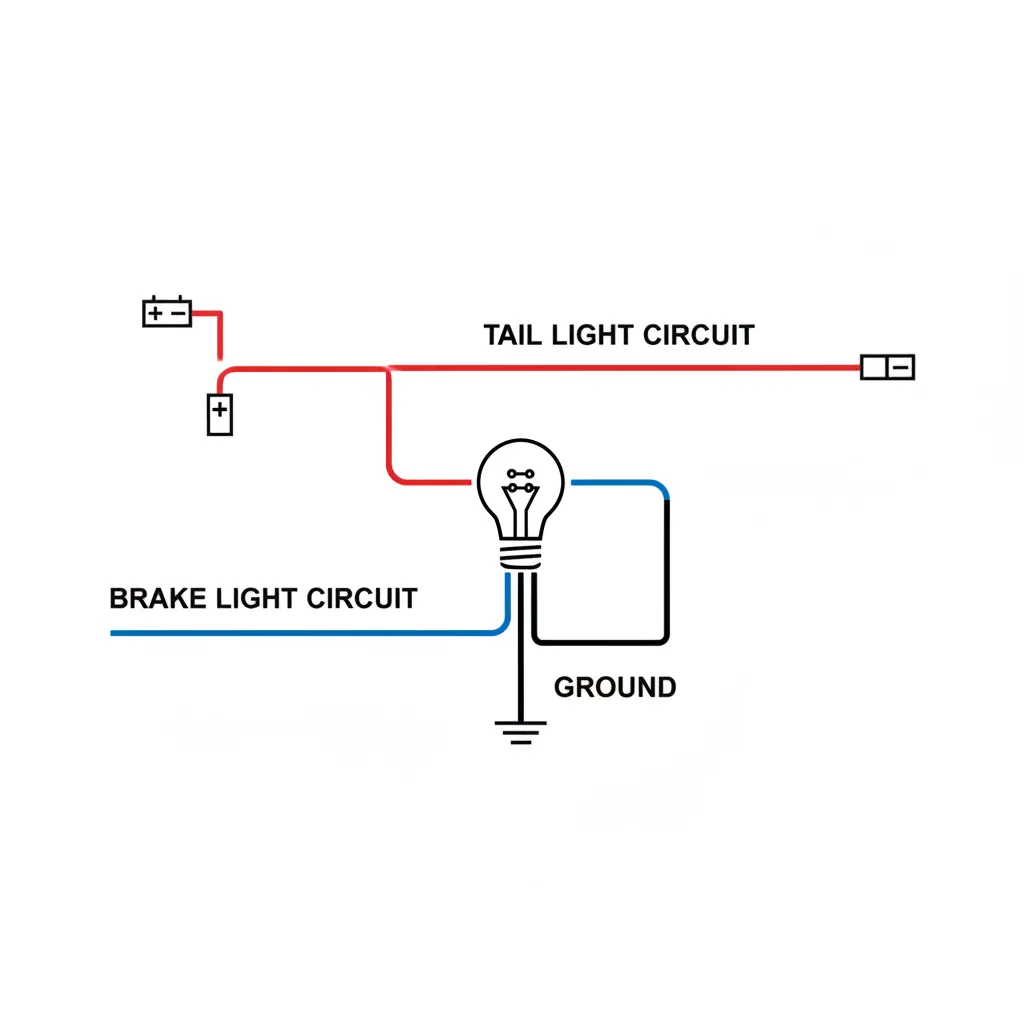

Typical Wiring Layout for Combined Tail and Brake Lights

Key Insight: Dual‑function bulbs rely on two power inputs and a shared ground.

In most vehicles, the socket for a dual‑filament bulb has three contacts. These correspond to the two circuits that control each filament plus a ground connection.

Typical wiring layout:

1. Ground wire connected to the bulb base
2. Tail light wire connected to the low‑power filament
3. Brake light wire connected to the high‑power filament

The wiring path usually looks like this:

1. Headlight switch powers the tail‑light circuit
2. Brake pedal switch powers the brake‑light circuit
3. Both circuits connect to separate contacts inside the bulb socket

This separation ensures the brake lights still function even when the headlights are turned off.

Interestingly, when designers visualize garage electrical planning or vehicle display areas, lighting circuits often follow a similar separation principle. Tools used for planning lighting layouts inside custom garage floor plans help illustrate how independent circuits simplify maintenance and troubleshooting.

How the Brake Pedal Switch Activates the Brighter Filament

Key Insight: A simple mechanical switch at the brake pedal completes the high‑brightness circuit.

The brake pedal switch is one of the simplest components in the entire vehicle lighting system. Yet it plays a critical role in activating the brighter filament.

How it works step‑by‑step:

1. The brake pedal is pressed.
2. The pedal arm closes the brake light switch.
3. Battery voltage flows to the brake‑light circuit.
4. Power reaches the high‑wattage filament.
5. The brighter filament illuminates instantly.

This system responds in milliseconds, which is essential for road safety. According to traffic safety studies from the U.S. Department of Transportation, even small delays in brake signal visibility increase rear‑end collision risk.

That’s one reason many modern vehicles have moved toward LED brake lights—they illuminate slightly faster than incandescent filaments.

save pin

Common Bulb Types Used for Dual-Function Rear Lights

Key Insight: The 1157 bulb became the industry standard for combined tail and brake lighting.

While many bulb models exist, only a few dominate dual‑filament automotive lighting.

Common dual‑filament bulb types:

1. 1157 – most common North American brake/tail bulb
2. 2057 – similar to 1157 with longer lifespan
3. 2357 – brighter alternative for some vehicles
4. P21/5W – European equivalent widely used in EU cars

These bulbs all follow the same electrical principle: two filaments, two brightness levels, one housing.

However, one overlooked issue I often see in classic car restorations is mismatched replacements. Installing the wrong bulb type can reverse brightness levels or cause poor contact inside the socket.

Advantages and Limitations of Dual-Filament Designs

Key Insight: Dual‑filament bulbs simplify hardware but create maintenance trade‑offs.

This design became popular because it reduces the number of bulbs and simplifies tail‑lamp assemblies. But it’s not perfect.

Main advantages:

1. Fewer bulbs required
2. Simpler lamp housing design
3. Lower manufacturing cost
4. Easy replacement

Limitations:

1. Heat buildup from two filaments
2. Higher failure probability over time
3. Limited brightness compared to LEDs
4. Shared housing means one failure can confuse diagnostics

This is why newer vehicles increasingly switch to LED modules where tail and brake lights are controlled electronically rather than mechanically.

Answer Box

A dual‑filament bulb works by placing two independent filaments inside one bulb. The low‑power filament produces tail‑light brightness, while the high‑power filament activates when the brake pedal switch sends power to the brake circuit.

Final Summary

1. Dual‑filament bulbs contain two separate filaments inside one bulb.
2. Tail lights use a low‑power filament; brake lights use a high‑power filament.
3. Both circuits share a ground but receive independent power.
4. The 1157 bulb remains the most widely used dual‑function automotive bulb.
5. Modern vehicles increasingly replace filament bulbs with LED systems.

If you're planning lighting layouts for garages, workshops, or vehicle display areas, tools that simulate lighting placement—like a room layout planner for organizing lighting and workspace zones—can help visualize how functional lighting interacts with vehicle lighting systems.

FAQ

1. What is a dual filament bulb tail brake light?

A dual filament bulb contains two filaments inside one bulb. One powers the tail light, and the other powers the brake light.

2. How does one bulb work as tail and brake light?

Two separate electrical circuits power two different filaments inside the bulb. Each filament produces a different brightness level.

3. What is an 1157 bulb?

The 1157 is a common automotive dual‑filament bulb used for combined brake and tail lights in many vehicles.

4. Why does my brake light work but not my tail light?

The tail‑light filament inside the bulb may have burned out while the brake filament is still functioning.

5. Can a dual filament bulb be installed incorrectly?

Most designs use offset pins to prevent incorrect installation, but damaged sockets can still cause misalignment.

6. Are dual filament bulbs still used today?

Yes, but many modern vehicles now use LED lighting modules instead of traditional filament bulbs.

7. What is the difference between 1157 and 2057 bulbs?

Both are dual‑filament bulbs, but the 2057 typically runs slightly cooler and lasts longer.

8. Do LED brake lights use dual filaments?

No. LEDs use electronic drivers and separate light arrays instead of physical filaments.
