How Feet and Inches Are Used in Real Construction and Architectural Floor Plans: Understand how architects, builders, and contractors use imperial measurements in professional floor plan drawings.

Direct Answer

In real construction and architectural floor plans, feet and inches are used to define precise dimensions for walls, rooms, structural elements, and built‑in components. Architects document these measurements in dimension strings, and contractors use them to build spaces accurately on site.

Imperial measurements remain standard in U.S. residential construction because they align with common building materials, framing systems, and contractor workflows.

Quick Takeaways

1. Most U.S. residential plans are dimensioned in feet and inches.
2. Architects place dimensions outside walls to keep drawings readable.
3. Builders interpret dimensions as exact construction instructions.
4. Standard room sizes help simplify framing and material usage.
5. Clear dimension hierarchy prevents costly construction errors.

Introduction

Feet and inches are still the language of American construction drawings. After more than a decade working on residential projects, I can tell you that nearly every contractor I collaborate with expects architectural floor plans to use imperial measurements.

Students often think dimensions in drawings are simple labels, but in practice they are the backbone of the entire project. A missing inch or poorly placed dimension can create real problems once framing begins.

If you're practicing layouts or learning drafting, it helps to see how professional plans actually work. One useful way to understand spacing and room proportions is by exploring interactive residential floor plan layouts that show realistic room proportions. Seeing those layouts alongside measurements makes the logic behind architectural dimensions much clearer.

In this guide, I'll walk through how architects use feet and inches in real construction documents, how builders interpret those dimensions, and how students can practice using professional standards.

save pin

Why the Construction Industry Uses Feet and Inches

Key Insight: Imperial measurements dominate U.S. construction because they align naturally with building materials and framing systems.

Walk onto almost any residential job site in the United States and you'll hear dimensions called out in feet and inches. That isn't tradition alone—it’s practicality.

Most building materials are manufactured using imperial sizing. Lumber, drywall, plywood, and framing systems all follow predictable measurement increments.

Common examples include:

1. Stud spacing: 16 inches on center
2. Standard drywall sheets: 4 ft × 8 ft
3. Door heights: 6 ft 8 in
4. Kitchen counters: 36 inches high

Because materials follow these increments, architectural plans dimension spaces to align with them. Designing a wall at 12 ft instead of 11 ft 10 in might allow full drywall sheets with minimal cutting.

This material efficiency is rarely explained in textbooks, but it’s something experienced architects consider constantly.

How Architects Dimension Professional Floor Plans

Key Insight: Architects use layered dimension strings so builders can understand structure, layout, and openings at a glance.

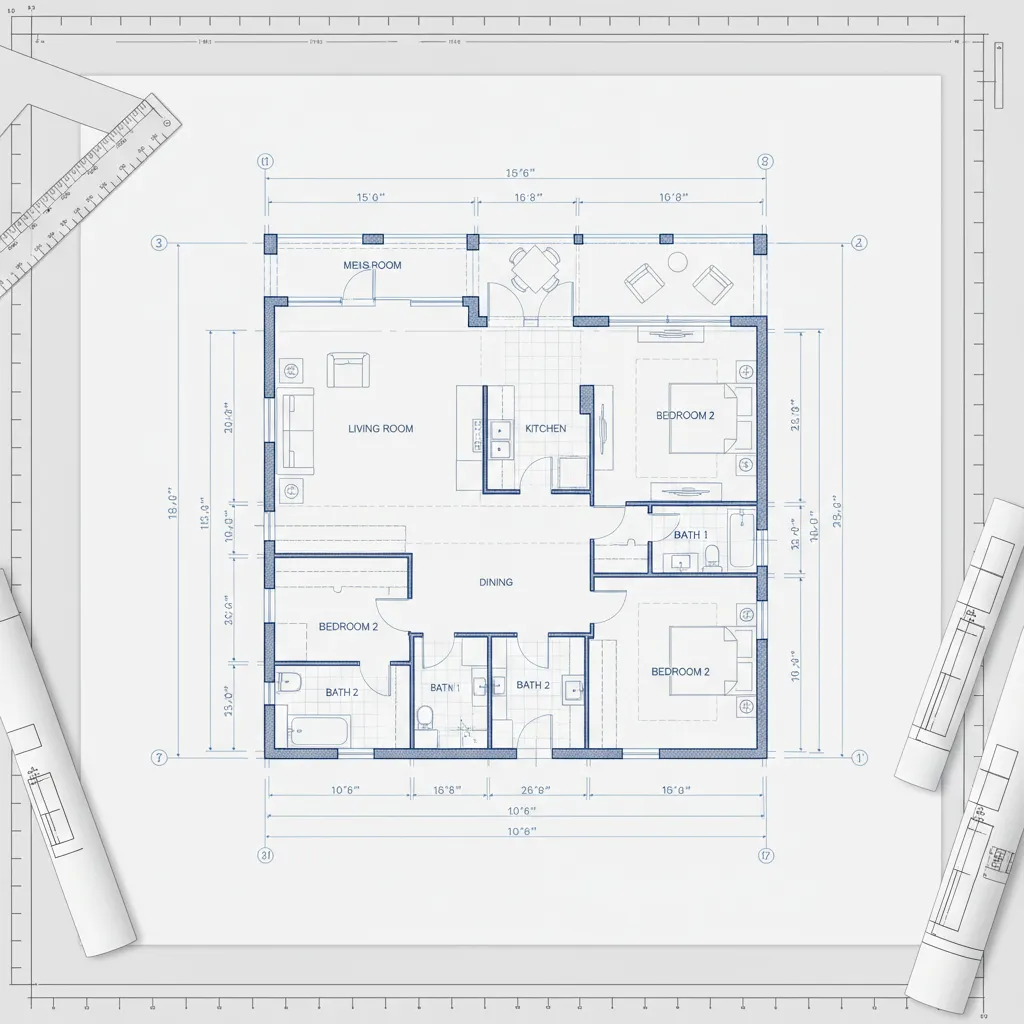

Professional floor plans typically include multiple dimension lines outside the building perimeter. Each line communicates a different level of information.

A common dimension hierarchy looks like this:

1. First string: window and door openings
2. Second string: wall segment lengths
3. Third string: overall building dimensions

This layered approach prevents clutter inside the drawing and allows contractors to read measurements quickly during construction.

Architectural dimension example:

1. Living room width: 15'-4"
2. Kitchen depth: 12'-0"
3. Hallway width: 3'-6"
4. Exterior wall thickness: 6"

One mistake beginners often make is placing dimensions randomly. Professionals place them strategically so the drawing can be read from outside inward.

save pin

Examples of Residential Floor Plan Measurements

Key Insight: Most residential rooms follow measurement ranges that balance comfort, structure, and furniture placement.

After designing dozens of homes, you start noticing that room sizes fall into predictable ranges. These ranges aren’t rules, but they reflect decades of construction practice.

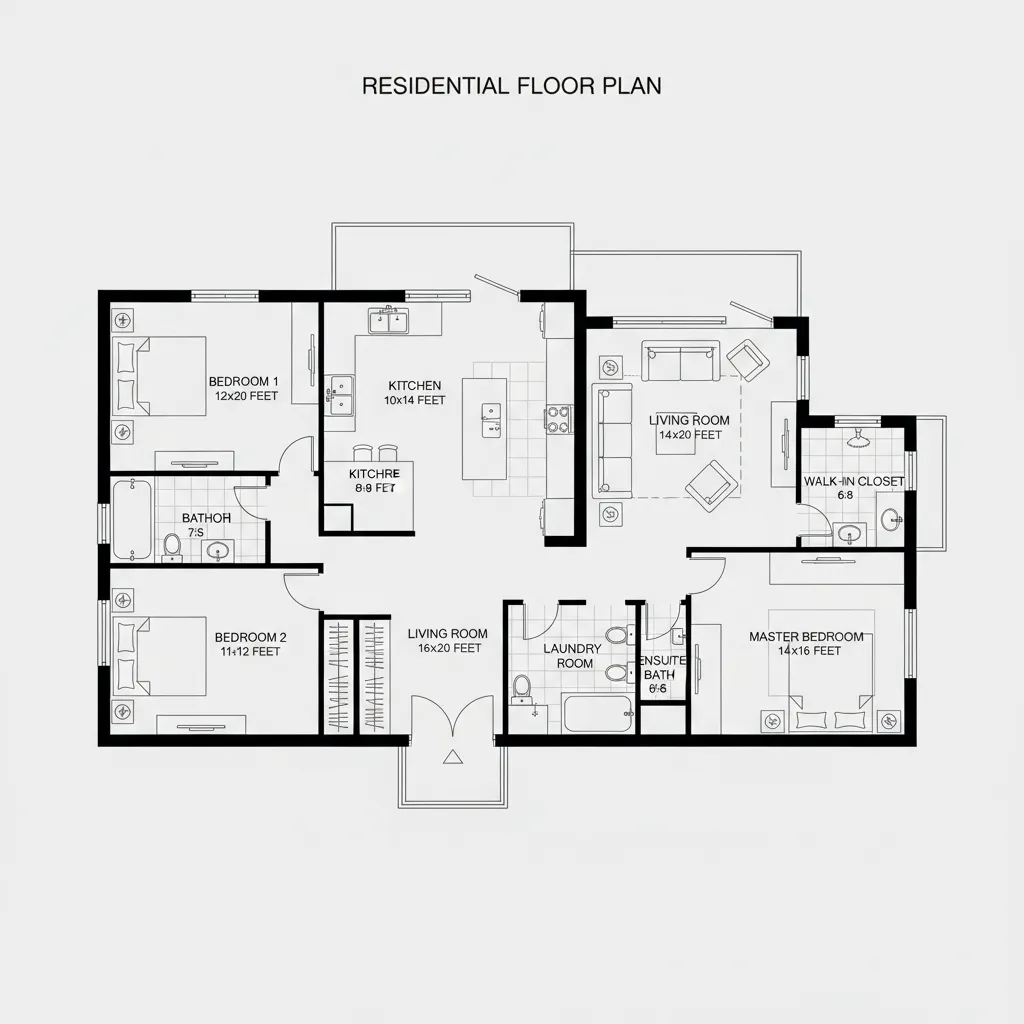

Typical residential dimensions:

1. Primary bedroom: 12' × 14' to 14' × 16'
2. Secondary bedroom: 10' × 11' to 11' × 12'
3. Living room: 14' × 18' or larger
4. Kitchen work aisle: 42"–48"
5. Hallways: minimum 3'-0" wide

These measurements appear frequently in construction drawings because they work well with furniture, circulation, and building structure.

Students experimenting with layouts can try recreating these dimensions using simple floor plan practice tools for drawing rooms with exact measurements. Practicing with realistic dimensions helps build intuition quickly.

save pin

How Builders Interpret Architectural Dimensions

Key Insight: Contractors treat architectural dimensions as exact instructions that guide layout, framing, and installation.

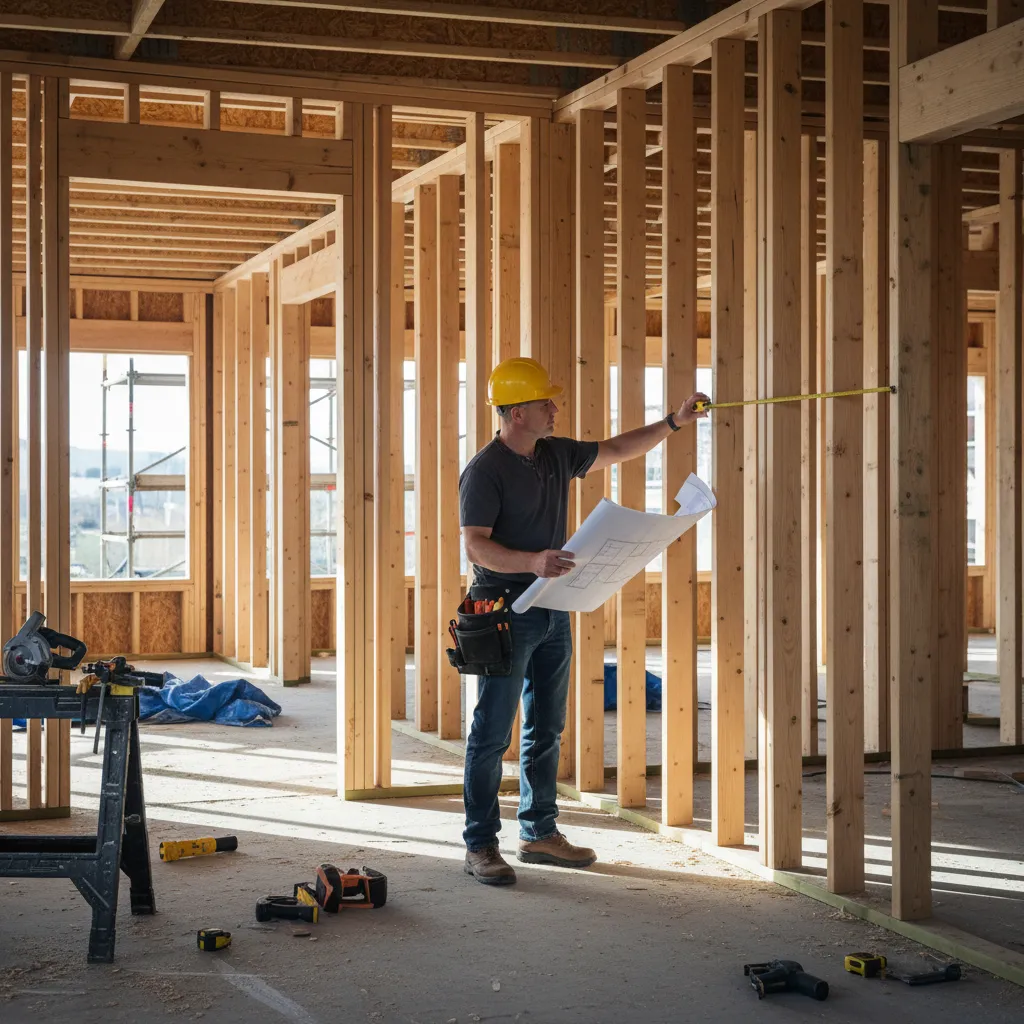

Once plans reach the job site, builders rely on dimensions to transfer drawings into physical space.

The typical process includes:

1. Reading overall building dimensions
2. Marking structural grid or wall positions
3. Measuring wall segments with tape or laser tools
4. Confirming openings for doors and windows

In practice, contractors rarely measure the drawing itself. They rely entirely on the written dimension numbers.

This is why architects avoid “scaling from drawings.” Dimensions must always be explicitly labeled.

Answer Box

Feet and inches remain the standard measurement system for most U.S. residential architectural drawings. Architects use layered dimension strings to communicate exact building sizes, while contractors rely on those measurements to frame walls, place openings, and maintain structural accuracy during construction.

Coordination Between Architects and Contractors

Key Insight: Clear dimensions reduce misunderstandings between design teams and construction crews.

One hidden challenge in architecture is translation: converting design intent into buildable instructions.

Architects coordinate measurements with contractors through:

1. Consistent dimension formatting
2. Clear wall references
3. Detailed section drawings
4. Annotated construction notes

Industry organizations like the American Institute of Architects (AIA) emphasize standardized documentation practices to reduce construction conflicts.

Even a 1-inch discrepancy between drawings can cause framing issues or misaligned cabinetry later.

save pin

How Students Can Practice Using Real Project Standards

Key Insight: The fastest way to learn architectural measurements is by recreating real layouts using professional dimension conventions.

Students often practice with unrealistic room sizes, which doesn’t prepare them for real projects. A better approach is to redraw existing residential layouts and study how dimensions are organized.

Effective practice methods include:

1. Recreating real house floor plans
2. Adding dimension strings manually
3. Practicing wall offsets and openings
4. Checking alignment with furniture layouts

Many beginners improve quickly by experimenting with visual room layout planners that allow precise dimension placement. Seeing how walls, doors, and furniture interact with measurements builds spatial accuracy fast.

Final Summary

1. Feet and inches remain the standard for U.S. residential construction drawings.
2. Architects organize dimensions using layered dimension strings.
3. Most residential rooms follow common measurement ranges.
4. Builders rely entirely on written dimensions during construction.
5. Practicing real layouts helps students understand professional standards.

FAQ

1. Why do architects use feet and inches instead of metric?

Most U.S. construction materials and framing systems are designed around imperial measurements, making feet and inches more practical for builders.

2. How do architects write measurements on floor plans?

Architectural drawings typically use feet and inches with symbols, such as 12'-6" to represent twelve feet six inches.

3. What does 16 inches on center mean?

It means wall studs are spaced 16 inches apart from the center of one stud to the center of the next.

4. How do builders read floor plan measurements?

Builders follow dimension strings placed around the floor plan and measure those values directly on site.

5. Are residential floor plan dimensions standardized?

No strict rule exists, but many residential floor plan dimensions fall within common ranges for comfort and furniture layout.

6. Do architects ever scale drawings instead of reading dimensions?

No. Professionals rely on written dimensions because printed drawing scale can vary.

7. What is the typical hallway width in residential plans?

Most residential hallways measure at least 3 feet wide, though 3 feet 6 inches is common in newer homes.

8. How can beginners practice architectural dimension standards in feet and inches?

Redrawing existing home layouts with accurate measurements is one of the most effective learning methods.
