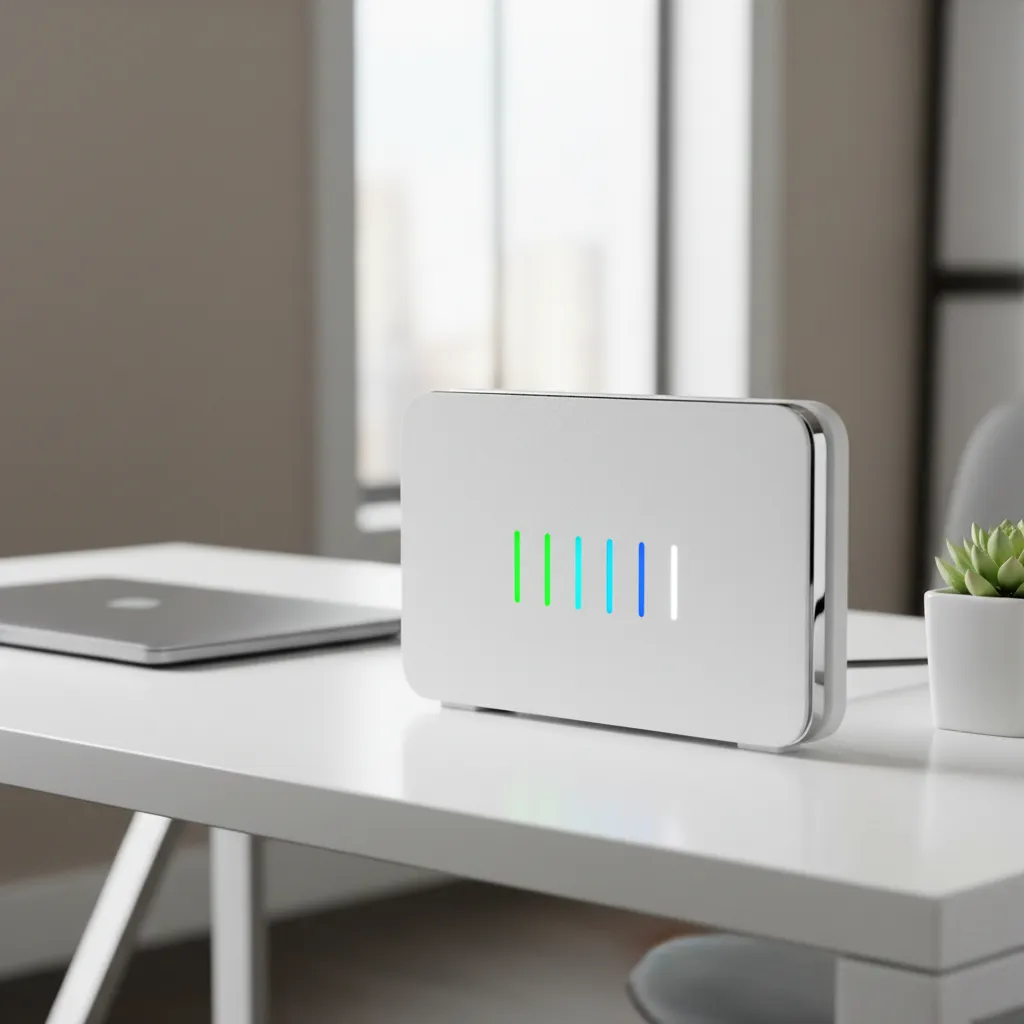

How Internet Routers Use LED Indicators to Communicate Network Status: A practical explanation of what router lights actually mean and how technicians use them to diagnose internet problems.

Direct Answer

Router LED indicators communicate the real‑time status of network connections, hardware activity, and internet availability through color and blinking patterns. These lights act as a quick diagnostic language shared by routers, modems, and gateways, helping both users and technicians instantly identify issues such as signal loss, authentication failures, or network traffic.

While colors and patterns vary by manufacturer, the underlying logic is standardized across networking hardware: solid lights show stable connections, blinking lights indicate activity, and unusual colors usually signal a problem or setup process.

Quick Takeaways

1. Router LED indicators provide immediate visual feedback about connection status and device activity.
2. Solid lights usually mean stable connectivity, while blinking signals active data transmission.
3. ISPs rely on LED patterns to guide users through troubleshooting steps.
4. Routers, modems, and gateways display different LED categories based on their network role.
5. Understanding LED signals can solve many home internet issues without advanced tools.

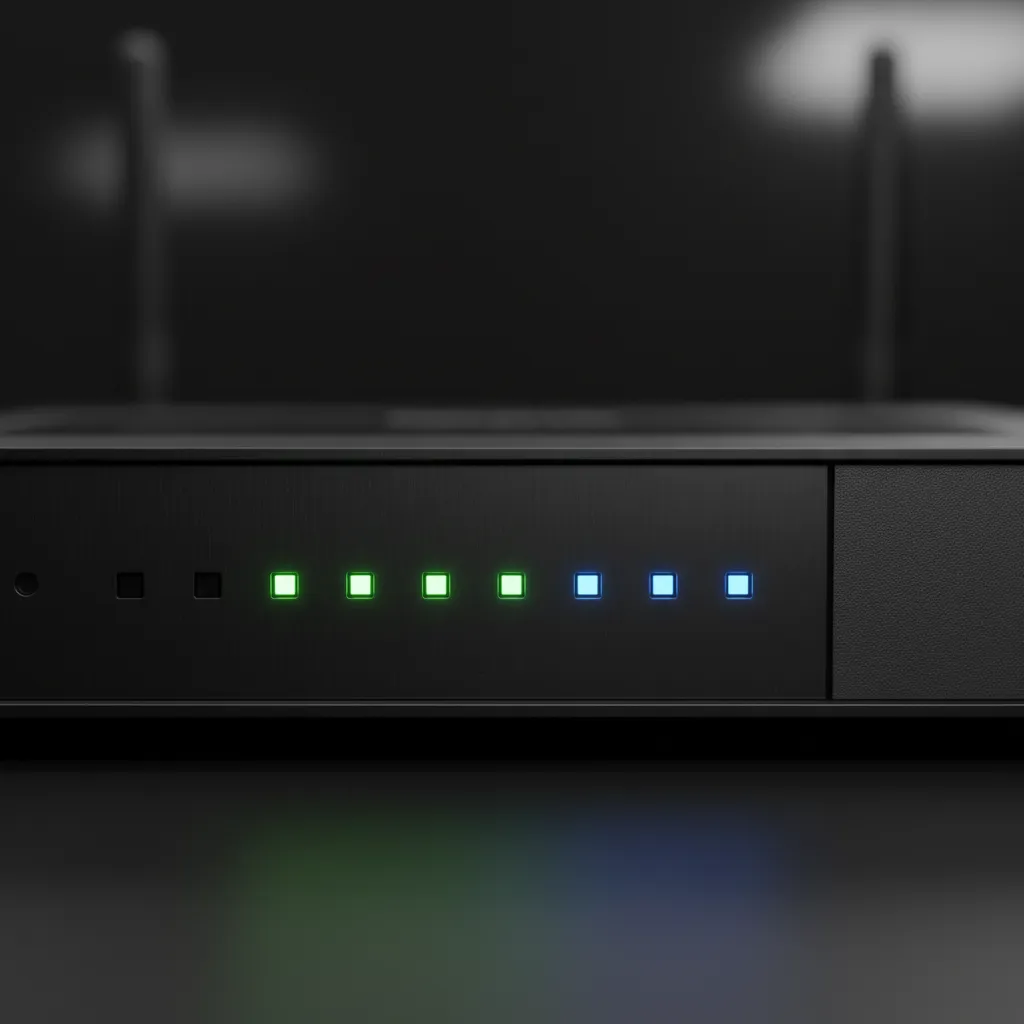

Introduction

After working on residential network setups for more than a decade—often alongside smart home installations—I’ve learned that router LED indicators are one of the most overlooked diagnostic tools in the entire networking ecosystem. Most people treat those blinking lights as background noise. Technicians see them as a live status dashboard.

Across different brands and internet providers, router LED indicators follow a surprisingly consistent logic. Whether you’re dealing with a cable gateway, fiber router, or mesh node, the light patterns communicate connection state, traffic activity, and potential faults.

In many home troubleshooting scenarios, simply understanding what the lights mean can resolve the issue before you even touch the settings panel. In fact, when people start exploring visual planning approaches that map technology placement inside modern homes, router visibility and indicator lights suddenly become part of the design conversation as well.

In this guide, I’ll walk through how router LEDs actually work, how ISPs rely on them for diagnostics, and what the different lights mean across routers, modems, and gateways.

save pin

Purpose of LED Indicators on Network Devices

Key Insight: LED indicators exist to provide instant hardware-level diagnostics without requiring software access.

Network hardware was designed long before mobile apps and browser dashboards existed. Engineers needed a universal way to display system status directly on the device itself. LEDs solved that problem.

These lights provide real-time feedback for:

1. Power status
2. Internet connectivity
3. Local network activity
4. Wireless broadcasting
5. Firmware updates

From an engineering perspective, LEDs operate at the firmware level. That means they reflect the device's hardware state rather than user interface data. If the internet drops, the light changes instantly—even if the admin panel hasn’t refreshed yet.

According to networking hardware documentation from companies like Netgear, Cisco, and Arris, LED indicators are specifically designed to reduce support calls by giving users visible clues about connection problems.

Standard LED Signaling in Consumer Routers

Key Insight: Most routers follow a shared visual language where color represents connection state and blinking represents activity.

Even though manufacturers design their own devices, the signaling logic is surprisingly consistent.

Typical LED meanings include:

1. Solid White or Green: Device operating normally
2. Blinking White/Green: Active data transmission
3. Blue: Setup or pairing process
4. Amber or Orange: Connection issue or degraded signal
5. Red: No internet or critical failure

A common misconception is that blinking always means something is wrong. In reality, blinking lights often indicate healthy network traffic—devices sending and receiving data across the network.

This becomes especially obvious in homes with many connected devices such as streaming TVs, smart speakers, and security cameras.

save pin

How ISPs Use LEDs for User Diagnostics

Key Insight: Internet providers intentionally design router LEDs to guide remote troubleshooting without requiring technician visits.

When you contact internet support, the first question is often about the lights on your router. That’s not random—it’s part of the diagnostic workflow.

ISPs commonly use LED status to determine whether a problem originates from:

1. The customer’s home network
2. The modem authentication stage
3. The ISP signal line
4. The router configuration

For example:

1. If the power light is solid but the internet light is off, the modem may not be receiving a signal.
2. If the internet light is solid but Wi‑Fi lights are off, the router may have wireless disabled.
3. If all lights blink during startup, the device may be updating firmware.

Many users also experiment with planning better placement for networking equipment inside their home layout, because signal interference and device location can affect both Wi‑Fi strength and LED activity patterns.

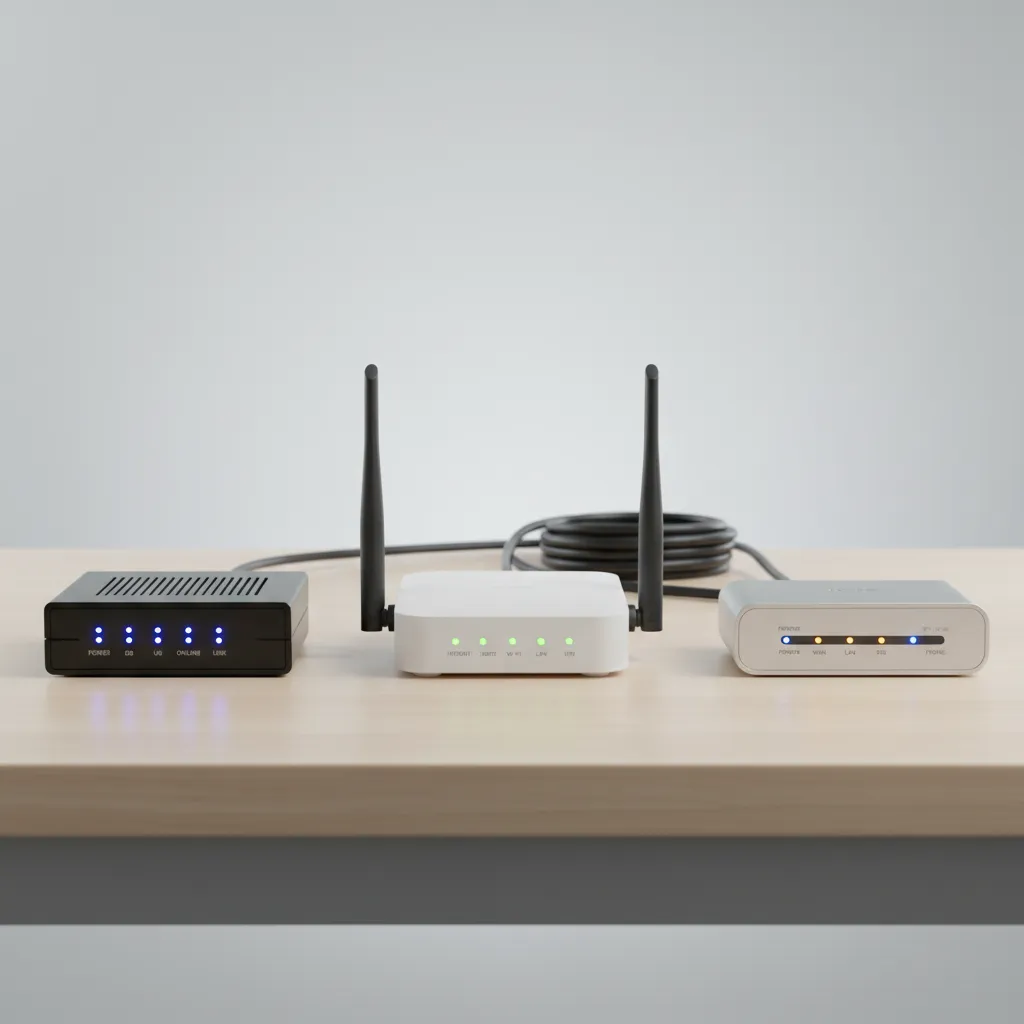

Differences Between Router, Modem, and Gateway Lights

Key Insight: Routers, modems, and gateways display different LED categories because they handle different parts of the internet connection.

This is one of the biggest sources of confusion I see when helping clients troubleshoot smart homes.

Here’s how the devices differ:

1. Modem LEDs show connection to the ISP network.
2. Router LEDs show internal network activity and Wi‑Fi broadcasting.
3. Gateway LEDs combine both modem and router indicators.

Typical modem light categories include:

1. Downstream signal
2. Upstream signal
3. Online connection
4. Power

Routers instead show:

1. Wi‑Fi bands (2.4 GHz / 5 GHz)
2. Ethernet ports
3. LAN traffic
4. Device pairing

save pin

Evolution of LED Status Systems in Networking Hardware

Key Insight: Modern routers use fewer but smarter LED indicators as device interfaces move toward mobile apps.

Early routers in the 2000s had entire rows of lights for each Ethernet port, signal stage, and system function. While technically useful, they overwhelmed most home users.

Modern devices simplify LED systems in three ways:

1. Color-coded multi-state lights
2. Single status bars
3. Minimalist front panels

For example, many mesh routers now use just one LED ring that changes color depending on system health.

Interestingly, this shift aligns with modern home design trends where technology blends into living spaces. When homeowners experiment with visualizing connected devices inside realistic 3D home environments, minimalist hardware and subtle indicators become part of the aesthetic decision.

Answer Box

Router LED indicators provide a fast, hardware-level method for showing internet connectivity, network activity, and device status. By reading color and blinking patterns, users and technicians can quickly diagnose many common network problems without accessing router settings.

How LED Indicators Help Troubleshoot Connectivity

Key Insight: Understanding LED patterns allows users to isolate connection problems in seconds.

When internet problems appear, checking router lights is usually the fastest diagnostic step.

Here’s a simple troubleshooting sequence:

1. Check the power light to confirm the device is running.
2. Look for the internet or WAN light to verify ISP connection.
3. Observe Wi‑Fi indicators to confirm wireless broadcasting.
4. Check Ethernet lights if wired devices are connected.
5. Restart the router if lights show abnormal patterns.

In many homes, I’ve seen people spend hours resetting devices when the LED lights already reveal the real issue—usually a signal outage or loose cable.

save pin

Final Summary

1. Router LED indicators visually communicate network and hardware status.
2. Solid lights typically indicate stable connections.
3. Blinking lights usually represent active data transmission.
4. ISPs rely on LED patterns for remote troubleshooting.
5. Learning LED meanings can quickly identify many internet issues.

FAQ

1. What do router LED indicators mean?

Router LED indicators display the device's operational status using colors and blinking patterns to show power, internet connectivity, and network activity.

2. Why do routers have blinking lights?

Blinking lights indicate active data transmission between devices and the internet. It usually means your network is functioning normally.

3. Are blinking router lights bad?

Not usually. In most cases blinking lights simply show traffic activity. Problems appear when lights turn red, amber, or remain off unexpectedly.

4. How do modem lights indicate network status?

Modem lights show signal synchronization with your ISP, including upstream and downstream channel connections.

5. Do all routers use the same LED colors?

No. Manufacturers vary slightly, but the overall logic—solid for connection, blinking for activity—is widely consistent.

6. What does a blue blinking router light mean?

A blinking blue light often indicates setup mode, pairing, or firmware initialization depending on the router model.

7. Can router LED indicators help fix internet problems?

Yes. Reading router LED indicators can quickly identify whether the problem is with the ISP signal, router hardware, or Wi‑Fi network.

8. Why do some modern routers have fewer lights?

Manufacturers simplify LED systems because detailed diagnostics now appear in mobile apps and router management dashboards.
