How Lighting Control Works in Residential Electrical Systems: Understand how light switches, circuits, and smart controls manage electricity in modern homes.

Direct Answer

Lighting control in residential electrical systems works by interrupting or redirecting the electrical current flowing from the power source to a light fixture. A switch, dimmer, or smart controller opens or closes the circuit, determining whether electricity reaches the light. Different switch types and circuit layouts allow lights to be controlled from one or multiple locations.

Quick Takeaways

1. A light switch controls lighting by opening or closing an electrical circuit.
2. Single‑pole switches control lights from one location, while three‑way systems allow multi‑location control.
3. Circuit breakers protect lighting circuits from overload and short circuits.
4. Modern smart lighting connects to existing wiring but adds digital control layers.
5. Electrical codes standardize safe lighting circuit design in homes.

Introduction

After working on residential renovations for more than a decade, one thing I notice constantly is how few homeowners understand how lighting control actually works. People know how to flip a switch, but the electrical logic behind it often feels mysterious.

In reality, the basic idea is simple. Every residential lighting circuit is just a controlled pathway for electricity. The switch doesn't "create" light—it simply allows or blocks electrical flow between the power source and the fixture.

Understanding this system matters more than people think. When lights behave oddly—flickering, staying on, or refusing to turn off—the issue almost always comes down to how that circuit is wired or controlled.

If you're interested in seeing how lighting layout fits into the overall room design process, you can explore practical examples through interactive home lighting layout planning for real interior projects.

In this guide, I'll walk through the electrical logic behind residential lighting systems—from basic switches to smart lighting integration—based on what I've seen repeatedly in real construction and remodeling projects.

save pin

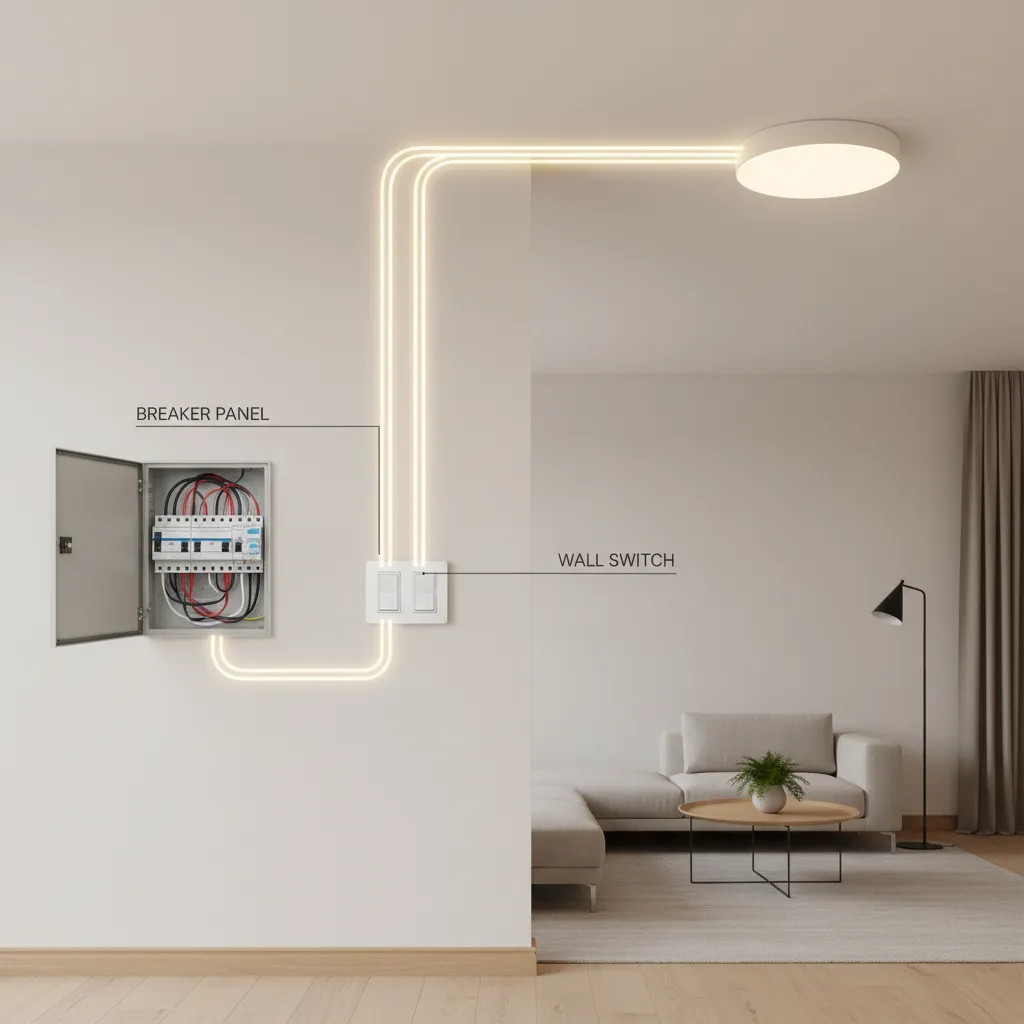

Basic Components of a Home Lighting Circuit

Key Insight: Every lighting system relies on four essential components: a power source, wiring, a control device, and a light fixture.

In most North American homes, lighting circuits operate on 120‑volt alternating current supplied by the electrical panel. Electricity travels from the breaker panel through wiring to the switch and then to the fixture.

The basic components include:

1. Circuit breaker: Protects the circuit from overload.
2. Electrical wiring: Carries electricity between components.
3. Switch or dimmer: Controls whether electricity flows.
4. Light fixture: Converts electrical energy into light.

A common misconception is that the switch directly powers the light. In reality, it simply interrupts the hot wire in the circuit. This design keeps systems safer and allows flexible control layouts.

According to the National Electrical Code (NEC), most residential lighting circuits are rated for 15 amps and typically serve multiple fixtures or rooms.

How a Light Switch Interrupts Electrical Flow

Key Insight: A light switch works by opening or closing the "hot" conductor, which determines whether current reaches the light fixture.

Inside a standard wall switch are metal contacts. When you flip the switch:

1. The contacts connect, completing the circuit.
2. Electricity flows through the hot wire.
3. The light fixture receives power and turns on.

When the switch is turned off:

1. The contacts separate.
2. The circuit becomes open.
3. Current stops flowing.

This is why electricians always wire switches on the hot line rather than the neutral. If the neutral were switched instead, the fixture could remain energized even when the light appears off—creating a potential safety hazard.

Single Pole vs Three Way Switch Systems

Key Insight: Single‑pole switches control one light from one location, while three‑way switches allow two switches to control the same fixture.

This is where many homeowners get confused when troubleshooting lighting circuits.

Single‑Pole Switch

1. Most common switch type
2. Controls one fixture
3. One switch location

Three‑Way Switch System

1. Two switches control one fixture
2. Common in staircases and hallways
3. Uses traveler wires to redirect current

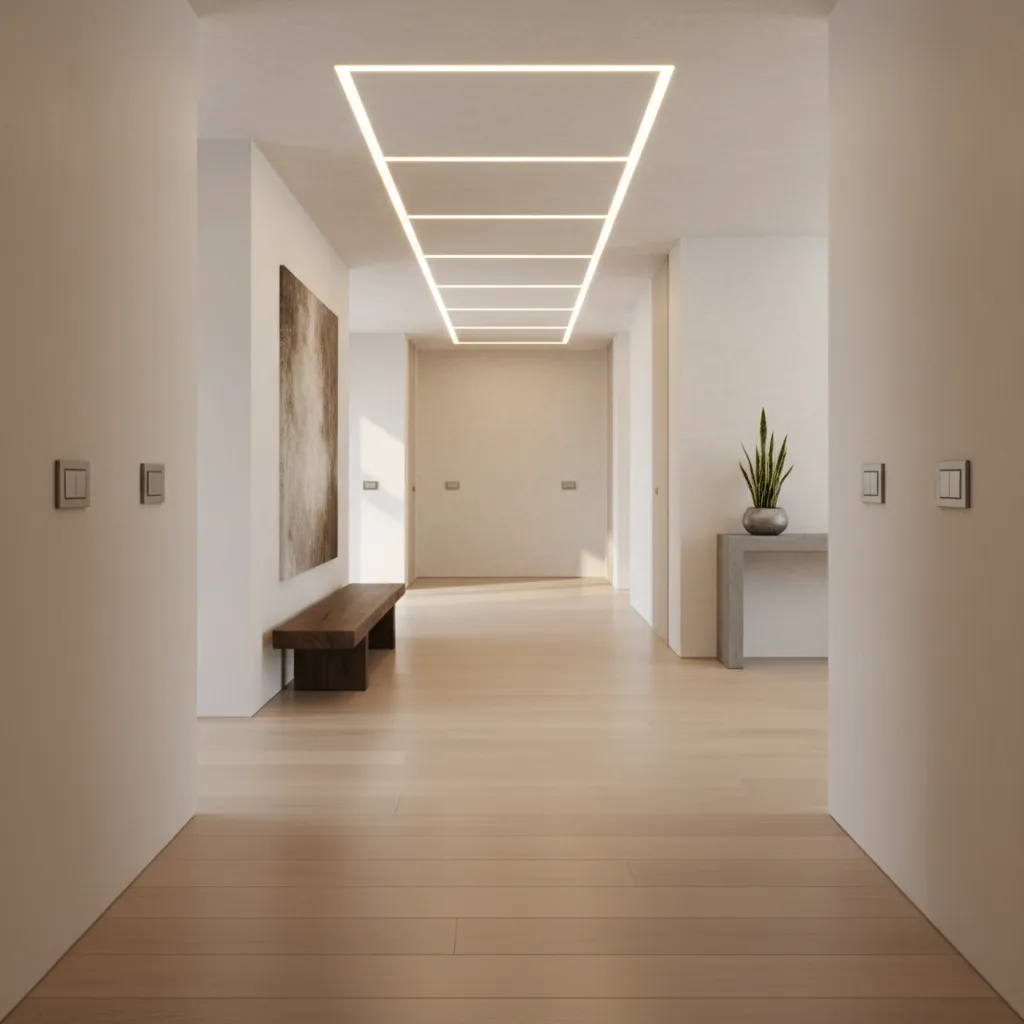

In real projects, staircases and long corridors almost always require three‑way switches. When planning lighting placement, it's helpful to visualize traffic paths first. Tools that allow 3D visualization of lighting placement within a floor planmake it easier to decide where multi‑location switches are needed.

save pin

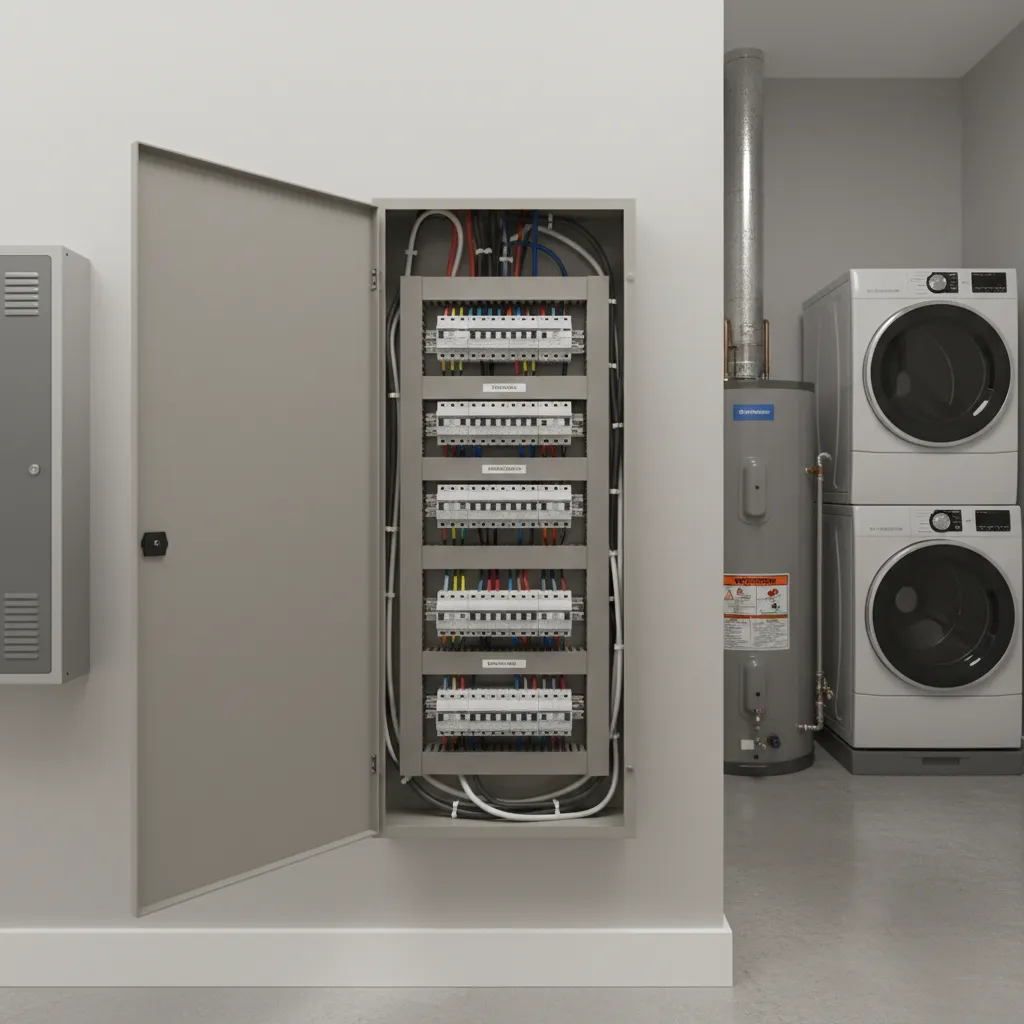

Circuit Breakers and Lighting Safety

Key Insight: Circuit breakers protect lighting systems by shutting off power when current exceeds safe limits.

Lighting circuits may look simple, but they are part of a larger electrical protection system. The breaker panel monitors how much current flows through each circuit.

If something goes wrong—such as:

1. A short circuit
2. Overloaded wiring
3. A faulty fixture

The breaker automatically trips and stops power flow.

According to electrical safety guidelines published by the U.S. Consumer Product Safety Commission, properly functioning circuit breakers are one of the most important safeguards against residential electrical fires.

A mistake I still see in older homes is too many fixtures on a single lighting circuit, especially after multiple renovations. Modern planning helps avoid these issues by mapping circuits clearly before installation.

save pin

Answer Box

Residential lighting control works by managing electrical current through switches, wiring, and circuit protection devices. Switches interrupt the hot wire to control power flow, while circuit design determines where and how lights can be controlled. Modern smart systems add digital control without replacing the core electrical circuit.

How Smart Lighting Integrates with Electrical Systems

Key Insight: Smart lighting adds digital communication to traditional wiring rather than replacing the underlying electrical circuit.

Even the most advanced smart lighting still relies on the same electrical infrastructure used for decades.

Typical smart lighting setups include:

1. Smart switches replacing traditional wall switches
2. Smart bulbs installed in standard fixtures
3. Wireless hubs or Wi‑Fi connectivity

The key difference is that smart devices allow control through apps, automation rules, or voice assistants.

In practice, I often recommend homeowners plan both lighting placement and control zones together. A layout tool that supports visual room planning for lighting and furniture zones makes it easier to design where automated lighting scenes should activate.

Electrical Standards for Residential Lighting

Key Insight: Residential lighting systems follow strict electrical codes that govern wiring methods, circuit capacity, and switch placement.

The National Electrical Code (NEC) sets minimum safety standards used across most of the United States. While local jurisdictions may add additional rules, several guidelines appear in nearly every residential project.

Common electrical standards include:

1. Wall switches installed near room entrances
2. Grounded wiring for all modern circuits
3. Dedicated circuits for certain lighting loads
4. GFCI or AFCI protection in specific areas

One overlooked detail is switch height consistency. Designers often focus on aesthetics, but electricians prioritize accessibility and code compliance.

In many homes built before the 1990s, wiring may still function but fail to meet current code standards—especially when new smart lighting systems are added.

Final Summary

1. Lighting switches control electricity by opening or closing the circuit.
2. Single‑pole switches handle simple control, while three‑way switches allow multi‑location operation.
3. Circuit breakers protect lighting wiring from overload and electrical faults.
4. Smart lighting adds digital control but still relies on traditional wiring.
5. Electrical codes ensure residential lighting systems remain safe and reliable.

FAQ

How do light switches work electrically?

A light switch opens or closes the hot wire in a circuit. When closed, electricity flows to the fixture and the light turns on.

What is a residential lighting circuit?

A residential lighting circuit is a 120‑volt electrical pathway that delivers power from the breaker panel to switches and lighting fixtures.

What is the difference between single pole and three way switches?

A single‑pole switch controls a light from one location, while a three‑way system allows two switches to control the same light.

Why does a circuit breaker trip when lights are on?

This usually indicates a short circuit, overloaded circuit, or faulty fixture drawing excessive current.

Can smart lighting work with existing wiring?

Yes. Most smart switches and bulbs connect to standard residential wiring and simply add wireless control.

Do lighting circuits require grounding?

Yes. Modern electrical standards require grounding to prevent electrical shock and improve system safety.

Why does a light stay on even when the switch is off?

This can happen due to incorrect wiring, a faulty switch, or smart bulbs receiving constant power.

How electricity flows in light switches?

Electricity flows from the breaker through the hot wire, passes through the switch, and then reaches the fixture when the circuit is closed.
