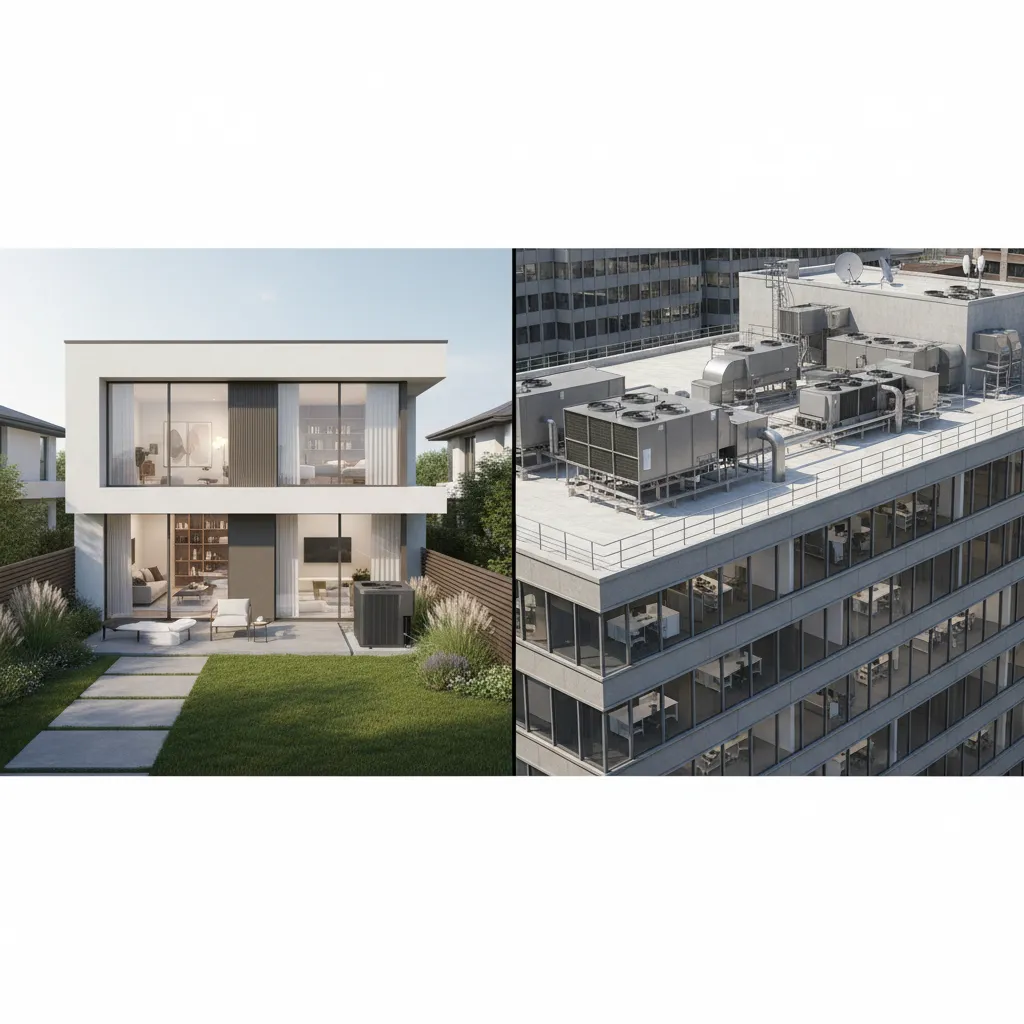

How ODU Is Used in Residential vs Commercial Floor Plans: Understand how outdoor HVAC units differ between homes, apartments, and large commercial buildings—and why layout decisions change at scale.

Direct Answer

An ODU (Outdoor Unit) in a floor plan represents the exterior component of an HVAC system responsible for heat exchange. In residential buildings, ODUs typically serve individual homes or apartments, while commercial buildings often use larger, centralized outdoor units that support multiple zones or entire floors.

The main difference lies in system scale, placement strategy, and load capacity. Residential ODUs are compact and distributed, while commercial systems prioritize efficiency, maintenance access, and structural integration.

Quick Takeaways

1. Residential floor plans usually assign one outdoor unit per home or apartment.
2. Commercial buildings often rely on centralized or multi-unit HVAC systems.
3. Placement strategy changes based on noise control, maintenance access, and building scale.
4. Commercial ODUs frequently appear on rooftops or mechanical yards.
5. Proper HVAC layout planning reduces energy loss and maintenance costs.

Introduction

If you look closely at professional architectural drawings, you will often see the label ODU placed outside the building footprint. In simple terms, it marks the outdoor unit of the HVAC system. But the way this component appears in a residential floor plan versus a commercial one is dramatically different.

After working on residential homes, multi‑family projects, and office layouts for more than a decade, I've noticed that many people assume HVAC drawings follow the same logic everywhere. They don't. A single-family house might hide an outdoor unit behind landscaping, while a commercial building might dedicate an entire rooftop zone to mechanical equipment.

If you want to visualize how HVAC elements interact with building layout, exploring a visual planning workflow that shows HVAC zones inside floor layoutscan make these differences much easier to understand.

This article breaks down how ODU placement changes between residential and commercial floor plans, why architects design them differently, and what industry standards typically guide these decisions.

save pin

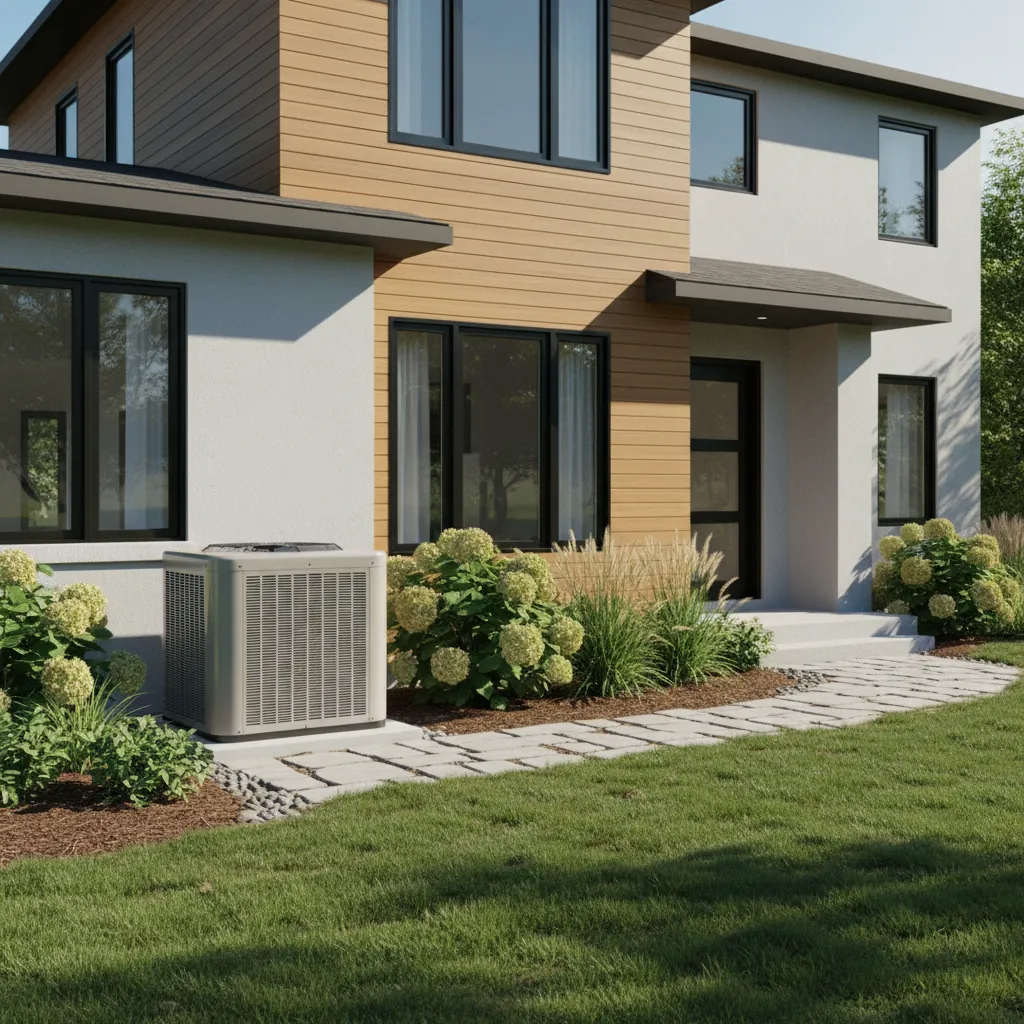

Role of ODU in Residential HVAC Systems

Key Insight: In residential buildings, an ODU usually serves a single dwelling or a small number of indoor units.

Most homes rely on split HVAC systems where the indoor unit handles air distribution and the outdoor unit performs heat exchange. On a floor plan, the ODU is usually positioned just outside the building envelope.

Typical residential ODU characteristics:

1. Serves one house, condo, or apartment
2. Located near exterior walls, patios, or side yards
3. Connected by refrigerant lines to indoor units
4. Capacity typically ranges from 1.5–5 tons

From a design perspective, placement is often influenced by practical issues that many guides ignore: noise, neighbor proximity, and airflow clearance. In suburban housing projects I've worked on, we often shift the outdoor unit a few feet from the wall simply to prevent sound reflection.

According to guidance from ASHRAE and manufacturer installation manuals, residential ODUs usually require at least 12–24 inches of clearance around the unit to ensure proper airflow.

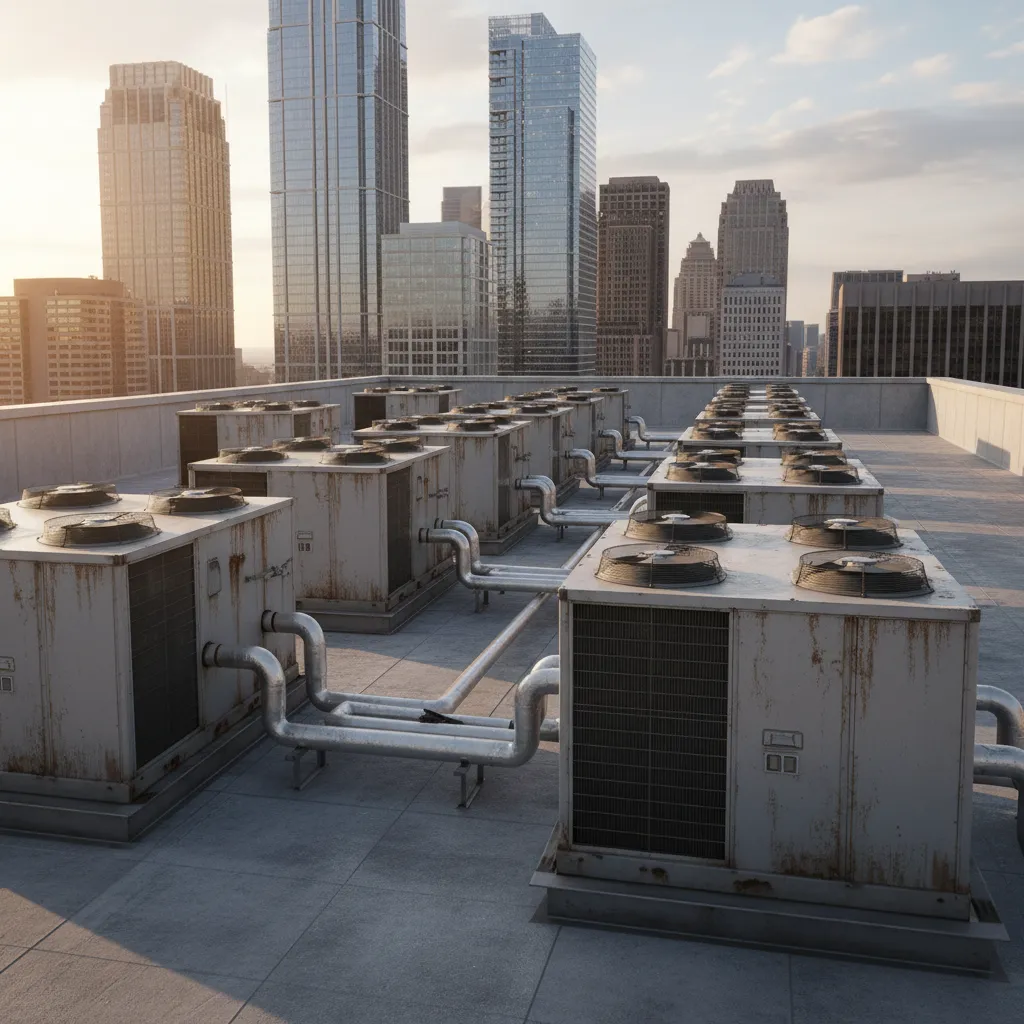

Outdoor Units in Commercial Building Layouts

Key Insight: Commercial buildings use outdoor units as part of larger mechanical systems that serve multiple zones or entire floors.

Unlike residential systems, commercial HVAC layouts prioritize centralized efficiency. A single office floor might contain dozens of indoor units connected to a shared outdoor system.

Common commercial HVAC configurations include:

1. VRF/VRV systems with multiple outdoor modules
2. Large rooftop packaged units
3. Chiller systems with cooling towers
4. Mechanical yards with grouped ODUs

Architects also consider structural loading and maintenance access. In office towers, outdoor equipment is often placed in dedicated rooftop mechanical zones. When planning layouts for workplaces, designers often rely on tools that help coordinate HVAC zones with desk layouts and circulation paths, such as interactive office layout planning environments.

save pin

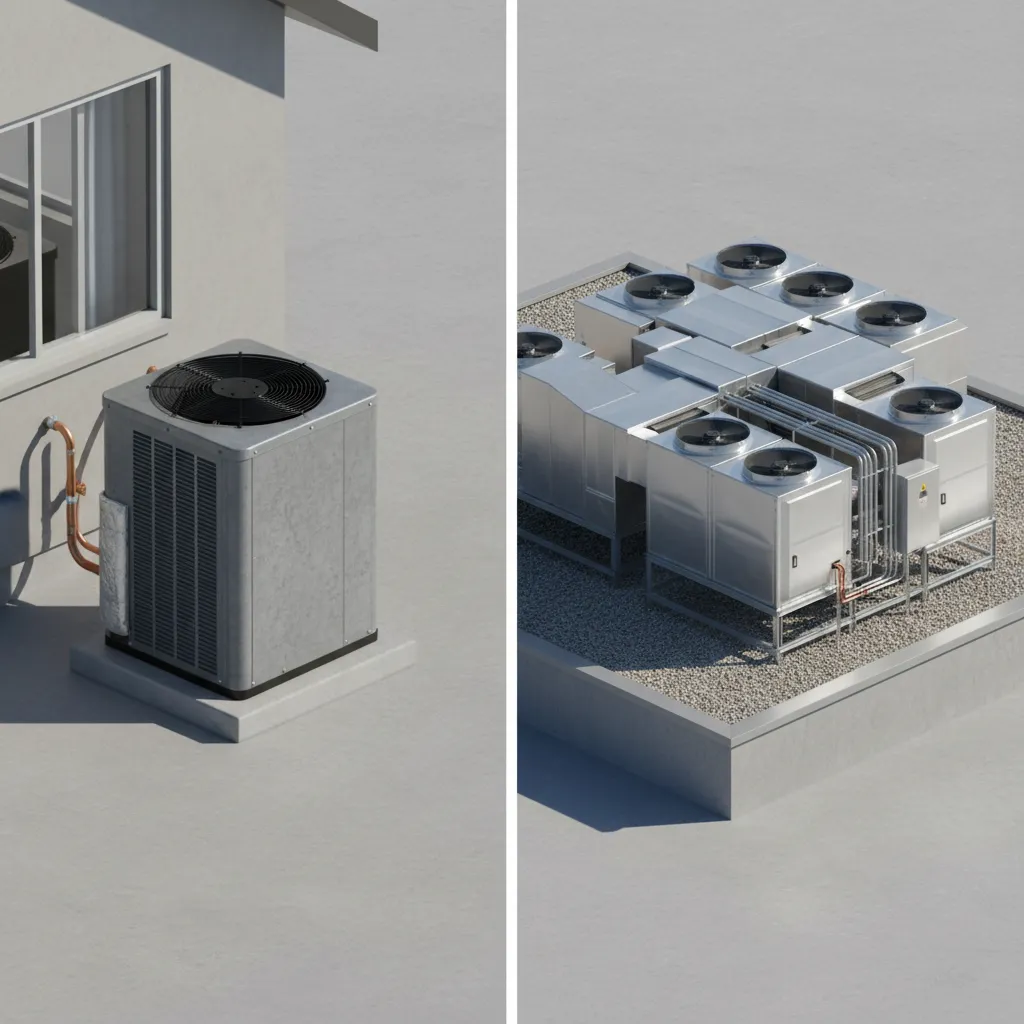

Differences in System Scale and Capacity

Key Insight: The biggest difference between residential and commercial ODUs is system capacity and the number of spaces they serve.

Residential HVAC systems are designed around individual comfort zones, while commercial buildings are engineered around load balancing across many rooms.

Typical comparison:

1. Residential ODU capacity: 1.5–5 tons
2. Small commercial systems: 10–50 tons
3. Large commercial installations: 100+ tons or centralized chilled water systems

Another overlooked factor is redundancy. Commercial buildings often install multiple outdoor units so that if one system fails, the building still maintains partial cooling. Residential homes rarely include this level of backup.

This is one of the hidden cost differences: commercial HVAC planning may allocate 20–30% additional equipment capacity to maintain operational resilience.

save pin

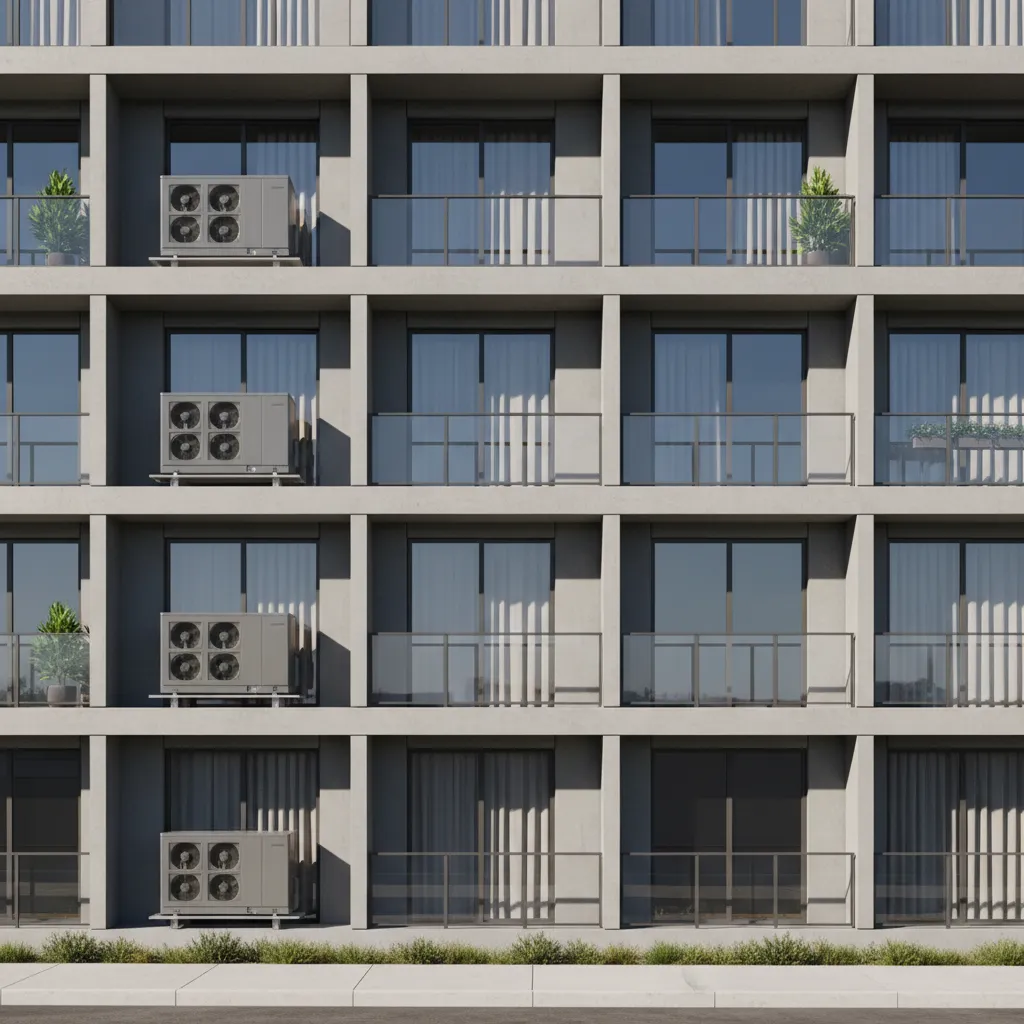

Typical ODU Placement in Apartment Complexes

Key Insight: Apartment developments balance residential-style units with semi‑centralized equipment layouts.

Multi-family buildings often combine individual HVAC control with shared equipment placement strategies.

Common placement methods include:

1. Balcony-mounted outdoor units
2. Mechanical ledges integrated into façade design
3. Ground-level equipment yards serving multiple units
4. Rooftop clusters connected to vertical risers

One design mistake I see frequently is underestimating airflow corridors. When outdoor units are packed too tightly along balconies or walls, heat buildup can reduce efficiency significantly.

Architects now often model airflow and equipment spacing using spatial visualization tools similar to those used in 3D floor planning environments for architectural visualization, allowing teams to evaluate mechanical zones early in the design process.

save pin

Commercial Rooftop vs Ground-Level Outdoor Units

Key Insight: Commercial buildings often place outdoor units on rooftops to maximize space efficiency and reduce noise impact.

There are two primary strategies used in commercial HVAC design.

Rooftop installations

1. Common for offices, retail centers, and hospitals
2. Reduces noise near building entrances
3. Allows easier duct distribution from above

Ground-level mechanical yards

1. Common in campuses and industrial buildings
2. Simplifies maintenance access
3. Often paired with screening walls or acoustic barriers

From a design standpoint, rooftop placement requires structural coordination early in the architectural process. HVAC equipment weight, vibration isolation, and service pathways all need to be planned before construction drawings are finalized.

Industry Standards for HVAC Equipment Layout

Key Insight: HVAC outdoor unit placement follows engineering standards that prioritize airflow, safety, and service accessibility.

While the exact rules vary by jurisdiction, most HVAC layouts follow guidelines from organizations such as:

1. ASHRAE (American Society of Heating, Refrigerating and Air‑Conditioning Engineers)
2. International Mechanical Code (IMC)
3. Local building codes and zoning regulations

Typical design requirements include:

1. Minimum clearance around outdoor units
2. Noise limits near residential areas
3. Service access space for technicians
4. Proper drainage and condensate management
5. Structural support for rooftop installations

Answer Box

The difference between residential and commercial ODU layout mainly comes down to scale and system design. Residential outdoor units serve individual homes, while commercial buildings rely on larger systems supporting multiple zones, often placed on rooftops or in mechanical yards.

Final Summary

1. Residential ODUs typically serve a single home or apartment.
2. Commercial buildings often use centralized HVAC systems.
3. Rooftop placement is common in commercial architecture.
4. Apartment complexes combine distributed and centralized strategies.
5. Industry standards prioritize airflow, access, and safety.

FAQ

What does ODU mean in a floor plan?

ODU stands for Outdoor Unit, the external component of an HVAC system responsible for heat exchange and compressor operation.

Is an ODU always outside the building?

Yes. By definition, an ODU must be installed outdoors to release or absorb heat from the surrounding air.

How many ODUs does a residential building usually have?

Most homes have one outdoor unit per HVAC system, although multi-zone mini‑split systems may connect several indoor units to one ODU.

What is the difference between residential and commercial ODU systems?

Residential ODU systems typically serve one dwelling, while commercial HVAC outdoor units support multiple zones or large floor areas.

Where are ODUs placed in apartment buildings?

They are often located on balconies, mechanical ledges, rooftops, or shared equipment yards depending on the building design.

Do commercial buildings always place outdoor units on rooftops?

Not always. Some buildings use ground-level mechanical yards, especially in campuses, industrial parks, or low‑rise developments.

Why do commercial HVAC systems use multiple outdoor units?

Multiple units allow higher cooling capacity, zoning flexibility, and redundancy if one system fails.

What regulations control HVAC outdoor unit placement?

Placement typically follows ASHRAE guidelines, International Mechanical Code rules, and local building regulations.
