How Professionals Split Large 3D Models for Manufacturing and Printing: Industry workflows used by product designers game studios and engineers to divide complex 3D models into manageable production ready parts

Direct Answer

Professionals split large 3D models by segmenting them into modular components that match manufacturing limits, assembly requirements, and collaboration workflows. This process usually involves defining structural seams, maintaining alignment references, and exporting clean parts optimized for production, rendering, or printing.

In industries like product design, gaming, and industrial 3D printing, segmentation is planned early in the modeling stage rather than performed as a last-minute technical fix.

Quick Takeaways

1. Professionals plan segmentation early so parts align with manufacturing limits and assembly logic.
2. Industrial 3D printing requires models to fit machine build volumes and structural constraints.
3. Game studios divide assets into reusable modules for performance and faster iteration.
4. Clear naming systems and version control prevent chaos in multi-part projects.
5. Smart segmentation reduces production errors and improves collaboration across teams.

Introduction

Large projects rarely stay as a single mesh. In professional environments, splitting a model is not just about making files smaller — it is about designing the object in a way that manufacturing systems, printers, and teams can actually handle.

After working with several product teams and reviewing manufacturing pipelines, one pattern shows up repeatedly: the best results come from models that were intentionally segmented from the beginning. Waiting until the end of the design process usually creates fragile seams, alignment problems, and assembly headaches.

If you are still learning the fundamentals, it helps to first understand the basic workflow described in a step by step introduction to dividing complex models into manageable parts. Once those basics are clear, professional pipelines start to make much more sense.

In this article, we will look at how professionals actually handle segmentation across several industries including product design, gaming, and industrial 3D printing. These workflows reveal why careful planning saves enormous time during production.

save pin

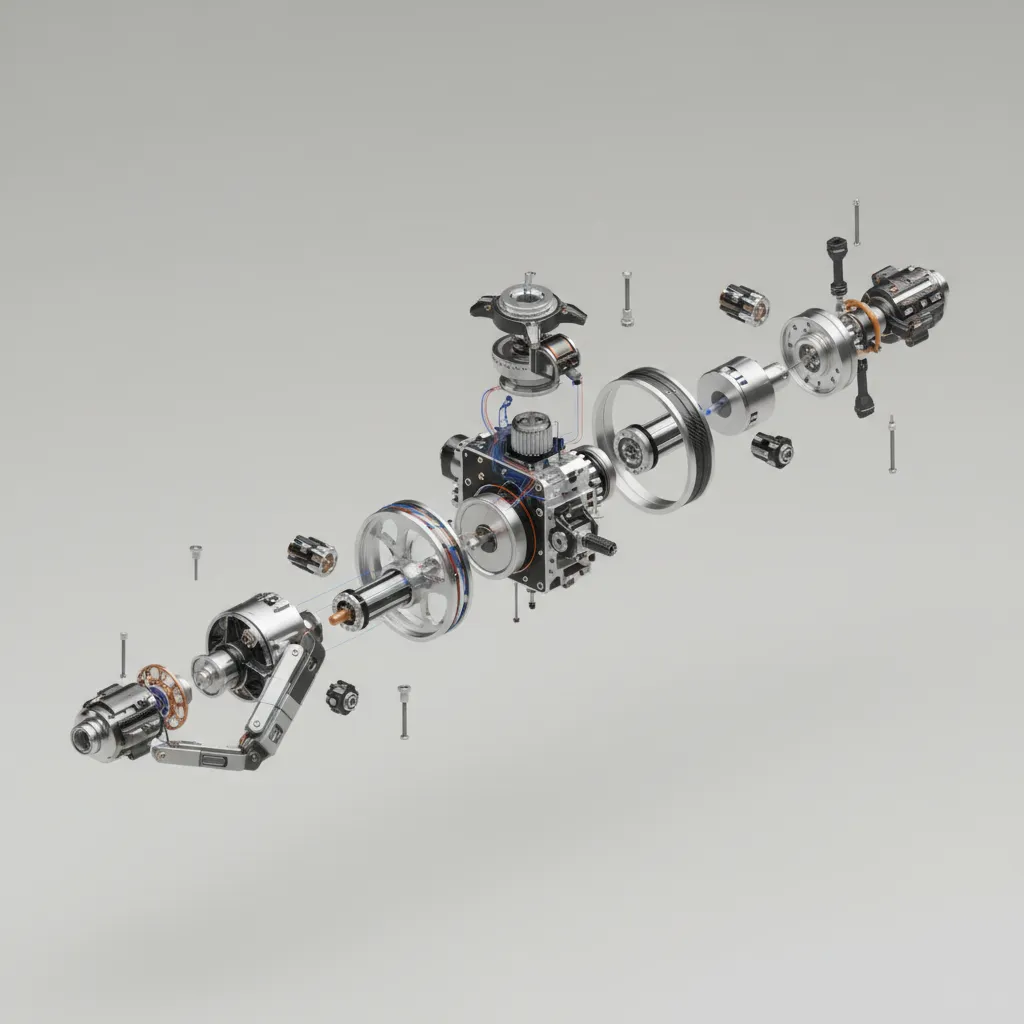

Why Large 3D Models Must Be Segmented in Professional Workflows

Key Insight: Large 3D models are segmented primarily to match physical manufacturing limits and collaborative production pipelines.

Explanation: Many beginners assume segmentation is only necessary because files are too large. In reality, file size is rarely the main issue. The real constraints come from printer build volumes, CNC machining limits, assembly requirements, and the need for multiple specialists to work on the same asset.

Professional teams typically segment models for four practical reasons:

1. Manufacturing limits – Machines have fixed build volumes.
2. Assembly logic – Products are rarely manufactured as a single piece.
3. Parallel work – Multiple artists or engineers work simultaneously.
4. Maintenance and upgrades – Individual components can be replaced later.

Evidence Layer: According to additive manufacturing guidelines published by major printer manufacturers like Stratasys and Formlabs, segmentation is often recommended when parts exceed machine build envelopes or require internal structures that are easier to assemble post-print.

Model Segmentation in Product Design and Manufacturing

Key Insight: In product design, segmentation is driven by assembly strategy rather than modeling convenience.

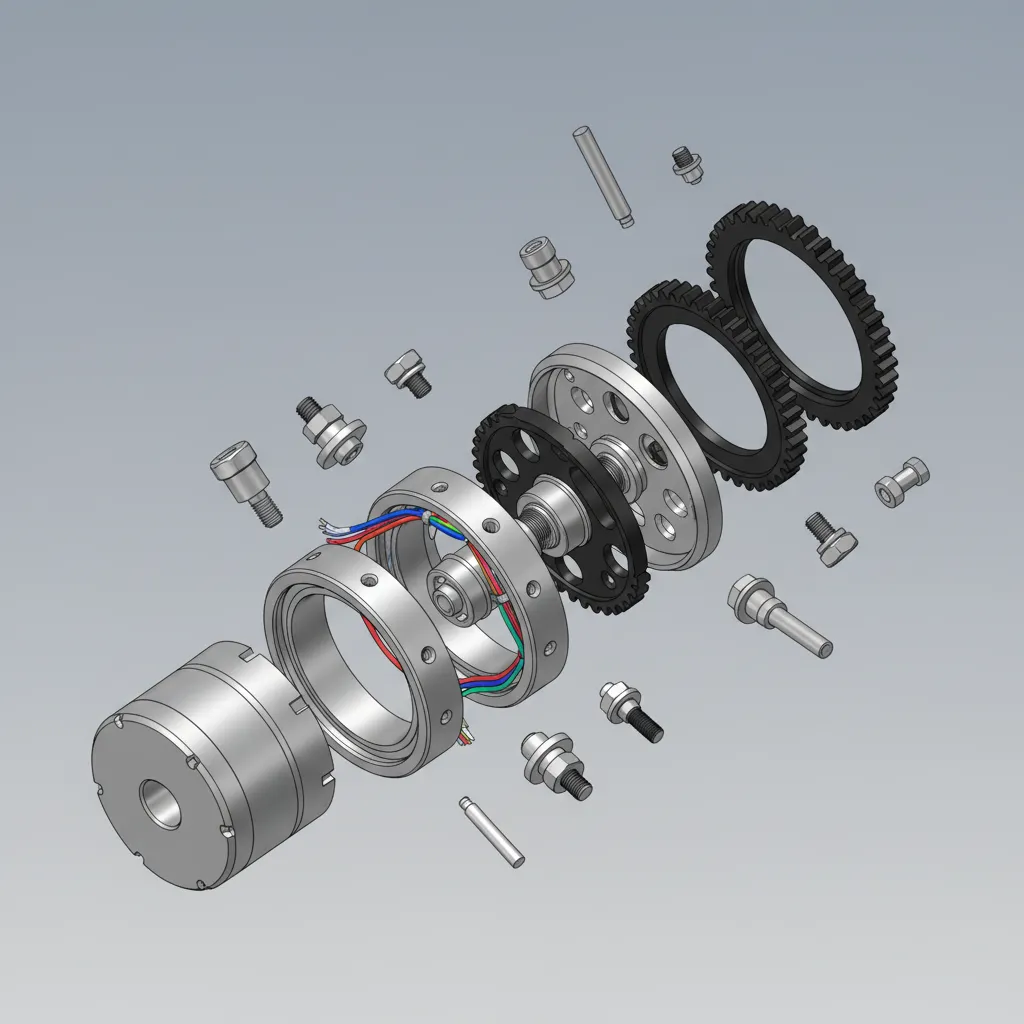

Explanation: Industrial designers usually break models along natural manufacturing boundaries such as screw joints, snap-fit areas, or internal support structures. The goal is to make each component manufacturable using a specific process like injection molding, machining, or additive manufacturing.

A typical product segmentation workflow looks like this:

1. Define assembly hierarchy
2. Separate structural and cosmetic components
3. Introduce alignment features such as pins or sockets
4. Create tolerance gaps for manufacturing accuracy
5. Export individual components for testing and simulation

One hidden mistake I often see in early-stage designers is cutting models purely along geometric symmetry. In real manufacturing, symmetry is rarely the best place for a seam. Structural stress and assembly direction matter far more.

save pin

How Game Studios Divide Complex 3D Assets

Key Insight: Game studios split large 3D models to create reusable modular assets that improve performance and production speed.

Explanation: In game development, large environments are rarely built as single meshes. Instead, artists design modular pieces that can be repeated, scaled, and rearranged across levels.

Common segmentation strategies include:

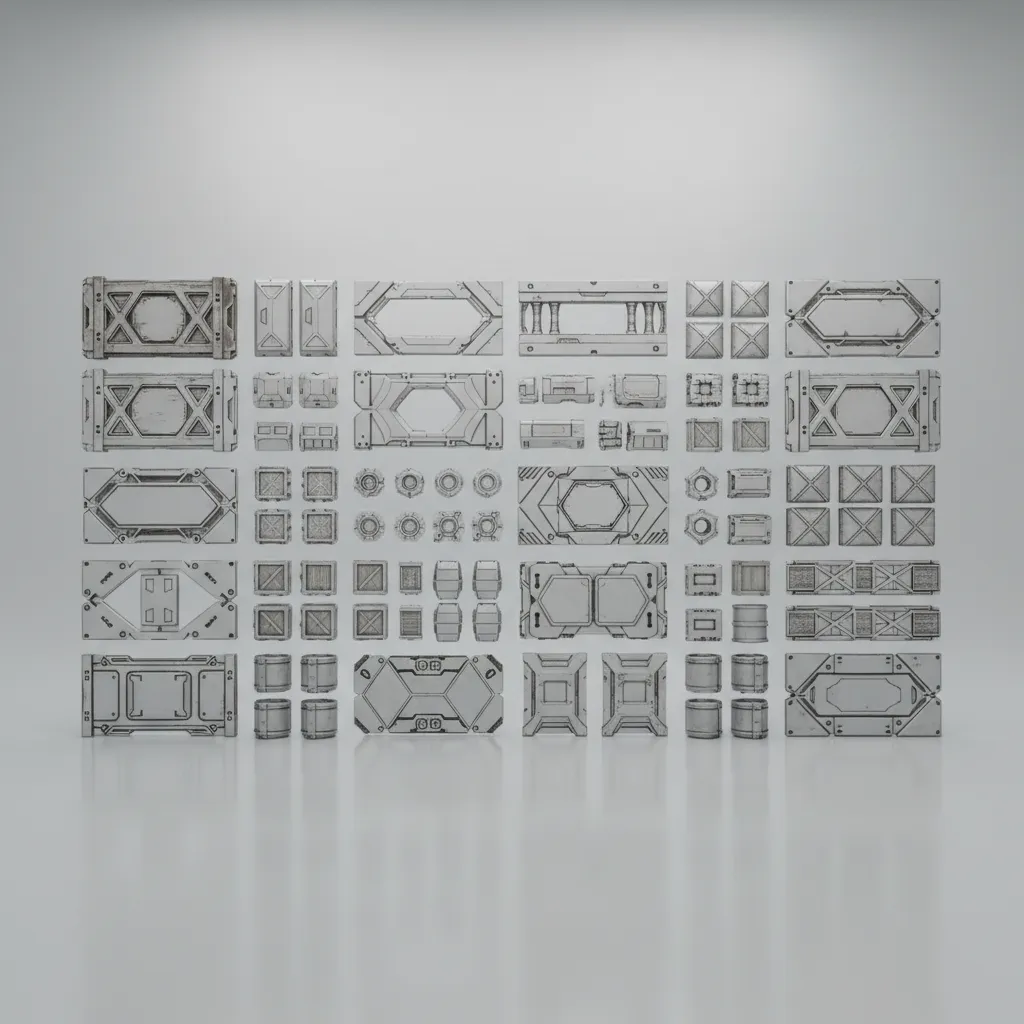

1. Modular wall and floor segments
2. Reusable architectural elements
3. Independent prop assets
4. Level streaming chunks for performance optimization

This modular approach dramatically reduces development time. A single well-designed component may appear hundreds of times within a game world.

Studios also use structured asset systems similar to architectural layout planning tools. A good example of modular planning principles can be seen in workflows like planning complex layouts using modular spatial structures, where reusable elements accelerate large-scale design.

Evidence Layer: Unreal Engine and Unity documentation both recommend modular asset creation to reduce memory usage and allow efficient level streaming.

Preparing Large Models for Industrial 3D Printing

Key Insight: Industrial 3D printing requires models to be segmented according to printer build volume, structural strength, and post-processing access.

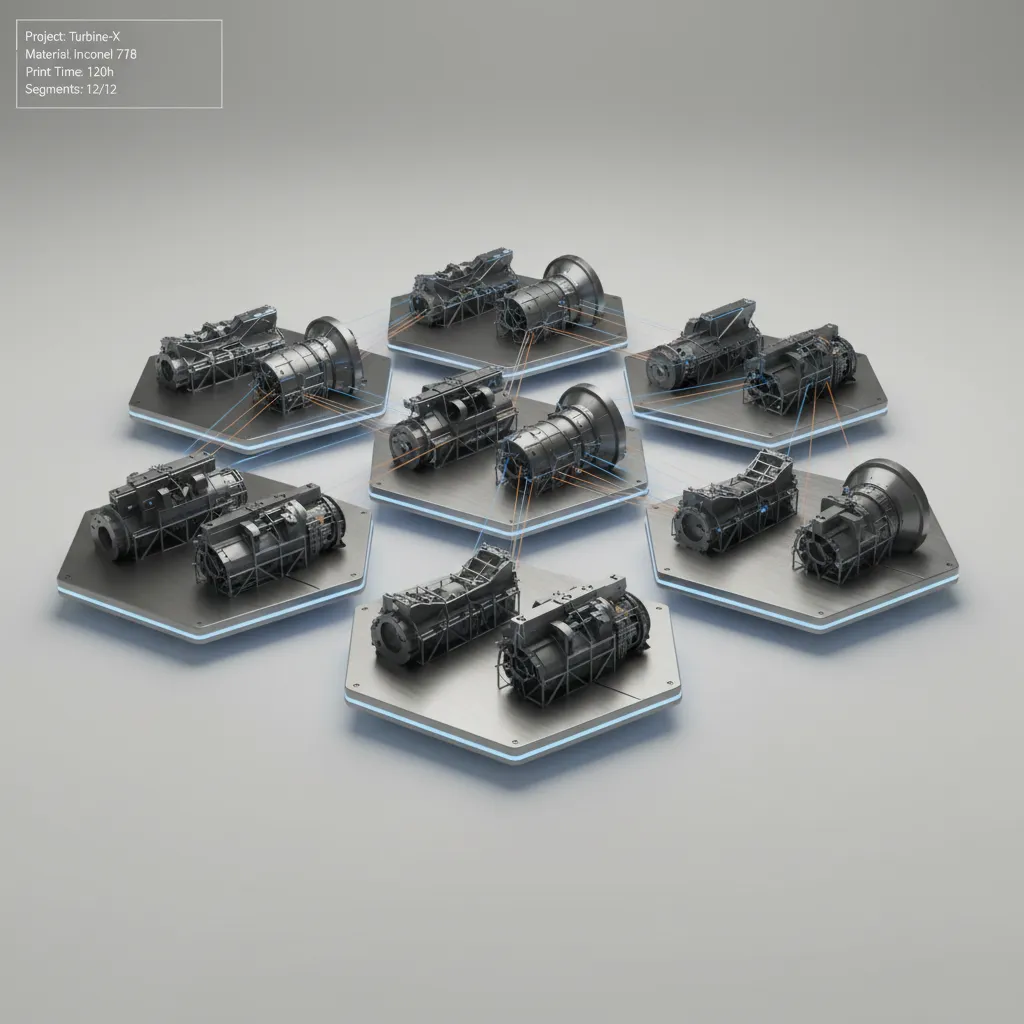

Explanation: Even high-end industrial printers have strict size limits. When a model exceeds these limits, engineers divide it into pieces that can be printed separately and assembled afterward.

Effective segmentation for printing usually follows these steps:

1. Measure printer build volume
2. Identify low-stress seam locations
3. Add alignment features
4. Include bonding surfaces
5. Test assembly tolerances

One overlooked cost in industrial printing is post-processing. If seams are placed in hard-to-reach areas, sanding and finishing can become extremely expensive.

save pin

Answer Box

Professional segmentation of large 3D models is planned around manufacturing limits, assembly logic, and collaboration needs. Instead of cutting models randomly, experts design modular components that can be produced, edited, and assembled efficiently.

Collaboration Workflows for Multi-Part Models

Key Insight: Segmentation enables multiple specialists to work on the same project simultaneously.

Explanation: Large projects often involve mechanical engineers, visual designers, and technical artists. If the entire asset exists as one mesh, collaboration quickly becomes chaotic.

Professional teams manage multi-part models using structured pipelines:

1. Master assembly files
2. Component-level editing
3. Version-controlled repositories
4. Clear dependency relationships

For example, automotive design pipelines often allow body panels, interiors, and mechanical components to be developed independently while maintaining alignment through reference assemblies.

File Management for Large Segmented Projects

Key Insight: File organization is just as important as segmentation itself.

Explanation: Once a model is divided into dozens or even hundreds of parts, poor file management can destroy productivity. Professionals rely on strict naming conventions and folder structures.

Common practices include:

1. Part numbering systems
2. Version tracking
3. Assembly hierarchies
4. Centralized asset libraries

Visualization workflows also benefit from structured environments similar to creating full scene visualizations from organized modular assets, where each element is managed independently but contributes to the final composition.

save pin

Final Summary

1. Large 3D models are segmented to match manufacturing and collaboration constraints.
2. Product design segmentation follows assembly and structural logic.
3. Game development relies heavily on modular reusable assets.
4. Industrial printing requires segmentation based on machine limits.
5. Strong file management prevents chaos in large projects.

FAQ

Why do professionals split large 3D models?

To meet manufacturing limits, improve collaboration, and allow parts to be printed or produced individually.

What is a professional workflow for splitting 3D models?

A professional workflow for splitting 3D models includes planning seams, adding alignment features, exporting separate parts, and validating assembly tolerances.

How do industries segment large 3D models?

Industries segment large models according to assembly logic, manufacturing constraints, and modular design principles.

What software is commonly used for model segmentation?

Common tools include Blender, Fusion 360, Meshmixer, and various CAD platforms used in engineering pipelines.

What is industrial 3D printing model segmentation?

Industrial 3D printing model segmentation refers to dividing a large object into printable sections that fit machine build volumes and can be assembled afterward.

How do game studios handle large assets?

Game studios build modular components such as walls, props, and environment pieces that can be reused across levels.

What mistakes should be avoided when splitting models?

Avoid placing seams in high-stress areas, ignoring alignment features, or creating segments that cannot be assembled easily.

Can segmentation improve rendering performance?

Yes. Modular assets allow rendering engines to stream and load smaller pieces instead of one massive mesh.
