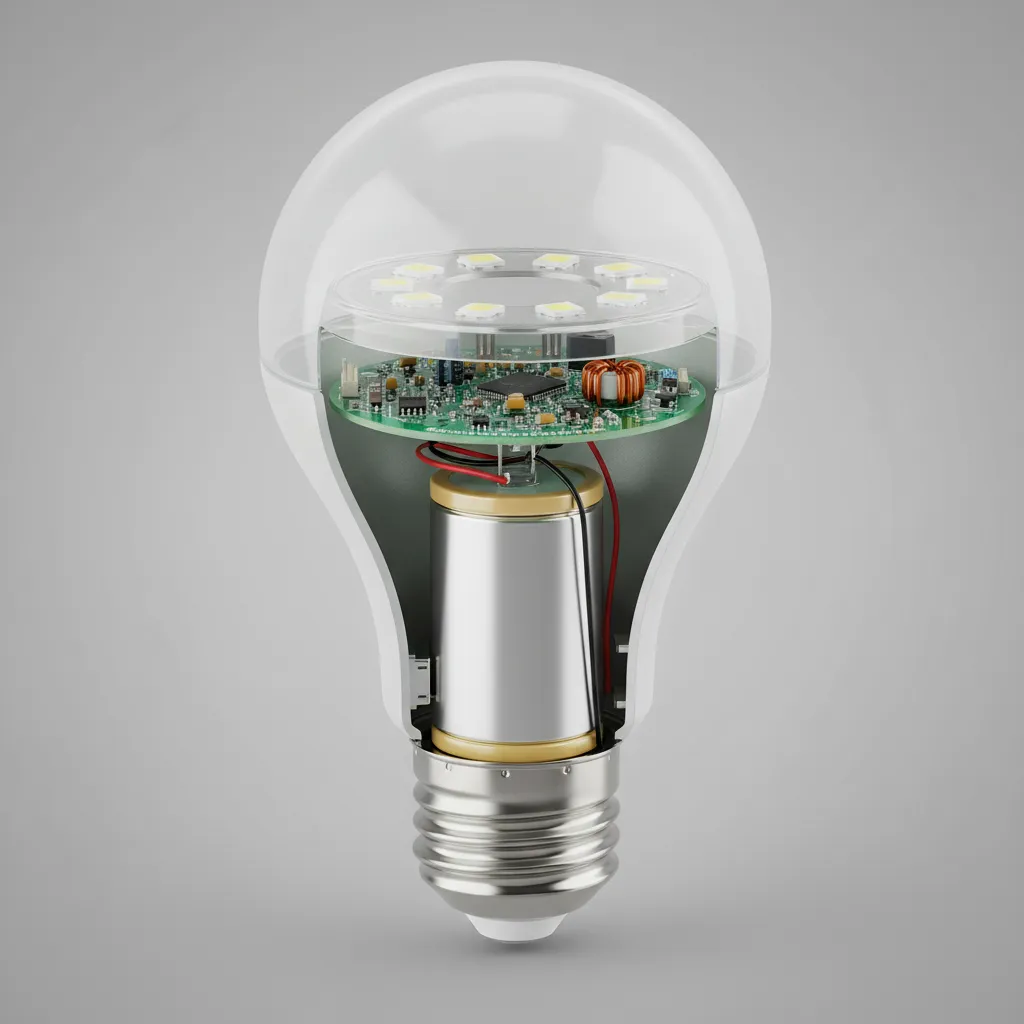

How Rechargeable Light Bulbs Work: Batteries, Drivers, and Charging Circuits: A practical breakdown of the batteries, drivers, and internal electronics that allow rechargeable LED bulbs to store and reuse power.

Direct Answer

Rechargeable light bulbs work by integrating a small battery, a charging circuit, and an LED driver inside the bulb housing. When the bulb receives electricity from a socket or external power source, the charging circuit stores energy in the internal battery while powering the LEDs. If the main power disappears, the battery automatically supplies electricity so the bulb continues lighting.

Quick Takeaways

1. Rechargeable bulbs combine LEDs, batteries, charging circuits, and drivers in a single sealed housing.
2. Most modern rechargeable LED bulbs use lithium-ion batteries for higher energy density.
3. A charging circuit regulates voltage to safely store energy inside the battery.
4. The LED driver stabilizes current so brightness remains consistent.
5. Safety protection prevents overheating, overcharging, and battery damage.

Introduction

Rechargeable light bulbs look almost identical to standard LED bulbs, but inside they contain a compact power system that can store electricity and release it when needed. Understanding how rechargeable LED light bulbs work requires looking at three internal technologies: the battery, the charging circuit, and the LED driver.

After working on multiple lighting retrofit projects for apartments and small offices, I've noticed that many people assume these bulbs simply "store extra power." In reality, they behave more like miniature emergency lighting systems. A rechargeable bulb must manage incoming electricity, safely charge a battery, regulate LED voltage, and instantly switch power sources when electricity fails.

Designers and builders who explore visualizing lighting setups in realistic home renderingsoften discover that emergency and rechargeable lighting plays a bigger role in usability than expected—especially in hallways, kitchens, and entryways where blackout safety matters.

In this guide, I'll break down the internal components of rechargeable LED bulbs and explain how these systems actually work together.

save pin

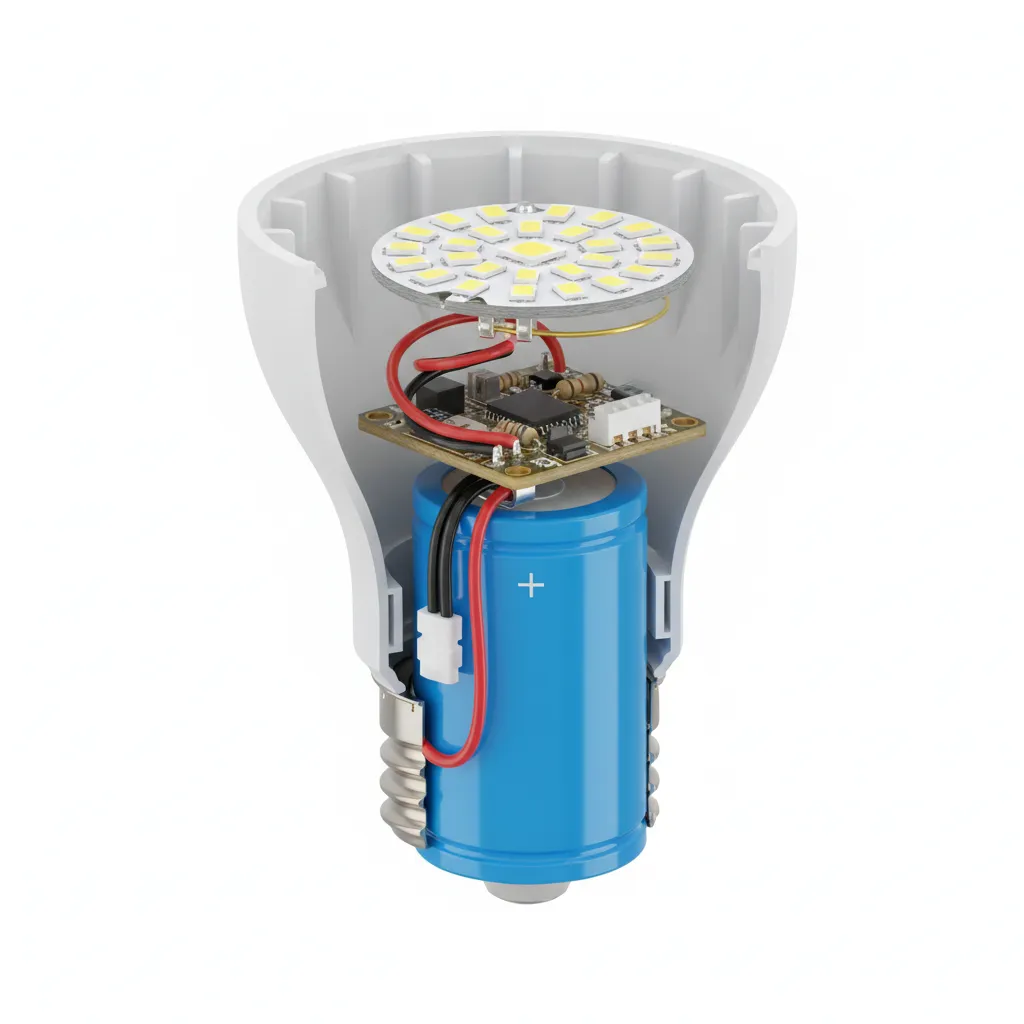

Basic Components Inside a Rechargeable Light Bulb

Key Insight: Every rechargeable bulb is essentially a mini power system built around four parts: LEDs, battery, charging circuit, and driver electronics.

Although the outer shell resembles a normal LED bulb, the interior contains additional electronics packed into a very tight space. Engineers must balance heat, safety, and efficiency while keeping the bulb affordable.

The core internal components usually include:

1. LED chip array – The light source itself.
2. Rechargeable battery – Stores energy for backup lighting.
3. Charging circuit – Converts AC electricity into safe charging voltage.
4. LED driver – Maintains stable current for consistent brightness.
5. Automatic switching controller – Detects power loss and activates battery mode.

One engineering challenge many people overlook is heat management. LEDs, batteries, and charging electronics all produce heat. In poorly designed bulbs, this trapped heat shortens battery lifespan significantly.

From teardown analysis I've done on several brands, higher‑quality bulbs typically use aluminum heat sinks and slightly larger housings to protect internal electronics.

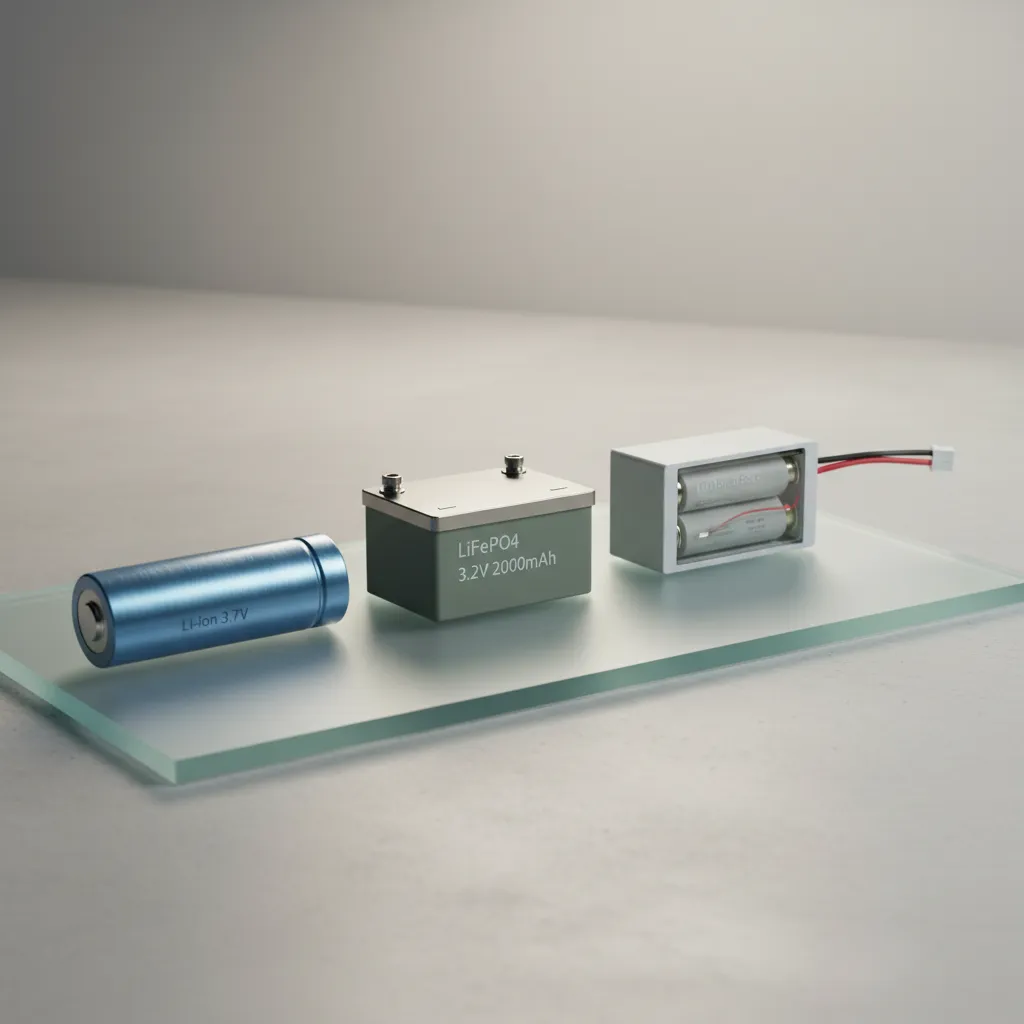

Types of Batteries Used in Rechargeable LED Bulbs

Key Insight: Lithium-ion batteries dominate rechargeable LED bulb design because they offer the best balance of size, weight, and energy capacity.

Early emergency bulbs used nickel-cadmium batteries, but these were bulky and suffered from memory effects. Modern bulbs almost always rely on lithium-based cells similar to those found in smartphones.

Common battery types include:

1. Lithium-ion (Li-ion) – Most common; high energy density.
2. Lithium iron phosphate (LiFePO4) – Safer and longer lifespan but slightly lower capacity.
3. Nickel-metal hydride (NiMH) – Occasionally used in budget products.

A typical rechargeable emergency bulb contains a battery between 1200 mAh and 2600 mAh. That capacity usually provides 3–6 hours of backup lighting depending on brightness.

In interior lighting planning—especially when mapping power outage scenarios using a simple room lighting layout planner—I often recommend placing rechargeable bulbs in circulation areas rather than relying on flashlights or standalone emergency lamps.

save pin

How Charging Circuits Manage Power Input

Key Insight: The charging circuit converts high-voltage AC electricity into low-voltage DC power while protecting the battery from unsafe charging conditions.

A standard light socket supplies alternating current (AC), but rechargeable batteries require carefully regulated direct current (DC). The charging circuit inside the bulb performs several steps to make that possible.

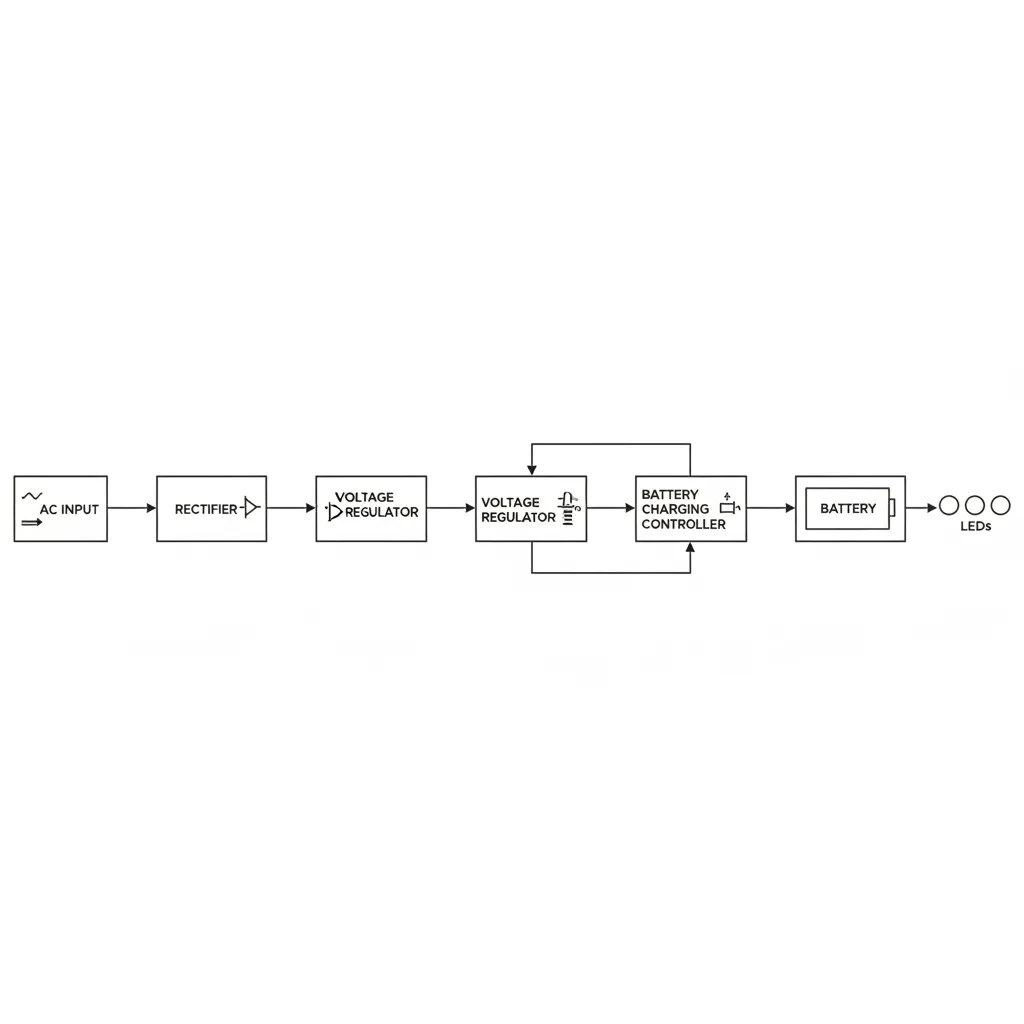

Typical charging sequence:

1. AC input enters the bulb from the socket.
2. A rectifier converts AC to DC.
3. A voltage regulator stabilizes the output.
4. The charging controller feeds energy into the battery.
5. The circuit stops charging when the battery reaches full capacity.

Quality charging circuits also include temperature monitoring. If the battery overheats during charging, the circuit reduces current or pauses charging entirely.

This protective behavior is crucial because the bulb housing provides very limited airflow.

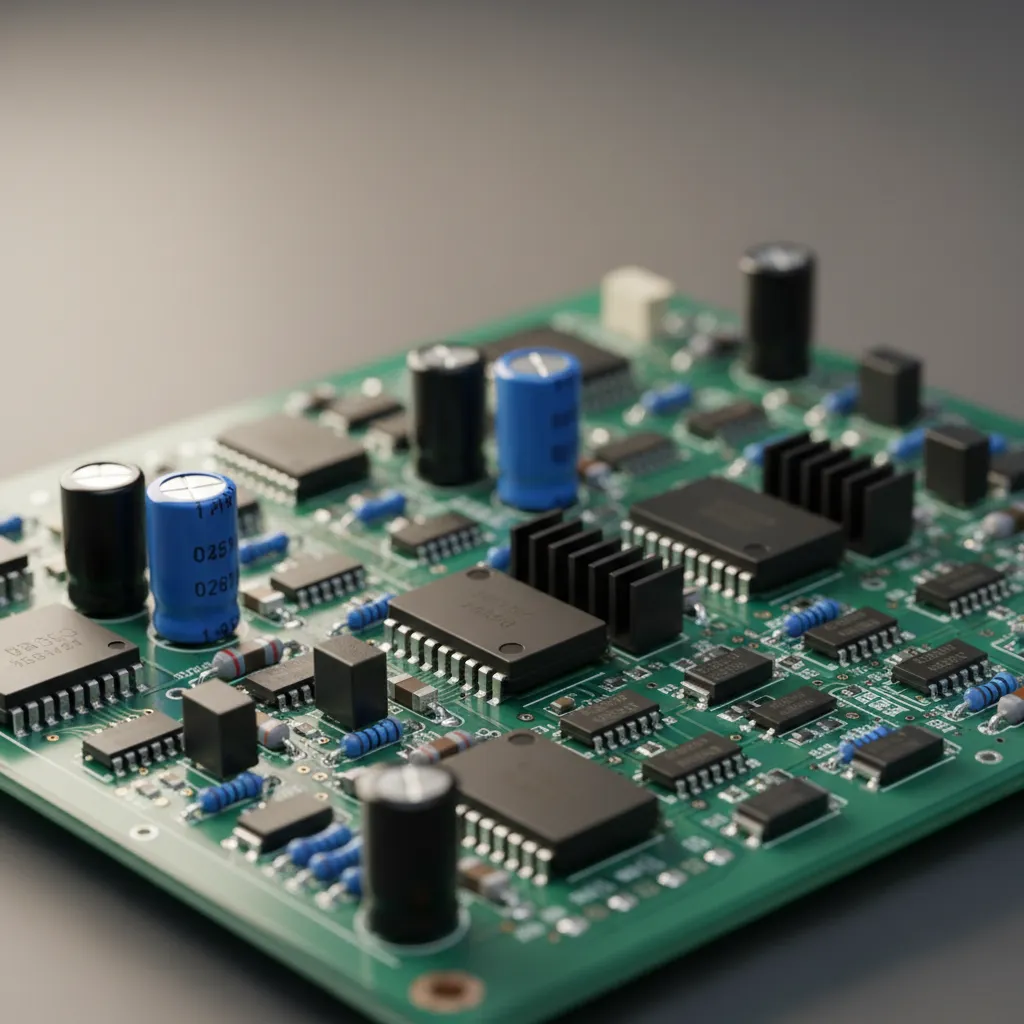

Role of LED Drivers in Rechargeable Bulbs

Key Insight: The LED driver ensures consistent brightness regardless of whether the bulb is running on grid power or battery power.

LEDs require constant current to operate correctly. Without regulation, brightness would fluctuate as voltage changes.

The LED driver solves this problem by controlling electrical output in both operating modes.

The driver performs three essential tasks:

1. Converts electrical input to the correct current for LEDs
2. Maintains stable brightness
3. Switches seamlessly between AC power and battery power

This automatic switching happens extremely fast—usually within milliseconds—so users rarely notice when a power outage occurs.

In my experience reviewing dozens of bulb designs, this driver circuitry is often where cheaper products cut corners, which leads to flickering during battery operation.

save pin

Safety Mechanisms in Rechargeable Lighting

Key Insight: Modern rechargeable bulbs rely on multiple electronic protection layers to prevent overheating, battery damage, or electrical failure.

Because the battery and charging circuit sit inside a sealed bulb, safety engineering becomes extremely important.

Typical safety protections include:

1. Overcharge protection – Stops charging when battery is full.
2. Over-discharge protection – Prevents the battery from draining completely.
3. Temperature monitoring – Shuts down charging if overheating occurs.
4. Short circuit protection – Protects internal electronics from damage.

Regulatory testing from organizations such as UL and IEC focuses heavily on these protections. Without them, battery swelling or thermal failure could occur.

Designers specifying lighting for apartments often overlook emergency lighting compliance. When mapping electrical layouts with a floor plan tool for emergency lighting placement, it's easier to verify that key escape routes remain illuminated during outages.

Answer Box

Rechargeable LED bulbs function by combining a lithium battery, charging controller, and LED driver inside the bulb housing. The charging circuit stores energy while the bulb operates normally, and the battery automatically powers the LEDs during outages.

save pin

How Internal Design Affects Charging Speed and Lifespan

Key Insight: The lifespan of a rechargeable bulb depends more on heat management and charging control than battery capacity alone.

Many buyers assume that larger battery capacity guarantees better performance. In practice, internal thermal design often determines how long the bulb actually lasts.

Key factors that influence performance:

1. Heat dissipation – Aluminum heat sinks improve battery longevity.
2. Charging current – Faster charging increases internal heat.
3. Driver efficiency – Efficient drivers waste less energy as heat.
4. Battery chemistry – LiFePO4 cells often last longer.

One hidden trade-off rarely discussed in marketing materials is that extremely bright rechargeable bulbs tend to have shorter backup runtimes. Higher lumen output drains the battery faster and raises operating temperature.

That trade-off is why most reliable emergency bulbs operate between 7W and 12W LED output when on battery mode.

Final Summary

1. Rechargeable bulbs integrate batteries, drivers, and charging circuits inside a standard bulb housing.
2. Lithium-ion batteries provide the best balance of size and energy capacity.
3. Charging circuits convert AC power and protect batteries from unsafe conditions.
4. LED drivers maintain stable brightness and enable instant power switching.
5. Thermal design strongly affects charging speed and long-term lifespan.

FAQ

1. How do rechargeable LED light bulbs work during power outages?

They automatically switch to their internal battery when electricity stops, allowing the LEDs to continue operating for several hours.

2. What battery is inside a rechargeable light bulb?

Most modern bulbs use lithium-ion batteries, typically between 1200–2600 mAh capacity.

3. How long do rechargeable bulbs stay lit?

Most provide 3–6 hours of illumination depending on brightness and battery capacity.

4. Can rechargeable bulbs charge while turned on?

Yes. The charging circuit stores energy while the bulb operates normally.

5. Are rechargeable LED bulbs safe?

Yes, if they include protections like overcharge, temperature monitoring, and short-circuit protection.

6. Why do some rechargeable bulbs flicker?

Poor driver design or unstable battery output can cause flickering during battery operation.

7. Do rechargeable LED bulbs work in any lamp?

Yes, as long as the socket provides standard power and the bulb size fits.

8. What technology allows rechargeable emergency bulbs to store power?

The technology behind rechargeable emergency bulbs combines lithium batteries, charging circuits, and regulated LED drivers.
