How Restaurants and Interior Designers Plan Dining Table Layouts: Professional layout strategies that balance seating capacity, comfort, and smooth traffic flow

Direct Answer

Restaurant dining table layout planning combines precise spacing rules, circulation paths, and table placement strategies to maximize seating while keeping guests comfortable. Interior designers and hospitality planners typically start with traffic flow, apply standard clearance measurements, and then choose table shapes that support both service efficiency and visual balance.

Quick Takeaways

1. Professional layouts prioritize walking paths before deciding table positions.
2. Most restaurants maintain 36–48 inches of clearance between tables.
3. Round tables improve circulation in tight spaces.
4. Efficient layouts increase seating capacity without sacrificing comfort.
5. Home dining rooms benefit from the same spacing logic used in hospitality design.

Introduction

After working on dozens of hospitality projects, one thing becomes clear quickly: restaurant dining table layout planning is far more technical than most people expect. It is not just about fitting tables into a room. It is about managing movement, comfort, acoustics, service routes, and visual balance all at once.

Many homeowners run into the same problems restaurants face. Chairs collide, pathways feel cramped, and the room never quite flows correctly. In professional interior design, these issues are solved long before furniture is purchased.

Designers typically begin by mapping circulation paths and testing table placement digitally. If you want to see how professionals visualize these layouts before construction or renovation, this interactive guide on how designers map functional dining spaces before furniture placementshows the same planning approach used in hospitality projects.

In this guide, I’ll walk through the practical rules restaurants and interior designers use to build dining layouts that feel natural, efficient, and visually balanced.

save pin

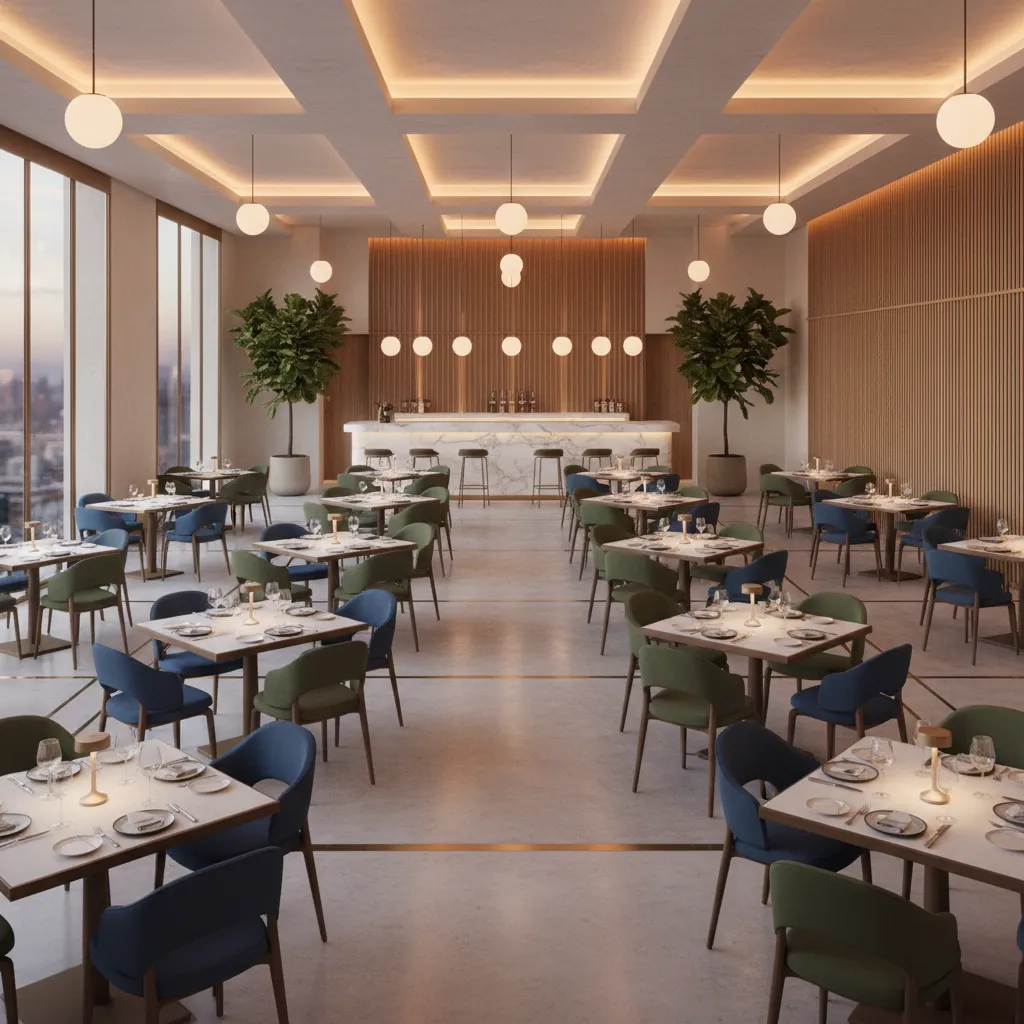

Professional Space Planning Principles for Dining Areas

Key Insight: The most important rule in dining layout design is that circulation paths come before seating placement.

One mistake I often see in residential dining rooms is placing the table first and hoping everything else works around it. In hospitality design, we do the opposite.

Restaurants begin with movement patterns: guest entry, server routes, emergency exits, and access to kitchens or bars. Only after those routes are mapped do tables enter the layout.

Typical circulation hierarchy designers follow:

1. Main aisles: 48–60 inches wide
2. Secondary service aisles: 36–48 inches
3. Chair pull-back space: minimum 24 inches
4. Wall clearance for seated diners: 18 inches

The American Institute of Architects and hospitality design guides emphasize circulation-first planning because it prevents operational bottlenecks.

In my experience, rooms that ignore circulation usually feel crowded even when the seating count is low.

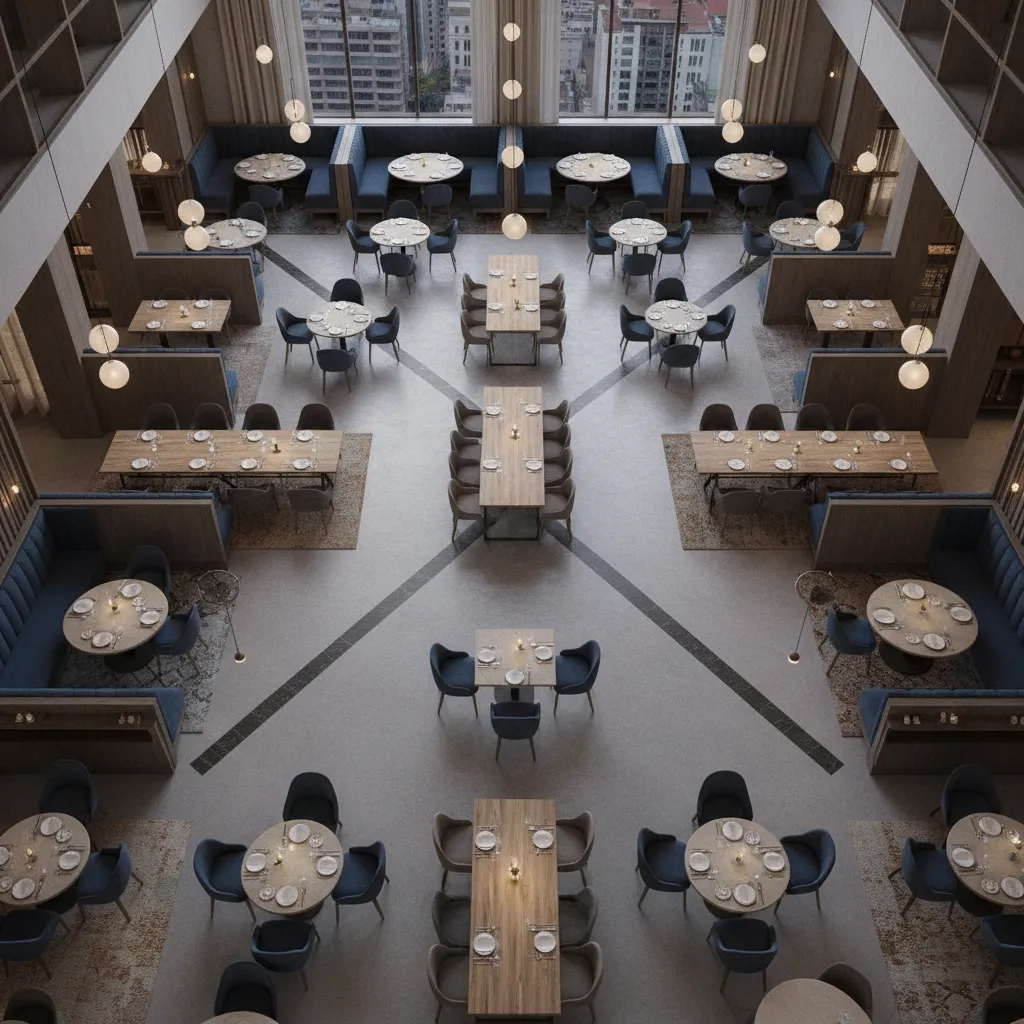

Restaurant Seating Layout Strategies That Improve Flow

Key Insight: Strategic zoning is what allows restaurants to serve more guests without creating congestion.

Most restaurants divide the dining floor into zones rather than filling it uniformly with tables.

Common zoning strategies include:

1. High-turnover seating near entrances
2. Larger tables along walls
3. Flexible tables in the center for grouping
4. Quiet seating zones farther from kitchens

This arrangement keeps servers moving efficiently while maintaining a comfortable atmosphere for guests.

Another trick professionals use is mixing table sizes rather than repeating the same table everywhere. A combination of two-top, four-top, and six-top tables dramatically improves seating flexibility.

save pin

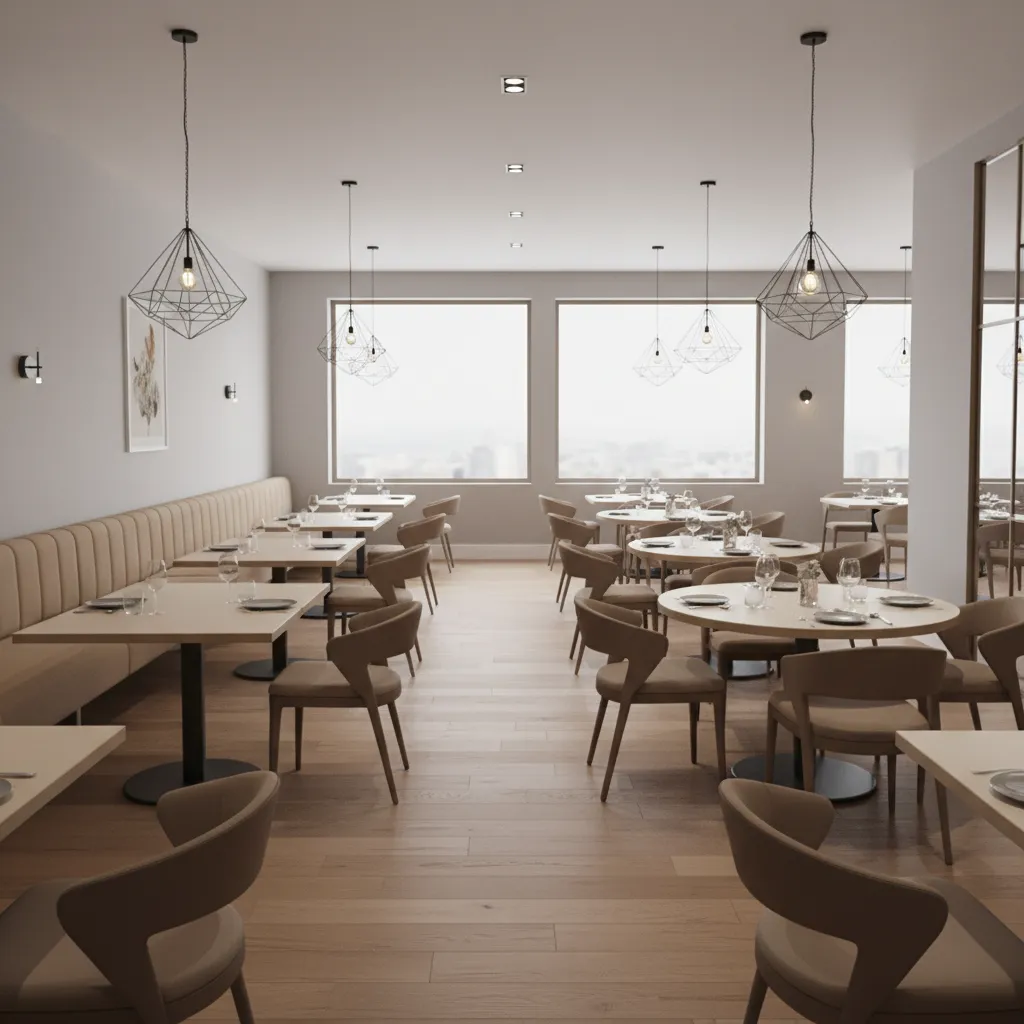

Standard Clearance Measurements Designers Use

Key Insight: Consistent spacing rules are what prevent dining spaces from feeling cramped.

Interior designer dining room layout rules rely heavily on predictable measurements. These dimensions are used in both hospitality and residential projects.

Standard dining table spacing guidelines:

1. Table-to-table spacing: 36–48 inches
2. Chair clearance from wall: 24–30 inches
3. Main aisle clearance: 48 inches
4. Banquette to table distance: 12–18 inches

The National Restaurant Association recommends these ranges because they allow servers to move comfortably while maintaining guest privacy.

When homeowners struggle with dining layouts, it’s usually because spacing falls below these minimums.

If you're experimenting with layouts, using a visual planning tool like this guide to sketch accurate dining room layouts before moving furniture helps test spacing rules before committing to a layout.

Balancing Seating Capacity with Comfort

Key Insight: The biggest hidden mistake in dining layouts is pushing seating density too far.

Restaurants constantly walk the line between maximizing revenue and maintaining comfort.

From my experience working with hospitality clients, removing just one table from a crowded layout often improves customer experience significantly.

Design trade-offs designers evaluate:

1. Higher seat count vs guest comfort
2. Table turnover speed vs atmosphere
3. Server efficiency vs visual openness

Interestingly, studies from Cornell University's School of Hotel Administration have shown that comfortable spacing can actually increase customer spending and return visits.

save pin

How Interior Designers Choose Table Shapes and Positions

Key Insight: Table shape dramatically affects both movement flow and seating flexibility.

Most homeowners choose tables based on aesthetics. Designers choose them based on geometry.

General rules professionals use:

1. Round tables improve circulation in tight rooms
2. Rectangular tables maximize seating along walls
3. Square tables offer flexible grouping
4. Oval tables soften narrow spaces

Round tables are particularly common in restaurants because they eliminate sharp circulation corners and allow chairs to shift naturally.

Rectangular tables, however, are still the most efficient choice when seating must align along walls or banquettes.

Answer Box

The most successful dining layouts follow three principles: prioritize circulation paths, maintain consistent spacing, and select table shapes that support movement. These rules allow restaurants to increase seating while preserving comfort and service efficiency.

Lessons Homeowners Can Apply from Restaurant Layout Design

Key Insight: The same hospitality seating layout design principles can dramatically improve residential dining rooms.

Most homes are actually easier to plan than restaurants because they involve fewer circulation routes and less operational complexity.

Practical ideas homeowners can borrow from restaurant designers:

1. Keep a clear walking path behind chairs
2. Use mixed seating instead of oversized tables
3. Anchor dining tables with lighting to define zones
4. Avoid pushing tables directly against walls unless using banquettes

If you're experimenting with different arrangements, professionals often test layouts digitally first. This walkthrough on how designers visualize full dining layouts in 3D before rearranging furniture shows the same approach used in many interior studios.

Final Summary

1. Dining layouts start with circulation planning, not table placement.
2. Most professional designs maintain 36–48 inches between tables.
3. Round tables improve movement in compact dining areas.
4. Balanced spacing often improves guest comfort and overall experience.
5. Hospitality design strategies work surprisingly well in residential dining rooms.

FAQ

How much space should be between dining tables in restaurants?

Most restaurant dining table layout planning follows a spacing guideline of 36–48 inches between tables to allow comfortable movement and privacy.

What is the minimum aisle width in restaurant seating layouts?

Main aisles are typically 48–60 inches wide, while secondary service aisles may be 36–48 inches.

Are round or rectangular tables better for small dining areas?

Round tables usually work better in tight spaces because they improve circulation and remove sharp corners.

What are standard dining table spacing guidelines at home?

Home dining rooms typically follow similar rules as restaurants: 36 inches between tables or walls and 24 inches behind chairs.

Why do restaurants mix different table sizes?

Mixed table sizes allow staff to combine seating easily for different group sizes and improve space efficiency.

How do designers prevent dining rooms from feeling crowded?

They prioritize walking paths first, limit table density, and maintain consistent spacing between furniture.

Can restaurant seating layout strategies work in homes?

Yes. Many interior designer dining room layout rules used in hospitality translate well to residential spaces.

What tool do designers use to plan dining layouts?

Designers typically use floor planning or 3D layout software to test circulation and table spacing before finalizing a design.

References

1. American Institute of Architects Space Planning Guidelines
2. National Restaurant Association Design Standards
3. Cornell University School of Hotel Administration Hospitality Research
