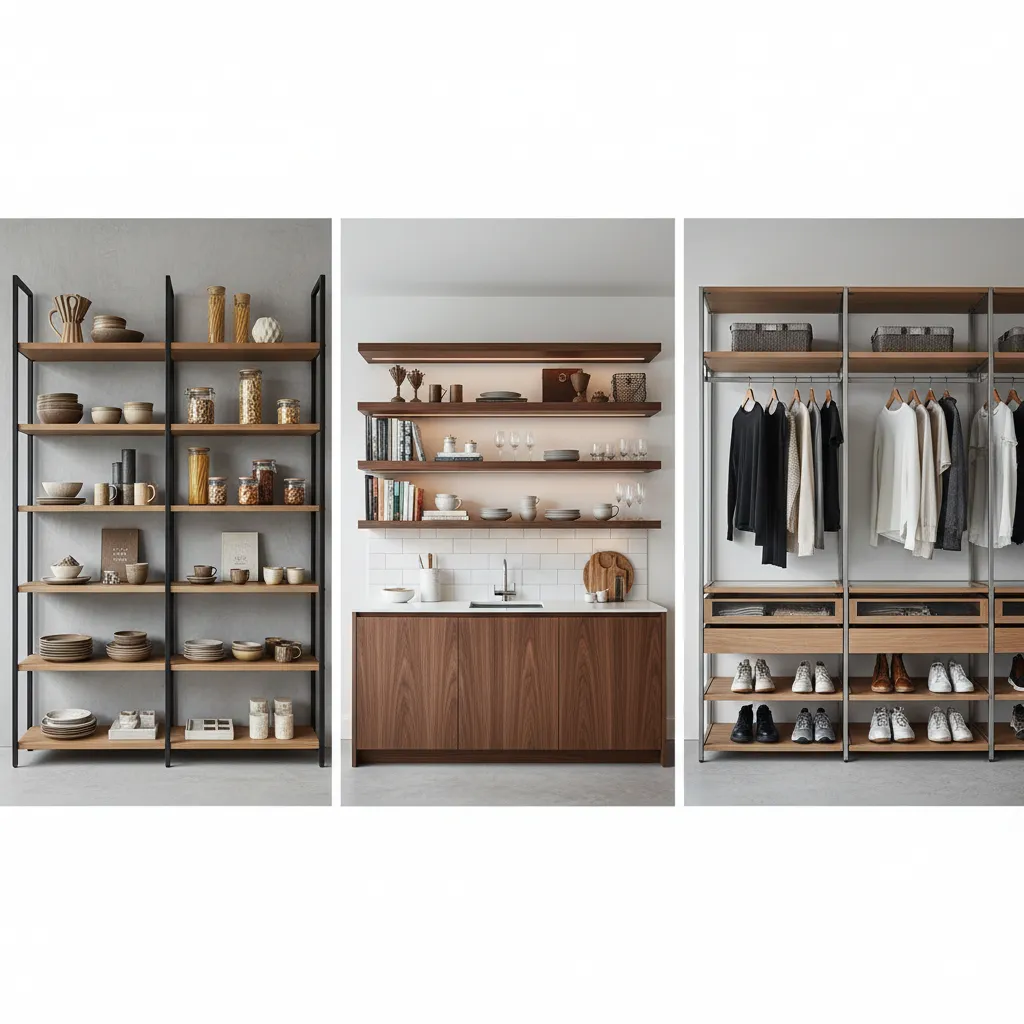

How Retail Kitchen and Closet Industries Design Shelving Layouts: Learn how professional shelving layouts are planned across retail stores kitchens and closets and how those standards translate into practical design decisions.

Direct Answer

Retail stores, kitchens, and closets design shelving layouts using a combination of ergonomics, product dimensions, workflow patterns, and modular spacing standards. While each industry prioritizes different functions—display, storage efficiency, or accessibility—the underlying principle is consistent spacing, reach comfort, and predictable modular measurements.

Professionals typically plan shelving systems using standardized dimensions, circulation clearances, and modular planning grids that can easily translate into architectural drawings and digital layouts.

Quick Takeaways

1. Retail shelving prioritizes visibility, product density, and customer movement.
2. Kitchen shelving follows ergonomic reach zones and appliance dimensions.
3. Closet systems rely on modular increments for clothing categories.
4. Professional shelving layouts always begin with real object sizes, not empty walls.
5. Standard measurements allow shelving designs to scale across projects.

Introduction

After working on residential interiors and retail environments for more than a decade, I've noticed something interesting: most shelving problems don't come from bad aesthetics. They come from bad measurements.

People often assume shelving layout is simply about adding boards to a wall. But industries like retail, kitchen manufacturing, and closet system design approach it very differently. They design shelves around human behavior, object sizes, and predictable usage patterns.

When designers study professional shelving layout standards, the process becomes far more structured. Retailers optimize visibility and product density. Kitchens prioritize reach zones and workflow. Closet systems organize clothing categories using modular increments.

If you're planning shelving layouts digitally, it helps to first understand how professionals structure space. A good starting point is exploring examples of interactive room layout planning workflows used by interior designers, which illustrate how shelving integrates with the overall room.

In this guide, I'll break down how three major industries approach shelving layout design and how those principles translate into practical drawing and planning decisions.

save pin

Overview of Shelving Requirements Across Industries

Key Insight: Every shelving system is built around three constraints: object dimensions, user reach, and modular repeatability.

Although retail stores, kitchens, and closets serve different functions, the design logic behind their shelving layouts follows similar rules.

The biggest mistake beginners make is starting with the wall instead of the objects. Professionals do the opposite—they begin by measuring what will actually be stored or displayed.

Across industries, shelving design usually considers:

1. Product or item height ranges
2. Typical user reach zones
3. Visual accessibility
4. Weight support requirements
5. Modular spacing for manufacturing

For example, the National Kitchen and Bath Association (NKBA) emphasizes ergonomic reach ranges for wall storage, while retail fixture manufacturers standardize shelf increments to fit mass-produced brackets and uprights.

This means good shelving layouts are rarely random—they are predictable systems built around repeatable measurements.

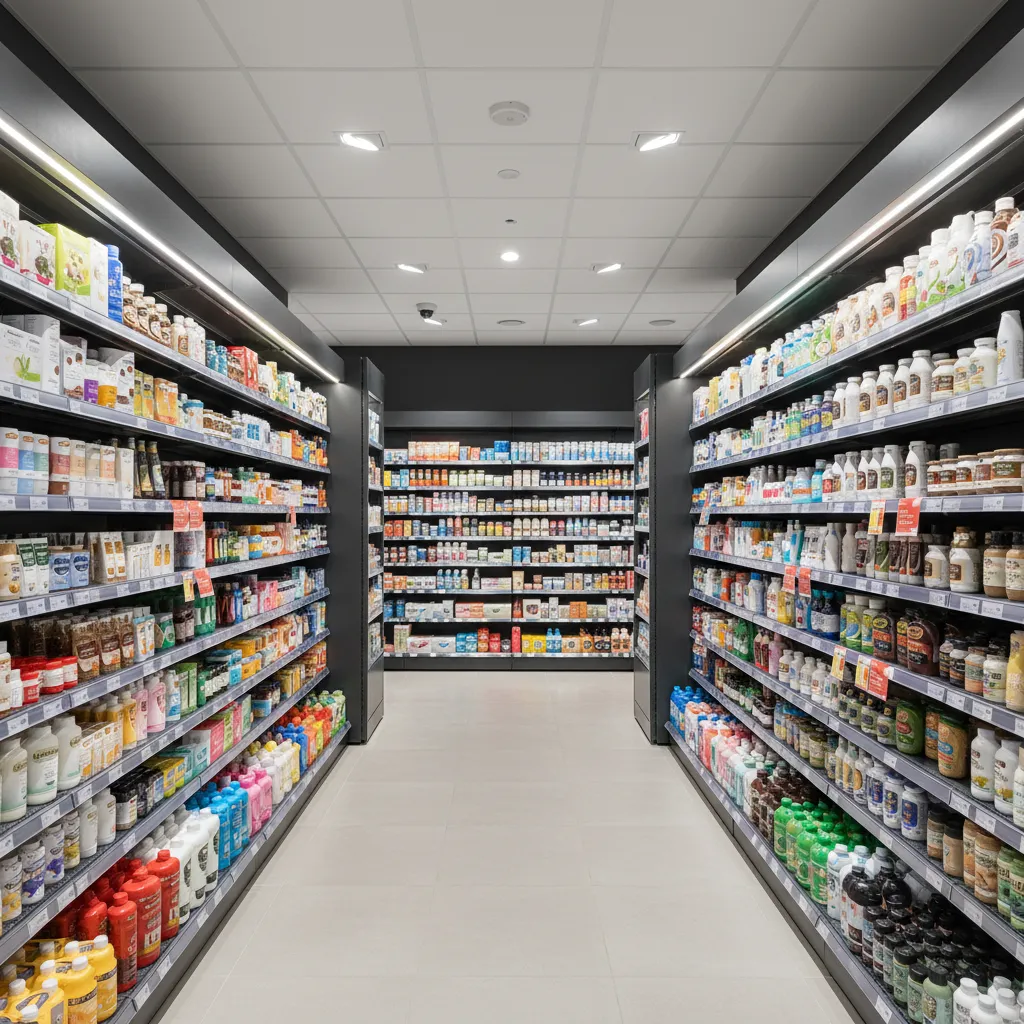

Retail Store Shelf Layout Planning

Key Insight: Retail shelving prioritizes product visibility and shopping flow rather than pure storage efficiency.

In retail design projects I've worked on, shelves are treated as merchandising tools rather than simple storage.

Designers consider three major retail factors:

1. Eye-level product placement
2. Vertical product zoning
3. Aisle visibility

Typical retail shelf zones look like this:

1. Eye level (48–60 inches): highest selling products
2. Touch level (36–48 inches): commonly purchased items
3. Stretch level (60–72 inches): lower priority goods
4. Base shelves (below 36 inches): bulk items

Major retail fixture systems—such as gondola shelving—are also modular. Most shelves adjust in increments of 1–2 inches, allowing stores to quickly reconfigure displays.

This modular logic is why retail layouts translate well into digital planning tools like floor plan systems used to map shelving and traffic flow, where repeated shelf modules help designers scale large store layouts efficiently.

save pin

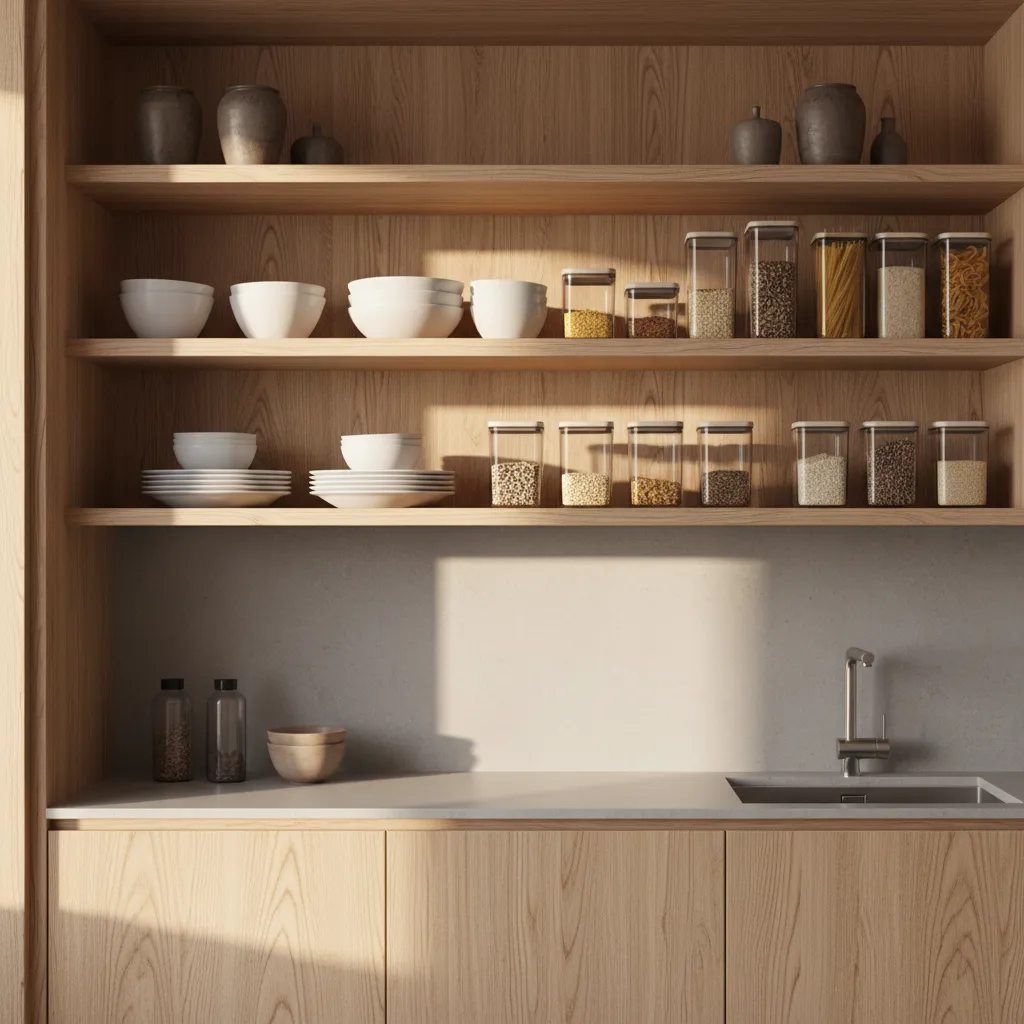

Kitchen Cabinet Shelf Design Standards

Key Insight: Kitchen shelving is driven primarily by ergonomics and appliance dimensions rather than visual display.

Kitchen cabinetry follows some of the most standardized shelving measurements in the interior design world. Manufacturers rely on fixed cabinet widths and predictable shelf spacing so components can be mass produced.

Common kitchen shelf spacing guidelines include:

1. 10–12 inches for plates and bowls
2. 12–15 inches for pantry dry goods
3. 15–18 inches for small appliances
4. 18–24 inches for large pantry items

The NKBA kitchen planning guidelines also emphasize reach comfort. Upper cabinets typically start around 18 inches above the countertop, allowing easy access without excessive stretching.

Another overlooked factor is shelf depth. Standard wall cabinets are usually 12 inches deep, while pantry cabinets range from 15 to 24 inches.

In practice, professional designers often sketch these layouts before cabinetry is finalized using tools that simulate cabinet spacing and appliance clearance such as kitchen space planning environments used by designers.

save pin

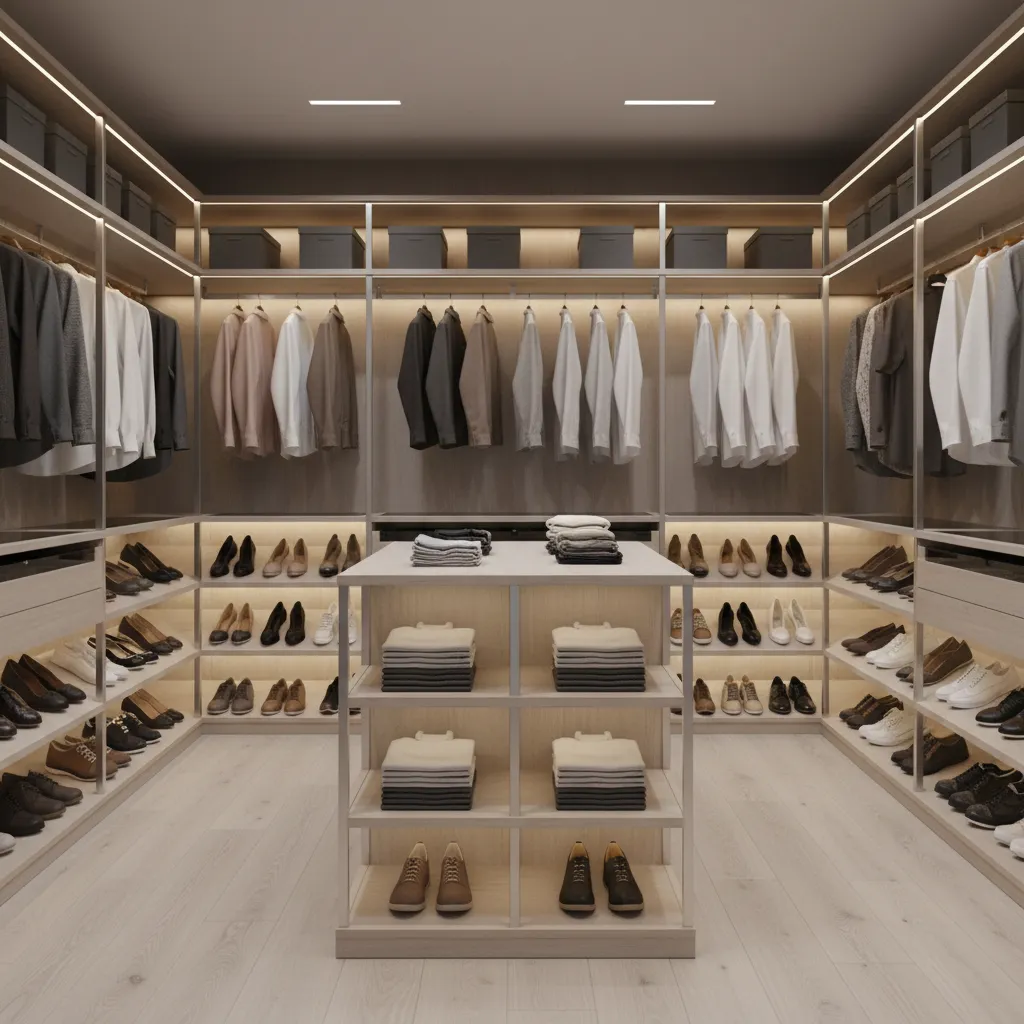

Closet and Wardrobe Shelving Systems

Key Insight: Closet shelving systems are modular storage grids built around clothing categories.

Closet design companies approach shelving differently from kitchens or retail stores. Their goal is to maximize vertical storage while keeping daily items easily reachable.

Typical closet shelving modules include:

1. 12–14 inches for folded clothes
2. 16–18 inches for sweaters or towels
3. 10–12 inches for shoes
4. 36–40 inches for double hanging rods
5. 66–72 inches for long garments

Closet systems also rely heavily on 32 mm modular panel drilling systems used in furniture manufacturing. This allows shelves and rods to move easily without rebuilding the structure.

Companies like California Closets and IKEA use similar modular spacing principles to keep systems flexible across thousands of installations.

save pin

Industry Measurements and Ergonomic Guidelines

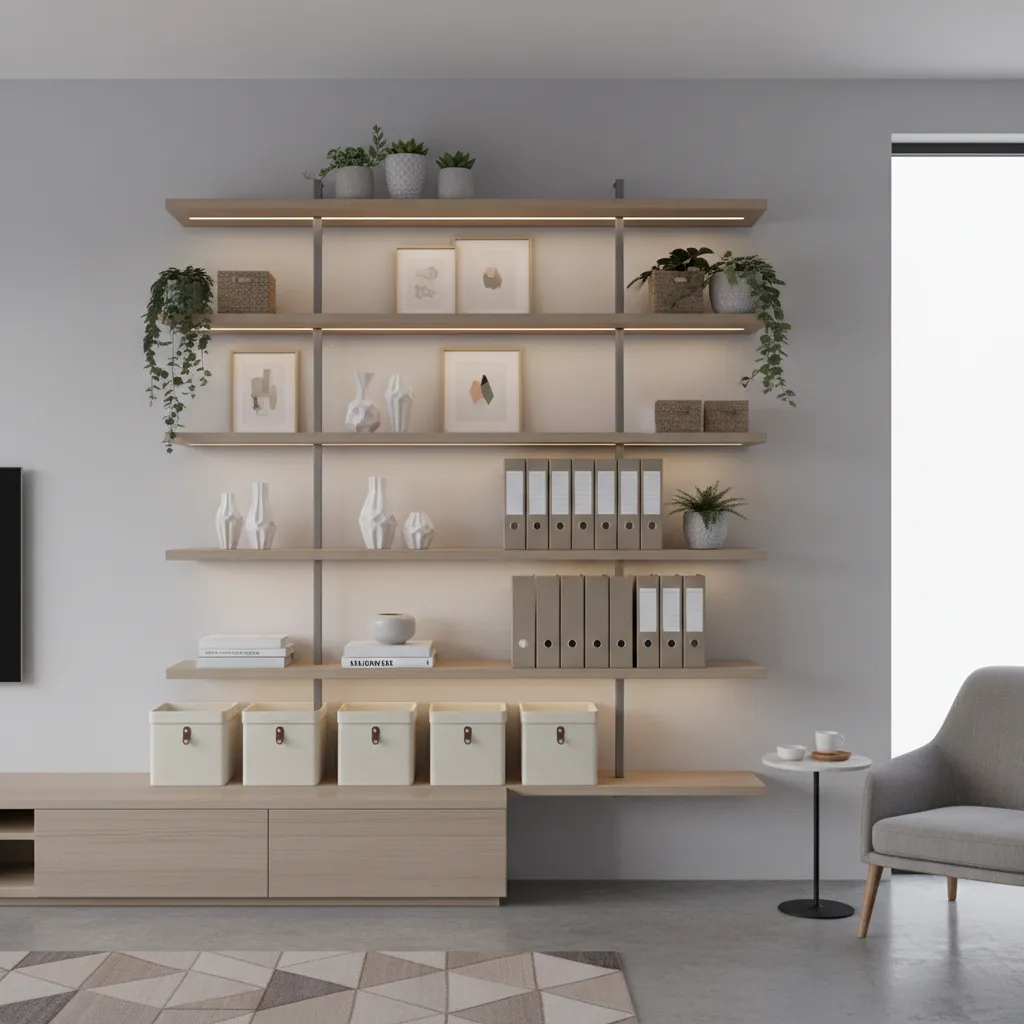

Key Insight: Most professional shelving systems fall within a predictable ergonomic reach zone between 24 and 72 inches from the floor.

Across retail, kitchens, and closets, designers rely on human reach studies to guide shelf placement.

Common ergonomic guidelines include:

1. Comfortable reach height: 24–60 inches
2. Maximum reach height: 72 inches
3. Optimal shelf depth for accessibility: 12–16 inches
4. Heavy items should remain below 36 inches

Research from the Human Factors and Ergonomics Society consistently shows that repetitive reaching above shoulder height significantly increases strain. That is why frequently used shelves remain within mid-body reach zones.

This ergonomic layer is what separates professional shelving layouts from improvised storage solutions.

Answer Box

Professional shelving layouts are not random. Retail, kitchen, and closet industries all rely on standardized measurements, ergonomic reach zones, and modular spacing systems. These predictable dimensions allow shelving systems to scale efficiently across different spaces while remaining comfortable for everyday use.

Translating Industry Requirements into AutoCAD Drawings

Key Insight: The easiest way to draw shelving layouts accurately is to convert industry measurements into reusable drawing blocks.

When designers move from concept planning into CAD drawings, shelving layouts become much easier if common measurements are standardized first.

A practical workflow usually looks like this:

1. Define object categories (products, dishes, clothing)
2. Assign shelf spacing based on industry standards
3. Create modular blocks for repeating units
4. Apply ergonomic reach zones
5. Test clearances and circulation paths

Instead of drawing every shelf manually, professionals build libraries of repeatable shelving modules. This dramatically speeds up layout work and keeps designs consistent across projects.

Final Summary

1. Retail shelving focuses on product visibility and shopper behavior.
2. Kitchen shelving follows strict ergonomic and appliance dimensions.
3. Closet systems rely on modular increments for clothing categories.
4. Most shelving systems operate within predictable reach zones.
5. Standardized measurements make professional layouts scalable.

FAQ

What are retail shelving layout design standards?

Retail shelving layout design standards focus on eye-level visibility, adjustable shelf increments, and customer movement through aisles. Products are usually arranged within 36–60 inches from the floor for maximum visibility.

What is the standard spacing for kitchen cabinet shelves?

Kitchen cabinet shelves are commonly spaced 10–15 inches apart depending on stored items. Pantry shelves may be taller, around 15–18 inches, to accommodate larger food containers.

What are typical closet shelving system measurements?

Closet shelving usually ranges from 12–16 inches for folded clothes and 10–12 inches for shoes. Hanging sections are typically 36–40 inches for double rods.

Why do industries use modular shelving systems?

Modular systems allow shelves to be adjusted quickly, manufactured efficiently, and installed across many different room sizes.

What shelf height is easiest to reach?

The most comfortable reach zone for shelving is typically between 24 and 60 inches from the floor.

How deep should interior shelves be?

Most interior shelves are between 12 and 16 inches deep, balancing storage capacity with easy access.

What are industry standards for interior shelves?

Industry standards for interior shelves typically include modular spacing increments, ergonomic reach limits, and standardized cabinet depths used in kitchens and storage systems.

Do professional designers plan shelves before drawing floor plans?

Yes. Professionals usually define shelf sizes and object dimensions first before finalizing the room layout or cabinetry drawings.
