How Roofers and Plumbers Coordinate Vent Pipe Height in New Construction: A practical look at how plumbing and roofing trades plan vent stacks, roof penetrations, and inspection timing during new home construction.

Direct Answer

In new construction, plumbers typically install the vent stack first, extending it through the roof deck, while roofers finalize the exact exposed height when installing flashing and roofing materials. The final vent pipe height must meet plumbing code, roof pitch considerations, and waterproofing requirements. Coordination between the two trades usually happens during roof penetration planning and pre‑inspection stages.

Quick Takeaways

1. Plumbers install the vent stack through the roof deck before roofing materials are applied.
2. Roofers handle flashing and waterproofing around the vent penetration.
3. Final pipe height must meet plumbing code and consider roof pitch.
4. Poor coordination can cause leaks, failed inspections, or costly rework.
5. Most issues occur when vent placement is decided too late in framing.

Introduction

Vent stacks are one of those small construction details that can quietly cause big problems if trades don’t coordinate. In almost every residential project I’ve walked through with builders and contractors, the question of plumbing vent pipe height above the roof eventually comes up—not because the concept is complicated, but because the timing between plumbers and roofers matters.

In new construction, the vent stack installation happens across several stages: rough plumbing, roof sheathing, roofing installation, and final inspections. Each stage involves a different trade making decisions that affect the final result. If the process isn’t planned early, you end up with vent pipes in awkward locations, flashing problems, or stacks that barely meet code.

I’ve seen projects where a vent had to be cut and extended after the roof was finished simply because nobody confirmed the final height before roofing day. That’s a surprisingly common mistake.

If you want a clearer understanding of the required measurements themselves, this detailed guide explaining how vent stacks should extend above the roof in different roof designsis a helpful reference before planning placement.

Let’s walk through how plumbers and roofers actually coordinate vent pipe height on real job sites.

save pin

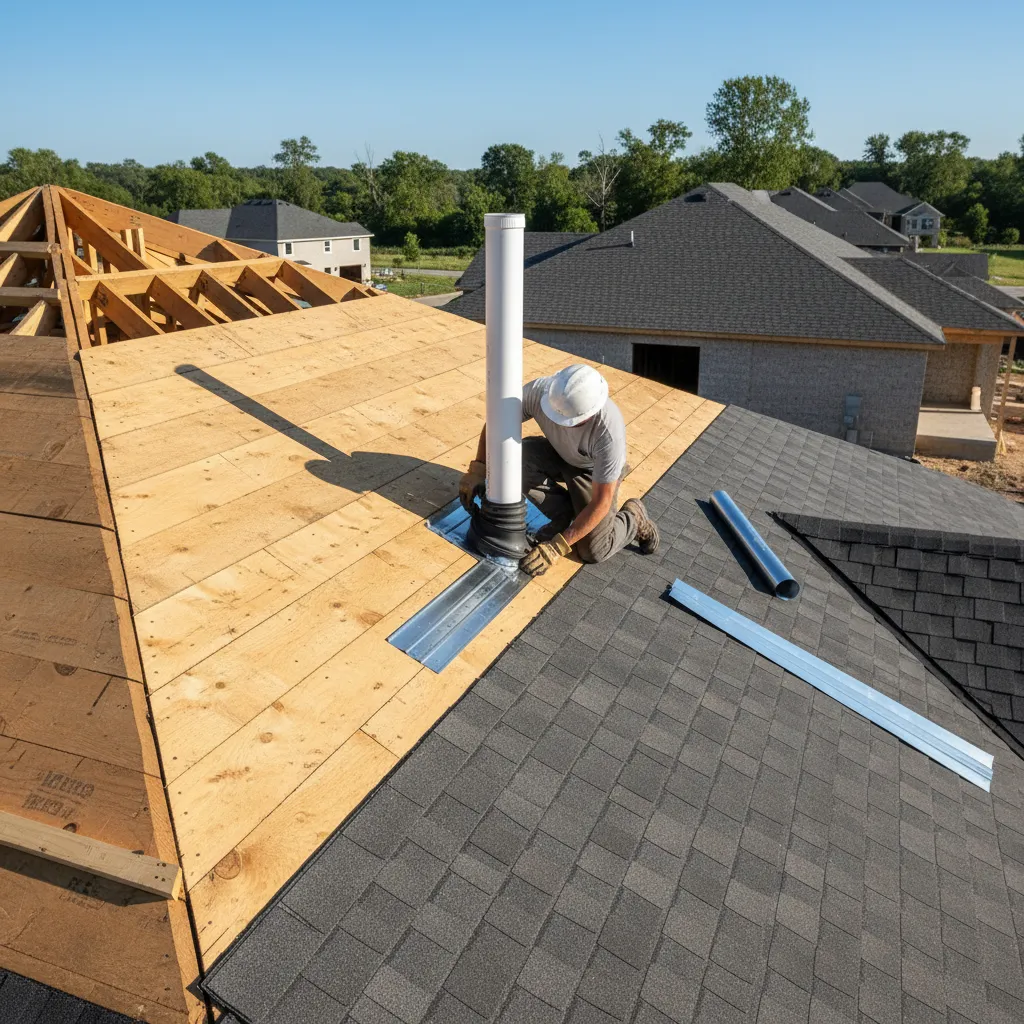

The roles of plumbers and roofers in vent installation

Key Insight: Plumbers control the pipe location and rough height, while roofers control waterproofing and the final roof penetration finish.

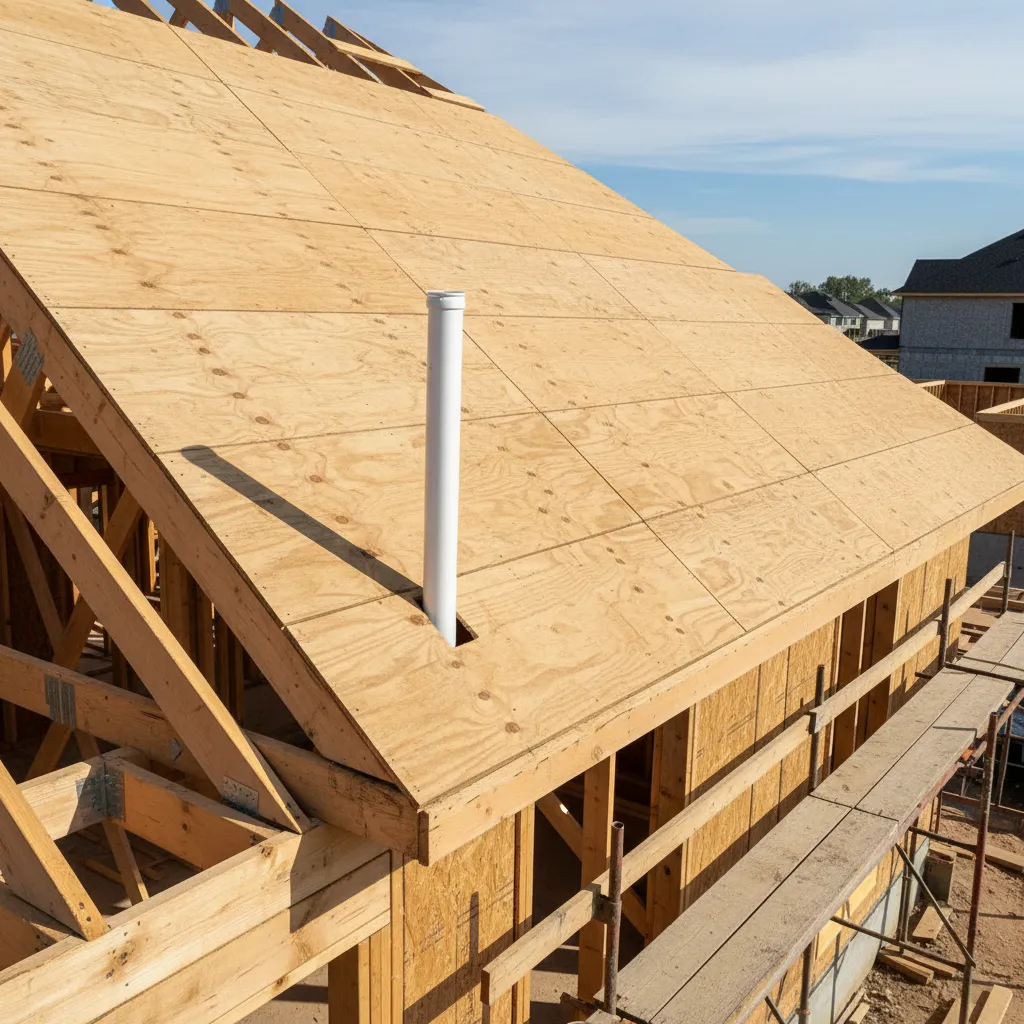

In most residential builds, plumbing contractors install the vent system during the rough‑in stage. Their responsibility is to route the vent stack vertically through the framing and extend it through the roof sheathing.

However, the pipe is usually left slightly longer than necessary. Roofers then complete the penetration once the roofing system is installed.

Typical responsibility split:

1. Plumber – installs vent stack through framing and roof deck
2. Framing crew – ensures correct roof opening location
3. Roofer – installs flashing, seals penetration, trims pipe height if necessary
4. Inspector – verifies code compliance

This workflow exists for a practical reason: roofers understand roofing systems and flashing details better than plumbers. Allowing the roofer to control the penetration sealing significantly reduces leak risks.

According to the International Residential Code (IRC), plumbing vent terminations must extend a minimum distance above the roof surface depending on roof slope and snow conditions, which is why final trimming sometimes occurs during roofing installation.

When vent pipe height is determined during construction

Key Insight: The required vent height is defined by plumbing code early, but the exact visible height above the finished roof is finalized during roofing installation.

There’s a misconception that plumbers decide the final vent height during rough‑in. In reality, they usually install the pipe long and leave room for adjustment.

The construction timeline typically looks like this:

1. Stage 1: Rough plumbing – plumber runs vent stack through framing
2. Stage 2: Roof sheathing – pipe penetrates through roof deck
3. Stage 3: Roofing installation – roofer installs flashing and boot
4. Stage 4: Final trim – pipe height adjusted if necessary
5. Stage 5: Inspection – building inspector verifies clearance

One overlooked factor here is roof pitch. A steep roof changes how much pipe remains visible above the surface. That’s why many contractors prefer confirming measurements using a layout reference or digital planning tools such as visual floor plan layouts used during early construction planningso penetrations are placed correctly before framing closes up.

Skipping this step often leads to vents appearing too close to ridges, valleys, or skylights.

save pin

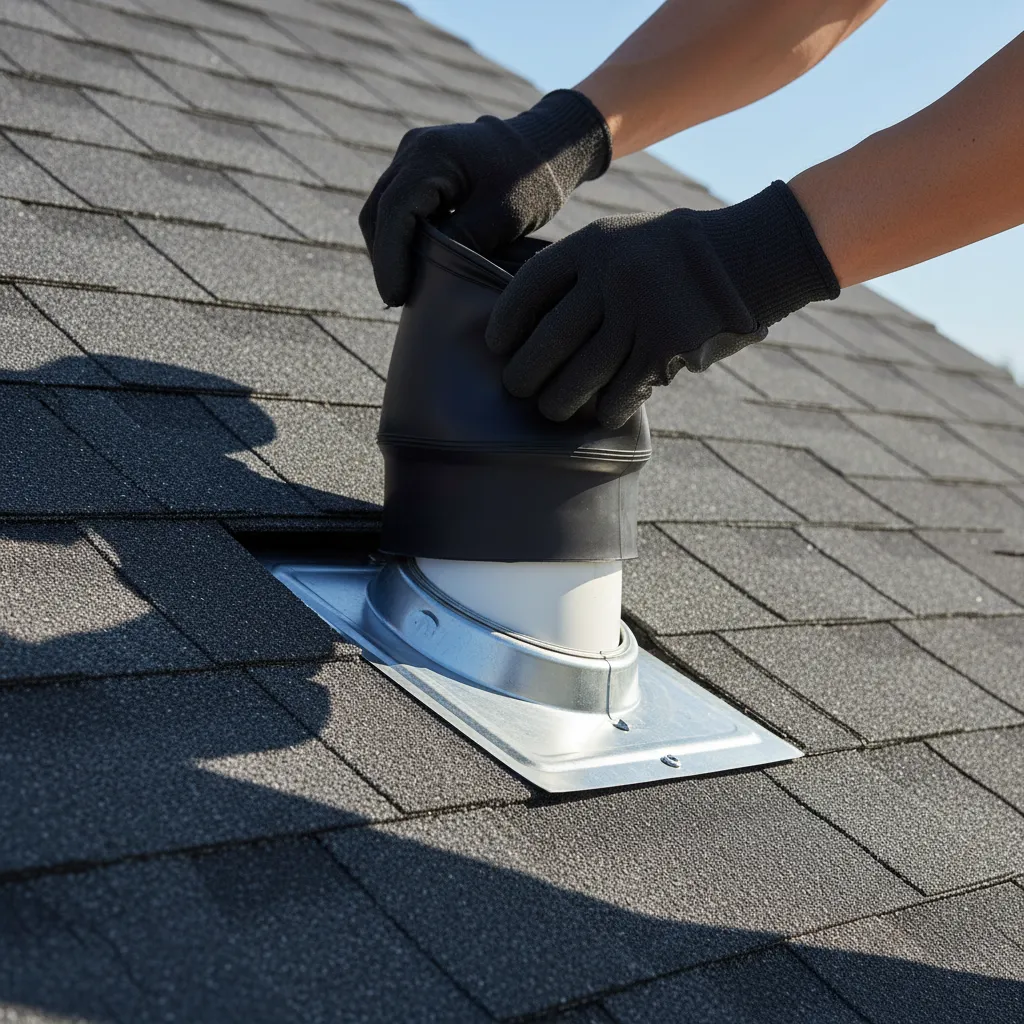

Roof penetration planning and flashing installation

Key Insight: Most vent leaks come from poor flashing installation, not the vent pipe itself.

The moment a pipe penetrates the roof, it becomes a waterproofing detail. Roofers treat vent stacks like miniature chimneys—every penetration must be flashed correctly to prevent long‑term water damage.

Typical roof vent flashing components:

1. Rubber or neoprene pipe boot
2. Metal flashing base
3. Underlayment integration
4. Shingle overlap layers

Installation sequence matters. The flashing base must be installed under the upper shingles and over the lower shingles to direct water away from the penetration.

From experience walking through job sites, the most common mistake is installing the pipe too close to a roof valley or dormer. That creates difficult flashing geometry and increases the chance of leaks.

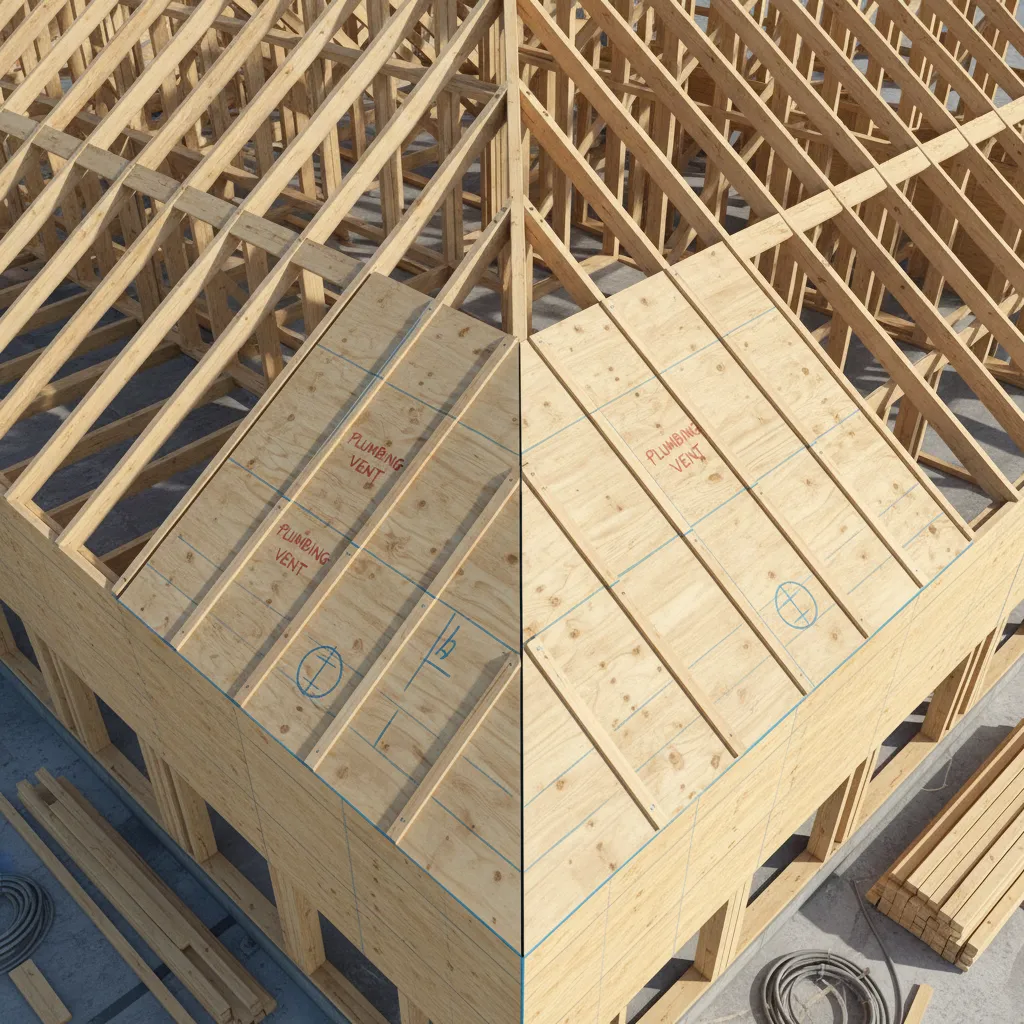

Many builders now map roof penetrations early using digital layout tools similar to planning construction layouts before roof framing begins. This allows plumbers and roofers to agree on safe penetration zones before any pipes go through the roof.

Avoiding conflicts between roofing systems and plumbing vents

Key Insight: Vent placement problems almost always come from late design decisions rather than installation errors.

Roof systems include multiple elements competing for space: vents, exhaust fans, skylights, solar mounts, and sometimes HVAC flues.

If these penetrations aren’t coordinated early, conflicts occur.

Common roof conflict scenarios:

1. Vent stack placed directly below ridge cap
2. Pipe located inside a roof valley
3. Vent interfering with solar panel layout
4. Stack positioned too close to bathroom exhaust fan
5. Pipe height shortened after roofing for aesthetics

The last one is particularly risky. Some homeowners ask contractors to cut vents shorter so they’re less visible. That can violate plumbing code and cause sewer gases to linger near the roof surface.

Experienced builders prevent these issues by reviewing roof penetrations during framing walkthroughs.

save pin

Inspection checkpoints during new home construction

Key Insight: Vent pipe height is typically verified during both rough plumbing inspection and final building inspection.

Most municipalities inspect plumbing vents twice during construction.

Typical inspection sequence:

1. Rough plumbing inspection – confirms vent routing and connections
2. Roof dry‑in stage – inspectors sometimes verify penetrations
3. Final building inspection – confirms vent termination height

Code requirements usually specify minimum clearances above the roof surface and additional height in snowy climates.

Inspectors are also checking for:

1. Improper vent caps
2. Blocked vent openings
3. Vent terminations near windows
4. Improper flashing

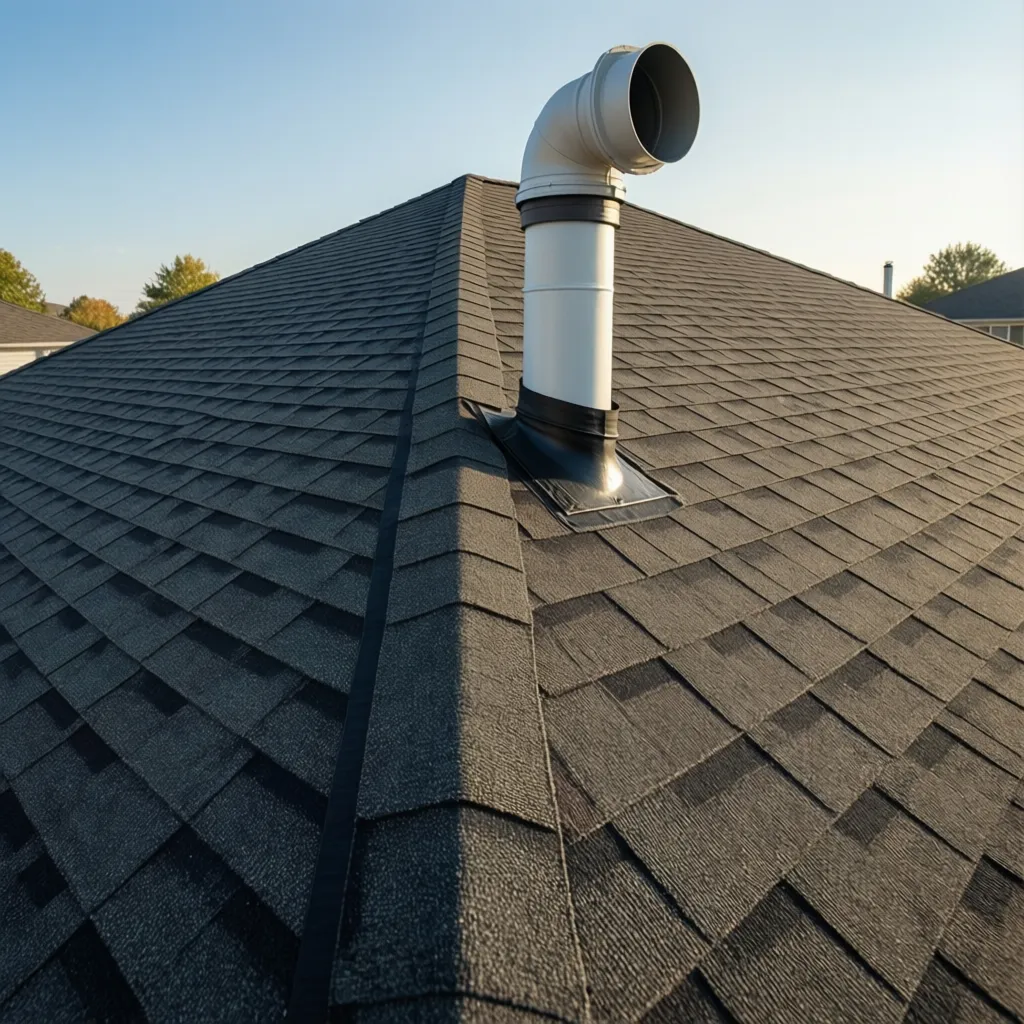

Answer Box

In new construction, plumbers install the vent pipe through the roof during rough plumbing, while roofers finalize the roof penetration and waterproofing. The visible pipe height is adjusted to meet plumbing code and roof design conditions before final inspection.

save pin

Best practices for trade coordination on roof vents

Key Insight: The most reliable projects coordinate roof penetrations before framing is complete.

After observing dozens of residential builds, the smoothest projects follow a simple coordination process between trades.

Best practices contractors use:

1. Mark roof vent locations during framing layout
2. Confirm penetration spacing from ridges and valleys
3. Leave extra pipe length during rough plumbing
4. Review penetrations before roofing installation
5. Verify height before final trim and inspection

This process sounds basic, but skipping even one step can lead to expensive fixes. Cutting open finished roofs to move a vent stack is far more common than most homeowners realize.

Final Summary

1. Plumbers install vent stacks first during rough plumbing.
2. Roofers control flashing and waterproofing at the roof penetration.
3. Final vent height is adjusted during roofing installation.
4. Early planning prevents conflicts with roof design features.
5. Inspections confirm code compliance before project completion.

FAQ

Who decides the final vent pipe height above the roof?

The plumber installs the pipe, but the final visible height is often confirmed during roofing installation to meet plumbing code and roof pitch requirements.

Do roofers install plumbing vent pipes?

No. Plumbers install the vent system. Roofers only handle flashing, sealing, and integrating the pipe with the roofing materials.

How high should a plumbing vent pipe extend above the roof?

Most codes require at least 6 inches above the roof surface, though snowy regions often require higher plumbing vent pipe height above the roof.

Can a roofer cut a vent pipe shorter?

Only if the final height still meets plumbing code requirements. Cutting too short can cause inspection failures.

Why do plumbers leave vent pipes long during rough‑in?

Extra length allows roofers to adjust the final height once roofing materials and flashing are installed.

What causes leaks around plumbing vents?

Improper flashing installation, damaged rubber boots, or poor shingle integration are the most common causes.

Are vent pipes installed before or after roofing?

They are installed before roofing, typically during rough plumbing, then sealed and finished during roofing installation.

Can vent pipes be moved after the roof is finished?

Yes, but it requires cutting open roofing and framing, making it costly and time‑consuming.
