How Roofing Contractors Estimate Metal Roof Panel Quantities: Inside the professional takeoff methods roofers use to calculate accurate metal panel counts and avoid costly material shortages.

Direct Answer

Roofing contractors estimate metal roof panel quantities by performing a roof takeoff that measures total roof area, panel coverage width, slope adjustments, and waste factors. Most professionals combine manual measurements with digital estimation tools to calculate how many panels each roof plane requires while accounting for overlaps, cuts, and complex roof geometry.

This method ensures material orders are accurate enough to avoid job delays while still controlling waste.

Quick Takeaways

1. Professional roofers calculate metal panel quantities using roof takeoff measurements and effective panel coverage width.
2. Waste factors between 5% and 15% are commonly added depending on roof complexity.
3. Estimation software helps contractors model roof geometry and reduce ordering mistakes.
4. Complex roofs require plane‑by‑plane panel calculations rather than total square footage.
5. Professional estimating focuses on installation efficiency, not just theoretical panel counts.

Introduction

After working on metal roofing projects for more than a decade, I've noticed something homeowners rarely realize: estimating metal roof panel quantities isn't just math. It's risk management.

On paper, calculating panel counts looks simple—measure the roof area and divide by panel coverage. But in real projects, things get messy quickly. Roof slopes change. Valleys cut panels at angles. Ridge caps affect panel lengths. And one miscalculation can delay an installation crew waiting on missing materials.

That's why roofing contractors rely on structured estimating workflows called roof takeoffs. These methods break the roof into measurable planes, calculate effective coverage widths, and include waste allowances that reflect real installation conditions.

Before any professional estimate begins, most contractors first build a scaled layout of the roof structure. Digital tools have made this process much easier—especially when creating accurate roof geometry using a 3D layout used to visualize roof structure and dimensions.

In this guide, I'll walk through how contractors actually estimate metal roofing materials, including the hidden factors that many DIY calculations miss.

save pin

How Professional Roofers Calculate Metal Panel Requirements

Key Insight: Professional estimators calculate panels based on effective coverage width and roof plane dimensions—not simply roof square footage.

The biggest misunderstanding I see is people dividing total roof area by panel size. Contractors don't estimate that way.

Instead, we calculate panel counts per roof plane using the panel's coverage width, which is smaller than the panel's full width because seams overlap.

Typical metal panel specs:

1. Panel width: 16–24 inches
2. Effective coverage width: 12–20 inches
3. Panel length: cut to roof slope length

Basic contractor formula:

1. Measure roof plane width
2. Divide by panel coverage width
3. Round up to the nearest whole panel
4. Multiply by number of planes

For example:

1. Roof width: 38 feet
2. Coverage width: 16 inches (1.33 ft)
3. Panels required: 29 panels

Professional estimators calculate every roof plane individually because different sections often have different slopes and lengths.

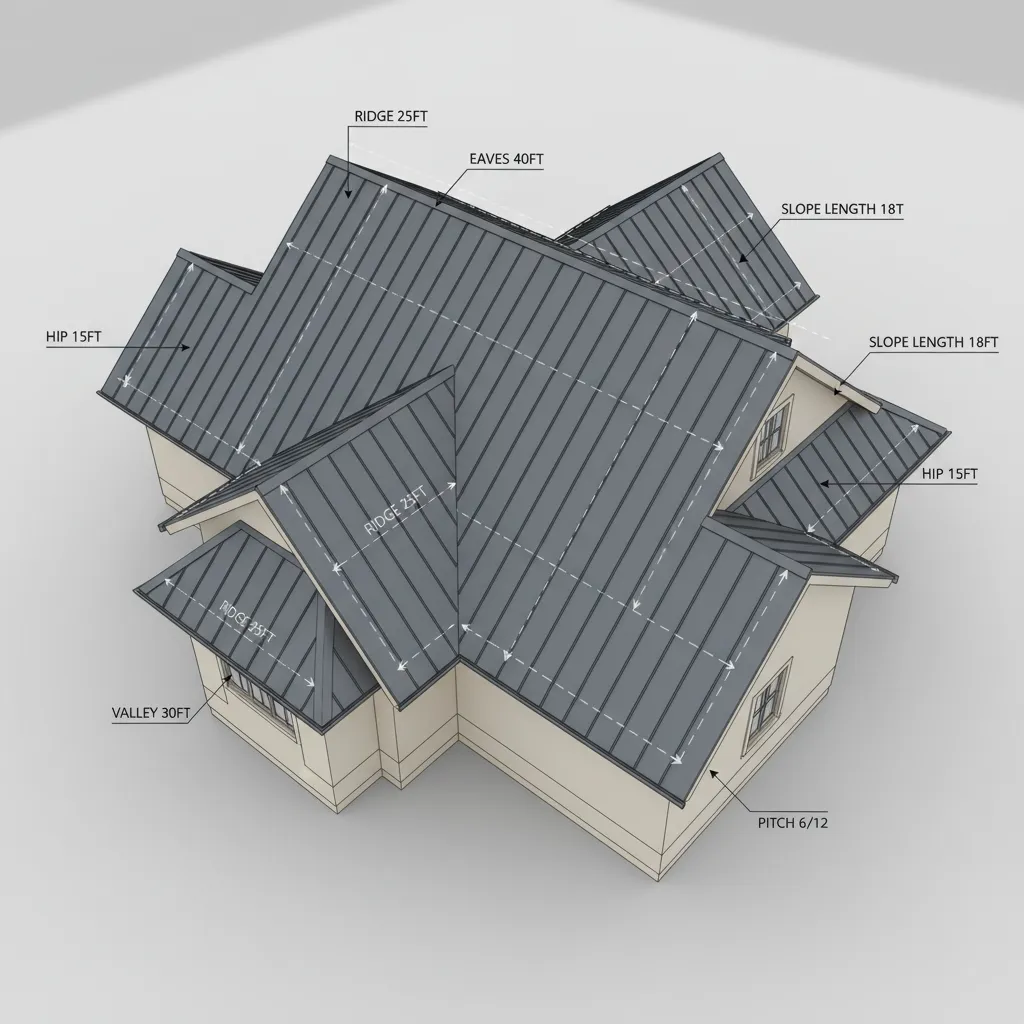

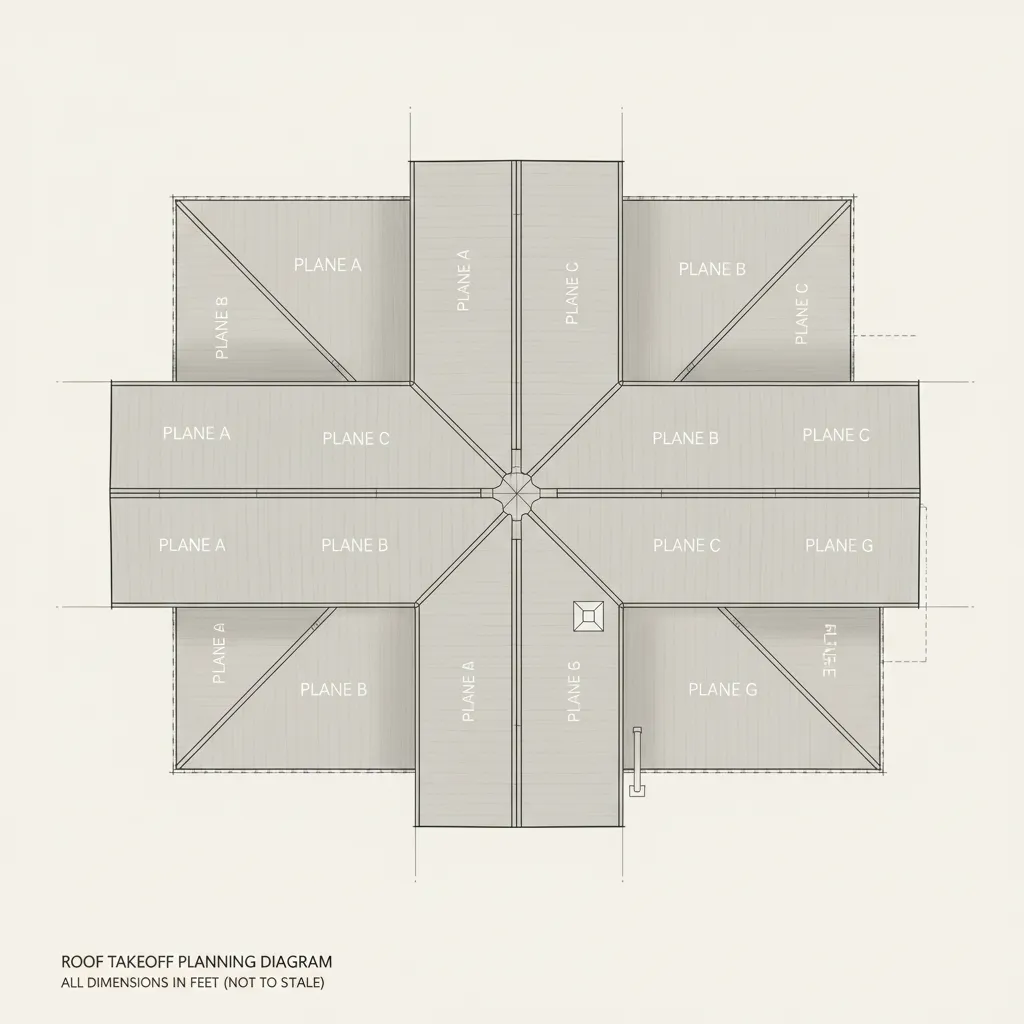

Roof Takeoff Methods Used by Contractors

Key Insight: A roof takeoff converts drawings or measurements into detailed material quantities for each roof section.

In the roofing industry, a "takeoff" is the process of extracting measurable quantities from building plans or site measurements.

Contractors typically follow a structured sequence:

1. Divide roof into planes
2. Measure ridge length and eave width
3. Calculate slope length
4. Determine panel direction
5. Calculate panel count per plane
6. Add trim, flashing, and ridge components

Experienced estimators also document:

1. Valley locations
2. Dormers
3. Chimneys
4. Skylights

These features dramatically affect how panels must be cut.

Many contractors now create scaled roof diagrams first using a simple digital layout used to map roof dimensions quickly. This improves estimating accuracy before panels are calculated.

save pin

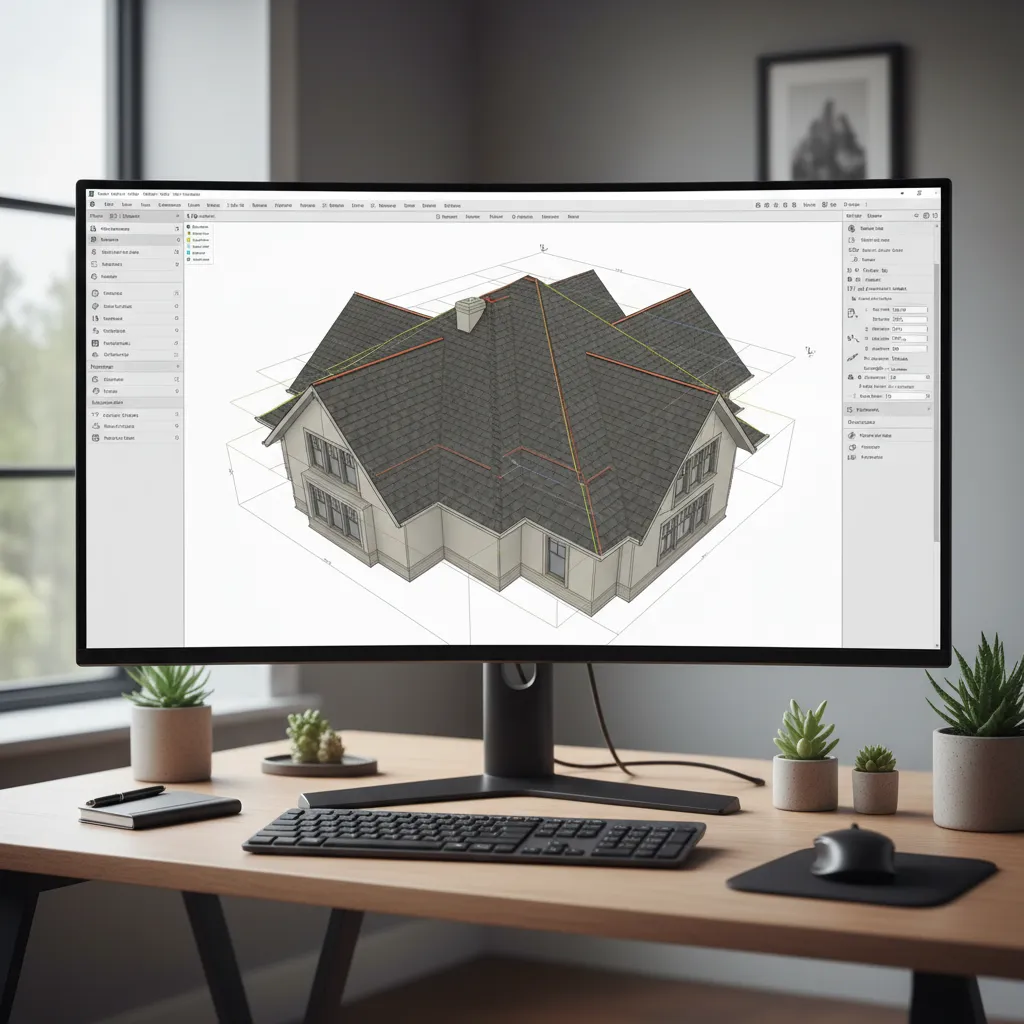

Using Roofing Estimation Software for Panel Counts

Key Insight: Modern roofing estimates often combine satellite measurements and modeling software to calculate panel counts more accurately.

Ten years ago, most roof estimates were done with tape measures and graph paper. Today, many contractors use digital measurement platforms.

Common digital estimating workflow:

1. Satellite roof measurement
2. Automatic roof plane detection
3. Slope calculation
4. Panel layout simulation
5. Material list generation

These tools reduce estimation errors significantly, especially for complex roofs.

Contractors may also model roof geometry using a visual planning workflow that simulates structural layout before material estimation. This helps identify difficult valleys and panel alignment issues before installation begins.

save pin

Industry Waste Factors for Metal Roofing Projects

Key Insight: Contractors always include waste factors because panel cutting and installation inevitably produce off‑cuts.

Material waste is unavoidable in metal roofing. Panels must be trimmed at valleys, hips, and roof edges.

Typical contractor waste allowances:

1. Simple gable roof: 5–8%
2. Hip roof: 8–12%
3. Complex roof with dormers: 12–15%

What many homeowners don't realize is that waste isn't always "scrap." Sometimes it's strategic.

Contractors intentionally order extra panels because:

1. Color batches must match
2. Panels can be damaged during transport
3. Future repairs may require identical panels

Ordering too few panels can delay a project by weeks.

Answer Box

Professional metal roof panel estimation relies on roof takeoffs, plane‑by‑plane measurements, and waste allowances. Contractors prioritize installation efficiency and risk reduction rather than purely mathematical panel counts.

save pin

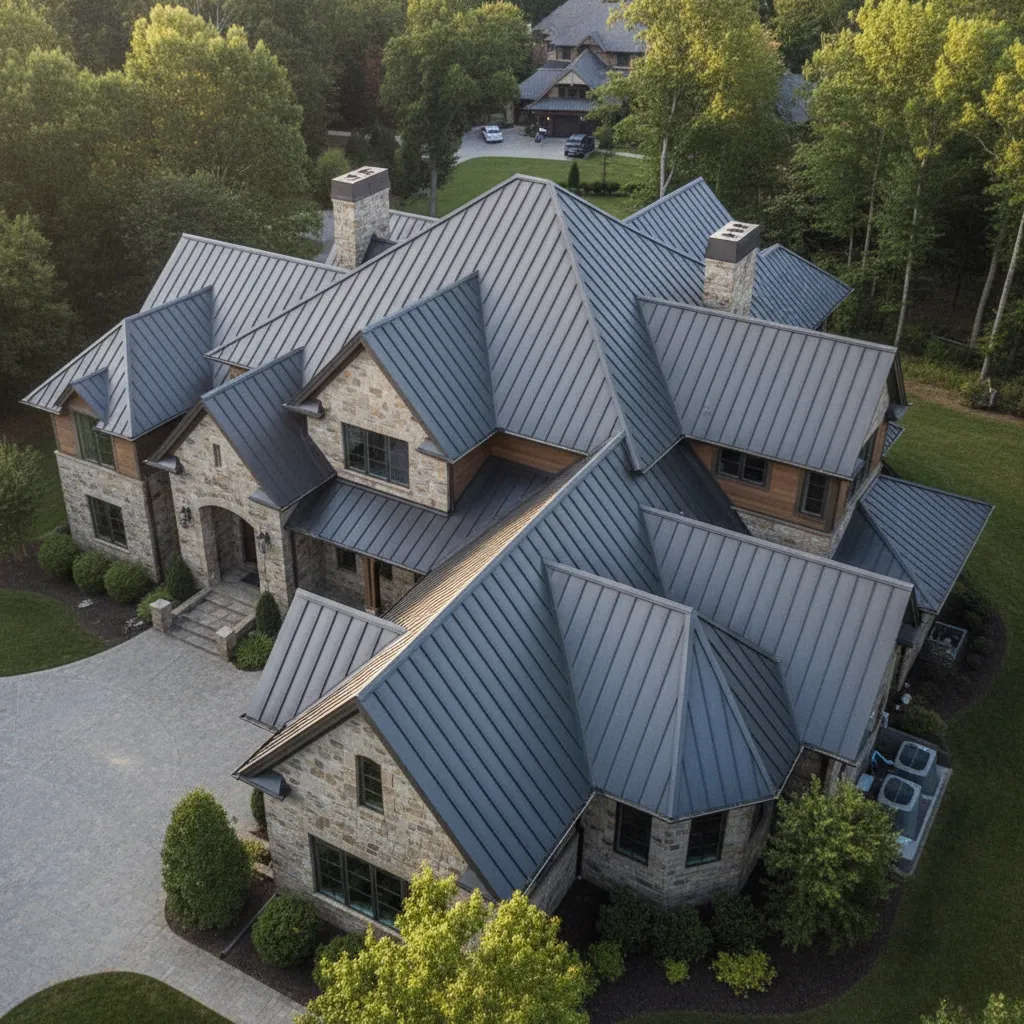

How Contractors Handle Complex Roof Shapes

Key Insight: Complex roofs require separate panel layouts for each section to minimize cutting waste.

Roofs with dormers, valleys, or intersecting ridges create irregular panel cuts.

Professional estimators solve this by splitting the roof into independent sections:

1. Main roof planes
2. Dormer roofs
3. Valley intersections
4. Porch roofs

Each section receives its own panel layout plan.

Hidden challenge most guides ignore:

1. Panel alignment across ridges
2. Seam direction changes
3. Thermal expansion spacing

If seams don't align correctly, installers may need to cut additional panels mid‑installation.

Professional Estimation vs DIY Panel Calculation

Key Insight: DIY estimates usually focus on roof area, while professional estimates focus on panel layout.

The difference becomes obvious when comparing approaches.

Typical DIY approach:

1. Measure roof square footage
2. Divide by panel area
3. Add small waste factor

Professional contractor approach:

1. Roof plane measurements
2. Coverage width calculations
3. Panel layout planning
4. Trim and flashing integration
5. Waste optimization

This is why contractor estimates often look higher than DIY calculations—but they're also far less likely to cause installation delays.

Final Summary

1. Contractors estimate metal roof panels using detailed roof takeoff methods.
2. Panel counts are based on coverage width, not total panel width.
3. Waste factors typically range from 5% to 15% depending on roof complexity.
4. Digital roof modeling tools improve accuracy for modern estimates.
5. Professional estimates focus on installation logistics, not just area calculations.

FAQ

How do contractors estimate metal roofing panels?

Contractors estimate metal roofing panels using roof takeoff measurements, panel coverage width calculations, and waste allowances for cutting and installation.

What is a roof takeoff for metal panels?

A roof takeoff is the process of measuring roof planes and extracting material quantities, including metal panel counts, trim pieces, and flashing requirements.

How much extra metal roofing should be ordered?

Most contractors add 5%–15% extra material depending on roof complexity and the number of valleys or dormers.

Do contractors calculate panels by square footage?

No. Professionals typically calculate panel counts using roof width and panel coverage width rather than total square footage.

What is the coverage width of a metal roof panel?

Coverage width is the usable width of a panel after seam overlap. It is usually smaller than the panel's full manufactured width.

Why do contractor estimates include extra panels?

Extra panels account for cutting waste, damage risk, color batch matching, and potential future repairs.

Can software help estimate metal roof panel quantities?

Yes. Many contractors use digital roof measurement and modeling software to perform more accurate roof takeoff calculations.

What causes mistakes in metal roof panel estimates?

Common mistakes include ignoring coverage width, forgetting waste factors, and estimating the entire roof instead of individual planes.
