How the Housing Industry Uses 16x40 Floor Plans in Modular and Manufactured Homes: Understand why builders rely on 16x40 layouts for efficient modular homes and how these compact designs shape modern factory built housing.

Direct Answer

A 16x40 floor plan is widely used in modular and manufactured housing because it fits transportation limits, maximizes usable interior space, and keeps construction costs predictable. Builders often treat the 16‑foot width as a modular standard that balances livability with factory efficiency. In practice, this layout supports one‑bedroom, studio, or compact two‑bedroom homes built entirely in controlled factory environments.

Quick Takeaways

1. 16x40 layouts match transportation width limits used by most modular home manufacturers.
2. The size provides about 640 square feet, ideal for efficient single‑section homes.
3. Factory production reduces construction waste and improves cost predictability.
4. Modern modular designs allow flexible interior customization within this footprint.
5. Demand for compact housing is increasing the popularity of 16x40 modular plans.

Introduction

After working on compact residential projects for more than a decade, I’ve noticed something interesting: the 16x40 floor plan shows up everywhere in modular and manufactured housing catalogs. It’s not random. Builders, transport companies, and factory designers have quietly standardized around this footprint because it works economically and structurally.

At roughly 640 square feet, the layout sits right in the sweet spot between livability and efficiency. I’ve seen it used for backyard homes, workforce housing, vacation cabins, and even small urban infill projects. If you want to explore how designers structure rooms inside this footprint, you can review practical layouts through interactive tools for planning compact home layouts, which show how kitchens, bathrooms, and living areas fit within a 16‑foot width.

In this guide, I’ll walk through how the housing industry actually uses this layout in real construction environments, why factories prefer it, and where compact modular housing is heading next.

save pin

Why 16x40 Is a Popular Size in Modular Housing

Key Insight: The 16x40 dimension aligns perfectly with transportation logistics and factory production systems.

In the modular housing industry, width is the real constraint. Most modules are transported by truck, and anything wider than about 16 feet dramatically increases transport permits, escort requirements, and cost.

That’s why manufacturers often design single‑section homes around a 16‑foot width. The 40‑foot length provides enough depth to organize rooms logically without requiring multi‑section modules.

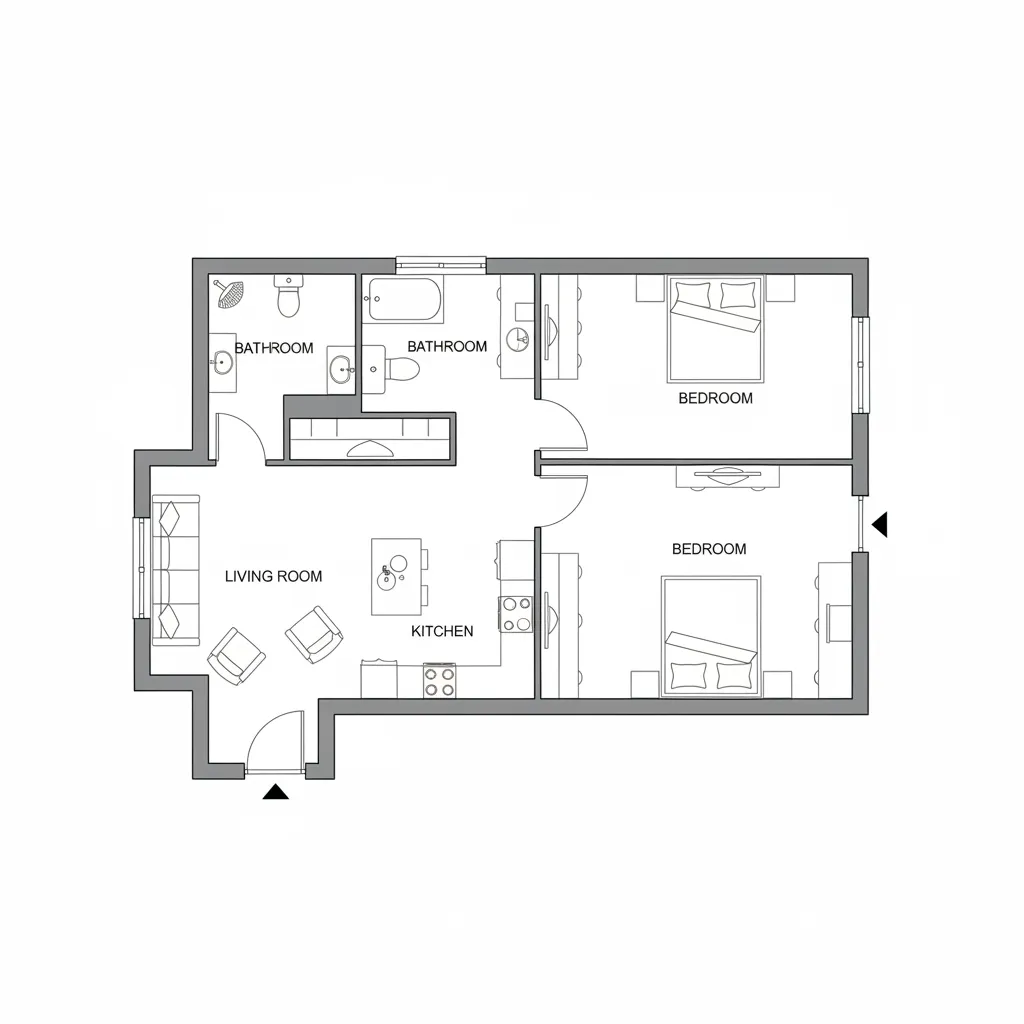

Typical spatial organization inside a 16x40 modular unit:

1. Front living room or open living/kitchen area
2. Central kitchen and dining space
3. Bathroom placed near plumbing core
4. Bedroom or two smaller bedrooms at the rear

The Manufactured Housing Institute notes that transportation regulations strongly influence module sizing, which is why many factory‑built homes stay within 14‑ to 16‑foot widths.

Manufactured Home Models Using 16x40 Layouts

Key Insight: Many entry‑level manufactured homes use 16x40 layouts because they balance affordability and livable space.

In the manufactured housing market, 16x40 models are typically categorized as single‑wide homes. These are often marketed to first‑time buyers, retirees, or landowners adding secondary housing.

Common configurations include:

1. Studio or open loft model – ideal for vacation properties
2. One‑bedroom layout – popular in ADU developments
3. Compact two‑bedroom layout – designed for small families

From a design standpoint, the biggest challenge is circulation. With only 16 feet of width, hallway placement can easily waste space. Experienced designers often integrate open‑plan kitchens and living rooms to avoid narrow corridors.

When I help clients visualize these layouts, we often prototype the interior arrangement using a realistic 3D layout visualization workflowso they can see how furniture and walkways actually fit.

save pin

Prefab Construction Advantages for Narrow Homes

Key Insight: Narrow modular homes benefit the most from factory construction because precision and repetition improve efficiency.

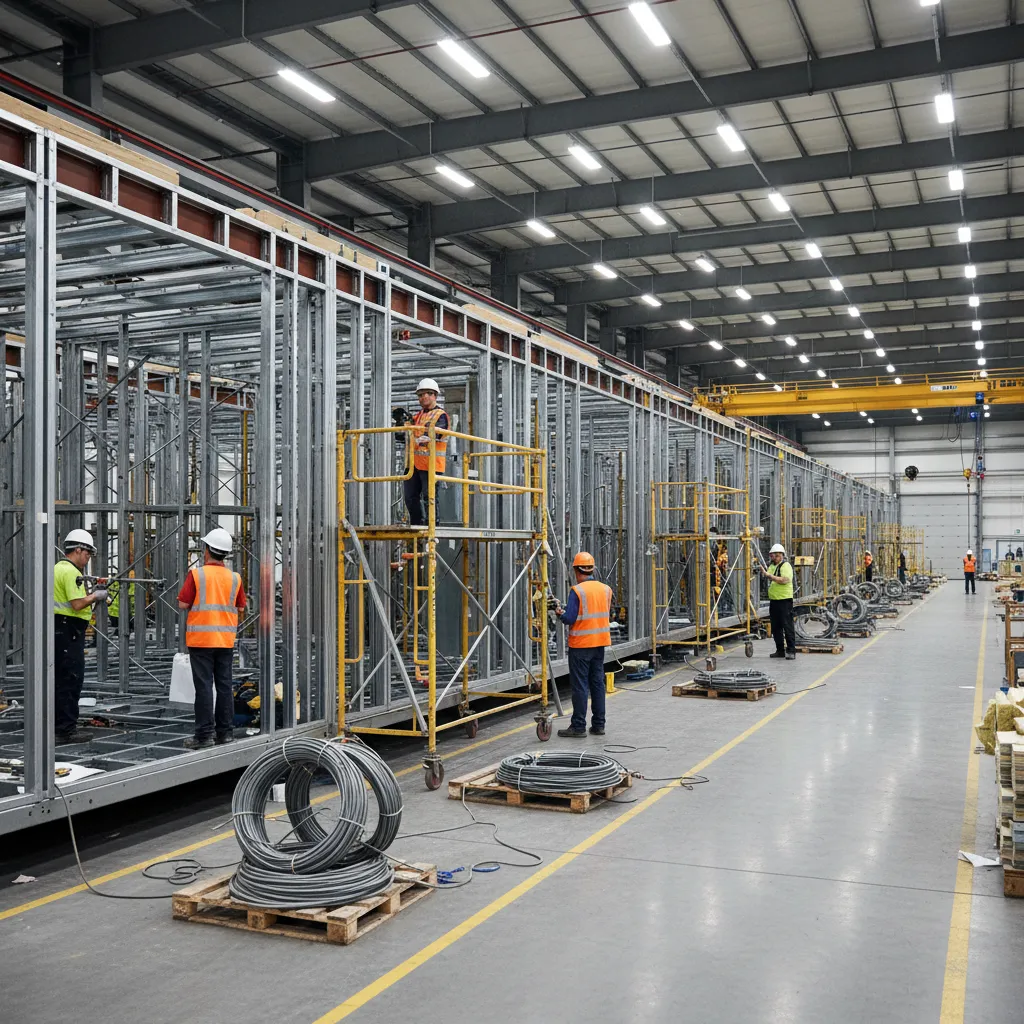

Prefab construction changes the economics of compact housing. Instead of building on site where weather delays and labor variability occur, factories assemble modules in controlled conditions.

Main advantages include:

1. Consistent structural framing built on production lines
2. Reduced material waste due to standardized cutting
3. Faster project timelines compared with site‑built homes
4. Quality control through repeated manufacturing processes

According to the National Association of Home Builders, factory‑built housing can reduce construction waste significantly compared with traditional site construction.

For narrow homes like 16x40 units, this precision matters because small measurement errors quickly affect interior usability.

save pin

Cost Efficiency in Factory Built 16x40 Homes

Key Insight: The 16x40 footprint keeps costs stable because it aligns with standardized materials and factory workflows.

One overlooked advantage of the 16x40 design is how well it fits standard building materials. Wall panels, roof trusses, and floor systems can be repeated across multiple models without redesign.

Typical cost advantages include:

1. Reduced engineering changes between models
2. Bulk material purchasing by manufacturers
3. Faster assembly time on factory lines
4. Lower labor variability

In real projects I’ve reviewed, the savings often come from production efficiency rather than just smaller square footage.

Answer Box

The housing industry favors 16x40 modular layouts because they fit transportation limits, support efficient factory production, and provide about 640 square feet of practical living space. This balance of logistics, cost control, and livability makes the size one of the most common footprints in single‑section modular homes.

Customization Options in Modular Floor Plans

Key Insight: Even standardized 16x40 modular homes allow significant interior customization.

Many buyers assume modular homes are rigid templates. In reality, factories often allow multiple interior variations within the same structural shell.

Common customization options:

1. Kitchen placement along side or rear wall
2. Bathroom configuration with shower or tub
3. Built‑in storage walls
4. Open studio layout vs separated bedroom

Interior designers increasingly combine compact layouts with digital visualization tools like AI assisted interior concept planning for small homesto quickly test furniture arrangements and lighting strategies before construction.

save pin

Future Trends in Compact Housing Design

Key Insight: Growing demand for affordable housing is pushing modular builders to refine compact layouts like 16x40 homes.

Several industry trends are shaping the future of this footprint:

1. Accessory dwelling units (ADUs) in urban areas
2. Workforce housing communities using modular units
3. Short‑term rental cabins built from prefab modules
4. Expandable modular systems where additional units attach later

In my own projects, clients increasingly ask for homes that start small but can grow later. The 16x40 module works well as the first building block of these expandable housing systems.

Final Summary

1. 16x40 floor plans provide about 640 square feet of efficient living space.
2. The width fits transportation limits used in modular housing.
3. Factory production improves quality control and reduces waste.
4. Manufactured home builders commonly use this layout for single‑section homes.
5. Compact housing demand is increasing the relevance of 16x40 modular designs.

FAQ

Is a 16x40 floor plan considered a tiny home?

Not exactly. At around 640 square feet, a 16x40 floor plan is larger than most tiny homes but smaller than typical single‑family houses.

How many bedrooms can fit in a 16x40 modular home?

Most layouts include one bedroom. Some designs fit two compact bedrooms depending on kitchen and living room placement.

Why do modular homes often use 16‑foot widths?

Transportation regulations make 16 feet a practical maximum width for single modules, keeping shipping costs manageable.

Are manufactured homes with 16x40 layouts affordable?

Yes. Manufactured homes using a 16x40 layout are typically among the most affordable factory‑built housing options.

Can a 16x40 modular home be expanded later?

Many modular systems allow additional modules to be attached later, effectively expanding the home beyond the original footprint.

Is a 16x40 floor plan suitable for an ADU?

Yes. Many cities approve this size for accessory dwelling units because it provides livable space without requiring a large lot.

What type of foundation is used for 16x40 modular homes?

They can be installed on pier foundations, crawl spaces, or permanent concrete foundations depending on local regulations.

Do 16x40 modular home floor plans feel cramped?

Good design—open living areas, minimal hallways, and smart storage—can make a 16x40 modular home feel surprisingly spacious.
