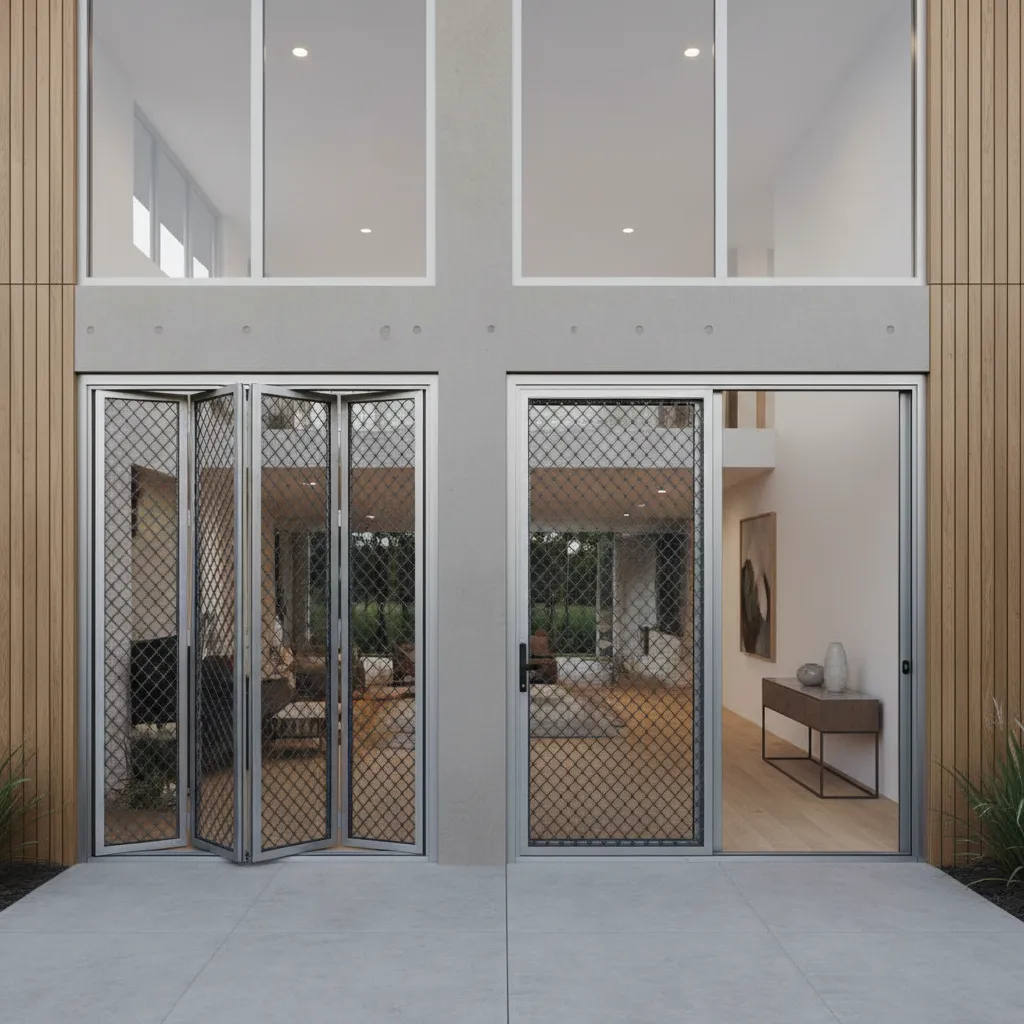

How to Choose Between Folding and Sliding Security Doors for Different Spaces: A practical decision guide based on layout, security needs, budget, and real-world property use.

Direct Answer

Choosing between folding and sliding security doors depends mainly on space layout, security requirements, and traffic flow. Folding doors work best for wide openings and flexible access, while sliding security doors are ideal for tight areas where swing space is limited. The right choice balances security level, installation constraints, and daily usability.

Quick Takeaways

1. Folding security doors are better for wide openings and flexible entry access.
2. Sliding security doors save space and work well in narrow or constrained entrances.
3. Commercial spaces often prioritize traffic flow, favoring sliding systems.
4. Installation costs vary widely depending on wall structure and track systems.
5. Always evaluate entryway dimensions before choosing a security door style.

Introduction

One of the most common questions I hear from homeowners and property managers is how to choose between folding and sliding security doors. On paper the decision sounds simple, but after working on dozens of residential and commercial entry upgrades, I can tell you the wrong choice often causes daily frustration.

I have seen beautiful high-end doors installed in spaces where they simply do not function well. A folding system that blocks a hallway. A sliding security door that limits emergency exit clearance. These problems rarely appear in product brochures.

Most buyers focus only on price or appearance. In reality, layout constraints, traffic patterns, and installation complexity matter much more. If you visualize your entry layout before choosing a door system, the decision becomes much clearer. For example, many designers start by mapping entry dimensions with tools like this visual room layout planning approach for entry spacesto avoid installation conflicts later.

In this guide, I will break down the real decision factors designers and contractors evaluate when selecting between folding and sliding security doors.

save pin

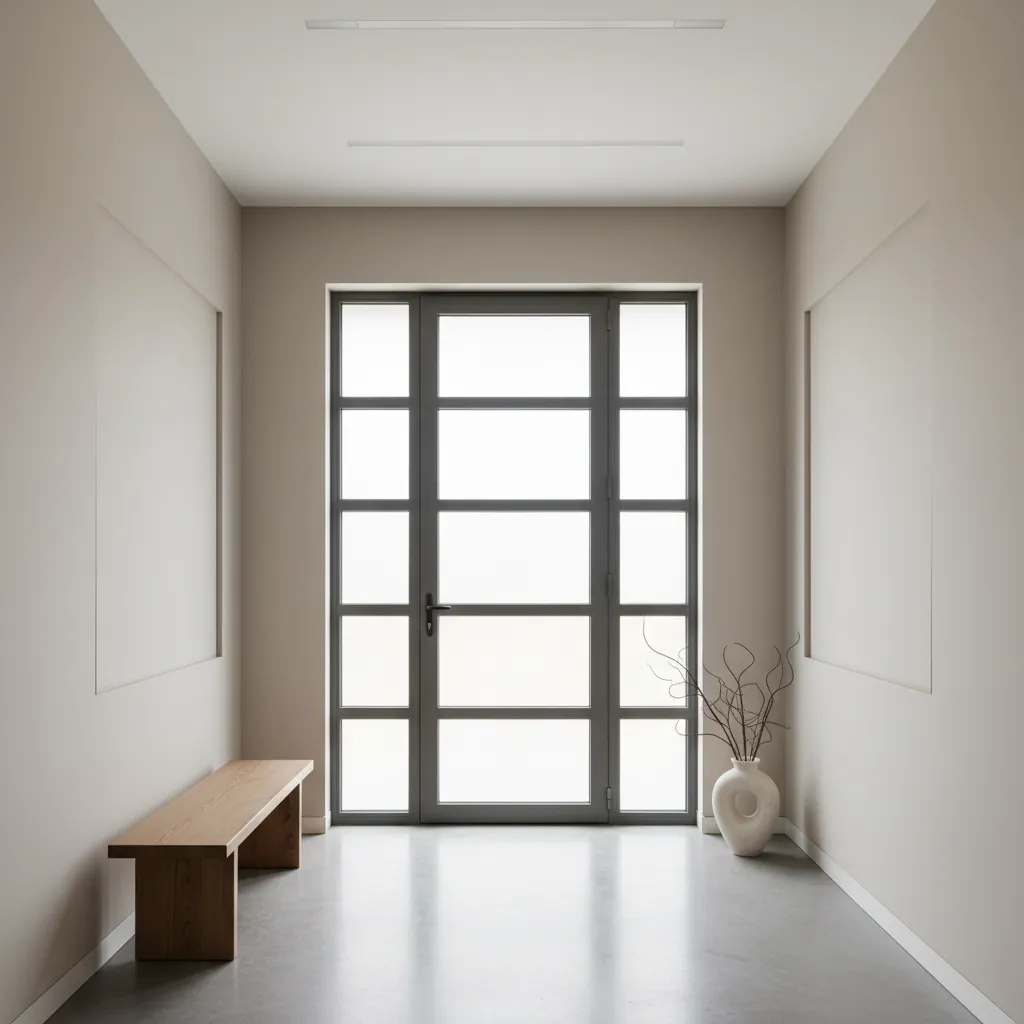

Understanding Entryway Layout and Space Constraints

Key Insight: Entryway width and surrounding clearance are the most decisive factors when choosing between folding and sliding security doors.

In practical projects, door performance is heavily influenced by how much usable wall space and swing clearance exist around the entrance.

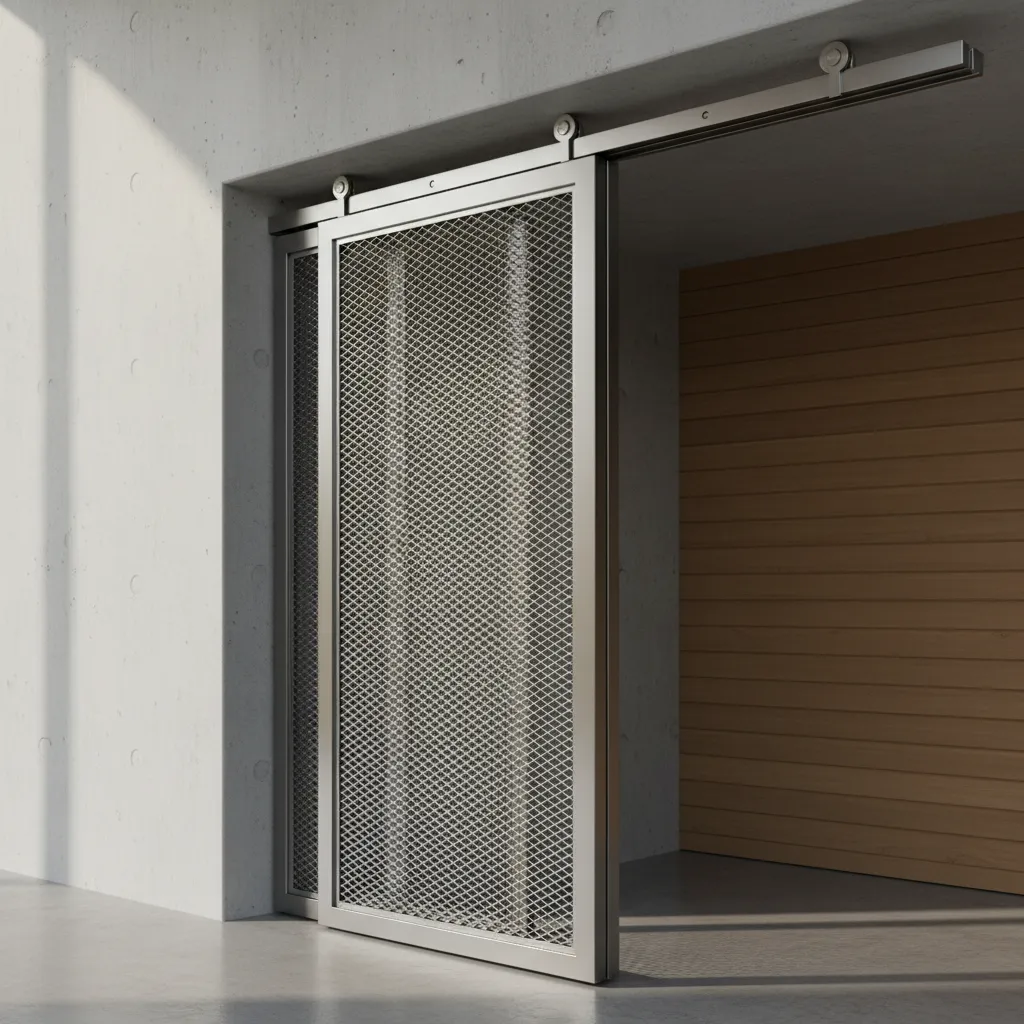

Sliding security doors move along a track parallel to the wall. This means they require clear wall space on at least one side of the opening. Folding doors, on the other hand, stack panels together, which allows them to open wider but requires clearance where the panels fold.

Typical space requirements:

1. Sliding security doors: require horizontal wall space for panel stacking.
2. Folding security doors: require interior or exterior fold clearance.
3. Narrow corridors: sliding doors typically perform better.

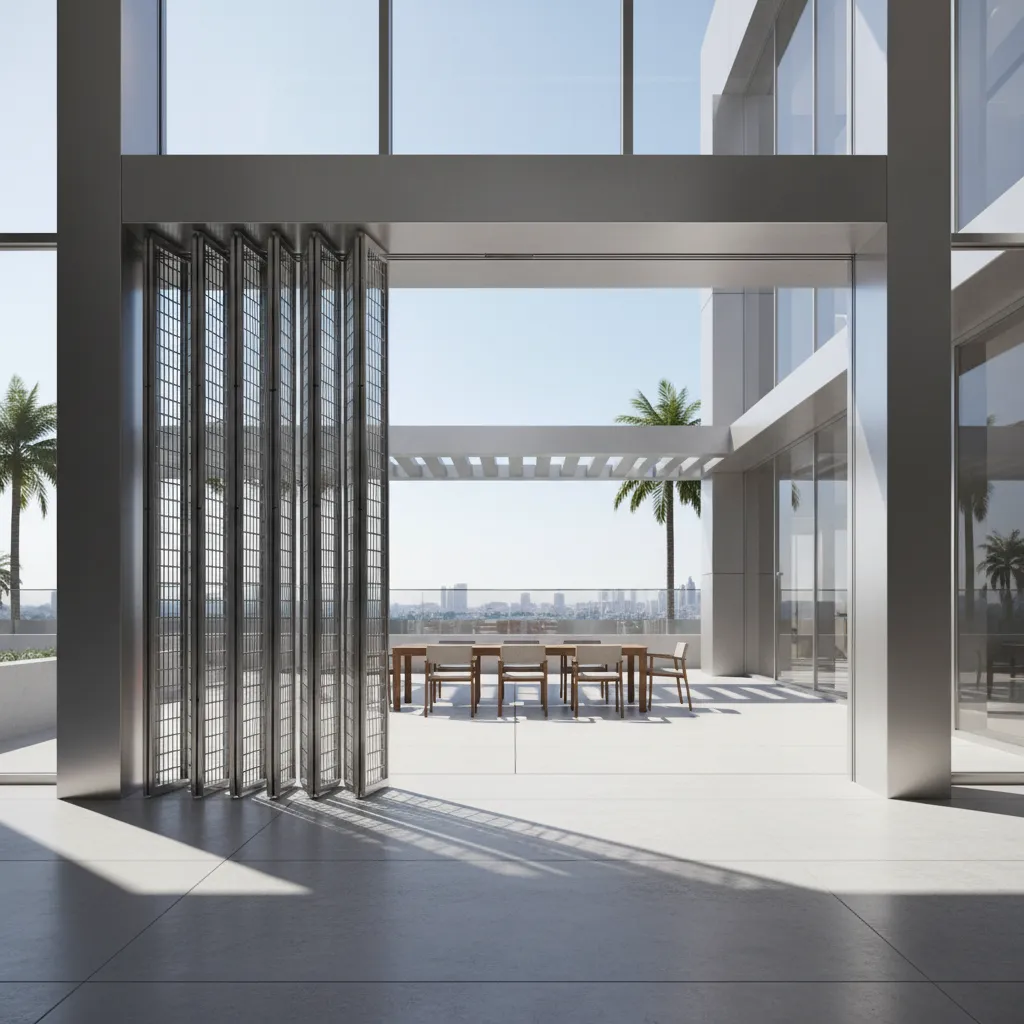

4. Wide patio or storefront openings: folding doors maximize opening width.

Architectural planning studies from the American Institute of Architects emphasize that door clearance conflicts are among the most frequent usability complaints after renovations.

save pin

Security Level Requirements for Different Properties

Key Insight: Security performance depends more on frame structure and locking systems than the door style itself.

Many people assume folding doors are weaker because they have multiple panels. In reality, modern folding security doors can be extremely robust when reinforced frames and multi-point locks are used.

However, the security priority differs by property type.

Typical security needs by property:

1. Residential homes: balanced security and ventilation.
2. Retail stores: strong locking systems and after-hours protection.
3. Offices: controlled access and visibility.
4. Warehouses: durability and wide opening capacity.

Security consultants often recommend evaluating frame materials first:

1. Steel frame doors provide maximum impact resistance.
2. Aluminum reinforced systems balance weight and durability.
3. Mesh security screens improve airflow without sacrificing protection.

Door style alone does not determine safety. The engineering of the locking system matters far more.

Traffic Flow and Accessibility Considerations

Key Insight: The more people that pass through an entrance daily, the more sliding systems tend to outperform folding doors.

Traffic flow is something product brochures rarely mention, but in real projects it can determine whether a door feels convenient or frustrating.

Sliding security doors create predictable movement patterns. They are easy to open quickly and stay partially open without blocking walkways.

Folding doors create larger openings but require more deliberate operation.

Accessibility comparison:

1. High‑traffic retail entrances: sliding doors are smoother.
2. Residential patios: folding doors create open indoor‑outdoor flow.
3. Emergency exits: sliding doors provide clearer escape paths.
4. Hospitality spaces: folding doors maximize openness.

Designers often simulate movement paths before deciding. A helpful method is visualizing entry circulation with a room flow layout visualization for entry planning, which reveals where doors might block pathways.

save pin

Budget and Installation Cost Factors

Key Insight: Folding security doors typically cost more to install because of panel hardware and track complexity.

Many buyers only compare product prices, but installation can change the total cost dramatically.

Typical cost differences:

1. Sliding security doors: simpler track systems and faster installation.
2. Folding security doors: multiple hinges, rollers, and alignment adjustments.
3. Structural modifications may increase costs for both systems.

Hidden costs often include:

1. Wall reinforcement for heavy tracks
2. Track leveling and floor preparation
3. Security lock integration

Contractors often report that folding systems take 30–50% longer to install due to precision alignment requirements.

Answer Box

The best security door choice depends on space, traffic flow, and installation constraints. Sliding doors are ideal for tight entrances and busy areas, while folding security doors work best for wide openings where maximum access is needed.

save pin

A Practical Decision Checklist for Buyers

Key Insight: A structured checklist prevents the most common security door buying mistakes.

Before choosing a door system, professionals typically evaluate these five factors.

Security door selection checklist:

1. Measure opening width and surrounding wall clearance.
2. Identify daily traffic volume through the entrance.
3. Evaluate security risks and locking requirements.
4. Check structural support for track installation.
5. Estimate installation complexity and labor costs.

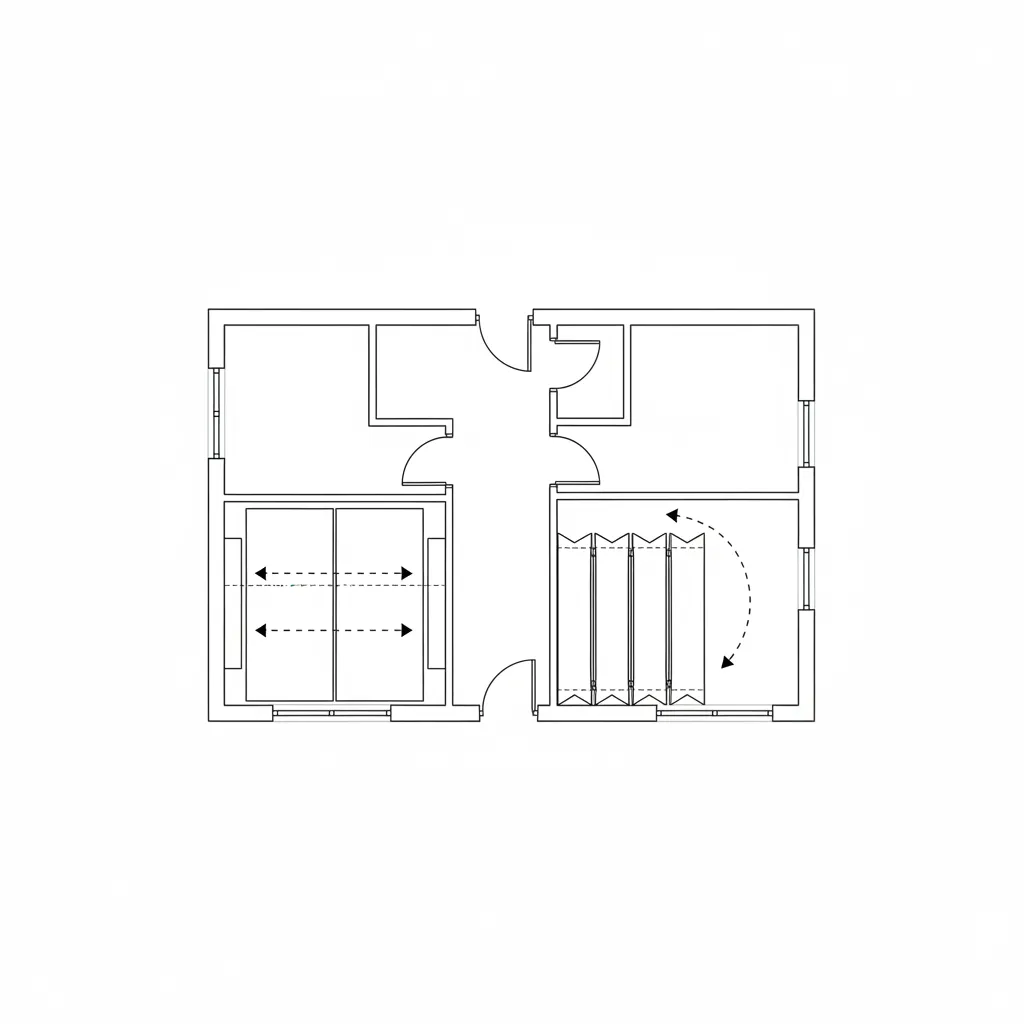

If multiple entrances are involved, mapping layouts with a simple floor plan visualization for entry upgrades can help compare different door placement options.

Real-World Scenarios: Choosing the Right Door Type

Key Insight: Real environments reveal why the "best" security door often depends on how the space is actually used.

Across many projects, several patterns consistently appear.

Common real-world matches:

1. Small apartment entrances → sliding security doors
2. Backyard patio entrances → folding security doors
3. Retail storefronts → sliding security doors
4. Restaurant indoor‑outdoor areas → folding doors
5. Office corridors → sliding doors

In commercial renovations, maximizing usable space often becomes the deciding factor rather than pure aesthetics.

Final Summary

1. Sliding security doors work best in narrow or high‑traffic spaces.
2. Folding doors maximize opening width for large entrances.
3. Security strength depends more on frame and locks than door type.
4. Installation complexity can significantly affect project cost.
5. Entry layout analysis should guide the final decision.

FAQ

1. How do I choose folding or sliding security doors?

Evaluate entry width, wall space, daily traffic flow, and installation constraints before choosing a door style.

2. Which security door saves space?

Sliding security doors save the most space because they move along a wall rather than folding outward.

3. Are folding security doors less secure?

Not necessarily. Modern folding doors with reinforced frames and multi‑point locks can provide strong security.

4. What is the best security door for small entrances?

Sliding security doors are usually the best option for small entrances because they require minimal clearance.

5. Are sliding security doors good for commercial entry?

Yes. Sliding systems support smooth traffic flow and are commonly used in retail and office buildings.

6. Do folding security doors cost more?

In many cases yes, because they require more hardware components and longer installation time.

7. Can security doors be installed on existing door frames?

Often yes, but the frame must support the track system and door weight.

8. What is included in a security door selection guide for homes?

A typical guide includes layout measurements, security requirements, ventilation needs, and installation constraints.
