How to Choose the Correct Fuse Size When Wiring Rock Lights to a Battery: A practical guide to calculating amperage, selecting the right fuse, and preventing electrical damage when installing LED rock lights.

Direct Answer

The correct fuse size for rock lights is typically calculated by adding the total amperage of all lights and selecting a fuse rated about 25–30% higher than the expected load. Most rock light setups with 6–8 LED pods use a 10A–15A inline fuse, but the exact rating depends on the total wattage and voltage of the lights.

Quick Takeaways

1. Always size the fuse slightly above the total current draw of all rock lights.
2. Most LED rock light systems run safely on a 10A–15A fuse.
3. The fuse should be installed within 6–12 inches of the battery.
4. Undersized fuses cause nuisance blowing, while oversized fuses remove protection.
5. Wire gauge must match the fuse rating to avoid overheating.

Introduction

When people install rock lights for the first time, they usually focus on mounting positions, color choices, or Bluetooth control apps. The electrical protection side rarely gets the same attention. Yet after working on dozens of off‑road lighting installs over the past decade, I can tell you the most common failure isn’t the lights themselves—it’s incorrect fuse sizing.

If you're wiring rock lights directly to a battery, the fuse is the single component that prevents a small wiring mistake from turning into melted insulation or a damaged battery lead. I’ve seen beautiful builds where $80 worth of lighting was installed with no fuse at all, which is essentially gambling with the entire electrical system.

Before getting into fuse math, it helps to understand the broader installation workflow. If you want a full overview of the process, this step‑by‑step walkthrough explaining complete steps in how to wire rock lights to batteryprovides the full wiring context.

In this guide, we’ll break down how to calculate amperage, how to select the proper fuse rating, where to place it, and the mistakes I see most often in LED installs.

save pin

Why Fuses Are Critical in Rock Light Wiring

Key Insight: A fuse protects the wire—not the light—and must be sized based on circuit capacity rather than guesswork.

Many installers assume the fuse protects the lighting device. In reality, its primary job is to protect the wiring from overheating if a short circuit occurs.

If a positive wire rubs against metal under the vehicle frame and shorts to ground, the battery can instantly push hundreds of amps through the cable. Without a fuse, the wire itself becomes the weakest point and begins heating up rapidly.

In off‑road environments where moisture, vibration, and debris are common, that protection becomes even more important.

What a fuse protects in a rock light circuit:

1. Battery positive lead
2. Main wiring harness
3. Switch or controller
4. Distribution wiring to each rock light

Automotive electrical guidelines from organizations like SAE emphasize overcurrent protection for every auxiliary circuit connected to a vehicle battery.

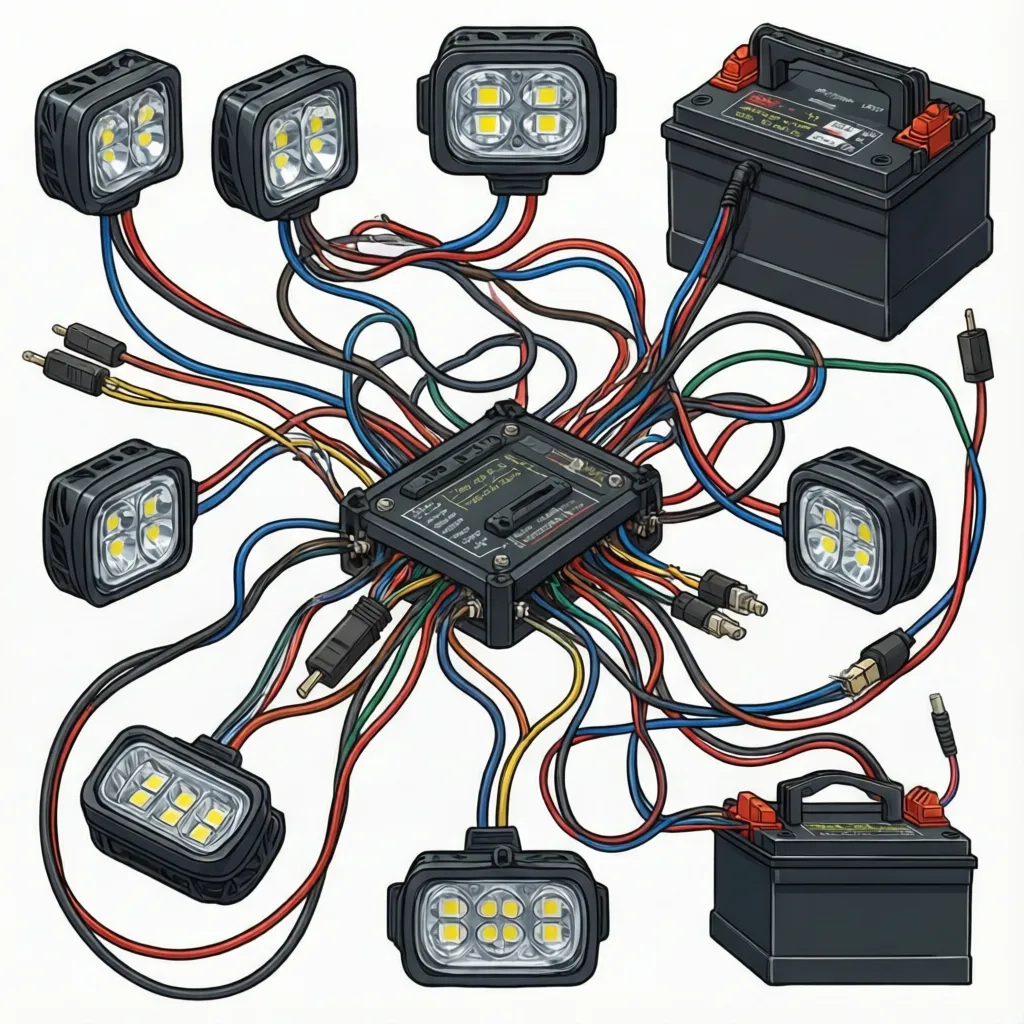

How to Calculate Total Rock Light Power Draw

Key Insight: Correct fuse sizing starts with calculating the total amperage of all rock lights combined.

Most LED rock lights list wattage on the product spec sheet. Converting that number to amperage is straightforward using a basic electrical formula.

Formula:

1. Amps = Watts ÷ Voltage

Since most vehicles run around 12–13.8 volts while operating, you can use 12V for a conservative estimate.

Example: 8 Rock Lights

1. Each light: 9 watts
2. Total power: 72 watts
3. 72 ÷ 12 = 6 amps total draw

That means the lighting system consumes roughly 6A during operation.

This is why many installers asking about what fuse size for rock lightsare surprised that the number is relatively small.

save pin

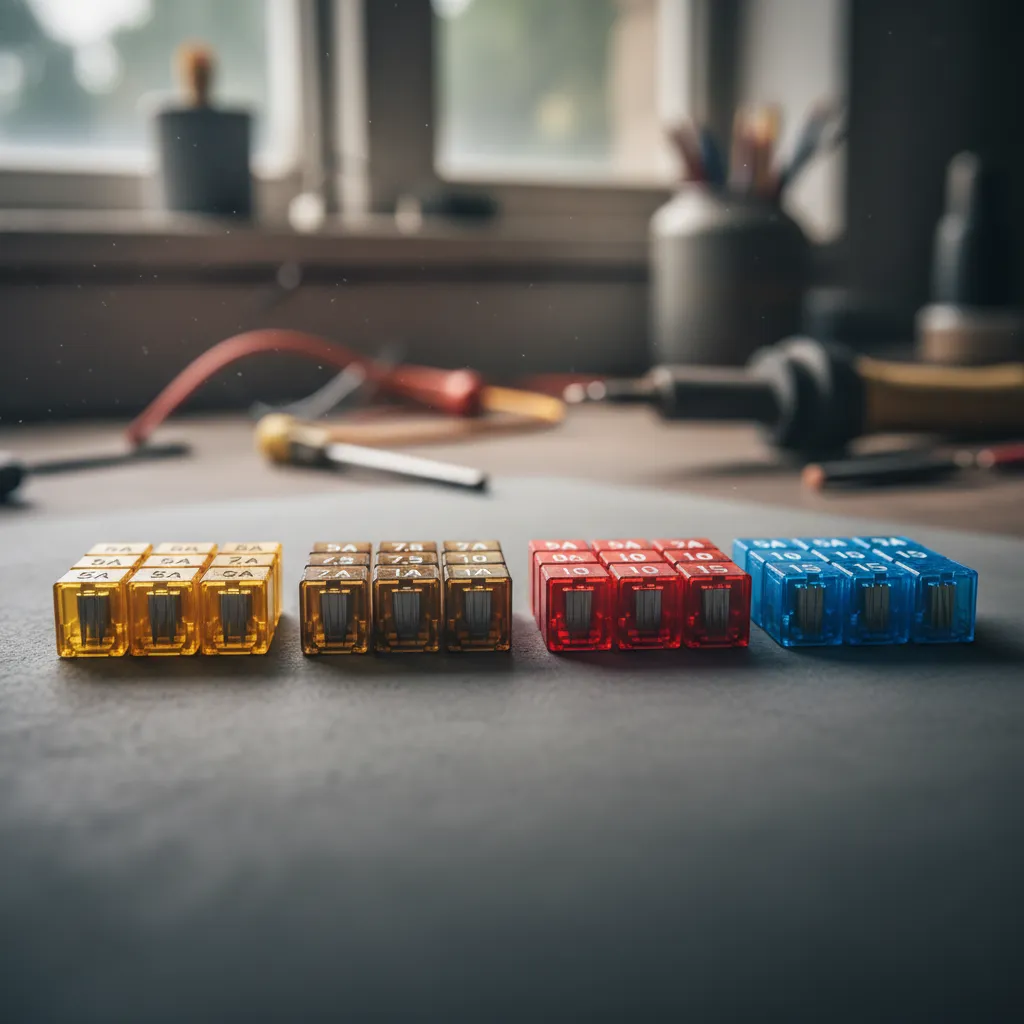

Selecting the Correct Fuse Amperage

Key Insight: Choose a fuse rated about 25–30% above the calculated current draw to prevent nuisance blowing.

After calculating amperage, the next step is selecting the fuse size. The fuse must allow normal operation while still tripping during a fault.

Typical fuse sizing examples:

1. 3A system → 5A fuse
2. 6A system → 7.5A or 10A fuse
3. 8A system → 10A fuse
4. 12A system → 15A fuse

For most off‑road kits with 6–8 pods, the safest choice ends up being a 10A fuse.

However, here’s a hidden mistake many guides don’t mention: installers often increase fuse size instead of upgrading wire gauge. If your wiring harness uses 18‑gauge wire, pushing it through a 20A fuse defeats the protection entirely.

General wire compatibility guideline:

1. 18 AWG → max 10A fuse
2. 16 AWG → max 15A fuse
3. 14 AWG → max 20A fuse

Fuse rating and wire gauge should always be evaluated together.

Inline Fuse vs Fuse Block for Rock Lights

Key Insight: Inline fuses are ideal for single lighting circuits, while fuse blocks make sense when multiple accessories share power.

In many off‑road builds, rock lights are only one of several electrical accessories—light bars, compressors, radios, and refrigerators often share the same battery.

Inline Fuse

1. Simple installation
2. Cheap and widely available
3. Best for single circuits

Fuse Block

1. Cleaner multi‑device wiring
2. Centralized protection
3. Easier future upgrades

If you're planning a larger electrical layout, visualizing wiring paths beforehand helps avoid messy installs. Many builders start by mapping layouts using tools similar to a 3D layout planning tool for wiring and accessory placementbefore routing cables through the vehicle.

save pin

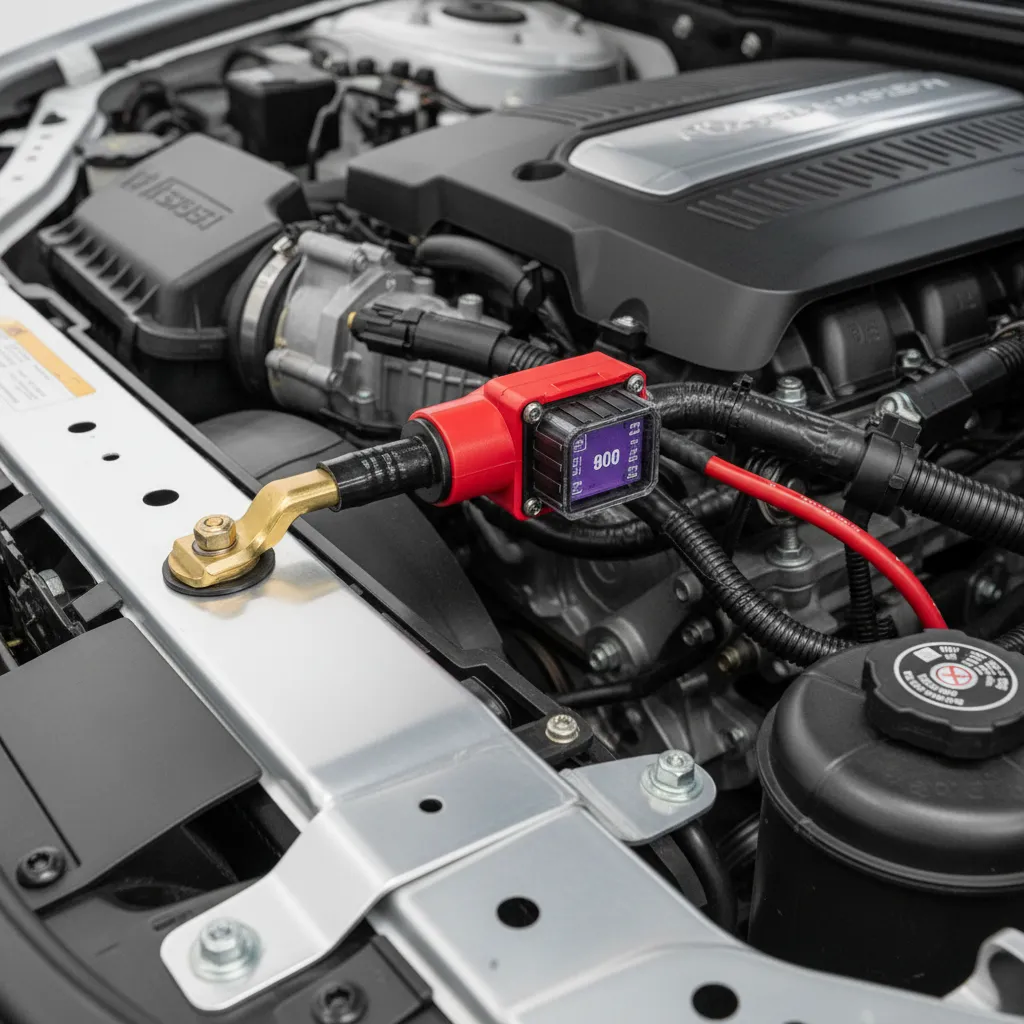

Where to Place the Fuse Near the Battery

Key Insight: The fuse should be installed as close to the battery as possible—ideally within 6–12 inches.

This placement ensures that nearly the entire wire run is protected.

If the fuse is installed several feet away from the battery and the wire shorts before reaching the fuse, the protection becomes useless.

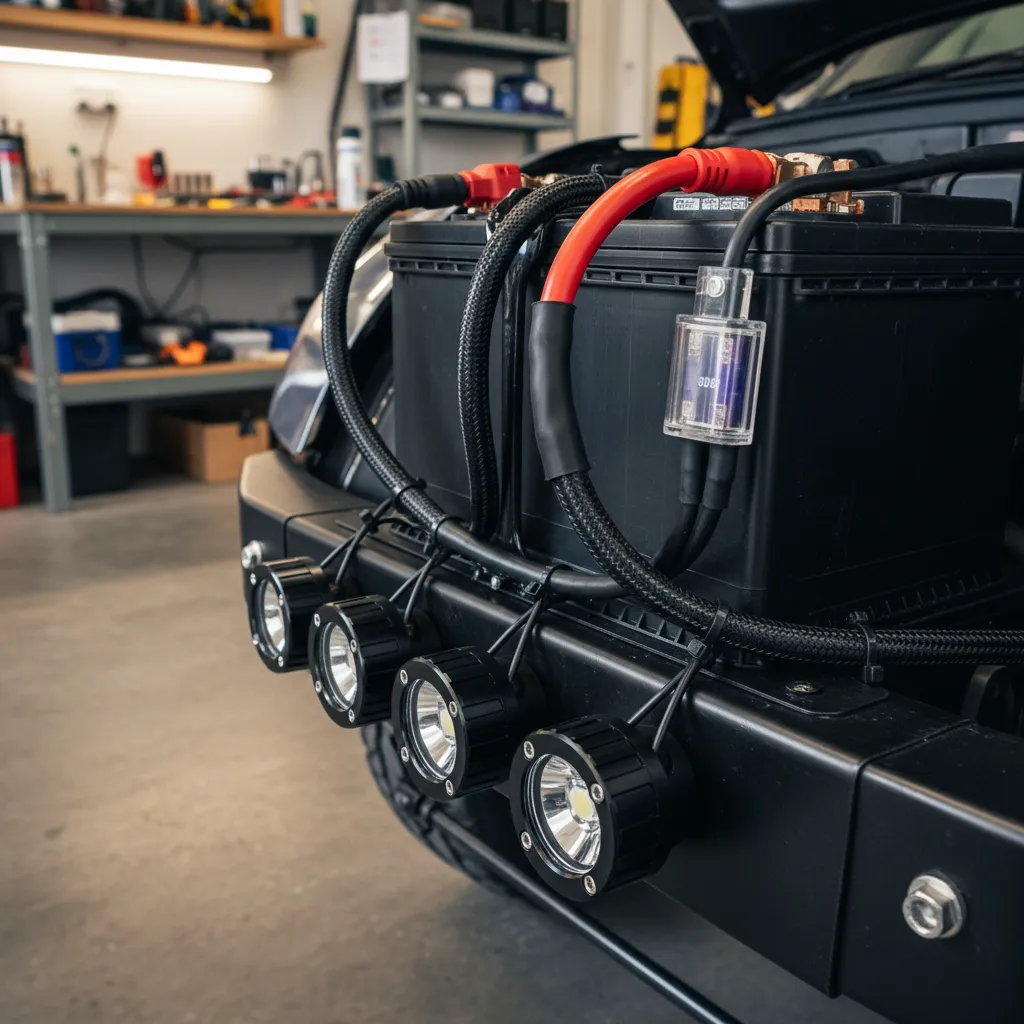

Recommended installation order:

1. Battery positive terminal
2. Inline fuse holder
3. Switch or relay
4. Rock light wiring harness
5. Ground connections

Keeping the fuse close to the battery dramatically reduces fire risk during a short circuit.

Common Fuse Sizing Mistakes in LED Installations

Key Insight: Most fuse problems come from oversizing rather than undersizing.

After reviewing dozens of DIY installs, the same mistakes appear repeatedly.

Common mistakes:

1. No fuse installed at all
2. Using a 30A fuse for a 6A lighting circuit
3. Placing the fuse near the lights instead of the battery
4. Ignoring wire gauge limits
5. Running multiple accessories on a single fuse

One particularly overlooked issue is voltage spikes when several LEDs turn on simultaneously. A slightly larger fuse margin helps avoid nuisance blowing during startup.

save pin

Answer Box

The correct fuse size for rock lights is determined by total amperage draw plus a 25–30% safety margin. Most 6–8 pod LED systems draw around 5–8 amps and use a 10A fuse placed within 6–12 inches of the battery.

Final Summary

1. Calculate total amperage before selecting a fuse.
2. Most rock light systems safely use a 10A fuse.
3. Install the fuse within 12 inches of the battery.
4. Never exceed the wire’s safe current rating.
5. Oversized fuses eliminate electrical protection.

Planning wiring layouts ahead of time prevents most installation errors. If you’re mapping accessory placement or lighting zones, using a simple layout planner to map lighting and wiring paths can make the installation far easier.

FAQ

What fuse size for rock lights?

Most rock light systems require a 10A fuse. Calculate the total amperage of all lights and choose a fuse about 25–30% higher.

How many amps do rock lights use?

Most LED rock lights draw 0.5–1 amp each. A typical 8‑light kit usually consumes between 5 and 8 amps total.

Can I run rock lights directly to the battery?

Yes, but you must include an inline fuse near the battery and ideally a switch or relay for control.

What happens if the fuse is too large?

An oversized fuse may not blow during a short circuit, allowing wiring to overheat and potentially cause damage.

Is an inline fuse required for LED rock lights?

Yes. An inline fuse protects the wiring harness and battery connection from overcurrent faults.

Where should the fuse go when wiring rock lights to a battery?

The fuse should be installed within 6–12 inches of the battery positive terminal.

What fuse size for 8 rock lights?

If each light uses about 1 amp, an 8‑light system draws roughly 8 amps. A 10A fuse is usually appropriate.

Do rock lights need a relay?
