How to Choose the Right 2nd Floor Thickness for Your Building Design: A practical guide to selecting safe and efficient second‑floor structural thickness based on span, materials, and real residential design scenarios.

Direct Answer

The right 2nd floor thickness depends on span length, structural system, and load requirements. In most residential buildings, a second floor typically ranges from 10 to 16 inches total thickness, including joists, subfloor, ceiling layers, and finishes.

Wood joist systems often fall between 10–14 inches, while concrete slabs may reach 12–16 inches depending on reinforcement and insulation layers.

Quick Takeaways

1. Most residential second floors measure between 10 and 16 inches in total structural thickness.
2. Longer spans require deeper joists or thicker structural slabs.
3. Concrete floors are usually thicker but offer better sound and vibration control.
4. Insulation, ceiling systems, and soundproofing can add several inches to total floor depth.
5. Local building codes often define minimum structural requirements.

Introduction

When clients ask me how thick a second floor should be, they usually expect a single number. But after working on residential projects for more than a decade, I can tell you that 2nd floor thickness is never just one dimension. It's a combination of structure, acoustics, mechanical space, and safety margin.

I’ve seen homeowners design beautiful open layouts only to discover later that their structural depth needs to grow by several inches just to carry the span. That change can affect stair height, ceiling clearance, and even exterior proportions.

Another mistake I see often is people copying dimensions from another house without considering material differences. A wood‑framed floor behaves very differently from a concrete slab or steel system.

If you're experimenting with layouts while figuring out structural depth, using tools that allow you to visualize floor structure within a full 3D home layoutcan reveal conflicts early—especially stair alignment and ceiling heights.

In this guide, I’ll walk through the real factors that determine second‑floor thickness, the trade‑offs between structural systems, and a few practical examples I’ve seen across typical homes.

save pin

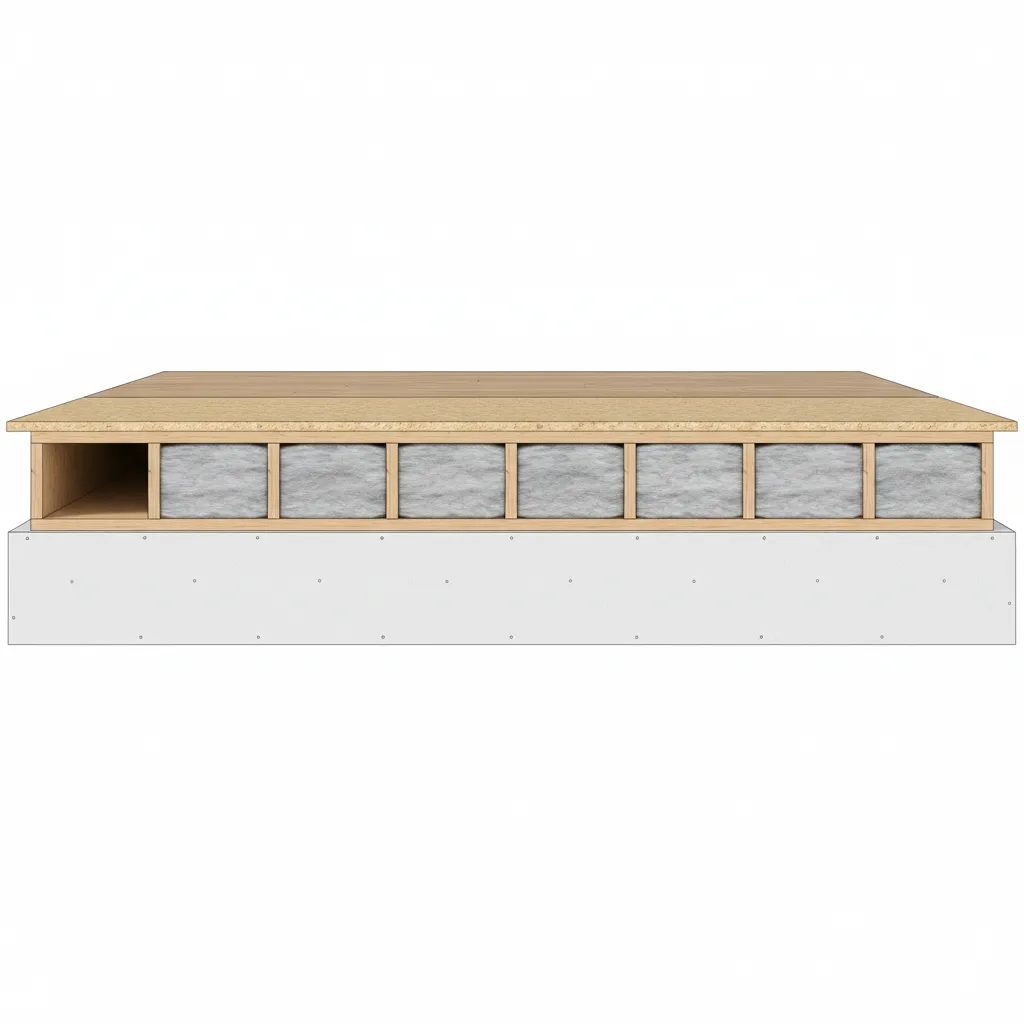

Key Factors That Determine Second Floor Thickness

Key Insight: Second floor thickness is driven by structural span, material choice, and performance requirements such as sound control and mechanical space.

In practice, the structure itself is only part of the equation. A typical floor assembly includes multiple layers that all contribute to the final depth.

Common layers in a residential second floor include:

1. Structural joists or slab
2. Subfloor sheathing
3. Floor finish (hardwood, tile, etc.)
4. Ceiling framing below
5. Drywall ceiling
6. Sound insulation

Here’s a simplified breakdown I often use when estimating early design dimensions:

1. Wood joist structure: 9–12 inches
2. Subfloor + finish layers: 1–2 inches
3. Ceiling assembly below: 1–2 inches

That already places most wood‑framed floors around 11–15 inches total.

According to the American Wood Council framing guidelines, deeper joists are required as spans increase, which is why open‑concept homes often require thicker floors than traditional compartment layouts.

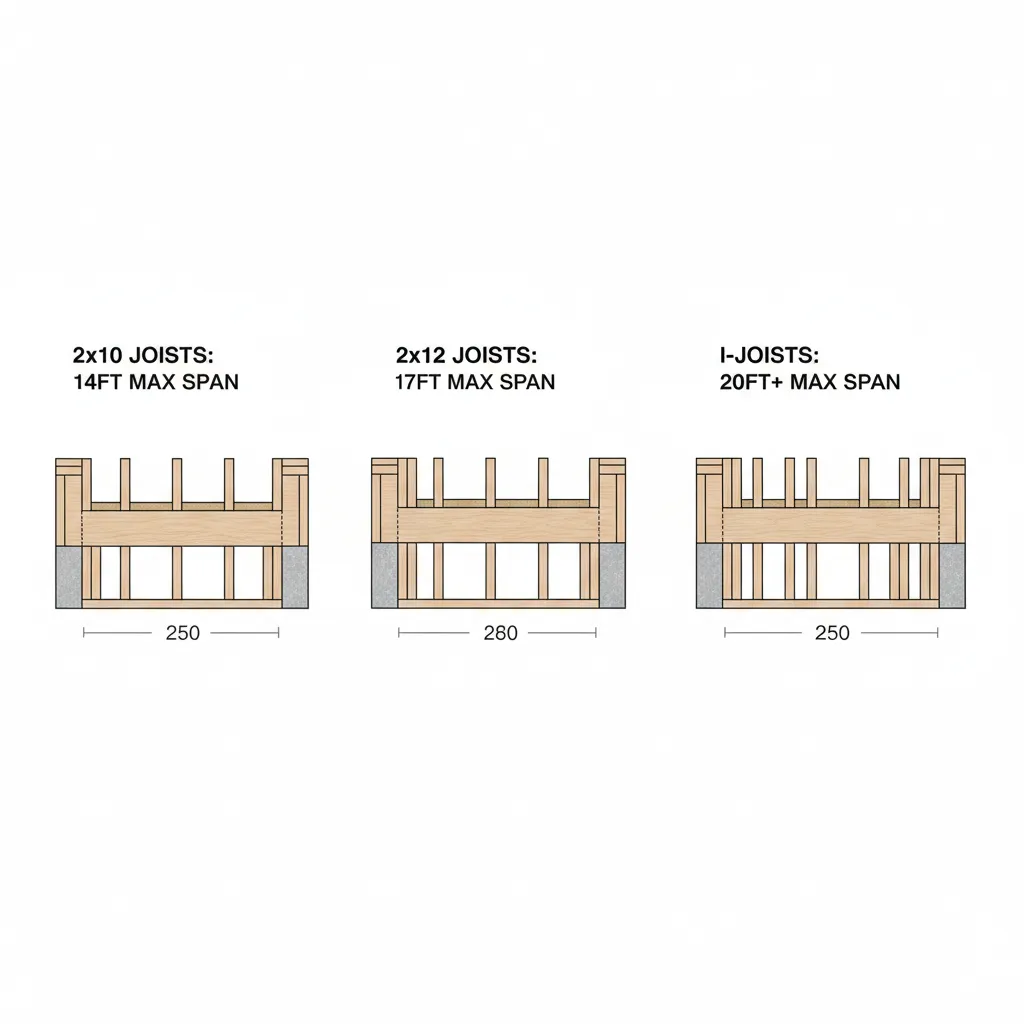

Span Length and Structural Load Considerations

Key Insight: The longer the span between structural supports, the thicker the floor system must be.

Span length is usually the single biggest factor affecting second floor thickness. Longer spans cause deflection, vibration, and structural stress.

In real projects, this becomes obvious when clients want wide open living spaces with minimal interior walls.

Typical wood joist spans look roughly like this:

1. 10–12 ft span → 2x8 joists
2. 12–16 ft span → 2x10 joists
3. 16–20 ft span → 2x12 or engineered joists

Engineered I‑joists are common in modern construction because they allow longer spans without excessive thickness.

For example:

1. Traditional lumber joist depth: 9–12 inches
2. Engineered I‑joists: 11–16 inches
3. Concrete slab systems: 8–12 inches structural slab + finishing layers

Designers often test these relationships while adjusting room sizes. Many professionals use tools that let them experiment with room layout and structural spacingbefore finalizing structural depth.

save pin

Choosing Between Wood, Steel, and Concrete Systems

Key Insight: Material choice significantly affects floor thickness because each structural system handles load and vibration differently.

In residential projects across the U.S., three main structural systems are used.

Here’s how they compare:

1. Wood framing – Most common for houses. Flexible and cost‑effective.
2. Steel framing – Allows long spans but requires specialized installation.
3. Concrete slab – Strong, quiet, but heavier and usually thicker.

Typical total floor thickness by system:

1. Wood joist floor: 10–14 inches
2. Engineered joist floor: 12–16 inches
3. Concrete slab floor: 12–16 inches

One thing most articles ignore is vibration performance. A floor that meets structural code can still feel "bouncy." Deeper joists often improve comfort, even when thinner systems technically work.

save pin

Impact of Insulation and Soundproofing Layers

Key Insight: Acoustic and thermal layers often add 2–4 inches to a second floor assembly.

This is one of the hidden design factors that surprises homeowners during construction.

Multi‑story homes often include sound control between floors. Without it, footsteps and impact noise transfer easily.

Common soundproofing components include:

1. Mineral wool or fiberglass insulation between joists
2. Resilient channel ceiling systems
3. Acoustic mats under flooring
4. Double drywall layers

Each of these layers slightly increases floor thickness but dramatically improves comfort.

In one townhouse project I worked on in Los Angeles, adding resilient channels and acoustic insulation increased total floor depth by about 2.5 inches—but reduced impact noise complaints dramatically.

Building Code and Safety Margin Considerations

Key Insight: Minimum code requirements define structural capacity, but smart design often includes additional thickness for long‑term performance.

Building codes such as the International Residential Code (IRC) specify load requirements for residential floors.

Typical design loads include:

1. 40 pounds per square foot live load for living areas
2. 10–20 pounds per square foot dead load

But code compliance does not always equal comfort.

In practice, architects often increase joist depth slightly to:

1. Reduce vibration
2. Allow mechanical routing
3. Improve acoustic separation
4. Provide safety margin for renovations

Digital planning tools that allow you to test structural spacing and floor configurations quickly make it easier to evaluate these design trade‑offs early.

Practical Design Examples for Typical Homes

Key Insight: Most residential homes fall into a few predictable floor thickness ranges depending on structure and layout.

From projects I’ve reviewed and worked on, these examples appear frequently:

1. Small house with short spans
2. Total floor thickness: 10–12 inches
3. Typical suburban two‑story home
4. Total floor thickness: 12–14 inches
5. Open‑concept modern home
6. Total floor thickness: 14–16 inches
7. Concrete slab townhouse
8. Total floor thickness: 12–16 inches

The main takeaway: open layouts almost always push structural depth upward because fewer interior walls support the floor above.

save pin

Answer Box

Most residential second floors are between 10 and 16 inches thick depending on span length, material system, and acoustic layers. Wood joist systems are typically thinner, while concrete slabs require greater depth but offer superior sound control and rigidity.

Final Summary

1. Most second floors measure 10–16 inches in total structural depth.
2. Span length is the biggest factor affecting floor thickness.
3. Wood framing is thinner, while concrete floors are heavier and thicker.
4. Acoustic insulation and ceiling systems can add several inches.
5. Designing with extra depth often improves comfort and vibration control.

FAQ

How thick should a second floor be in a house?

Most houses use a second floor thickness between 10 and 16 inches depending on structural system, span length, and insulation layers.

What joist size is used for a second story?

Common sizes include 2x8, 2x10, or 2x12 joists. Larger spans require deeper joists or engineered I‑joists.

Is concrete flooring thicker than wood framing?

Yes. Concrete slabs typically require 12–16 inches total assembly thickness including reinforcement and finishing layers.

Does soundproofing increase floor thickness?

Yes. Acoustic insulation and resilient ceiling systems can add 2–4 inches to the overall floor assembly.

What affects second floor structural design the most?

Span length, structural material, load requirements, and vibration control all influence second floor structural design.

Can a second floor be less than 10 inches thick?

Rarely in modern construction. Structural strength and sound insulation usually require thicker assemblies.

Do open floor plans require thicker floors?

Often yes. Larger spans without supporting walls require deeper joists or engineered systems.

How do engineers calculate structural floor thickness?

They evaluate span length, load capacity, material strength, and deflection limits to determine safe structural depth.

References

1. International Residential Code (IRC)
2. American Wood Council – Residential Framing Guidelines
3. U.S. Department of Housing and Urban Development – Structural Design Practices
