How to Choose the Right Built In Corner Cabinet for Your Dining Room Layout: A practical designer’s guide to selecting the right size, depth, and style of corner cabinets based on real dining room layouts

Direct Answer

The right built in corner cabinet for a dining room depends on three factors: available corner depth, circulation space around the dining table, and the type of storage you actually need. In most residential projects I design, the sweet spot is a cabinet depth between 16 and 22 inches with a height that aligns visually with nearby furniture. Choosing the correct proportions matters far more than choosing a decorative style.

Quick Takeaways

1. Corner cabinets should never interrupt the dining circulation path.
2. Depth between 16 and 22 inches works in most dining rooms.
3. Always measure corner wall length, not just the visible corner angle.
4. Matching cabinet height with nearby furniture improves visual balance.
5. Layout planning prevents wasted storage space inside corner cabinets.

Introduction

Choosing the right built in corner cabinet for a dining room layout sounds simple until you start measuring the space. After designing dozens of dining rooms over the past decade, I've noticed the same mistake repeating itself: homeowners pick a cabinet style first and only later realize the cabinet blocks movement around the table or feels visually oversized.

A dining room corner cabinet should solve two problems at once. It needs to add useful storage while quietly blending into the room's geometry. When those two goals aren't balanced, the cabinet ends up looking like an afterthought.

Before selecting dimensions or styles, I usually recommend visualizing the corner within the full room layout. Many homeowners find it helpful to experiment with different furniture placements using a simple layout visualization tool that maps dining furniture and storage zones. It immediately reveals whether a cabinet will feel integrated or intrusive.

In this guide, I'll walk through the same decision process I use with clients: evaluating layout constraints, measuring the corner correctly, choosing realistic cabinet dimensions, and aligning the cabinet with the rest of the dining furniture.

save pin

Understanding Your Dining Room Layout Constraints

Key Insight: The success of a built in corner cabinet depends more on dining circulation space than cabinet design.

In real homes, dining rooms rarely have perfectly spare corners. The corner might sit beside a window, a doorway, or the natural walking path between the kitchen and living room. Ignoring these movement patterns is one of the most common planning mistakes.

From experience, a comfortable dining room layout typically needs:

1. 36 inches clearance behind dining chairs
2. 42 inches clearance in high traffic paths
3. At least 30 inches between cabinet edges and table zones

If a cabinet intrudes into those clearances, the room will feel cramped no matter how attractive the cabinet is.

Common layout situations I encounter:

1. Small square dining rooms: shallow triangular corner cabinets work best.
2. Open plan dining areas: taller cabinets anchor the corner visually.
3. Dining rooms near kitchen entries: cabinets must stay shallow to maintain walkways.

Professional designers typically evaluate these layouts using scaled floor plans or a visual floor plan layout simulator for testing furniture spacingbefore committing to cabinetry dimensions.

save pin

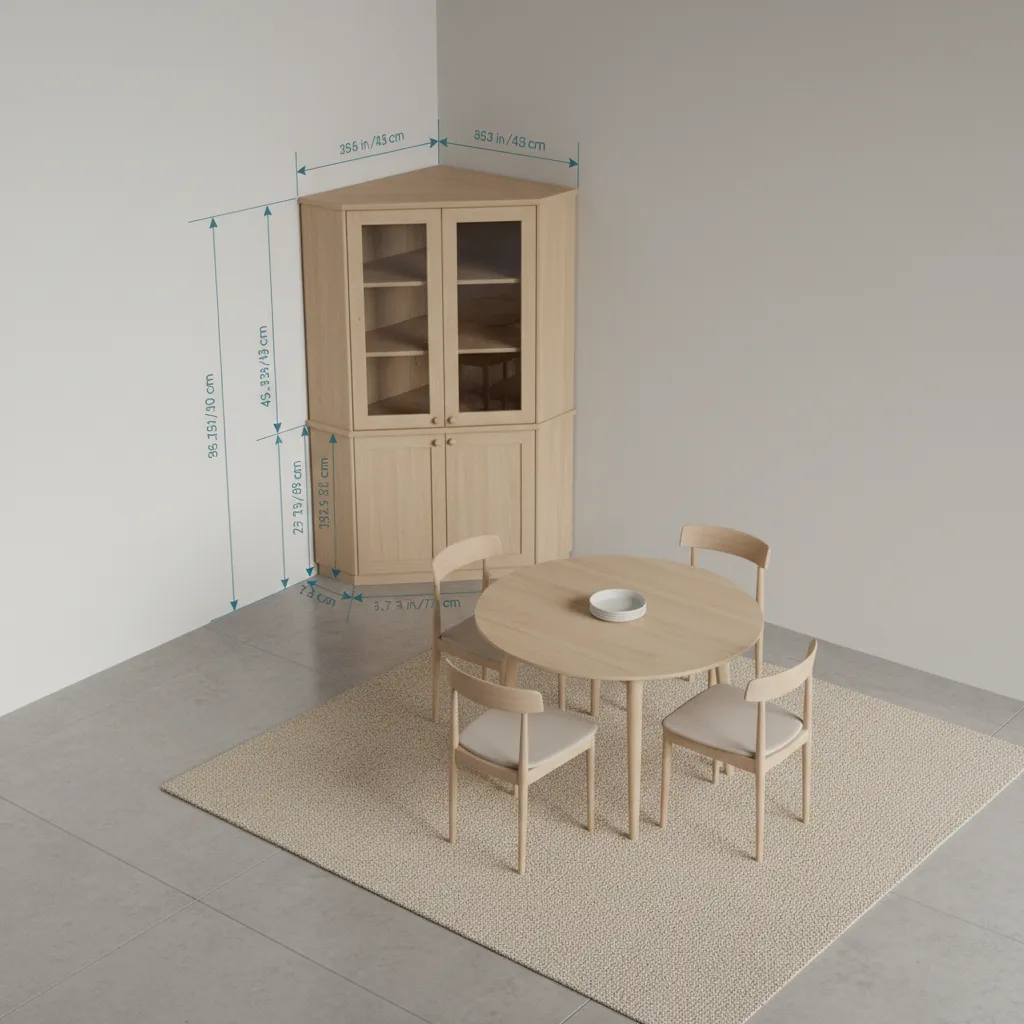

Measuring Corner Space Correctly

Key Insight: Accurate wall measurements matter more than the corner angle itself.

Many homeowners only measure the diagonal across the corner. Unfortunately, that measurement alone doesn't determine cabinet fit.

Instead, measure three critical dimensions:

1. Left wall length from corner
2. Right wall length from corner
3. Distance to nearby furniture or doorways

These measurements define the usable triangle that the cabinet must occupy.

Typical cabinet footprints I recommend:

1. Small dining room: 18" x 18" wall footprint
2. Medium dining room: 24" x 24" footprint
3. Large dining room: 30"+ footprint

A hidden issue people overlook is door swing. If the cabinet includes glass doors, you need enough space for them to open without colliding with dining chairs or walls.

Choosing the Right Cabinet Depth and Height

Key Insight: Oversized corner cabinets are the most common design mistake in dining rooms.

People assume deeper cabinets mean better storage. In reality, deep corner cabinets often become awkward storage zones where items disappear behind the front row.

Based on projects I've completed, these proportions work best:

1. Depth: 16–22 inches
2. Base cabinet height: 34–36 inches
3. Full height cabinets: 72–84 inches

Designers often divide the cabinet vertically for usability:

1. Display shelves above
2. Closed storage below
3. Optional wine or bar storage center

Glass-front upper sections also visually lighten the cabinet mass, which is especially helpful in compact dining rooms.

save pin

Matching Corner Cabinets with Dining Furniture

Key Insight: A corner cabinet should visually relate to the dining table and sideboards, not compete with them.

One design rule I follow is maintaining similar visual weight across the room. If the dining table is minimal and modern, a heavy traditional cabinet will dominate the corner.

Elements worth aligning:

1. Wood tone or finish
2. Hardware style
3. Edge profile or panel style
4. Overall cabinet height

Some clients also experiment with styling concepts before committing to built-ins using a visual dining room design concept generator for cabinet placement ideas. Seeing a few different styles in context can quickly clarify what belongs in the room.

A useful trick designers use: align the top of the cabinet with window trim or nearby shelving. That small detail helps the cabinet feel architecturally integrated.

Budget Planning for Built In Cabinet Projects

Key Insight: Installation complexity often costs more than the cabinet itself.

Many homeowners underestimate the cost of built-in cabinetry because the visible cabinet box is only part of the project.

Typical budget components include:

1. Cabinet fabrication
2. Trim and molding integration
3. Wall preparation
4. Painting or finishing
5. Lighting installation (optional)

In many North American markets, corner cabinet installations typically range between:

1. $900–$1,500 for basic units
2. $1,500–$3,500 for custom built-ins
3. $4,000+ for fully integrated cabinetry with lighting

One hidden cost: uneven walls. Older homes often require custom scribing and adjustments, which can add labor hours.

Answer Box

The best built in corner cabinet for a dining room balances storage capacity with circulation space. Depth around 18–22 inches, proper wall measurements, and alignment with nearby furniture ensure the cabinet enhances the room instead of crowding it.

save pin

Checklist for Selecting the Best Corner Cabinet Design

Key Insight: A simple planning checklist prevents most corner cabinet mistakes.

Before committing to a cabinet design, confirm these points:

1. Wall measurements are taken from both sides of the corner.
2. Dining chair clearance remains at least 36 inches.
3. Cabinet depth stays within usable storage range.
4. Door swing does not conflict with nearby furniture.
5. Cabinet style matches dining furniture proportions.
6. Lighting or display needs are planned in advance.

When all six checks pass, the cabinet almost always feels intentional rather than squeezed into the corner.

Final Summary

1. Correct cabinet depth matters more than decorative style.
2. Always plan around dining circulation space.
3. Measure both corner walls to define cabinet footprint.
4. Align cabinet proportions with surrounding furniture.
5. Installation details often determine the final cost.

FAQ

What is the best depth for a dining room corner cabinet?

Most built in corner cabinets work best between 16 and 22 inches deep. This provides usable storage without overwhelming the dining space.

How do I choose a corner cabinet for a small dining room?

Focus on shallow cabinets, glass-front shelving, and heights under 72 inches. These design choices reduce visual bulk in smaller rooms.

Can a built in corner cabinet increase dining room storage?

Yes. A well-designed cabinet can store dishes, linens, or barware while using a corner that typically remains unused.

Should corner cabinets match the dining table?

They don't need to match exactly, but coordinating wood tone, hardware, or design style helps the room feel cohesive.

What size built in corner cabinet works in small dining rooms?

A footprint around 18" by 18" usually fits comfortably in compact dining spaces.

Is a custom cabinet better than a freestanding corner cabinet?

Custom built-ins maximize corner space and integrate visually with the room, but freestanding cabinets are more affordable and flexible.

How tall should a dining room corner cabinet be?

Many designs fall between 72 and 84 inches tall, though shorter cabinets can work well under windows.

What should I store in a dining room corner cabinet?

Common items include serving platters, wine glasses, seasonal dishware, table linens, or small bar setups.

References

1. National Kitchen and Bath Association kitchen and storage design guidelines
2. American Institute of Architects residential layout planning standards
3. Interior Design Illustrated by Francis D.K. Ching
