How to Choose the Right Data Sources for River System Modeling: A practical guide to selecting DEM, LiDAR, and hydrology datasets that produce accurate and reliable river terrain models.

Direct Answer

The right data sources for river system modeling usually combine a high‑resolution Digital Elevation Model (DEM), hydrological flow datasets, and satellite imagery for validation. DEM or LiDAR terrain data defines elevation, while hydrology maps and satellite imagery help confirm river paths, floodplains, and watershed boundaries. Choosing datasets with appropriate resolution and verified sources is critical for producing realistic river terrain models.

Quick Takeaways

1. DEM data forms the backbone of most river terrain models.
2. LiDAR offers the highest elevation accuracy for detailed floodplain modeling.
3. Hydrology datasets validate river flow direction and watershed boundaries.
4. Resolution must match your modeling scale to avoid distorted terrain.
5. Clean and preprocess geographic data before importing into any 3D environment.

Introduction

In nearly every river system modeling project I’ve worked on, the biggest problems didn’t come from the modeling software. They came from the data. Choosing the right data sources for river system modeling determines whether your final terrain model looks believable—or completely wrong.

Early in my career, I saw a team spend weeks building a beautiful 3D watershed only to realize the DEM dataset had a 30‑meter resolution. The river channel looked like a staircase instead of a flowing path. Since then, I’ve treated dataset selection as the foundation of the entire workflow.

If you're preparing geographic data for modeling, it helps to first understand how spatial layouts translate into structured environments. Many people exploring terrain modeling also review visual layout workflows such as how spatial layouts are structured in a 3D planning environment, because the same principles of scale, geometry, and data alignment apply.

In this guide, I’ll break down which datasets actually matter, where professionals get them, and how to match the resolution and accuracy to your project goals.

save pin

Why Data Quality Matters in River System Modeling

Key Insight: River models are only as accurate as the terrain data that defines their elevation and flow paths.

Rivers follow gravity, which means elevation data controls everything: flow direction, floodplain formation, tributary connections, and watershed boundaries. If the terrain model is wrong, the entire hydrological simulation becomes unreliable.

In practice, I’ve seen three common issues caused by poor datasets:

1. River channels that appear flat or stepped
2. Incorrect watershed boundaries
3. Flood simulations spreading in impossible directions

One overlooked problem is vertical accuracy. Two datasets may both claim a 10‑meter resolution, but their vertical error could differ by several meters. For flood modeling, that difference can shift an entire riverbank.

Organizations such as the US Geological Survey emphasize that elevation quality directly impacts hydrological modeling reliability. That’s why most professional workflows start with vetted terrain datasets before any geometry modeling begins.

Understanding DEM, LiDAR, and Satellite Terrain Data

Key Insight: DEM provides broad terrain structure, LiDAR offers precise elevation detail, and satellite imagery verifies surface features.

Most river terrain models combine multiple data layers rather than relying on a single dataset.

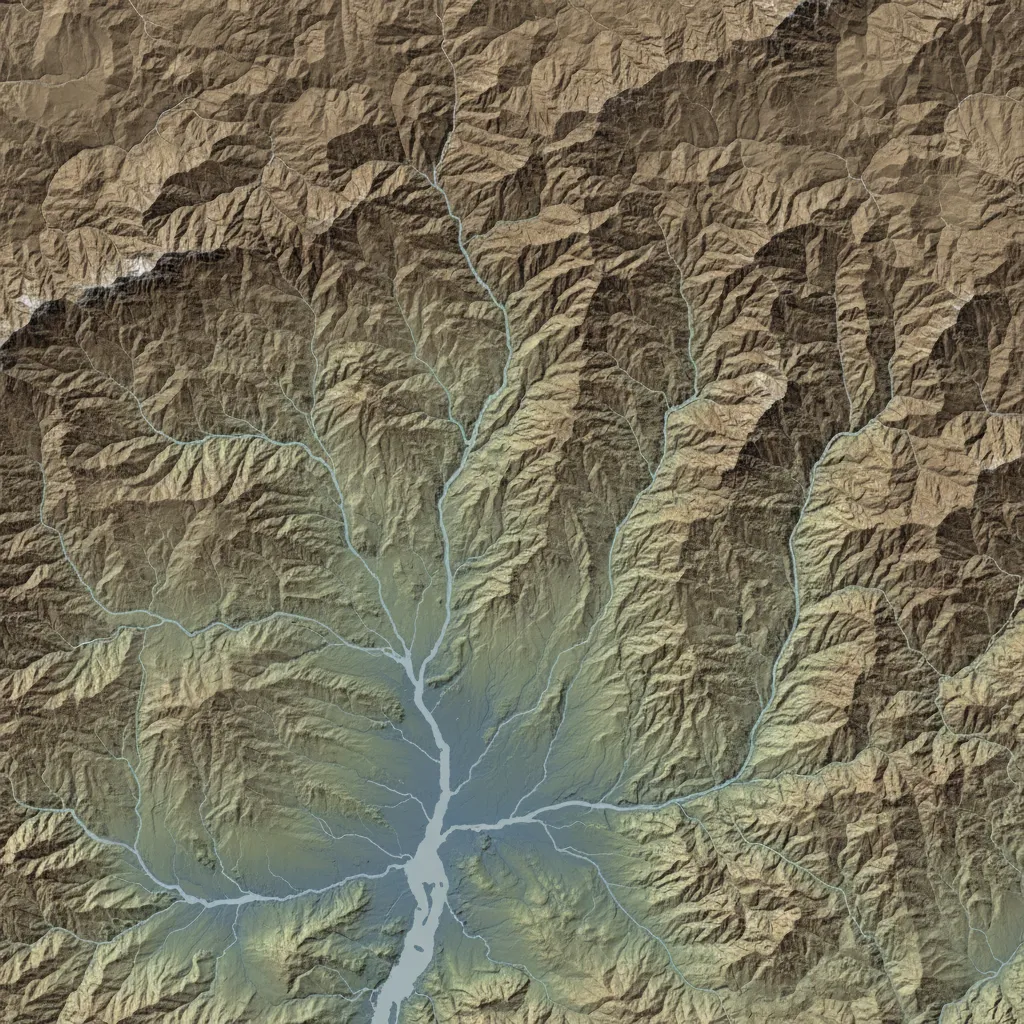

Digital Elevation Model (DEM)

1. Raster grid representing terrain elevation
2. Common resolutions: 30 m, 10 m, or 1 m
3. Widely available through national mapping agencies

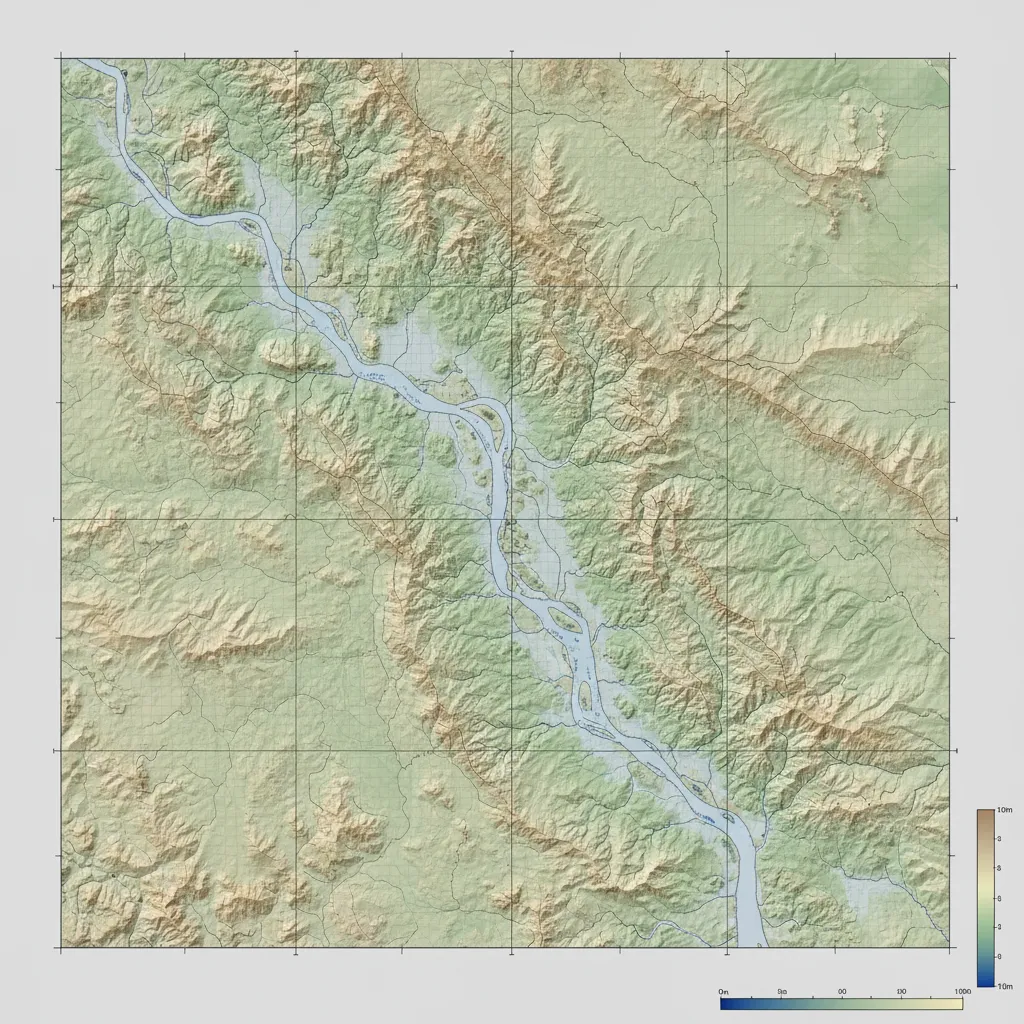

LiDAR Terrain Data

1. Generated from airborne laser scanning
2. Extremely high vertical accuracy
3. Ideal for floodplains and riverbanks

Satellite Imagery

1. Validates visible river channels
2. Helps confirm sediment bars, vegetation, and river width

A practical workflow often looks like this:

1. Use DEM to define base terrain
2. Overlay LiDAR where available for accuracy
3. Validate river geometry using satellite imagery

Combining these sources reduces modeling errors dramatically.

Where to Find Reliable Hydrological Datasets

Key Insight: Government mapping agencies and scientific repositories are the most reliable sources for hydrological data.

One mistake beginners make is downloading random terrain files from forums or GIS repositories without checking metadata.

The most dependable sources typically include:

1. USGS National Map (United States)
2. NASA Earthdata
3. Copernicus DEM (Europe)
4. HydroSHEDS global river database
5. National environmental agencies

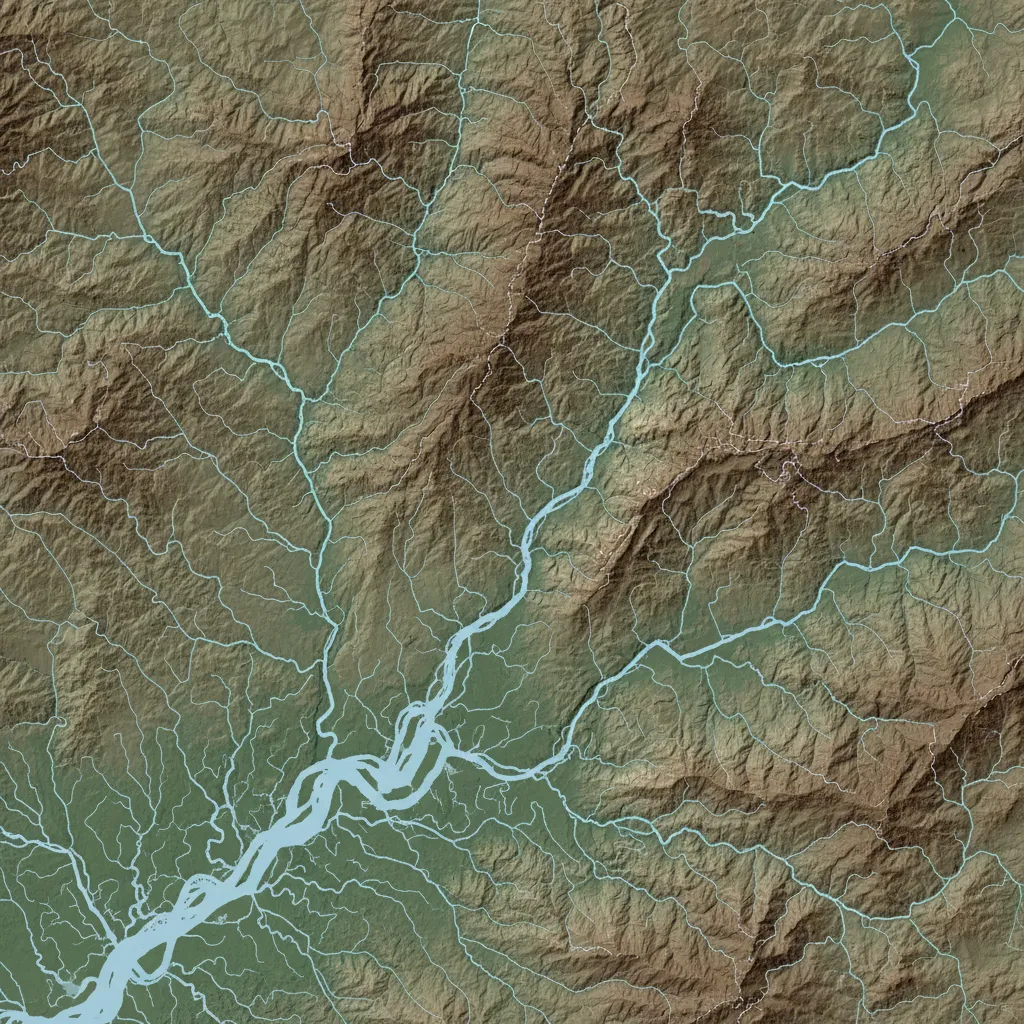

Hydrological datasets often contain:

1. River centerlines
2. Watershed boundaries
3. Drainage networks
4. Flow accumulation data

These layers are crucial because DEM terrain alone doesn’t always reveal the true river path, especially in flat floodplains.

save pin

Evaluating Data Resolution and Accuracy

Key Insight: Higher resolution is not always better—dataset resolution must match the scale of the river model.

This is one of the most misunderstood aspects of river terrain modeling.

For example:

1. Continental watershed study → 30 m DEM often sufficient
2. Regional river basin → 10 m DEM recommended
3. Floodplain simulation → 1–3 m LiDAR ideal

Using extremely high‑resolution LiDAR for a large regional model can actually create problems:

1. Massive file sizes
2. Slower processing
3. Unnecessary micro‑detail

In spatial modeling workflows, scale management is critical. Many terrain designers also study layout scaling concepts such as how to structure scaled layouts before building a full model, because the same logic applies to geographic terrain grids.

Matching Data Sources to Project Goals

Key Insight: The best dataset depends on whether the model is built for visualization, hydrological simulation, or environmental analysis.

Different modeling goals require different combinations of datasets.

Visualization Projects

1. Medium‑resolution DEM
2. Satellite imagery textures
3. Simplified river network data

Flood Modeling

1. High‑resolution LiDAR terrain
2. Accurate river cross‑section data
3. Hydrological flow datasets

Watershed Analysis

1. Regional DEM
2. Drainage network datasets
3. Land cover maps

Trying to use a single dataset for every modeling goal is a common mistake that leads to unrealistic river behavior.

Answer Box

The most reliable workflow for river system modeling combines DEM terrain data, hydrological flow datasets, and satellite imagery validation. Resolution should match the project scale, while LiDAR provides the highest elevation accuracy for floodplain and riverbank modeling.

Preparing Geographic Data for 3D Modeling

Key Insight: Raw geographic datasets almost always require preprocessing before they can be used in a 3D river model.

Before importing terrain data into modeling software, several preparation steps are typically necessary.

Typical preprocessing workflow:

1. Merge multiple DEM tiles
2. Remove elevation artifacts
3. Clip the terrain to the project boundary
4. Align hydrology layers with the elevation grid
5. Export a clean terrain mesh

In visualization pipelines, designers sometimes study structured modeling workflows such as how full environments are rendered from structured spatial data, because terrain models follow many of the same geometry preparation principles.

save pin

Final Summary

1. DEM datasets provide the base terrain for river modeling.
2. LiDAR offers the most accurate elevation for floodplains.
3. Hydrological datasets validate river flow networks.
4. Resolution must match the scale of the project.
5. Clean preprocessing prevents errors in the final 3D model.

FAQ

What is the best data source for river terrain modeling?

High‑resolution DEM datasets combined with hydrology maps and satellite imagery are the most reliable data sources for river system modeling.

Where can I download DEM data for river systems?

Common sources include USGS National Map, NASA Earthdata, and Copernicus DEM repositories.

Is LiDAR necessary for river modeling?

Not always. LiDAR is essential for floodplain analysis or detailed terrain models but unnecessary for large watershed simulations.

What DEM resolution should I use for river modeling?

For regional modeling, 10 m DEM works well. Flood modeling usually requires 1–3 m LiDAR data.

How accurate are satellite elevation datasets for river networks?

Satellite elevation data works for large terrain models but often lacks the precision needed for detailed river channels.

Can I model rivers using only satellite imagery?

No. Satellite imagery shows surface features but lacks elevation data needed to determine water flow direction.

What hydrology datasets are commonly used in terrain modeling?

HydroSHEDS, national river datasets, and watershed boundary layers are widely used in river terrain modeling.

Do I need GIS software before building a river model?

Yes. GIS tools are typically used to prepare DEM and hydrology datasets before importing them into modeling software.

References

1. US Geological Survey National Map
2. NASA Earthdata Terrain Resources
3. HydroSHEDS Global Hydrography Data
4. Copernicus DEM Programme
