How to Choose the Right Dimensions and Edge Profiles for Countertop Drawings: A practical designer’s guide to selecting countertop thickness, overhangs, and edge profiles that translate cleanly into professional drawings.

Direct Answer

Choosing the right dimensions and edge profiles for countertop drawings comes down to three practical decisions: standard thickness (typically 2–3 cm for stone or 1.5 in for laminated builds), safe overhang measurements (usually 1–1.5 inches for kitchens), and a clearly specified edge profile. Accurate drawings must show these choices through dimension notes, section callouts, and edge profile labels so fabricators can interpret them without guesswork.

Quick Takeaways

1. Most kitchen countertop drawings specify 2 cm or 3 cm stone thickness.
2. Standard countertop overhang ranges from 1 to 1.5 inches beyond cabinet faces.
3. Edge profiles must be labeled clearly in sections or callouts.
4. Complex edges increase fabrication cost and should be documented precisely.
5. Design aesthetics must always align with structural support requirements.

Introduction

When I review kitchen drawings from junior designers, the most common issues almost always involve countertop dimensions. Someone specifies a beautiful stone slab but forgets to show the exact overhang. Another designer selects a dramatic edge profile but never includes it in the drawing notes.

In real construction projects, those details matter more than people expect. Fabricators rely heavily on drawings to interpret thickness, edge treatment, and overhang measurements. If those elements are vague, the installer ends up making assumptions—and assumptions are expensive.

After working on residential kitchens for more than a decade, I’ve learned that good countertop drawings are less about artistic detail and more about clarity. The thickness must match the material. The overhang must respect cabinet structure. And the edge profile must be specified in a way fabricators instantly recognize.

If you’re still figuring out layout logic before drafting the countertop details, I often recommend exploring a visual kitchen layout planning workflow that helps organize cabinet and counter placement. Once the layout is correct, translating those choices into drawings becomes much easier.

In this guide, I’ll walk through the practical decisions behind countertop thickness, overhangs, and edge profiles—and how to represent them correctly in professional drawings.

save pin

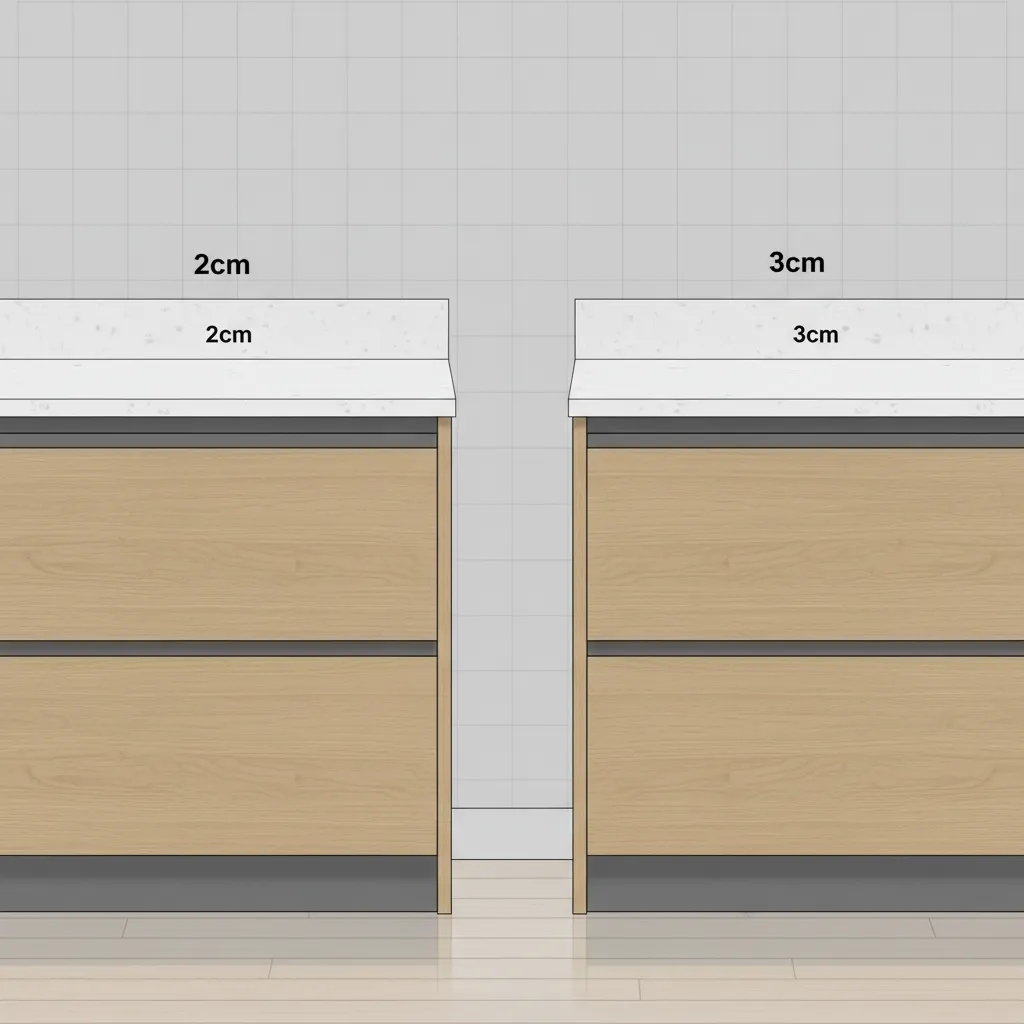

Standard Kitchen Countertop Thickness Options

Key Insight: Countertop thickness should match both material standards and fabrication expectations, not just visual preference.

In most modern kitchens, countertop thickness follows industry standards because slab materials are manufactured that way. Designers sometimes try to “invent” custom thicknesses, but fabricators usually prefer working within predictable ranges.

Common countertop thickness standards:

1. 2 cm (0.75 in): Common for quartz and granite in contemporary kitchens.
2. 3 cm (1.25 in): Premium stone slabs with stronger structural performance.
3. 1.5 in laminated build: Typical for laminate countertops.
4. 2–3 in built-up edge: Used to create a thick visual profile without heavier slabs.

In drawings, thickness is typically shown in two places:

1. Section views
2. Countertop elevation details
3. Material specification notes

From experience, the biggest hidden mistake is forgetting that thinner slabs require stronger cabinet support. A 2 cm quartz slab often needs plywood backing, which must also appear in the drawing.

The Natural Stone Institute also recommends confirming slab thickness and support requirements during design documentation to avoid installation stress fractures.

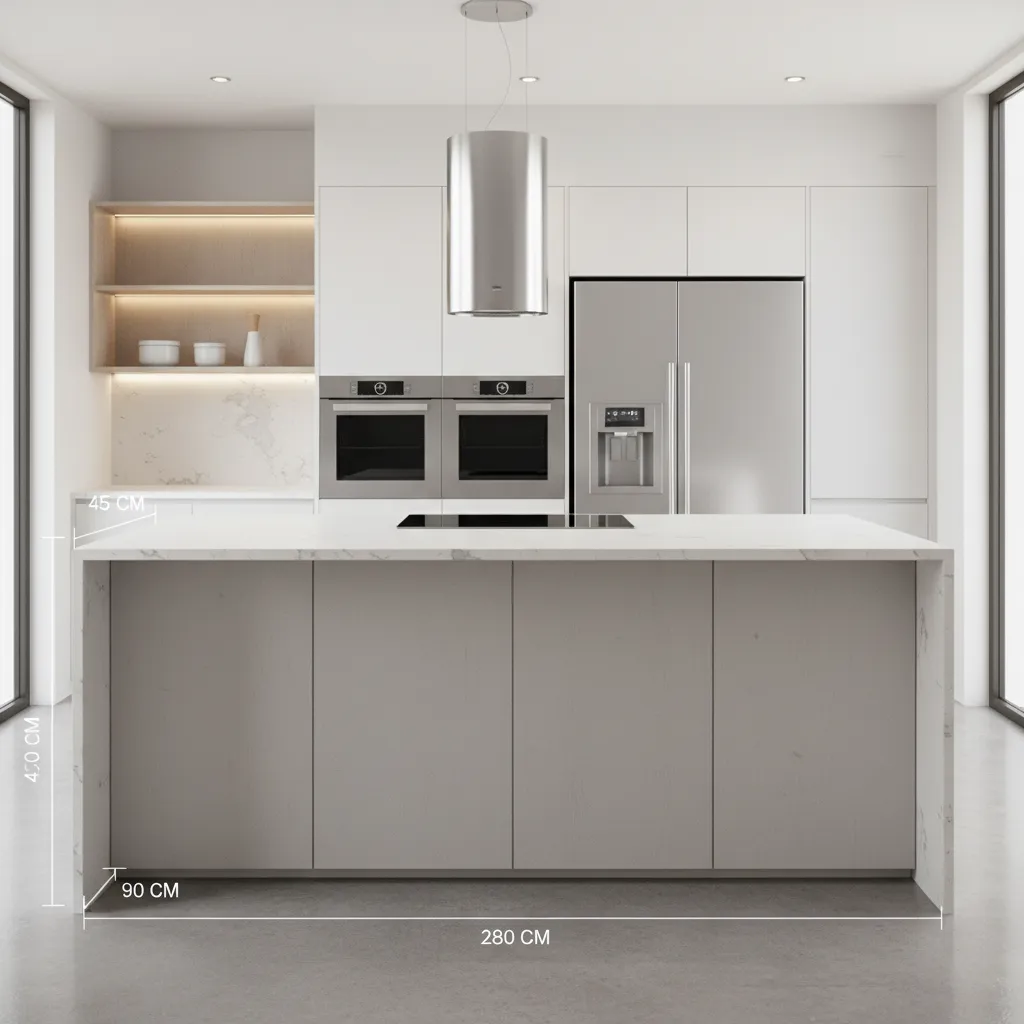

Choosing the Right Countertop Overhang

Key Insight: A proper countertop overhang balances ergonomics, visual proportion, and structural safety.

The typical kitchen countertop overhang is small but critical. Too little, and cabinets visually dominate the counter. Too much, and the slab risks structural stress.

Standard kitchen overhang guidelines:

1. Front overhang: 1–1.5 inches beyond cabinet face
2. Island seating overhang: 12 inches minimum
3. Bar seating overhang: 12–15 inches with support brackets
4. Waterfall edge: flush alignment with panel

In countertop drawings, overhang measurements should appear directly in plan views with dimension lines extending from cabinet faces to slab edges.

One mistake I see frequently: designers forget that appliance panels or handle projections affect perceived overhang. Always measure from the cabinet box—not the door face.

save pin

Popular Countertop Edge Profiles Explained

Key Insight: Edge profiles influence both the visual character of a kitchen and the complexity of fabrication.

Edge profiles often seem like a minor decorative choice, but they significantly affect cost and manufacturing time.

Common edge profiles used in modern kitchens:

1. Straight edge: clean contemporary look
2. Eased edge: slightly rounded corners for durability
3. Beveled edge: angled face for subtle visual depth
4. Bullnose: fully rounded edge
5. Ogee: traditional decorative curve

In my projects, 80% of modern kitchens use either eased or straight edges. They’re durable, easy to fabricate, and visually consistent with minimalist cabinetry.

More elaborate edges like ogee profiles are typically reserved for traditional homes because they require specialized tooling and increase fabrication costs.

If you’re visualizing different edge styles before documenting them, tools that generate a realistic 3D visualization of countertop materials and edge profilescan make design decisions much easier for clients.

save pin

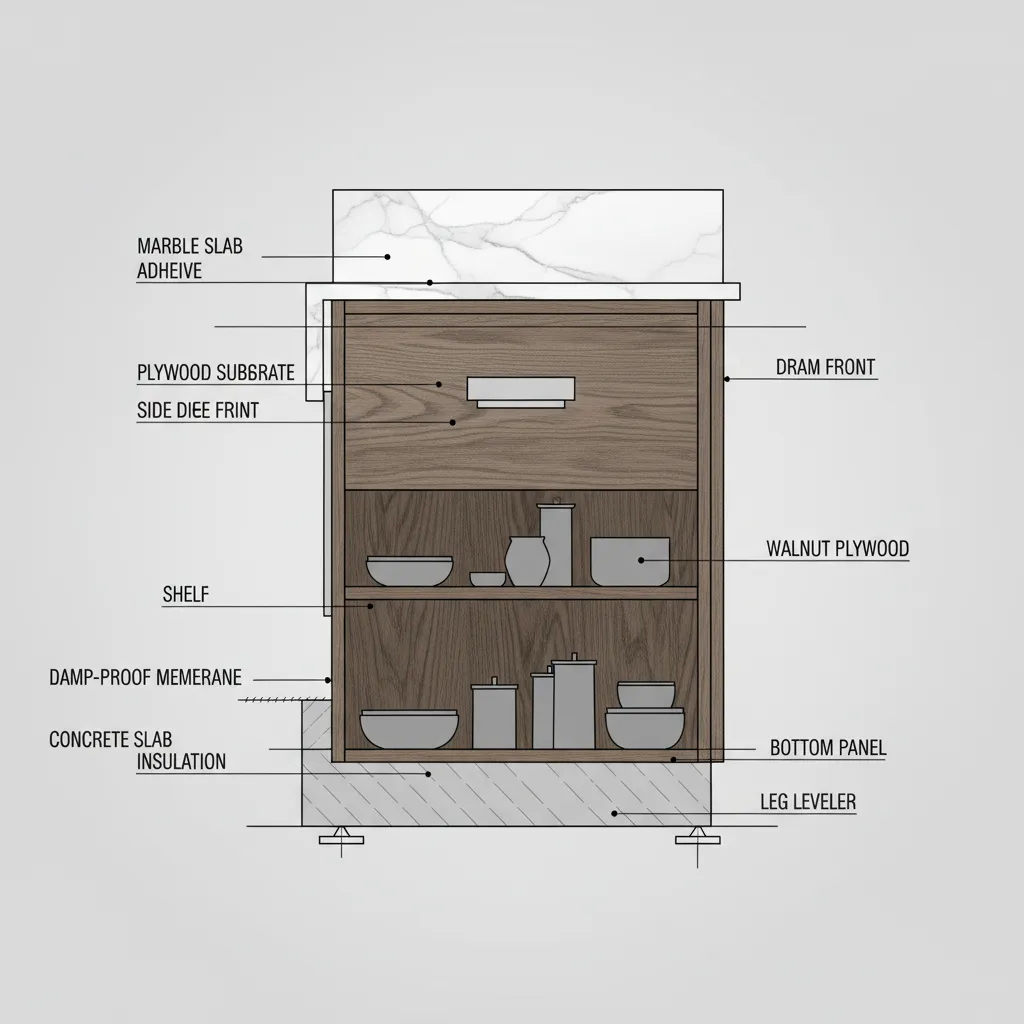

How Edge Profiles Are Represented in Drawings

Key Insight: Edge profiles must be documented visually and textually to avoid fabrication mistakes.

Many designers only label edge profiles in plan notes. In practice, that’s risky.

The best drawings show edge profiles in three ways:

1. Profile detail section
2. Edge annotation in plan view
3. Material specification sheet

A typical annotation might read:

1. "3 cm quartz countertop with eased edge profile"
2. "Built-up laminated edge with 2 in visual thickness"

Professional kitchen drawing sets usually include a small edge detail diagram. Fabricators instantly recognize these profile sketches and can reproduce them accurately.

The National Kitchen & Bath Association (NKBA) also recommends documenting decorative edges with section details whenever fabrication tolerances are tight.

save pin

Answer Box

The most reliable countertop drawings clearly document three elements: slab thickness, exact overhang measurements, and labeled edge profiles. When these are shown in both plan and section views, fabricators can build the countertop without interpretation errors.

Balancing Aesthetics and Structural Support

Key Insight: Beautiful countertop edges mean nothing if the structure underneath cannot support them.

One overlooked issue in countertop drawings is structural load.

Designers often focus on appearance while ignoring slab weight. Quartz, granite, and marble are heavy materials, and long unsupported spans can crack over time.

Key structural considerations:

1. Maximum unsupported span for stone slabs
2. Island overhang bracket spacing
3. Plywood reinforcement layers
4. Cabinet wall thickness

For example, a 15-inch island overhang almost always requires concealed steel brackets or corbels. If those supports aren’t indicated in drawings, installers will have to improvise on-site.

Updating Drawings When Design Choices Change

Key Insight: Countertop drawings must evolve with design revisions to prevent costly fabrication mistakes.

Kitchen designs change constantly during the design process. Materials shift. Edge styles evolve. Appliances move.

Whenever a countertop specification changes, update three drawing components:

1. Plan dimensions
2. Section details
3. Material schedules

A useful workflow is testing layout adjustments in a floor plan environment where cabinet and countertop dimensions update visually. This prevents inconsistencies between the layout and the detailed countertop drawings.

From experience, the worst fabrication problems usually come from outdated drawings—not bad design decisions.

Final Summary

1. Most countertop drawings specify 2–3 cm slab thickness.
2. Standard kitchen overhang ranges from 1 to 1.5 inches.
3. Edge profiles must be labeled in both plan and section views.
4. Structural support must match slab weight and span.
5. Always update drawings when countertop specifications change.

FAQ

What is the standard thickness for kitchen countertops in drawings?

Most kitchen countertop drawings specify 2 cm or 3 cm stone thickness. Quartz and granite commonly use 3 cm slabs for improved strength and easier installation.

How much overhang should a kitchen countertop have?

Standard countertop overhang is typically 1–1.5 inches beyond cabinet faces. This provides visual balance and prevents spills from running directly onto cabinet doors.

How do you show countertop edge profiles in drawings?

Edge profiles are usually shown with a labeled section detail and a note in the plan view. This ensures fabricators clearly understand the intended profile.

What is the easiest countertop edge profile to fabricate?

Eased edges are among the simplest and most durable profiles. They require minimal tooling and reduce the risk of chipping.

Do complex edge profiles increase countertop cost?

Yes. Decorative edges like ogee profiles require specialized fabrication tools and additional labor, increasing the overall cost.

Should countertop thickness be shown in plan or section views?

Thickness is usually shown in section views, but many designers also include a note in plan views for clarity.

What mistakes happen in countertop edge profile drawings?

Common mistakes include missing profile labels, incorrect slab thickness, and forgetting built-up edge details.

Why are countertop drawings important for fabrication?

Accurate countertop drawings ensure fabricators understand thickness, edge profiles, and overhang dimensions, reducing installation errors.
