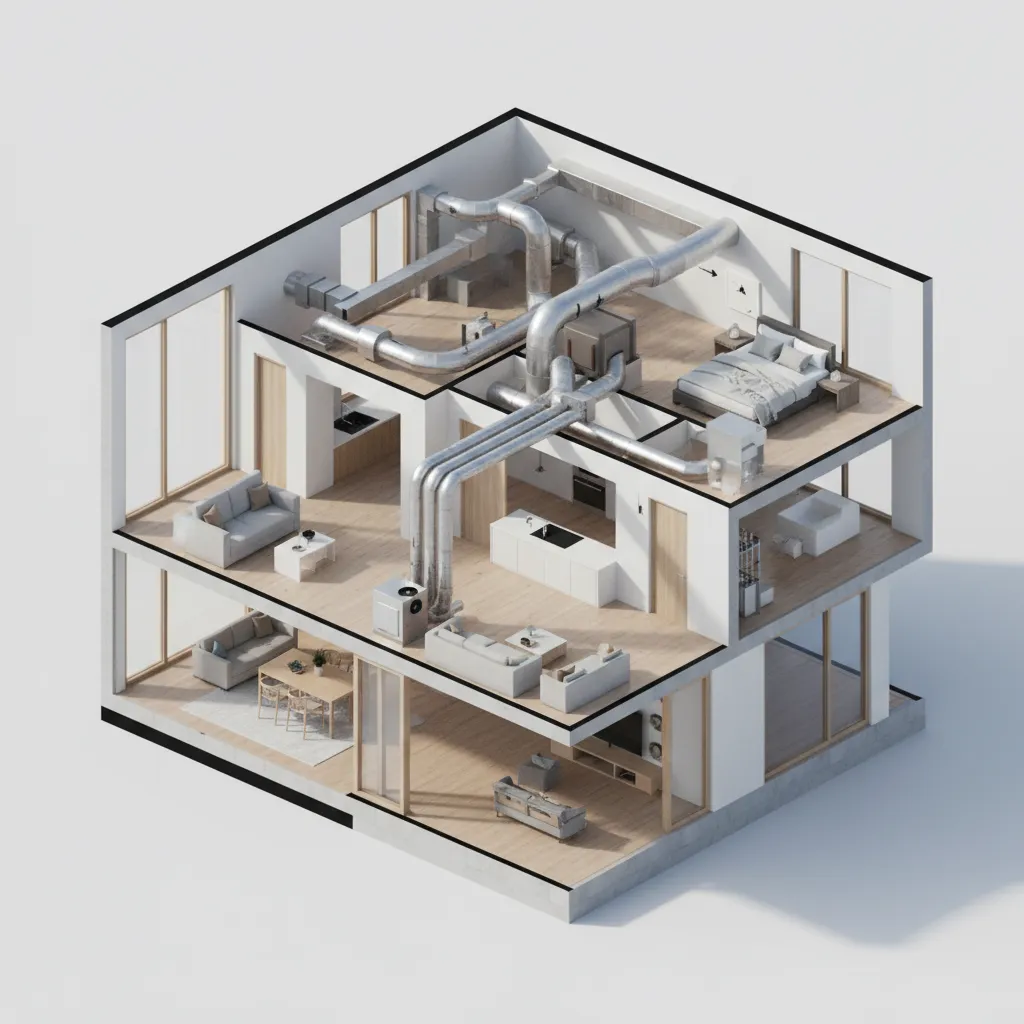

How to Choose the Right Ductwork Layout for Your Home: A practical homeowner guide to selecting an HVAC duct layout that matches your floor plan, comfort goals, and installation budget.

Direct Answer

The right ductwork layout for your home depends on three core factors: the home’s floor plan, HVAC system location, and airflow efficiency. Most residential systems work best with either a trunk‑and‑branch layout for larger homes or a radial system for smaller, compact layouts.

Choosing the right design means balancing airflow performance, installation cost, and long‑term maintenance access.

Quick Takeaways

1. The best duct layout depends primarily on floor plan shape and HVAC equipment location.
2. Larger homes typically perform better with trunk‑and‑branch duct systems.
3. Compact homes often benefit from radial layouts with shorter duct runs.
4. Poor duct planning can reduce HVAC efficiency by more than 20 percent.
5. Early planning with accurate floor plans prevents expensive redesigns.

Introduction

Choosing the right ductwork layout for your home is one of those decisions that most homeowners underestimate until comfort problems start showing up. After working on dozens of residential projects over the last decade, I’ve seen beautiful homes with brand‑new HVAC systems that still struggled with uneven temperatures simply because the duct layout was poorly planned.

The tricky part is that duct design isn’t just about connecting vents to a furnace or air handler. The layout needs to match the structure of the house, the distance between rooms, ceiling cavities, and even furniture placement. When homeowners start planning early using a clear floor plan layout—like the kind you can build with a simple online floor plan planning workflow for new homes—it becomes dramatically easier to choose the right duct routing before construction starts.

In this guide, I’ll walk through the key decisions homeowners face when selecting a residential duct layout, the hidden mistakes many contractors still make, and how to evaluate which configuration actually fits your house.

save pin

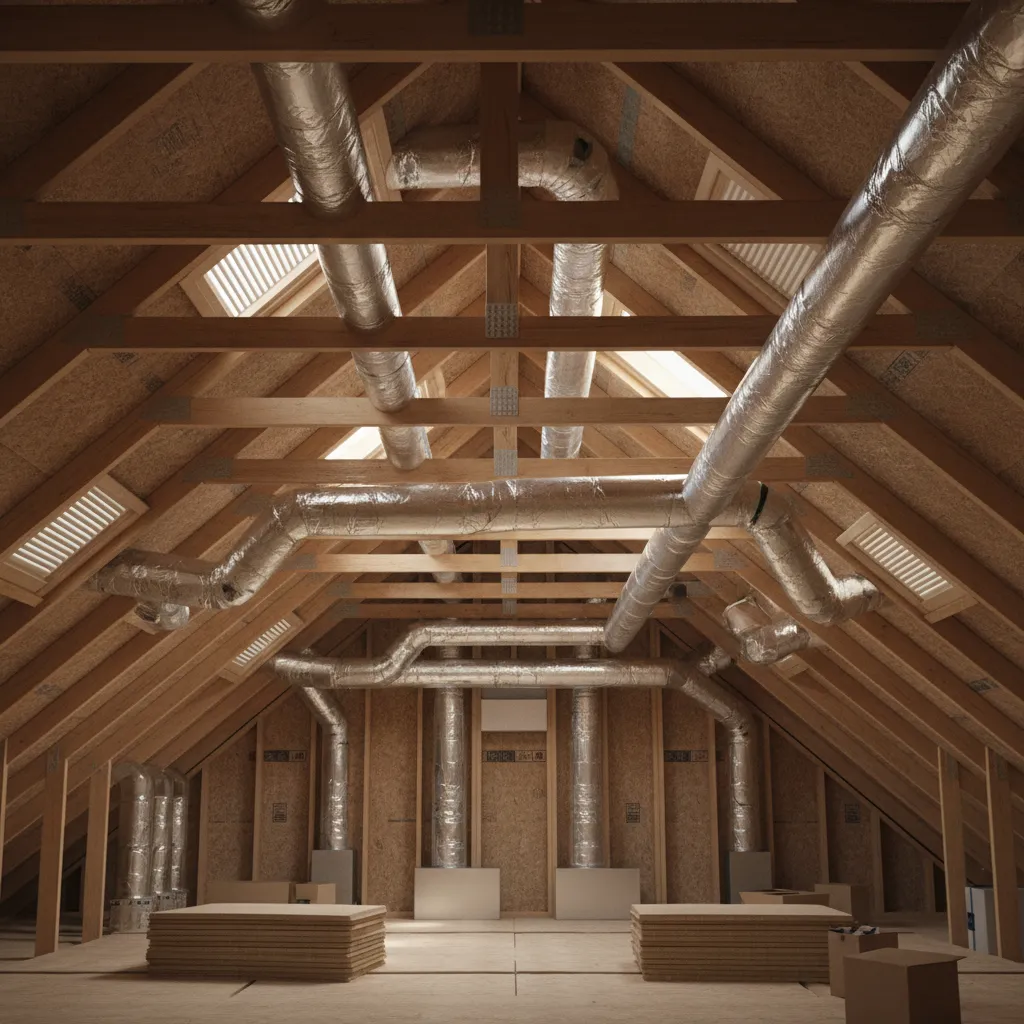

Factors That Influence Residential Duct Layout Choice

Key Insight: The most efficient duct layout is determined more by building structure than by HVAC equipment.

Homeowners often assume the HVAC unit dictates the duct layout. In practice, the structure of the home usually drives the design. Ceiling height, attic access, crawl spaces, and wall cavities all influence how air can move through the building.

From experience, four structural factors shape most residential duct decisions:

1. HVAC unit location – basement, attic, or mechanical room placement changes airflow paths.
2. Home layout complexity – L‑shaped or multi‑wing homes need longer trunk lines.
3. Ceiling and attic space – shallow attic cavities restrict large trunk ducts.
4. Number of floors – multi‑story homes require balanced vertical duct runs.

According to guidance from ASHRAE (American Society of Heating, Refrigerating and Air‑Conditioning Engineers), duct systems must be sized and routed to minimize pressure losses while maintaining balanced airflow across rooms.

A layout that ignores these structural realities often leads to noisy vents, weak airflow, and higher energy bills.

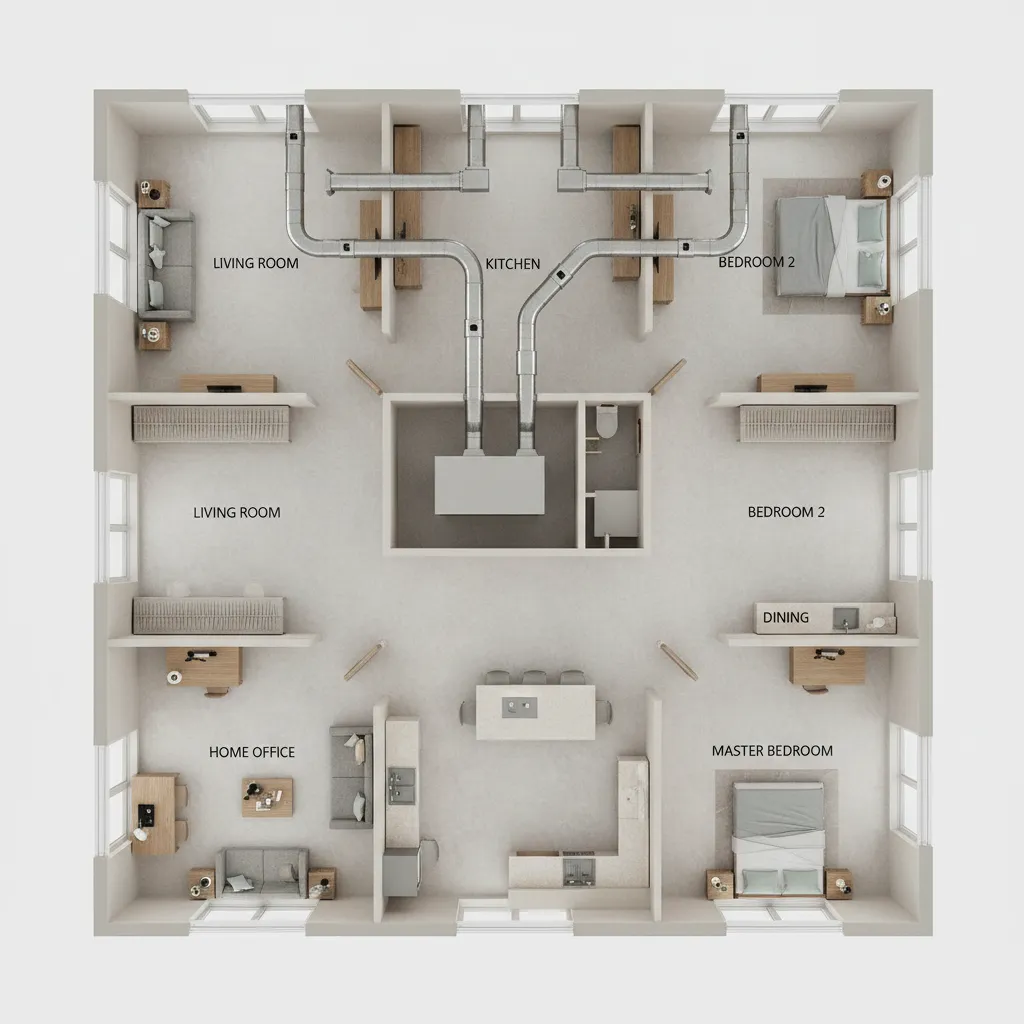

Evaluating Home Size and Floor Plan Requirements

Key Insight: Home size directly affects duct length, which influences airflow pressure and HVAC efficiency.

In practical terms, larger homes require more careful airflow distribution. When ducts become too long, the air pressure drops before reaching distant rooms.

Here’s a simple guideline I use during early planning stages:

1. Homes under 1,500 sq ft – radial layouts often work well.
2. 1,500–3,000 sq ft homes – trunk‑and‑branch systems distribute air more evenly.
3. Large multi‑story homes – multiple trunk lines or zoned systems perform better.

Many homeowners overlook how room placement affects airflow. Long hallway layouts or separated bedroom wings often require additional branch runs or balancing dampers.

Using a detailed 3D plan—like those created through a visual 3D floor layout planning environment for residential spaces—helps identify where long duct runs may create airflow issues before installation begins.

save pin

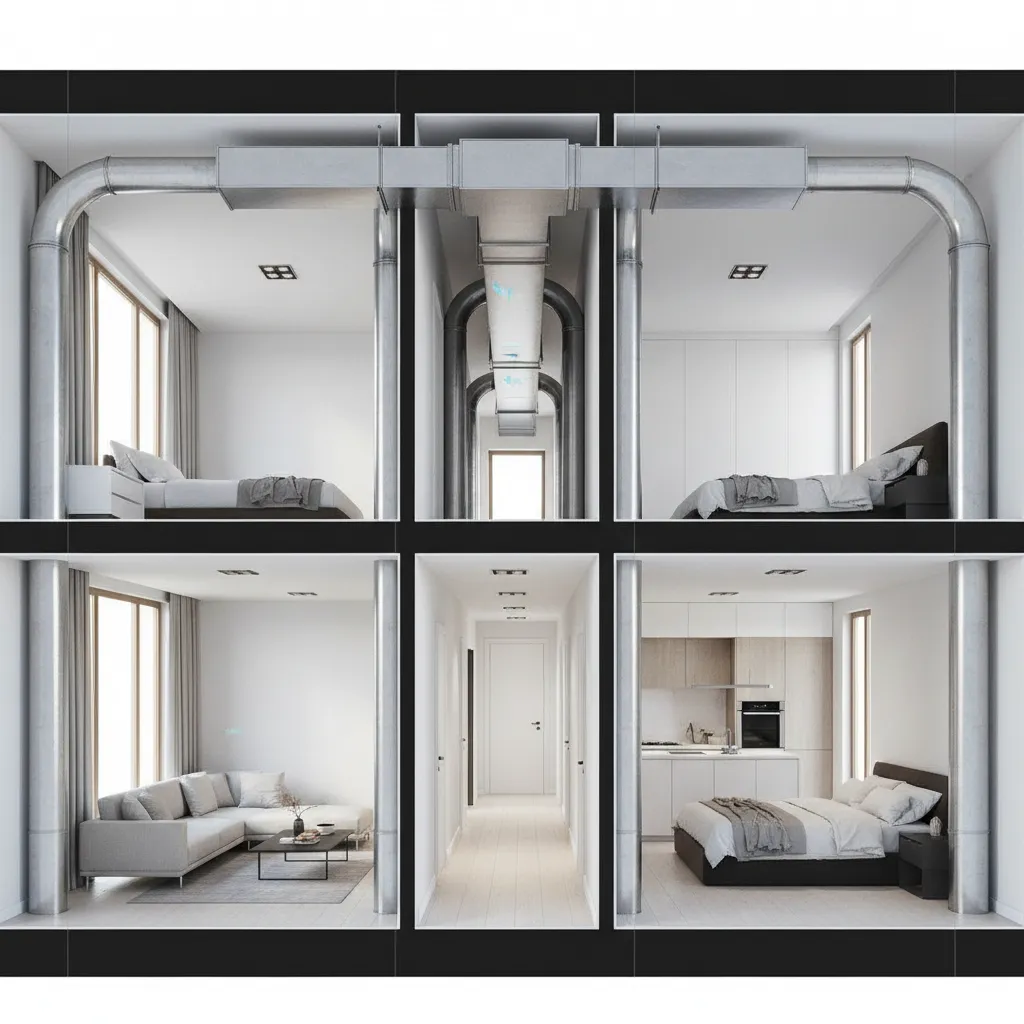

Choosing Between Centralized and Distributed Systems

Key Insight: Centralized duct systems are simpler to install, while distributed systems often provide better temperature consistency.

Most homes use a centralized HVAC system with a single air handler feeding multiple ducts. But in larger homes, distributed systems—where airflow splits earlier into several smaller trunks—can dramatically improve comfort.

Here’s a quick comparison I often explain to homeowners:

1. Centralized systemsLower installation cost
2. Simpler maintenance
3. Longer duct runs possible
4. Distributed systemsMore balanced airflow
5. Better temperature consistency
6. Slightly higher installation complexity

The surprising part: distributed layouts sometimes reduce overall duct length because they follow the building geometry instead of forcing all air through a single trunk.

This design approach has become more common in energy‑efficient homes and passive house projects.

save pin

Budget Considerations for Different Duct Designs

Key Insight: The cheapest duct layout upfront is rarely the cheapest over the life of the HVAC system.

Many contractors choose the simplest duct routing because it reduces installation time. But inefficient duct design can increase energy consumption for decades.

Typical cost factors include:

1. Number of supply vents
2. Total duct length
3. Insulated duct requirements
4. Return air pathway design
5. Labor complexity

The U.S. Department of Energy notes that poorly designed duct systems can waste 20–30 percent of heating and cooling energy through leaks or pressure loss.

That means spending slightly more on better layout planning can significantly reduce long‑term operating costs.

Working With HVAC Designers and Contractors

Key Insight: The best duct layouts are designed collaboratively before construction—not improvised during installation.

One of the most common mistakes I see is ductwork being designed after framing is already complete. At that stage, installers are forced to work around beams, plumbing lines, and structural elements.

Instead, the process should look like this:

1. Create a detailed floor plan.
2. Determine HVAC equipment location.
3. Map supply vents and return vents.
4. Plan trunk routes before framing.
5. Coordinate with structural and electrical plans.

Visualizing these elements early—using tools designed for mapping room layouts and circulation paths during home planning—helps identify duct conflicts long before installation begins.

save pin

Answer Box

The best ductwork layout for a home depends on floor plan shape, system location, and airflow distance. Larger homes typically benefit from trunk‑and‑branch systems, while compact homes often perform better with radial duct layouts.

Checklist for Selecting the Best Duct Layout

Key Insight: A simple evaluation checklist can prevent most residential duct design mistakes.

Before finalizing your HVAC plan, review these practical questions:

1. Is the HVAC unit centrally located relative to major rooms?
2. Are duct runs kept as short and straight as possible?
3. Does each major room have adequate supply airflow?
4. Are return vents placed to allow proper air circulation?
5. Is attic or crawlspace access available for maintenance?

When these five conditions are met, the duct system usually delivers balanced airflow and quieter operation.

Final Summary

1. Home structure influences duct layout more than HVAC equipment.
2. Large homes typically need trunk‑and‑branch duct systems.
3. Radial layouts work best in compact floor plans.
4. Good duct planning improves HVAC efficiency and comfort.
5. Design coordination should happen before construction begins.

FAQ

What is the best ductwork layout for a house?

Most homes perform best with trunk‑and‑branch duct systems because they distribute air evenly across multiple rooms.

How do I choose an HVAC duct layout?

Start by evaluating the home’s floor plan, HVAC unit location, duct run distance, and number of rooms requiring airflow.

Does house size affect duct design?

Yes. Larger homes require longer duct runs, which often makes trunk‑and‑branch layouts more efficient.

Can bad duct design affect HVAC performance?

Yes. Poor duct layout can reduce HVAC efficiency and cause uneven room temperatures.

Should ducts run through attic or crawl space?

Both are common. Attics simplify installation, while crawl spaces can improve maintenance access.

How many return vents should a home have?

Ideally one large central return or multiple returns placed near major living areas.

What duct system should I use in my home?

The best ductwork layout for your home depends on the floor plan shape, system location, and airflow distances.

Is professional duct design necessary?

For new construction or major renovations, professional duct planning ensures balanced airflow and energy efficiency.

References

1. ASHRAE HVAC Design Fundamentals
2. U.S. Department of Energy HVAC Efficiency Guidelines
3. ACCA Manual D Residential Duct Systems
