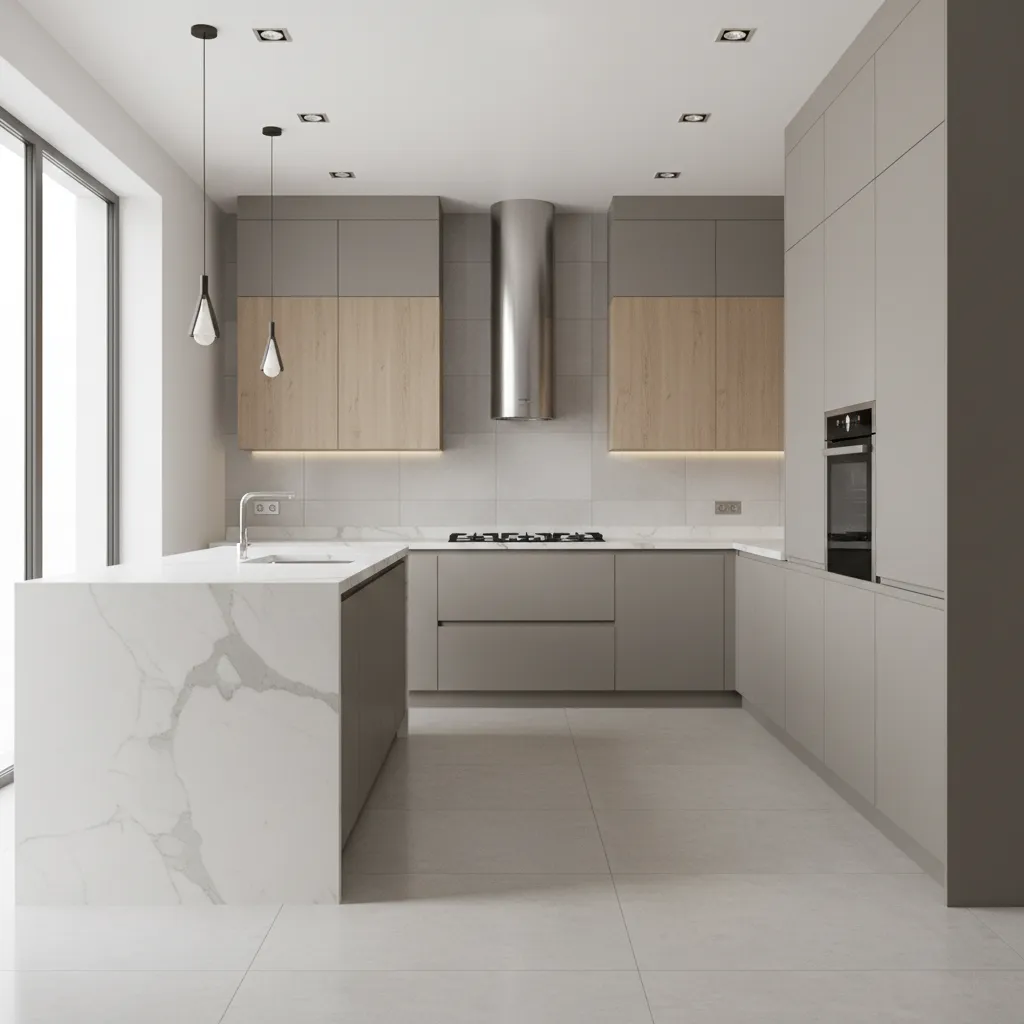

How to Choose the Right Kitchen Chimney Design for Your Kitchen Size: A practical guide to selecting chimney styles and sizes that actually match small, medium, and open kitchen layouts

Direct Answer

The right kitchen chimney design depends primarily on your kitchen size, stove width, and layout. Small kitchens typically work best with compact wall‑mounted chimneys, medium modular kitchens benefit from angled or curved glass models, and large or open kitchens often require island or high‑suction chimneys for effective ventilation.

Choosing the wrong chimney size or design can reduce airflow efficiency, create noise issues, and leave cooking smoke circulating inside the kitchen.

Quick Takeaways

1. Small kitchens usually need a 60 cm wall‑mounted chimney with moderate suction power.
2. Medium modular kitchens work well with curved glass or angled chimney designs.
3. Large or open kitchens often require island chimneys with higher suction capacity.
4. The chimney width should always be equal to or wider than the cooktop.
5. Poor chimney sizing causes weak ventilation even if suction power is high.

Introduction

After designing kitchens for more than a decade, I've noticed that most homeowners choose a chimney based on looks first—and size second. Unfortunately, that approach often backfires. A chimney that looks stunning in a showroom may perform poorly once it's installed in the wrong kitchen layout.

The reality is that kitchen chimney design should always start with the physical size of the kitchen. The volume of the room, the distance between the stove and walls, and whether the kitchen is enclosed or open all affect how smoke, grease, and heat move through the space.

I’ve seen small apartment kitchens install oversized island chimneys that barely function, and I’ve also seen large open kitchens struggle because the chimney simply couldn’t capture smoke effectively. These issues are surprisingly common.

If you're currently planning your layout, it helps to visualize airflow and appliance placement early. Many homeowners experiment with layouts using tools that help plan an efficient cooking layout before choosing appliances, which prevents many of the sizing mistakes I see during renovation projects.

In this guide, I’ll walk you through how kitchen size affects chimney performance, what designs actually work in real homes, and a few hidden mistakes that most buying guides never mention.

save pin

Why Kitchen Size Matters When Choosing a Chimney

Key Insight: Chimney performance is determined more by kitchen volume and layout than by the chimney model itself.

Many product pages focus on suction power numbers, but suction alone doesn't guarantee proper ventilation. What really matters is whether the chimney can handle the air volume of the kitchen.

Here’s the simple principle designers use: the chimney should be able to circulate the air in the kitchen multiple times per hour.

Typical Kitchen Size vs Recommended Chimney Capacity

1. Small kitchens (under 100 sq ft): 700–900 m³/hr suction
2. Medium kitchens (100–200 sq ft): 900–1200 m³/hr suction
3. Large or open kitchens (200+ sq ft): 1200 m³/hr or higher

In real projects, layout also plays a role:

1. Closed kitchens trap smoke but require less suction.
2. Open kitchens disperse smoke, so higher suction is required.
3. Island layouts demand stronger airflow because there are no walls to guide smoke upward.

One overlooked problem I often see is ceiling height. A tall ceiling dramatically increases air volume, meaning the chimney must work harder to capture cooking fumes.

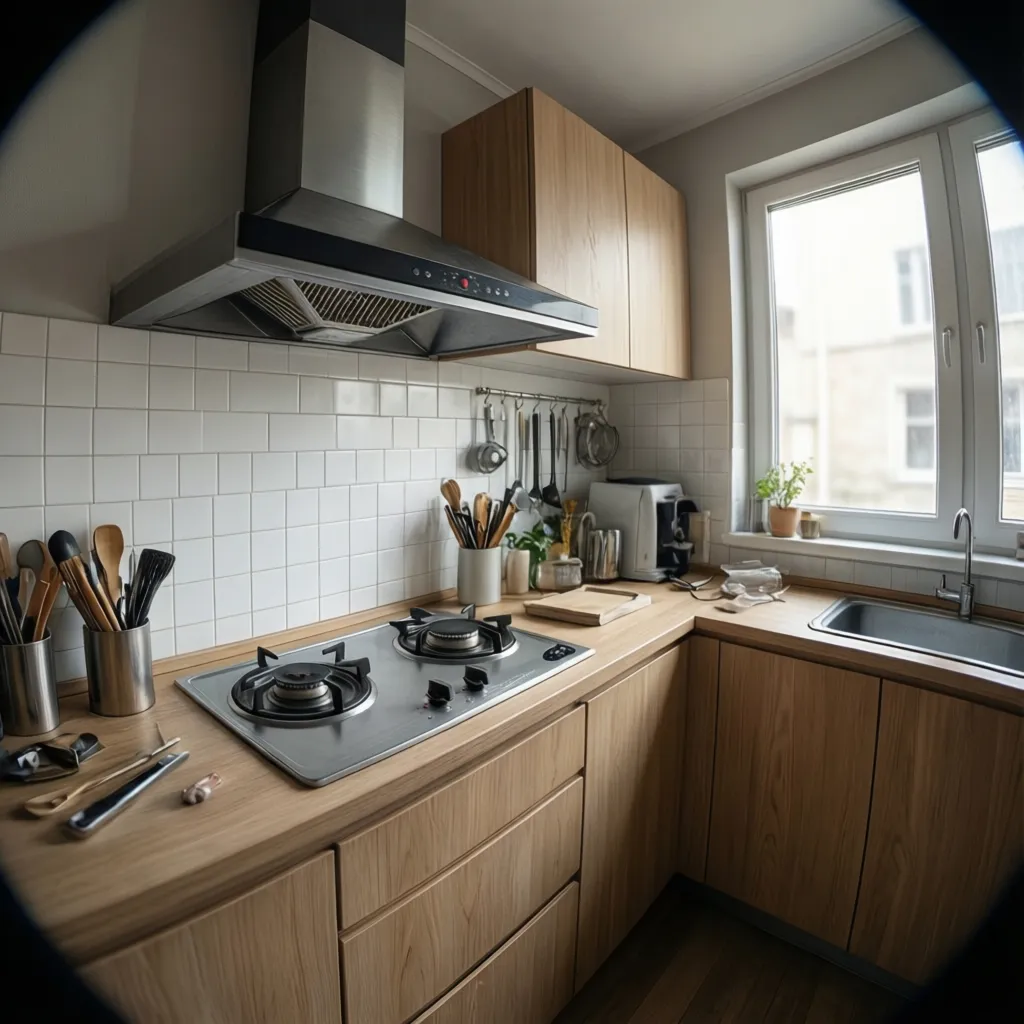

Best Chimney Designs for Small Kitchens

Key Insight:Compact wall‑mounted chimneys outperform large decorative models in small kitchens.

In apartments and compact homes, efficiency matters more than visual impact. A bulky chimney can dominate the space and actually disrupt airflow.

save pin

Best chimney types for small kitchens

1. Wall‑mounted straight chimneys
2. Compact curved glass chimneys
3. Slim under‑cabinet chimneys

Designers typically recommend:

1. 60 cm chimney width
2. 700–900 m³/hr suction
3. Short duct path for stronger airflow

A common mistake

Many homeowners install oversized decorative chimneys assuming they perform better. In reality, oversized models often create unnecessary noise in small kitchens because they are operating in a limited air space.

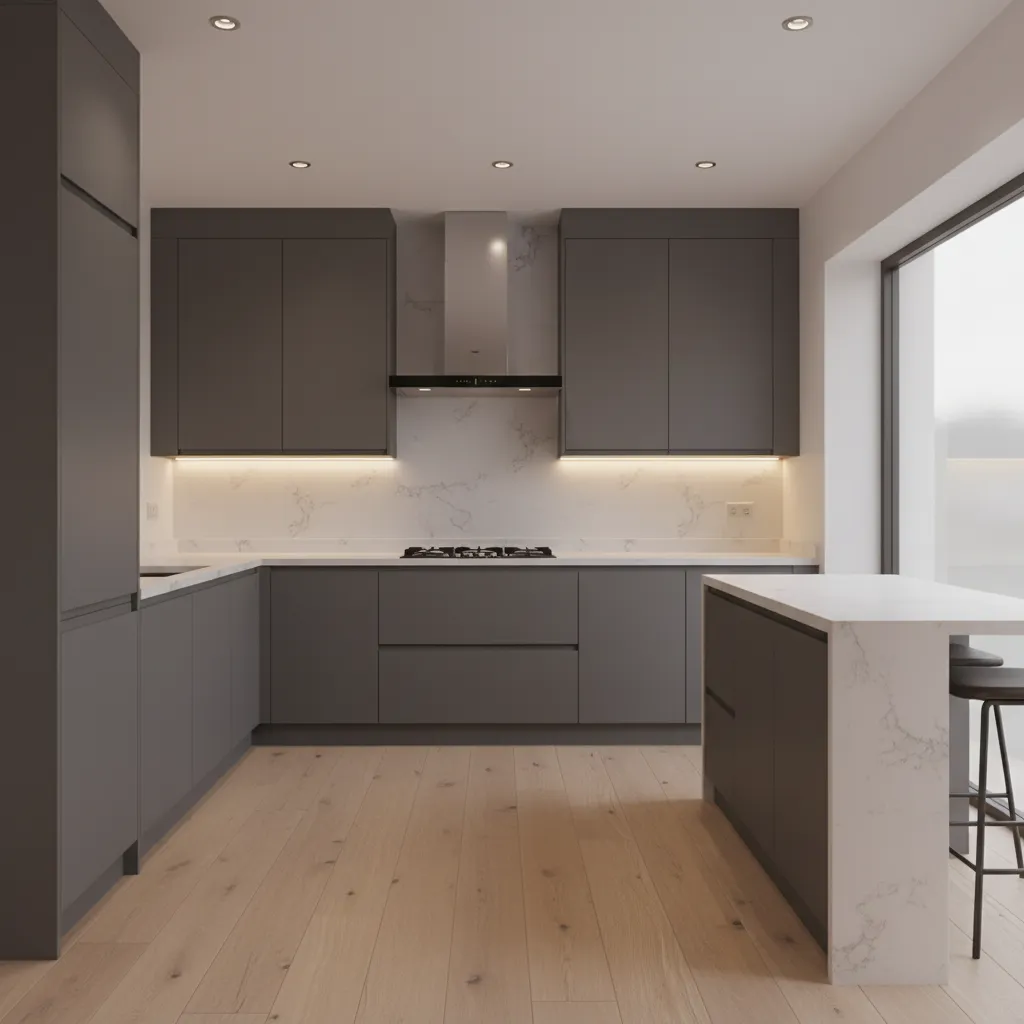

Ideal Chimney Styles for Medium Modular Kitchens

Key Insight: Medium kitchens allow more design flexibility, but chimney width and stove alignment become critical.

Most modern modular kitchens fall into this category. The space is large enough for design variety, but still enclosed enough that chimney placement affects airflow efficiency.

Popular chimney designs in modular kitchens

1. Curved glass chimneys
2. Angled auto‑clean chimneys
3. Box‑style modern chimneys

From a designer’s perspective, angled chimneys are especially useful because they improve head clearance and reduce accidental bumps while cooking.

If you're experimenting with layout options, some homeowners like to generate visual kitchen concepts before finalizing appliance placement. Seeing how cabinets, stove position, and chimney alignment interact can prevent expensive installation adjustments later.

Answer Box

The best kitchen chimney design depends on the size of the kitchen and the width of the stove. Small kitchens need compact wall‑mounted chimneys, medium kitchens work well with curved or angled models, and large open kitchens typically require island chimneys with higher suction capacity.

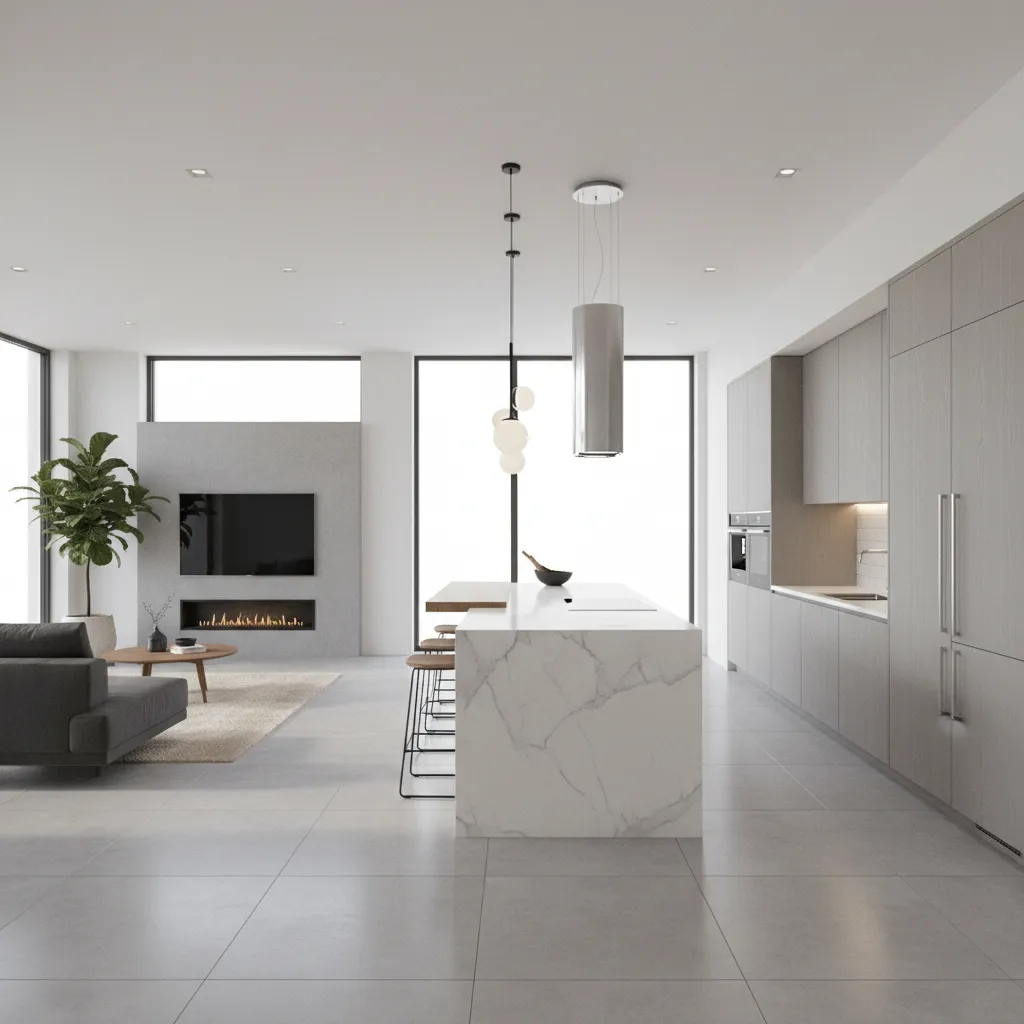

Chimney Design Options for Large or Open Kitchens

Key Insight:Open kitchens require stronger suction and larger chimney designs because smoke spreads more easily.

When kitchens connect to living rooms or dining areas, smoke doesn’t stay concentrated near the stove. That means chimneys must capture fumes quickly before they disperse.

save pin

Recommended chimney types

1. Island chimneys
2. Large wall‑mounted chimneys (90 cm)
3. Designer ceiling‑mounted chimneys

Typical specifications

1. 90 cm width
2. 1200–1500 m³/hr suction
3. Powerful filtration systems

One hidden design issue I often warn clients about: island chimneys must align perfectly with the cooktop. Even a 10–15 cm misalignment can reduce smoke capture efficiency significantly.

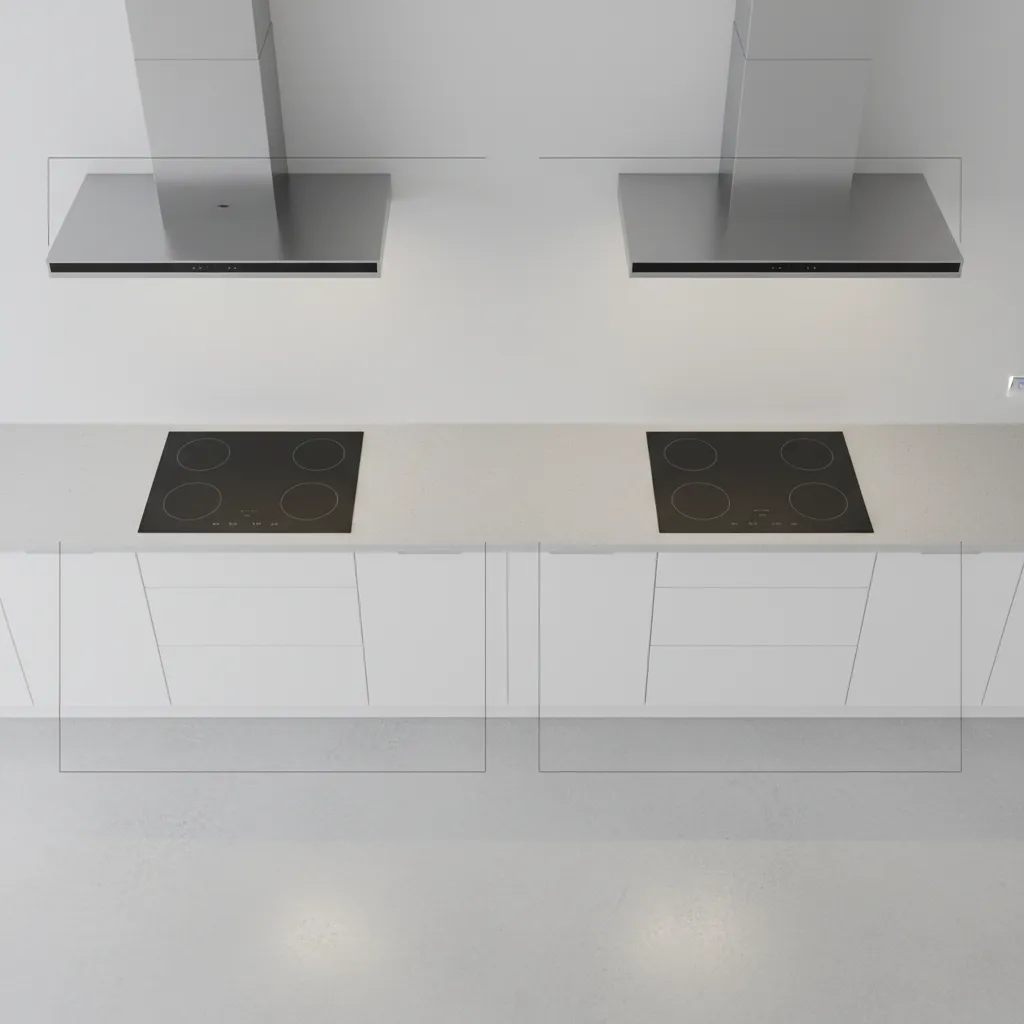

Matching Chimney Width with Stove Size

Key Insight:A chimney should always be equal to or wider than the cooktop to capture smoke effectively.

This rule sounds obvious, but it’s frequently ignored during renovations.

save pin

Standard sizing guide

1. 2 burner stove → 60 cm chimney
2. 3 burner stove → 60–75 cm chimney
3. 4 burner stove → 90 cm chimney

If the chimney is narrower than the stove, smoke escapes from the sides before it can be captured.

When working with clients, I often show them layout previews or detailed visualizations that show how appliances and ventilation interact in a realistic kitchen scene. Seeing the scale relationship between the stove and chimney makes sizing decisions much easier.

Checklist for Choosing the Right Chimney Design

Key Insight: The best chimney choice balances kitchen size, stove width, suction power, and layout.

Before buying a chimney, review this checklist:

1. Measure your kitchen area and ceiling height
2. Match chimney width with stove width
3. Choose suction capacity based on kitchen size
4. Consider duct length and installation path
5. Ensure chimney style matches cabinet layout

Hidden cost many homeowners miss

Installation complexity varies by design. Island chimneys and ceiling‑mounted chimneys can cost significantly more to install due to duct routing and structural support requirements.

Final Summary

1. Kitchen size determines the suction power and chimney style required.
2. Small kitchens perform best with compact wall‑mounted chimneys.
3. Medium modular kitchens allow angled or curved chimney designs.
4. Open kitchens require stronger suction and wider chimneys.
5. The chimney must always be equal to or wider than the stove.

FAQ

1. What is the best chimney for a small kitchen?

A 60 cm wall‑mounted chimney with 700–900 m³/hr suction is typically the best chimney for small kitchens.

2. How do I choose kitchen chimney size?

Match the chimney width to the stove width and select suction power based on kitchen area and ceiling height.

3. Is a 60 cm chimney enough for a 2 burner stove?

Yes. A 60 cm chimney is ideal for a standard 2 burner stove.

4. Which chimney design is best for modular kitchens?

Curved glass and angled chimneys are popular for modular kitchens because they balance efficiency and modern aesthetics.

5. Do open kitchens need a different chimney design?

Yes. Open kitchens typically require larger chimneys with higher suction power to capture dispersed smoke.

6. What chimney width is needed for a 4 burner stove?

A 90 cm chimney is recommended for most 4 burner cooktops.

7. Can chimney suction be too powerful?

In very small kitchens, extremely high suction can create unnecessary noise without improving ventilation.

8. How high should a chimney be installed above the stove?

Typically 24–30 inches above the cooktop for optimal smoke capture.

References

1. National Kitchen & Bath Association (NKBA) Kitchen Ventilation Guidelines
2. ASHRAE Residential Kitchen Ventilation Standards
3. Energy Star Kitchen Ventilation Recommendations
