How to Choose the Right Laser Wavelength for Your Application: A practical decision framework for selecting the best nm range based on material behavior, environment, and system performance needs

Direct Answer

The right laser wavelength is chosen by matching the laser’s nm range with how the target material absorbs light, the surrounding environment, and the precision or power required. Materials absorb certain wavelengths far more efficiently than others, which directly affects cutting quality, marking contrast, and system efficiency.

In practice, wavelength selection is less about the laser itself and more about how energy interacts with the material and the environment where the system operates.

Quick Takeaways

1. Material absorption is the most important factor when choosing a laser wavelength.
2. Shorter wavelengths generally produce finer precision but may require different optics.
3. Environmental factors like humidity and dust can reduce effectiveness at certain nm ranges.
4. Higher reflectivity materials often require wavelengths with stronger absorption characteristics.
5. A structured wavelength selection process prevents expensive system mismatches.

Introduction

After working with laser systems across manufacturing, research labs, and industrial marking environments, I’ve learned that choosing the correct laser wavelength is rarely a purely technical decision. It’s a systems decision.

Many teams start by comparing power levels or equipment price, but the real performance difference usually comes from wavelength compatibility with the target material. I’ve seen expensive laser installations underperform simply because the nm range was poorly matched to the material's absorption profile.

If you're trying to figure out how to choose laser wavelength for a new system, the goal is not finding the “most powerful” beam. The goal is finding the wavelength that transfers energy efficiently into the material.

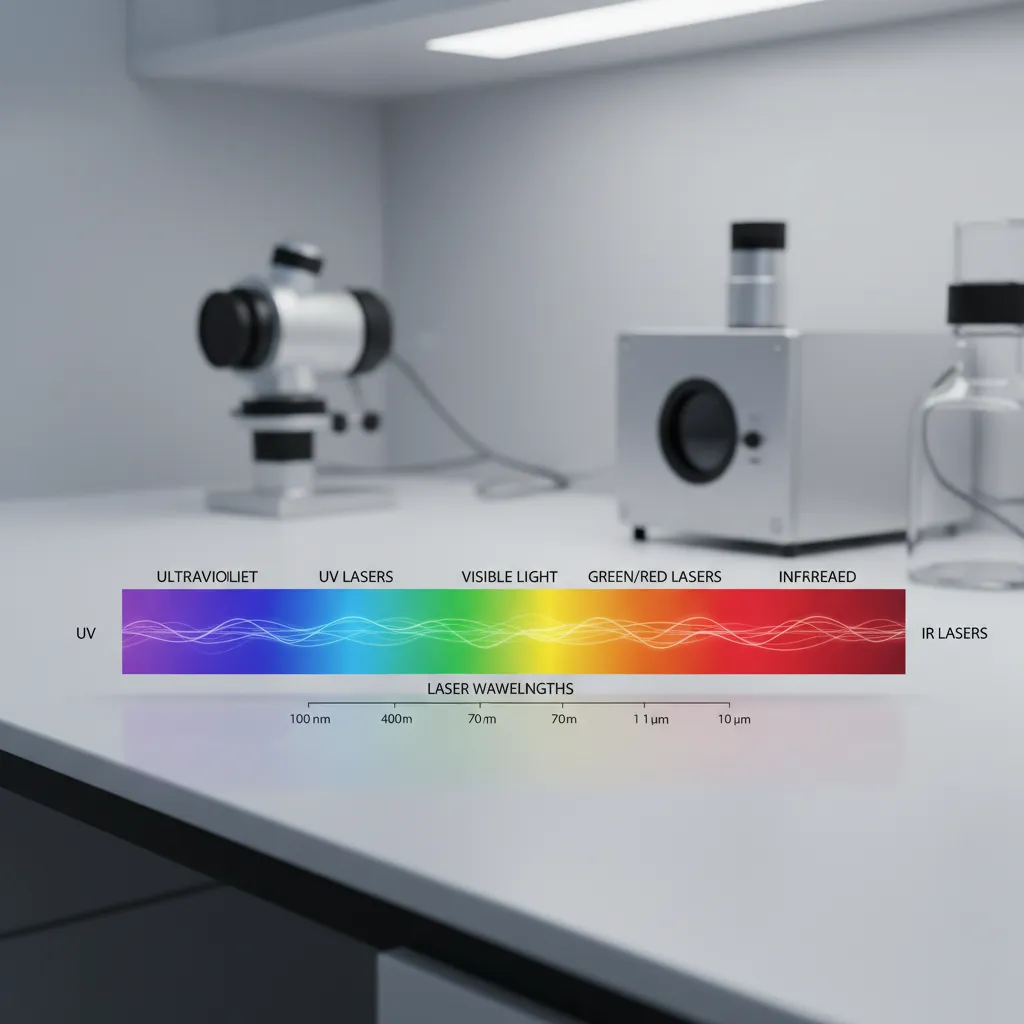

Before diving deeper into selection frameworks, it helps to understand the physics behind wavelengths and nanometer ranges. This overview of how light wavelengths influence beam behavior and system performanceprovides useful context about how nm values shape optical interactions.

In this guide, I’ll break down the real decision factors engineers and system designers actually use when selecting laser wavelengths, including hidden trade‑offs most high‑level explanations miss.

save pin

Key Factors That Influence Laser Wavelength Selection

Key Insight: The best laser wavelength is determined by the interaction between the beam, the material, and the operating environment—not by power specifications alone.

In many projects I’ve consulted on, teams initially focus on laser output power. But wavelength plays a bigger role in determining whether energy is absorbed, reflected, or scattered.

Four factors typically dominate wavelength selection decisions:

1. Material absorption profile – determines how efficiently energy converts to heat.
2. Surface reflectivity – metals and polished materials can reject certain wavelengths.
3. Required precision – smaller wavelengths can enable tighter focusing.
4. Environmental transmission – atmospheric particles affect certain wavelengths.

For example, fiber lasers around 1064 nm perform extremely well on metals because metals absorb this wavelength efficiently. Meanwhile CO₂ lasers at 10,600 nm are far better for organic materials like wood, acrylic, and textiles.

Industry data from manufacturing integrators consistently shows that matching wavelength to absorption characteristics can increase processing efficiency by over 30% compared to mismatched systems.

Material Absorption and Reflectivity Considerations

Key Insight: The correct nm range is the one your material absorbs most effectively.

Every material has a spectral absorption curve, meaning it absorbs some wavelengths far better than others. If a wavelength falls outside this efficient absorption range, the laser’s energy will mostly reflect or scatter.

Typical wavelength compatibility examples:

1. 1064 nm fiber lasers – metals such as steel, aluminum, and copper
2. 532 nm green lasers – reflective metals and delicate electronics
3. 355 nm UV lasers – plastics, glass, and micro‑marking
4. 10,600 nm CO₂ lasers – wood, acrylic, leather, fabrics

One mistake I see often is assuming higher power can compensate for poor wavelength matching. In reality, this approach reduces efficiency and can damage surrounding materials.

save pin

Environmental and Atmospheric Effects on Wavelength

Key Insight: Environmental transmission losses can make certain wavelengths unreliable in real-world conditions.

Many wavelength selection guides ignore environmental conditions entirely. But atmospheric absorption and scattering can significantly influence beam stability.

Key environmental considerations include:

1. Humidity and water vapor absorption
2. Dust or airborne particles
3. Long‑distance beam propagation
4. Temperature‑related optical distortion

For instance, infrared wavelengths can suffer higher atmospheric absorption in humid environments. In contrast, certain visible wavelengths maintain stronger propagation stability over longer distances.

Teams designing complex systems often simulate beam coverage or workspace arrangement before finalizing equipment. A structured layout planning approach like mapping system placement and beam paths in a 3D workspace environment can reveal environmental constraints early in the design process.

Power Requirements and Beam Precision Needs

Key Insight: Shorter wavelengths generally allow tighter focus, which improves precision for micro‑scale applications.

Beam focus diameter depends partly on wavelength. Shorter wavelengths can be concentrated into smaller spots, making them useful for precision manufacturing.

Typical precision hierarchy:

1. UV lasers (355 nm) – microfabrication and semiconductor marking
2. Green lasers (532 nm) – electronics processing
3. Fiber lasers (1064 nm) – industrial cutting and marking
4. CO₂ lasers (10,600 nm) – large-area material processing

In practice, this means a UV laser may produce cleaner edges on plastics while a fiber laser delivers stronger penetration in metal cutting.

save pin

Step-by-Step Wavelength Selection Framework

Key Insight: A structured selection process prevents expensive wavelength mismatches.

After many system installations, I’ve found that engineers who follow a consistent decision framework make far fewer wavelength mistakes.

Here is a practical process used in many industrial setups:

1. Identify the primary material and its spectral absorption characteristics.
2. Evaluate reflectivity to determine whether special wavelengths are required.
3. Determine precision needs such as engraving detail or micro‑processing.
4. Analyze environmental factors including humidity, dust, and working distance.
5. Validate optical system compatibility including lenses and beam delivery.

Planning the physical system layout also plays a role in wavelength performance. For example, many engineering teams use spatial planning models similar to structuring a technical workspace to optimize equipment placement and beam pathways before committing to final equipment.

Answer Box

The most reliable way to choose a laser wavelength is to match the nm range with the material’s absorption characteristics, then validate environmental transmission and precision requirements. When these three factors align, system efficiency and beam stability improve significantly.

Practical Examples of Choosing the Correct nm Range

Key Insight: Real‑world applications reveal why wavelength selection must be application‑specific.

Consider a few practical scenarios:

1. Metal engraving – Fiber lasers at 1064 nm provide strong absorption and efficient energy transfer.
2. Plastic micro‑marking – UV lasers around 355 nm prevent thermal damage.
3. Acrylic cutting – CO₂ lasers at 10,600 nm deliver clean edges.
4. Electronics processing – Green lasers around 532 nm minimize reflection.

One under‑discussed trade‑off is operating cost. Shorter wavelengths often require more complex optics and maintenance, which increases long‑term system cost even if performance improves.

save pin

Final Summary

1. Laser wavelength selection should always start with material absorption characteristics.
2. Environmental conditions can significantly affect beam transmission.
3. Shorter wavelengths typically enable higher precision processing.
4. Structured decision frameworks reduce costly system mismatches.
5. The best nm range balances material compatibility, precision, and efficiency.

FAQ

What is the most common industrial laser wavelength?

1064 nm fiber lasers are widely used for metal cutting, welding, and engraving due to strong absorption in most metals.

How do I choose laser wavelength for a new system?

Start by analyzing material absorption curves, then evaluate precision needs and environmental conditions before selecting the laser nm range.

Why does wavelength affect laser efficiency?

Different materials absorb specific wavelengths better. When absorption is high, more energy converts into heat or processing power.

Can higher power replace proper wavelength selection?

No. Increasing power cannot fully compensate for poor absorption characteristics and usually reduces system efficiency.

What wavelength works best for plastics?

UV lasers around 355 nm are commonly used because they minimize thermal damage and produce precise markings.

What is the best nm wavelength for laser applications?

The best nm wavelength depends on the material and application. Metals often use 1064 nm, while plastics and micro‑electronics benefit from UV wavelengths.

Do environmental conditions affect laser wavelength performance?

Yes. Humidity, airborne particles, and atmospheric absorption can influence beam stability and energy transmission.

Why are shorter wavelengths used for precision work?

Shorter wavelengths can be focused into smaller beam spots, enabling higher resolution processing and micro‑scale fabrication.

References

RP Photonics Encyclopedia – Laser Wavelengths and Material Interaction

SPIE Digital Library – Laser Material Processing Studies

Laser Focus World – Industrial Laser Application Reports
