How to Choose the Right Linear Lighting System for Your Project: A practical designer’s guide to selecting the right linear LED system, specifications, mounting type, and long‑term cost.

Direct Answer

Choosing the right linear lighting system depends on four practical factors: the lighting purpose, mounting condition, lumen output requirements, and driver compatibility. In most architectural projects, the correct solution balances visual comfort, ceiling integration, and long‑term maintenance costs rather than simply selecting the brightest fixture.

Designers typically start by identifying the space function, then narrow down fixture type, mounting style, and performance specifications before confirming power and budget constraints.

Quick Takeaways

1. The best linear lighting system balances illumination quality, installation method, and long‑term maintenance.
2. CRI above 90 is recommended for residential and hospitality environments.
3. Recessed linear lights provide the cleanest architecture but require early planning.
4. Lumen output matters more than wattage when comparing fixtures.
5. Driver compatibility often determines reliability and dimming performance.

Introduction

After designing lighting layouts for dozens of residential and commercial interiors, I’ve noticed that selecting a linear lighting system is rarely about aesthetics alone. Most problems appear later—uneven brightness, driver failures, difficult maintenance, or lighting that simply feels uncomfortable.

Many project teams focus only on fixture appearance. But the real decision comes down to how the system performs in the space: beam spread, mounting type, driver reliability, and integration with the ceiling design.

Before specifying any fixture, I usually model the lighting layout in a digital plan. If you want to visualize lighting positions alongside walls and furniture, exploring a 3D floor planning workflow for accurate room layoutsmakes it much easier to test spacing and lighting coverage.

In this guide, I’ll break down the decision process I use in real projects—what specifications actually matter, where designers often overspend, and how to choose a system that works both visually and technically.

save pin

Understanding Types of Linear Lighting Systems

Key Insight: The most common mistake is treating all linear lighting as the same product when in reality there are several different architectural systems.

In practice, linear lighting systems vary significantly in construction and application. Some are designed purely for decorative accents, while others function as primary illumination.

The main categories include:

1. Integrated LED linear fixtures – fully enclosed architectural lighting systems.
2. LED strip lighting with aluminum profiles – flexible installations for niches and indirect lighting.
3. Modular architectural linear systems – scalable systems used in offices and retail spaces.
4. Indirect linear lighting systems – designed to wash ceilings or walls.

Integrated architectural systems dominate modern commercial interiors because they offer better heat management and optical control. Strip lighting, while cheaper, often struggles with uniformity and long‑term reliability.

In office and commercial projects, linear lighting often works together with layout planning. If you're designing a workplace environment, planning fixture placement alongside desks and circulation using an office layout planning workflow for balanced lighting zones can prevent uneven illumination.

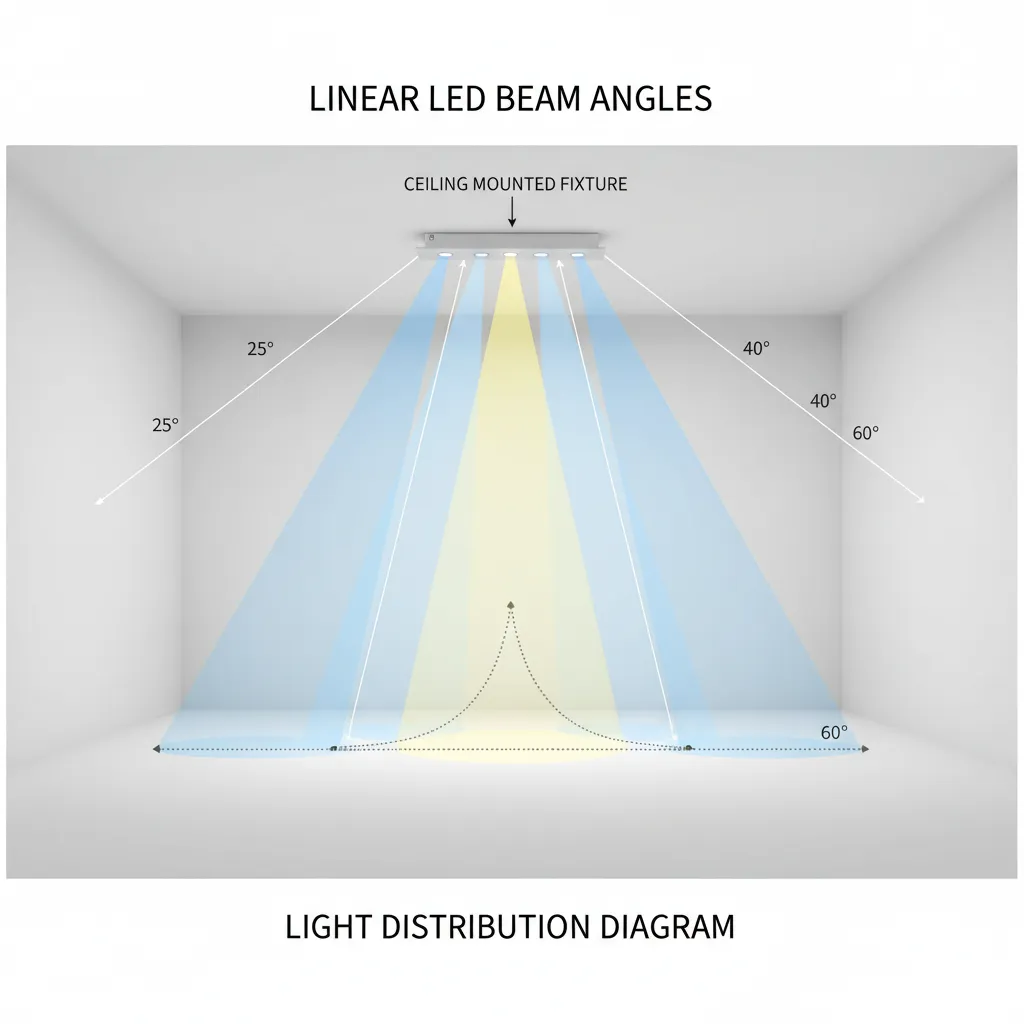

Key Specifications: Lumens, CRI, and Beam Angles

Key Insight: When choosing a linear lighting system, lumen output and optical control matter far more than wattage.

Manufacturers often emphasize wattage, but professionals evaluate lighting using lumen output and color quality.

Important specifications to compare:

1. Lumens per meter – determines overall brightness.
2. CRI (Color Rendering Index) – indicates how accurately colors appear.
3. Beam angle – controls how wide or focused the light spreads.
4. UGR rating – reduces glare in offices and workspaces.

Typical design targets I recommend:

1. Residential ambient lighting: 800–1200 lumens per meter
2. Office lighting: 1200–1800 lumens per meter
3. CRI 90+ for most interior environments
4. Beam angles between 60° and 120° depending on ceiling height

save pin

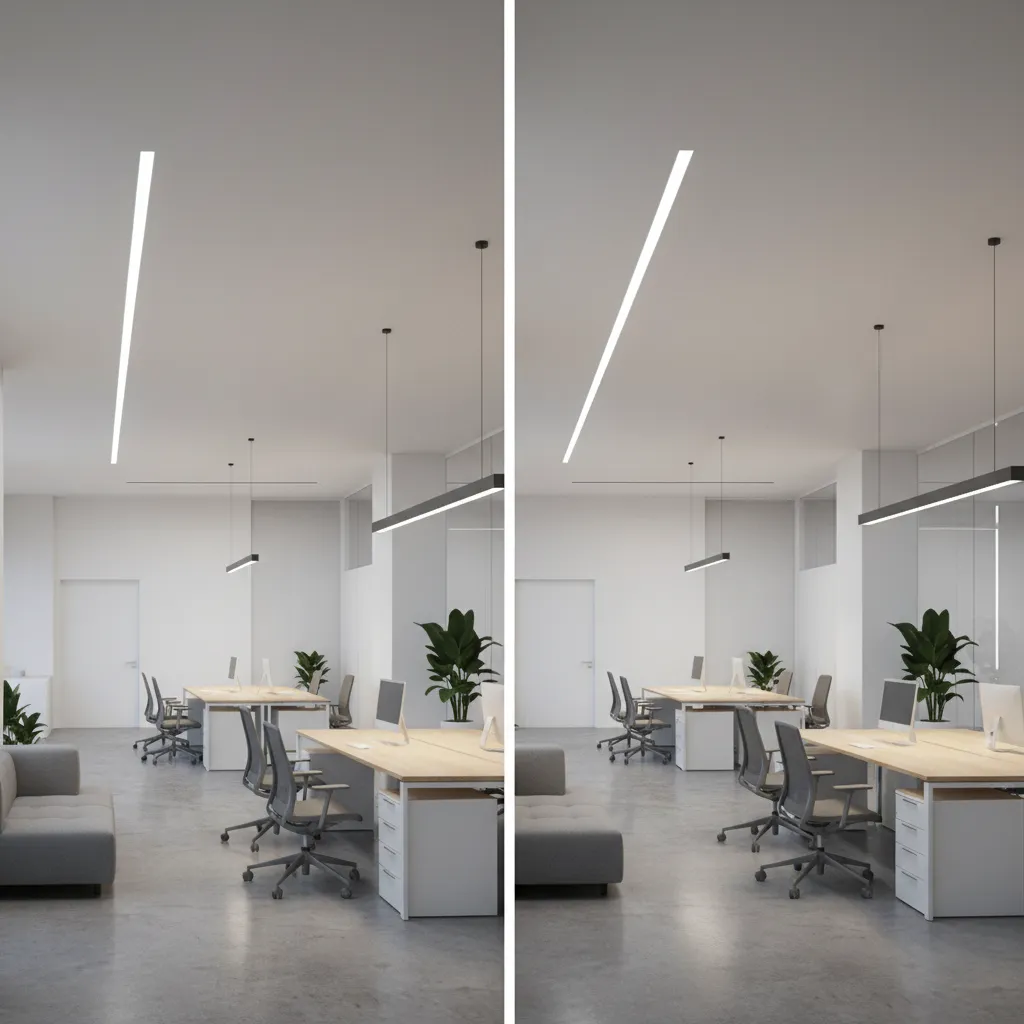

Choosing Between Surface, Recessed, and Suspended Linear Lights

Key Insight: Mounting style affects both lighting performance and construction complexity.

This is where many projects encounter hidden costs. The mounting choice must align with the ceiling design and construction schedule.

Comparison of common mounting options:

1. Recessed linear lightingClean architectural look
2. Requires early coordination with ceiling framing
3. Best for minimalist interiors
4. Surface‑mounted linear lightingFast installation
5. Lower construction complexity
6. Works well for renovations
7. Suspended linear lightingIdeal for high ceilings
8. Creates layered lighting effects
9. Common in offices and restaurants

In my experience, recessed fixtures look the best but also create the most coordination challenges with HVAC ducts and ceiling framing.

save pin

Driver Compatibility and Power Planning

Key Insight: The reliability of a linear lighting system often depends more on the driver than the fixture itself.

LED drivers regulate electrical current and enable dimming controls. Poor driver selection is one of the leading causes of flickering or early fixture failure.

Important considerations:

1. Dimming compatibility (0‑10V, DALI, TRIAC)
2. Remote vs integrated drivers
3. Power load calculations
4. Maintenance accessibility

In larger lighting systems, remote drivers placed in accessible ceilings or electrical closets dramatically simplify maintenance.

Budget Considerations and Lifecycle Costs

Key Insight: The cheapest linear lighting system often becomes the most expensive after installation.

Budget planning should include both upfront costs and long‑term operational factors.

Key cost components:

1. Fixture cost
2. Installation complexity
3. Driver replacement
4. Energy consumption
5. Maintenance access

For example, recessed linear lighting can increase construction costs by 20–40% due to ceiling preparation and alignment requirements.

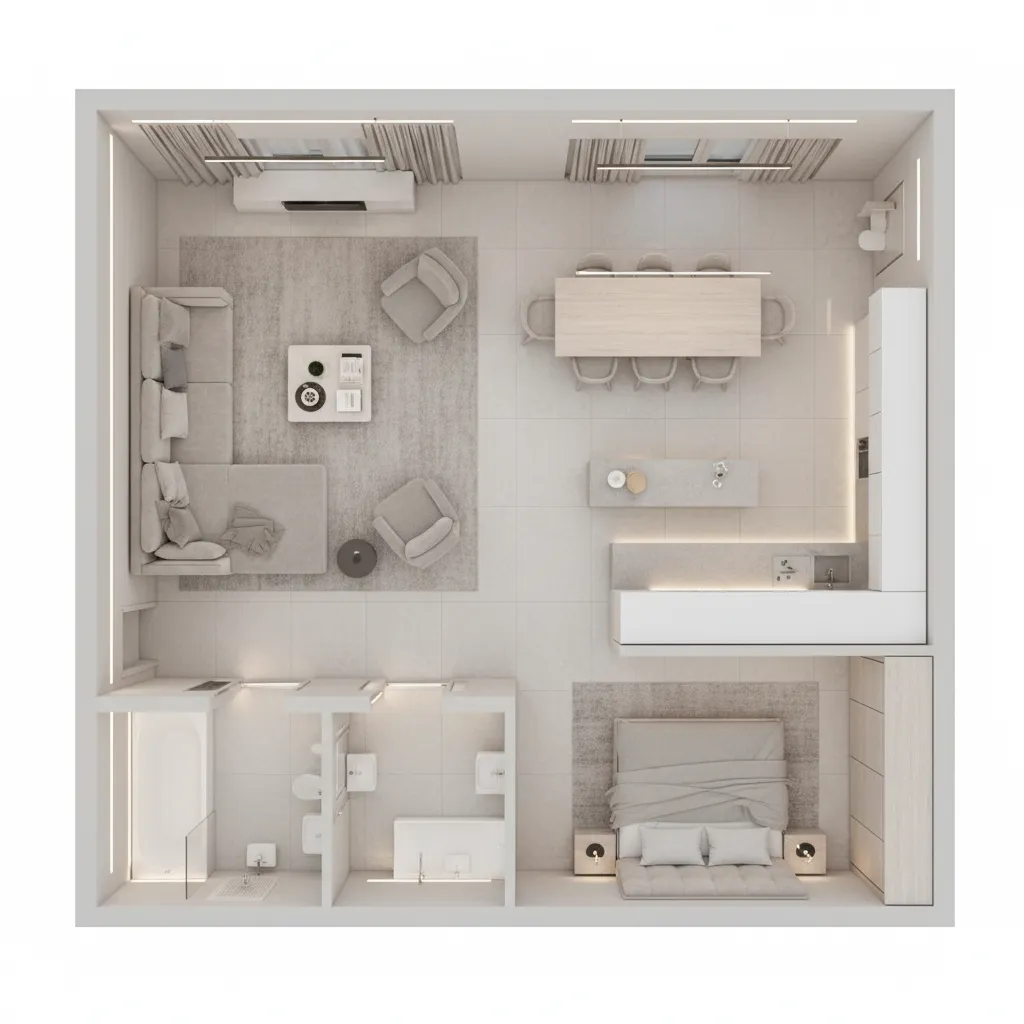

Another hidden cost appears when lighting placement conflicts with room layouts. Designers often test lighting concepts early using AI‑assisted interior layout visualization for lighting conceptsto evaluate fixture alignment before construction begins.

save pin

Decision Checklist for Selecting Linear Lighting

Key Insight: The best way to avoid specification mistakes is to evaluate lighting systems using a structured checklist.

Here’s the simplified process I follow on most projects:

1. Define the lighting purpose (ambient, task, accent).
2. Select the mounting type based on ceiling construction.
3. Determine required lumen output per meter.
4. Choose high‑CRI fixtures for residential or hospitality spaces.
5. Confirm driver compatibility with dimming systems.
6. Evaluate maintenance accessibility.
7. Compare lifecycle cost rather than fixture price alone.

Answer Box

The right linear lighting system balances lumen output, mounting method, driver reliability, and long‑term maintenance. Designers should evaluate lighting systems as integrated architectural elements rather than standalone fixtures.

Final Summary

1. Linear lighting selection depends on purpose, mounting style, and lumen performance.
2. CRI above 90 ensures better color accuracy.
3. Driver compatibility is critical for reliability.
4. Recessed fixtures look best but require early planning.
5. Total lifecycle cost matters more than fixture price.

FAQ

1. How do I choose a linear lighting system?

Start with the lighting purpose, then compare mounting style, lumen output, CRI rating, and driver compatibility.

2. What lumens should linear LED lighting have?

Most interiors use 800–1500 lumens per meter depending on ceiling height and lighting purpose.

3. Is recessed linear lighting better?

Recessed lighting creates the cleanest architectural look but requires earlier construction planning.

4. What CRI is best for linear lighting?

CRI 90 or higher is recommended for homes, restaurants, and retail environments.

5. Are linear lights energy efficient?

Yes. LED linear lighting systems typically consume far less energy than fluorescent fixtures.

6. Can linear lighting be used as the main light source?

Yes, if the lumen output and spacing are designed correctly.

7. What is the difference between linear LED and strip lights?

Architectural linear fixtures include optics and thermal management, while strip lights are more flexible but less precise.

8. What is the most common mistake when selecting linear lighting?

Ignoring driver compatibility and maintenance access during early design stages.
