How to Choose the Right Modular Duplex Floor Plan for Your Lot: A practical planning guide to match duplex layouts with lot size zoning rules and long term rental goals

Direct Answer

The right modular duplex floor plan depends on three things: your lot dimensions, local zoning setbacks, and how you plan to use the property. A layout that fits comfortably within buildable space while supporting circulation, parking, and privacy between units will almost always outperform visually attractive plans that ignore site constraints.

In most projects I’ve worked on, the best choice isn’t the biggest duplex layout. It’s the one that balances footprint efficiency, tenant privacy, and future flexibility.

Quick Takeaways

1. The lot’s buildable envelope determines the maximum practical duplex footprint.
2. Symmetrical duplex layouts simplify construction but may reduce flexibility for irregular lots.
3. Narrow lots benefit from stacked or staggered modular duplex plans.
4. Zoning setbacks and parking rules often shrink usable building area by 20–35 percent.
5. Future rental flexibility should influence bedroom placement and entry orientation.

Introduction

Choosing the right modular duplex floor plan sounds straightforward until you start looking at real sites. I’ve worked on dozens of residential developments where the original plan looked great on paper but failed once the lot dimensions, access points, and setback requirements were applied.

Most property owners begin by browsing attractive duplex layouts. But what actually determines success is how the modular duplex floor plan fits the buildable envelope of your land.

Before committing to a layout, I often recommend sketching the lot constraints first using a simple visual floor plan sketch to test your lot dimensions. This step alone prevents one of the most common mistakes I see: selecting a duplex plan that physically cannot sit on the lot once setbacks and parking are included.

In this guide, I’ll walk through the real decision framework I use with clients. We’ll cover how lot shape, zoning, symmetry, and long term rental strategy should shape your modular duplex floor plan selection.

save pin

Key Factors That Influence Modular Duplex Layout Choice

Key Insight: The best modular duplex floor plan balances land efficiency, construction simplicity, and tenant privacy.

After designing multiple duplex developments, I’ve noticed that most layout mistakes come from prioritizing aesthetics over site efficiency. A duplex that looks perfect online may perform poorly once placed on an actual lot.

The four factors that matter most are:

1. Lot buildable width after setbacks are applied
2. Parking and driveway access
3. Separate entry privacy between units
4. Utility placement such as HVAC and meters

According to guidance from the Urban Land Institute, efficient small multifamily designs typically reduce wasted corridor space and maintain clear entry separation to increase long term tenant satisfaction.

From experience, privacy between the two units often matters more than square footage. A slightly smaller unit with better sound separation and entrance placement rents faster in most markets.

Matching Duplex Floor Plans to Lot Size and Shape

Key Insight: Lot shape often dictates duplex layout more than total land area.

A 6,000 square foot lot can support very different duplex designs depending on its proportions. A wide lot allows side by side units, while a narrow lot often requires stacked or staggered plans.

Typical layout matches include:

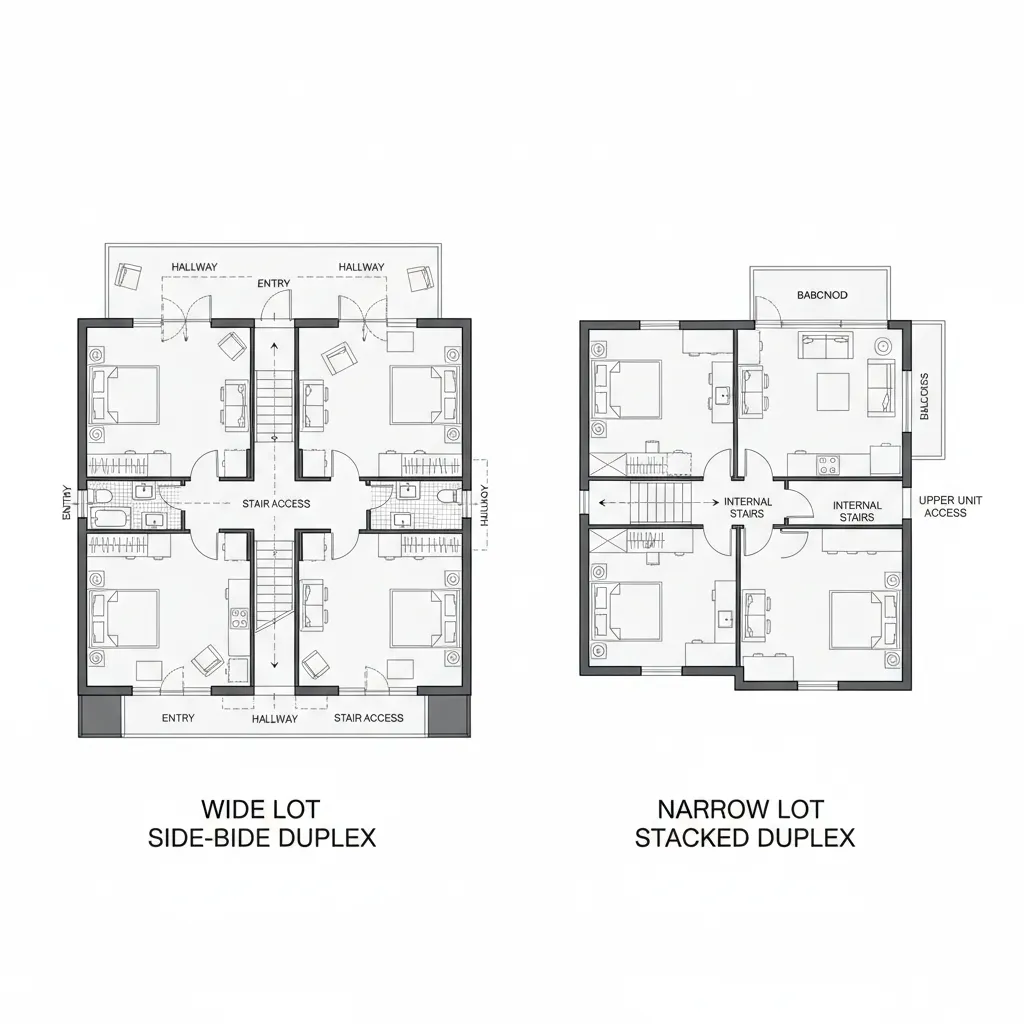

1. Wide lots (60 ft+) – side by side symmetrical duplex units
2. Narrow lots (30–45 ft) – stacked or offset duplex layouts
3. Corner lots – dual street facing entrances for privacy
4. Irregular lots – asymmetrical designs with adjusted footprints

When evaluating these options, a visual model helps significantly. Many developers test circulation and spacing with a 3D layout preview to evaluate building placement and accessbefore finalizing the modular duplex floor plan.

save pin

Understanding Local Zoning and Setback Limits

Key Insight: Zoning setbacks often remove a large portion of your usable building footprint.

Many property owners underestimate how much zoning regulations shape the final duplex layout. Front setbacks, side setbacks, parking minimums, and lot coverage ratios can dramatically shrink buildable area.

Common zoning constraints include:

1. Front setbacks of 15–25 feet
2. Side setbacks of 5–10 feet
3. Rear setbacks of 15–20 feet
4. Maximum lot coverage limits between 40–60 percent

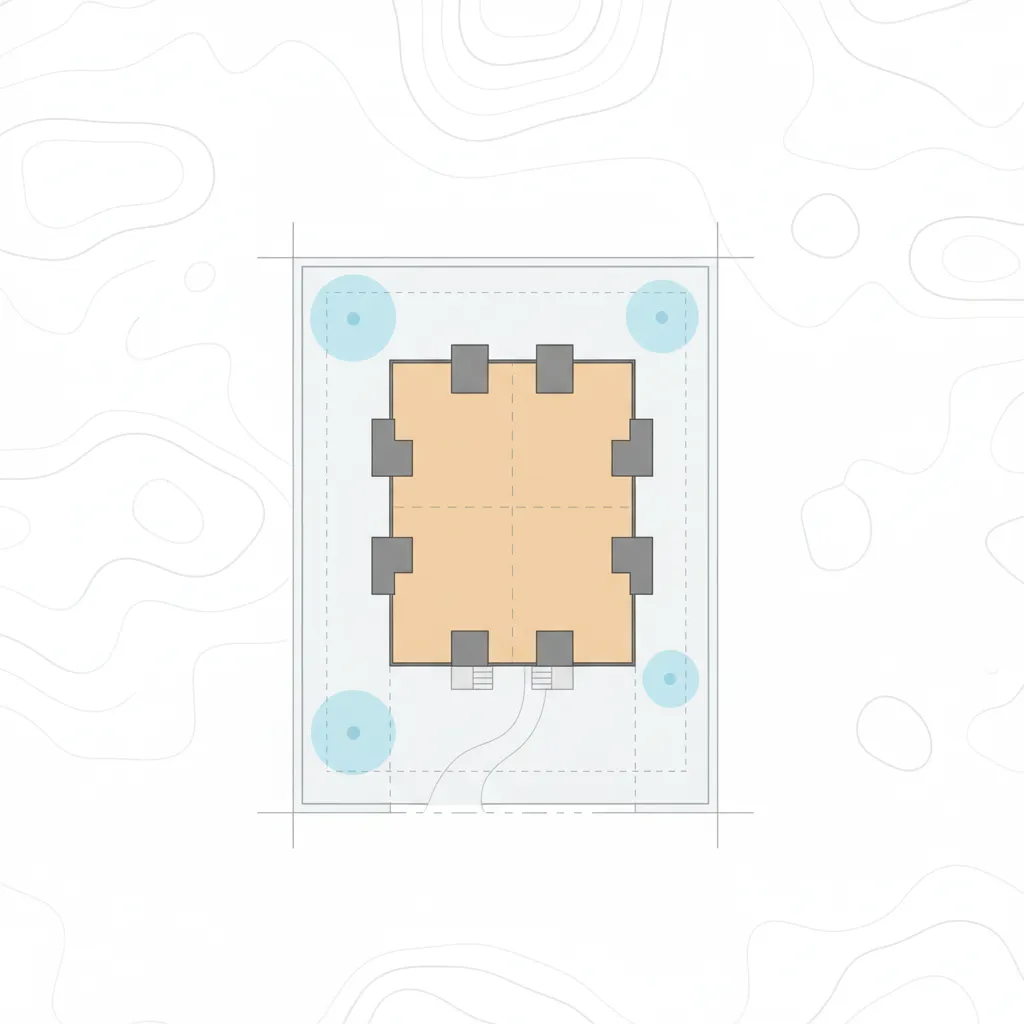

For example, a 50 ft by 120 ft lot might appear large enough for a wide duplex. But once setbacks are applied, the buildable width could shrink to roughly 30–36 feet.

That difference alone can force a switch from side by side units to a stacked modular duplex floor plan.

Choosing Between Symmetrical and Asymmetrical Duplex Designs

Key Insight: Symmetrical duplex layouts are easier to build, but asymmetrical layouts often work better on real lots.

Most prefab modular duplex designs use mirrored floor plans because they simplify manufacturing and reduce construction costs. However, real land parcels rarely behave symmetrically.

Here’s a quick comparison:

1. Symmetrical duplex
2. Pros: faster construction, simpler structure, lower design cost
3. Cons: less adaptable to irregular lots
4. Asymmetrical duplex
5. Pros: fits unusual lots, better privacy, flexible entrances
6. Cons: more design complexity

In several urban infill projects I worked on, switching to a slightly asymmetrical modular duplex floor plan increased buildable living space by nearly 12 percent simply by shifting stair locations and entrances.

Answer Box

The right modular duplex floor plan is determined by buildable lot width, zoning setbacks, and long term rental goals. Efficient layouts prioritize privacy, circulation, and flexibility over maximum square footage.

Planning for Future Expansion or Rental Flexibility

Key Insight: A modular duplex layout should anticipate future living scenarios, not just the first tenants.

Many investors design duplexes purely for immediate rental yield. But the most successful projects anticipate future flexibility.

Design considerations that improve long term adaptability include:

1. Separate utility meters for each unit
2. Convertible basement or attic space
3. Flexible bedroom layouts
4. Private outdoor areas for each unit

Using early stage planning tools like an AI assisted layout concept generator for duplex planningcan help quickly test different configurations before locking into a modular design.

save pin

Checklist for Selecting the Best Modular Duplex Floor Plan

Key Insight: A structured evaluation checklist prevents costly layout mistakes.

When reviewing potential modular duplex floor plans, I recommend walking through this simple decision checklist.

1. Measure the buildable envelope after setbacks.
2. Confirm parking placement and driveway access.
3. Evaluate privacy between unit entrances.
4. Check bedroom placement for noise separation.
5. Plan utility access and service areas.
6. Consider long term adaptability or resale.

Developers who follow a structured evaluation process typically avoid the two biggest planning mistakes I see: oversized building footprints and poorly positioned entrances.

Final Summary

1. Lot width and setbacks determine your practical duplex layout.
2. Symmetrical plans build faster but fit fewer real lots.
3. Narrow lots benefit from stacked or staggered duplex layouts.
4. Privacy and circulation influence tenant satisfaction.
5. Future flexibility improves long term property value.

FAQ

How do I choose the best modular duplex floor plan?

Start by measuring your buildable lot width after setbacks. Then select a modular duplex floor plan that fits comfortably while allowing parking access and private entrances.

What is the best duplex layout for a narrow lot?

Stacked or staggered duplex designs work best for narrow lots. These layouts reduce building width while maintaining separate entrances.

Can modular duplex homes fit small urban lots?

Yes. Many modular duplex designs are specifically created for narrow city lots using vertical layouts and compact footprints.

Is a symmetrical duplex always better?

Not necessarily. Symmetrical designs simplify construction but may waste space on irregular or narrow parcels.

How much land do I need for a modular duplex?

It depends on zoning rules, setbacks, and parking requirements. Many duplex projects work on lots between 4,000 and 7,500 square feet.

What mistakes should I avoid when choosing a duplex layout?

Common mistakes include ignoring setbacks, underestimating driveway space, and choosing layouts that reduce tenant privacy.

Do modular duplex floor plans allow customization?

Most manufacturers allow moderate customization such as entry relocation, bedroom adjustments, and exterior variations.

Are modular duplex homes good for rental income?

Yes. Modular duplex homes can be cost efficient to build and allow owners to generate rental income from two units on one property.
