How to Choose the Right Scale for a Floor Plan Drawing: A practical guide to selecting the correct architectural scale so your floor plan stays readable, accurate, and easy to present

Direct Answer

The right scale for a floor plan drawing depends on the building size and the level of detail you need to show. Most residential floor plans are drawn at 1/4 inch = 1 foot (1:50), while larger homes or commercial layouts often use 1/8 inch = 1 foot (1:100). The goal is to balance readable details with a drawing that fits comfortably on the sheet.

Quick Takeaways

1. Most house floor plans use 1/4" = 1'-0" because it balances clarity and sheet size.
2. Large buildings often require 1/8" scale to fit the full layout on one drawing.
3. Too small a scale hides furniture and layout details.
4. Too large a scale forces the plan onto multiple sheets.
5. Always confirm the scale works with your graphic scale bar and sheet format.

Introduction

One of the most common mistakes I see when people start drafting is choosing the wrong floor plan scale before they even begin drawing. After working on residential and commercial projects for more than a decade, I've learned that scale decisions shape everything—from how readable the drawing is to whether contractors can actually use it.

When someone asks what scale should a floor plan be drawn at, they're usually thinking about accuracy. But in real design work, scale is really about communication. Your drawing has to show walls, circulation, furniture, and dimensions clearly without turning the sheet into a microscopic puzzle.

If you're still exploring layout ideas, tools that let you experiment with different plan sizes can help. Many designers start by testing room arrangements with a simple way to sketch and test floor plan layouts onlinebefore committing to a specific drawing scale.

In this guide, I'll walk through how professionals actually decide scale in practice, which architectural scales are most common, and the hidden trade-offs most tutorials never mention.

save pin

Why Choosing the Right Floor Plan Scale Matters

Key Insight: The scale you choose determines whether your drawing communicates clearly or becomes difficult to read and build from.

In architecture, drawings are not just representations—they are instructions. Builders rely on them to understand spatial relationships, dimensions, and structure. If the scale is poorly chosen, essential details disappear or the drawing becomes impractically large.

Over the years I've reviewed countless floor plans where the scale technically worked but failed visually. Doors overlapped with dimension strings, furniture became illegible, and circulation space couldn't be evaluated. None of those problems come from drafting skill—they come from scale selection.

Three practical factors determine whether a scale works:

1. Drawing sheet size such as A1, A2, or 24×36 architectural sheets
2. Building footprint including exterior walls and outdoor areas
3. Detail requirements like furniture, cabinetry, or fixtures

Industry guidelines from organizations such as the American Institute of Architects recommend selecting scales that maintain legibility while fitting comfortably within the sheet margins.

Common Architectural Scales for Residential Floor Plans

Key Insight: Most residential plans use either 1/4 inch scale or 1/8 inch scale because they balance readability and drawing size.

After designing hundreds of residential layouts, I've found that two scales dominate professional drawings. Each works best in different scenarios.

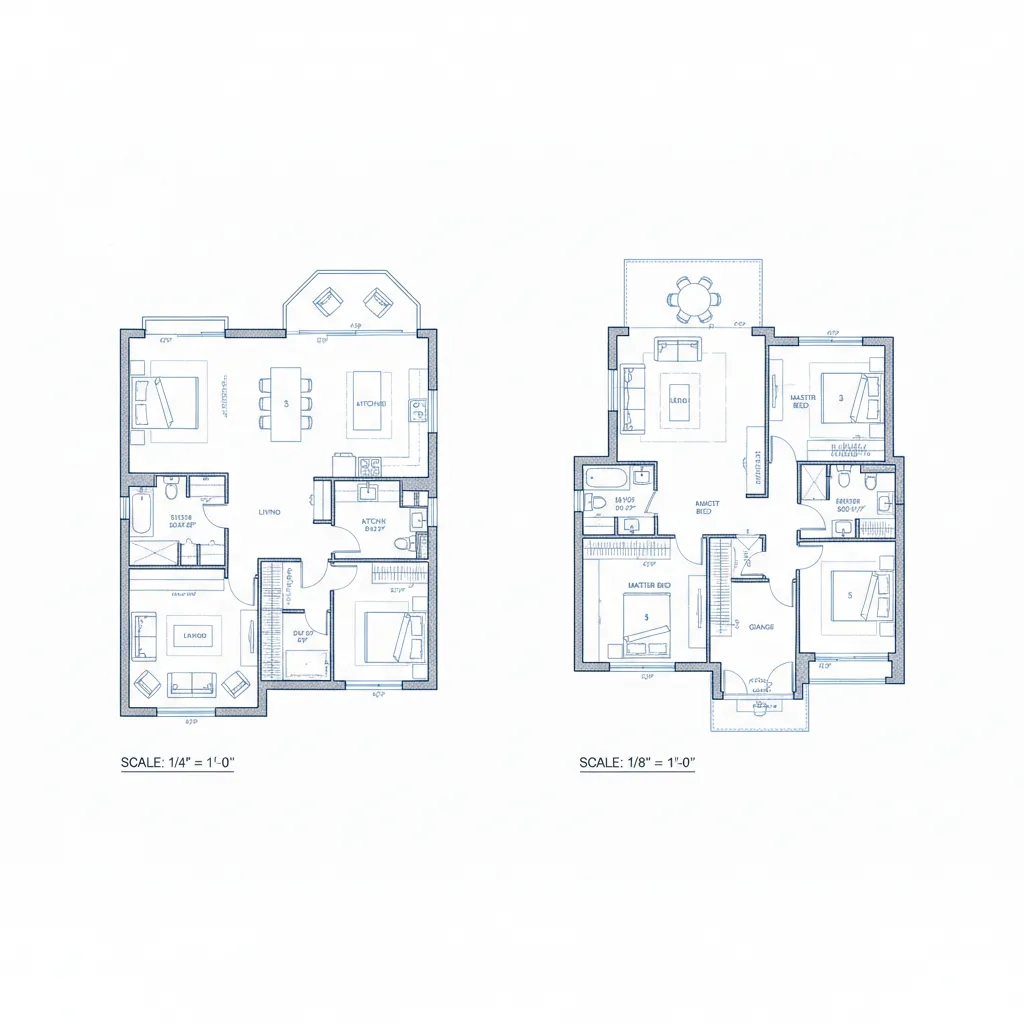

1. 1/4" = 1'-0" (1:50)
2. Best for small to medium homes, renovations, and interior design layouts. Furniture, cabinets, and door swings remain clearly visible.
3. 1/8" = 1'-0" (1:100)
4. Better for larger homes where the entire floor must fit on a single sheet.
5. 3/16" or 3/8" scales
6. Occasionally used for interior renovation drawings requiring more detail.

A useful rule from residential practice:

1. Under 2,000 sq ft → 1/4" scale usually works best
2. 2,000–5,000 sq ft → 1/8" scale becomes more practical
3. Interior remodel drawings → often larger scales

The "best architectural scale for a house floor plan" is rarely universal. It depends on the drawing sheet and how much furniture or equipment must appear.

save pin

Scales Used for Large Buildings and Site Plans

Key Insight: Large buildings require smaller scales so the entire project fits within a single coordinated drawing set.

When projects grow beyond residential size, scale choices change quickly. Office floors, apartment buildings, and campus layouts simply cannot fit at residential scales.

Common large-project scales include:

1. 1/8" = 1'-0" – medium commercial floor plans
2. 1/16" = 1'-0" – very large buildings
3. 1" = 20' or 1" = 40' – site plans and campus layouts

One hidden challenge: when the scale becomes smaller, interior furniture often disappears from the drawing entirely. Instead, designers rely on separate enlarged plans for kitchens, bathrooms, or workspaces.

For example, when planning office layouts, designers often experiment with different planning densities using a visual tool for testing office workspace layouts before locking the final architectural scale.

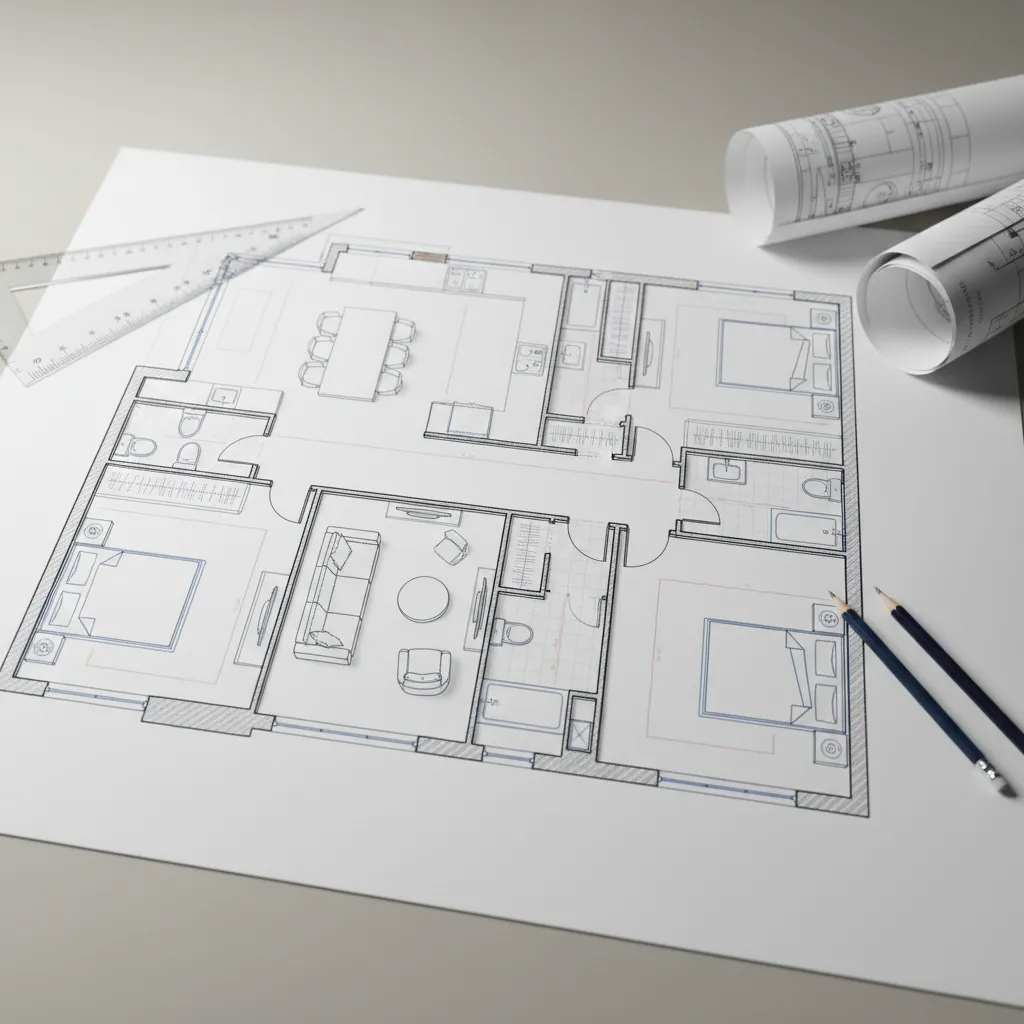

Balancing Detail and Sheet Size When Selecting Scale

Key Insight: The real challenge in choosing floor plan scale is balancing visual detail against the physical size of the drawing sheet.

This trade-off is where beginners struggle the most. Too much detail requires a large scale, but that may force the drawing onto multiple sheets.

Professional designers usually evaluate scale using this quick checklist:

1. Does the entire floor plan fit within the printable sheet margins?
2. Are door swings and furniture readable without zooming?
3. Can dimensions be placed without overlapping walls?
4. Will contractors be able to mark measurements on the print?

A useful technique I often recommend is sketching the plan at two different scales before committing. Modern digital tools make this much easier—especially when experimenting with layouts using a 3D floor planning workflow that previews layout proportions.

save pin

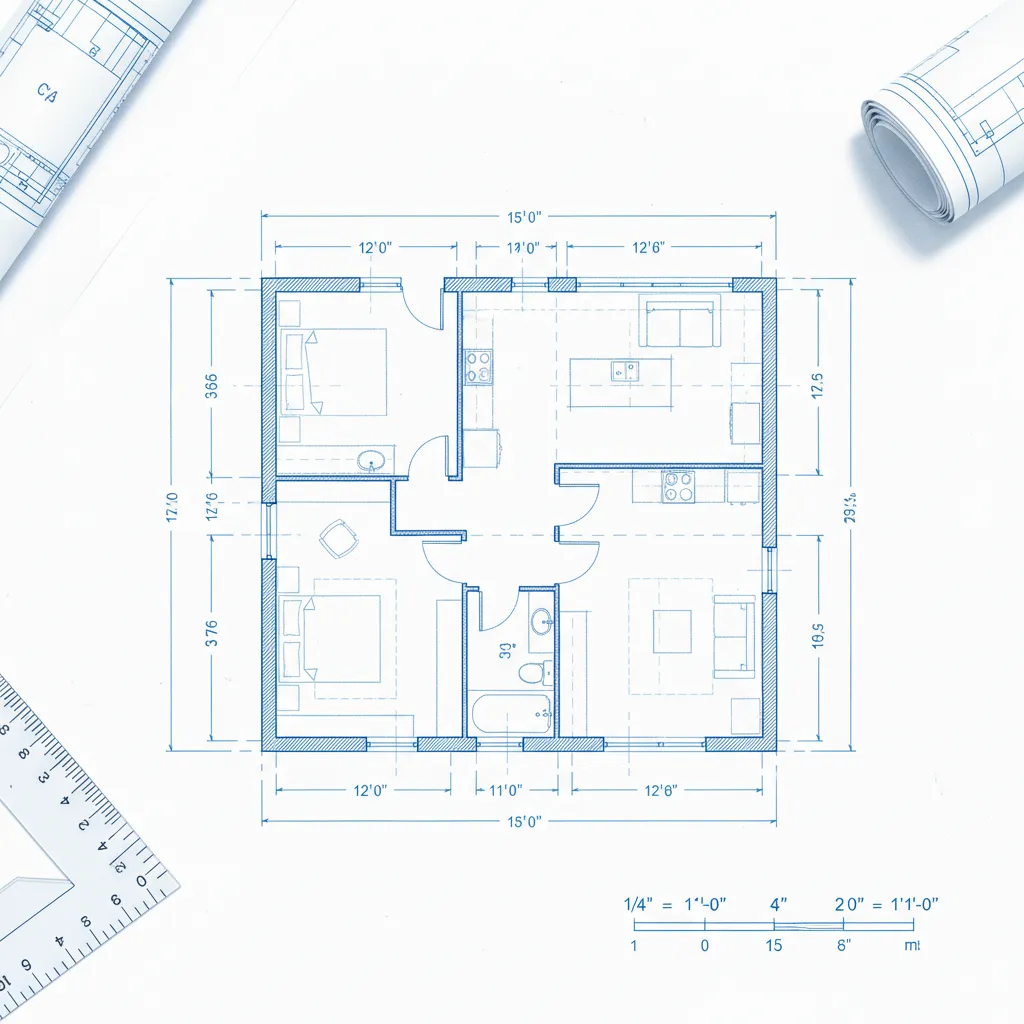

How Scale Choice Affects the Graphic Scale Bar

Key Insight: Every drawing scale must match a corresponding graphic scale bar so measurements remain accurate when printed or resized.

Many beginners assume the numeric scale alone is enough. In practice, architectural drawings always include a graphic scale bar because printed drawings can be reduced or enlarged during reproduction.

For example:

1. 1/4" scale typically uses a graphic bar representing 0–16 feet.
2. 1/8" scale often displays 0–32 feet.
3. Site plans may show larger increments such as 0–100 feet.

If a drawing is resized during printing, the graphic scale remains accurate while the numeric scale may no longer apply. That's why professional construction drawings always include both.

save pin

Step-by-Step Method for Selecting the Correct Plan Scale

Key Insight: The most reliable way to choose scale is to test the building footprint against the drawing sheet before final drafting begins.

Here's the practical workflow many architects use:

1. Measure the building footprint.
2. Calculate the approximate width and depth of the structure.
3. Select your sheet size.
4. Common architectural sheets include 18×24, 24×36, and A1 formats.
5. Test two candidate scales.
6. Usually 1/4" and 1/8" for residential projects.
7. Check furniture readability.
8. Ensure doors, cabinetry, and circulation paths remain clear.
9. Confirm graphic scale compatibility.
10. Make sure the scale bar and dimensions remain legible.

Answer Box

The best floor plan drawing scale balances building size, sheet dimensions, and readable detail. Most houses use 1/4" scale, while larger buildings shift to 1/8" or smaller scales to keep the entire layout on one page.

Final Summary

1. 1/4" scale is the most common choice for residential floor plans.
2. Larger buildings often require 1/8" scale to fit the full layout.
3. Scale determines how readable doors, furniture, and dimensions appear.
4. Always pair numeric scale with a graphic scale bar.
5. Testing two scales before drafting prevents major layout issues.

FAQ

What scale should a floor plan be drawn at?

Most residential floor plans are drawn at 1/4" = 1'-0". Larger homes or buildings often use 1/8" scale to fit the layout on standard drawing sheets.

What is the best architectural scale for a house floor plan?

The best architectural scale for a house floor plan is usually 1/4" scale because it clearly shows walls, furniture, and dimensions.

Why do architects use different floor plan scales?

Different building sizes require different scales. Smaller scales fit large buildings on a sheet, while larger scales show more detail.

Can a floor plan be drawn at 1:100 scale?

Yes. 1:100 is equivalent to 1/8" scale and is commonly used for larger residential or commercial buildings.

Does floor plan scale affect construction accuracy?

Not directly. Accuracy comes from dimensions, but the scale affects how easily builders can read and interpret the drawing.

Do digital floor plans still need scale?

Yes. Even digital drawings must use a consistent scale so measurements and printed plans remain accurate.

How do you choose a floor plan scale for large buildings?

Designers typically test the building footprint against the drawing sheet and choose a smaller scale like 1/8" or 1/16".

What happens if the floor plan scale is too small?

Important details like furniture, fixtures, and door swings may become unreadable.

References

American Institute of Architects – Architectural Graphic Standards

Francis D.K. Ching – Architectural Graphics
