How to Choose the Right Storage Layout for Your Laundry Mudroom: A practical designer’s guide to planning a laundry mudroom layout that actually works for real households

Direct Answer

The right laundry mudroom storage layout depends on three factors: room dimensions, daily traffic flow, and how many storage categories your household actually uses. In most homes, the most effective layout separates laundry workflow from entry storage while keeping frequently used items within arm’s reach.

Quick Takeaways

1. The best laundry mudroom layouts separate cleaning tasks from entry storage zones.
2. Wall storage maximizes vertical space, but built-ins improve long‑term organization.
3. Traffic flow matters more than cabinet quantity in small mudroom layouts.
4. Plan storage categories before choosing cabinets or shelving.
5. Even small laundry mudrooms can support 4–5 functional storage zones.

Introduction

After designing dozens of laundry‑mudroom combinations over the past decade, I've noticed something interesting: most people don't struggle with storage quantity. They struggle with layout decisions.

Homeowners ask the same questions repeatedly. Should cabinets go above the washer? Are lockers better than shelves? Where should shoe storage live? And more importantly—how do you make everything work in one room?

Choosing the right laundry mudroom storage layout is less about adding more cabinets and more about organizing the room around daily behavior. Families move through this space several times a day: coming home, sorting laundry, dropping bags, grabbing coats.

When the layout ignores that movement, the room quickly becomes chaotic.

If you're still mapping your space, it helps to experiment with layout ideas visually before committing. I often recommend homeowners sketch different configurations using a simple interactive room layout planning approach for storage zonesso they can see how circulation paths actually work.

In this guide, I'll walk through how professional designers evaluate storage layouts for laundry mudrooms—and the hidden decisions that determine whether the room stays organized or constantly feels messy.

save pin

Key Factors That Determine the Best Storage Layout

Key Insight: The best layout isn't determined by storage type—it's determined by movement patterns inside the room.

When I review poorly functioning laundry mudrooms, the issue is rarely cabinet design. It's almost always traffic flow conflicts.

Three forces shape the correct layout:

1. Entry path – where people enter and drop items
2. Laundry workflow – sorting, washing, folding, storing
3. Vertical storage potential – walls, corners, and above appliances

Professional designers often divide the room into micro‑zones:

1. Drop zone (bags, keys, mail)
2. Shoe storage
3. Coats or outerwear
4. Laundry appliances
5. Folding surface
6. Cleaning supply storage

According to the National Association of Home Builders, dedicated mudroom areas appear in over 60% of new homes, but integrated laundry‑mudroom combos are becoming more common as builders compress floor plans.

That combination means layouts must work harder than ever.

Evaluating Your Household Storage Needs

Key Insight: The number of storage categories matters more than the number of cabinets.

A mistake I see constantly is designing storage without defining what actually goes into it.

Before planning cabinets or shelves, list the real items the room must hold.

Typical mudroom storage categories include:

1. Daily shoes
2. Seasonal shoes
3. Backpacks or work bags
4. Coats and jackets
5. Sports equipment
6. Laundry detergents
7. Cleaning supplies
8. Pet accessories

Here's a pattern I've seen repeatedly in family homes:

1. 1–2 people: open shelving works well
2. 3–4 people: lockers or divided cubbies reduce clutter
3. 5+ people: enclosed cabinets become essential

The more users a space has, the more visual clutter management matters.

save pin

Choosing Between Wall Storage and Built-In Units

Key Insight: Built‑ins improve organization, but flexible wall systems adapt better to changing households.

There's no universal winner between wall storage and built‑ins. Each works best under specific conditions.

Here's how I typically evaluate them during a project:

1. Wall shelves or hooks – flexible, affordable, easy to change

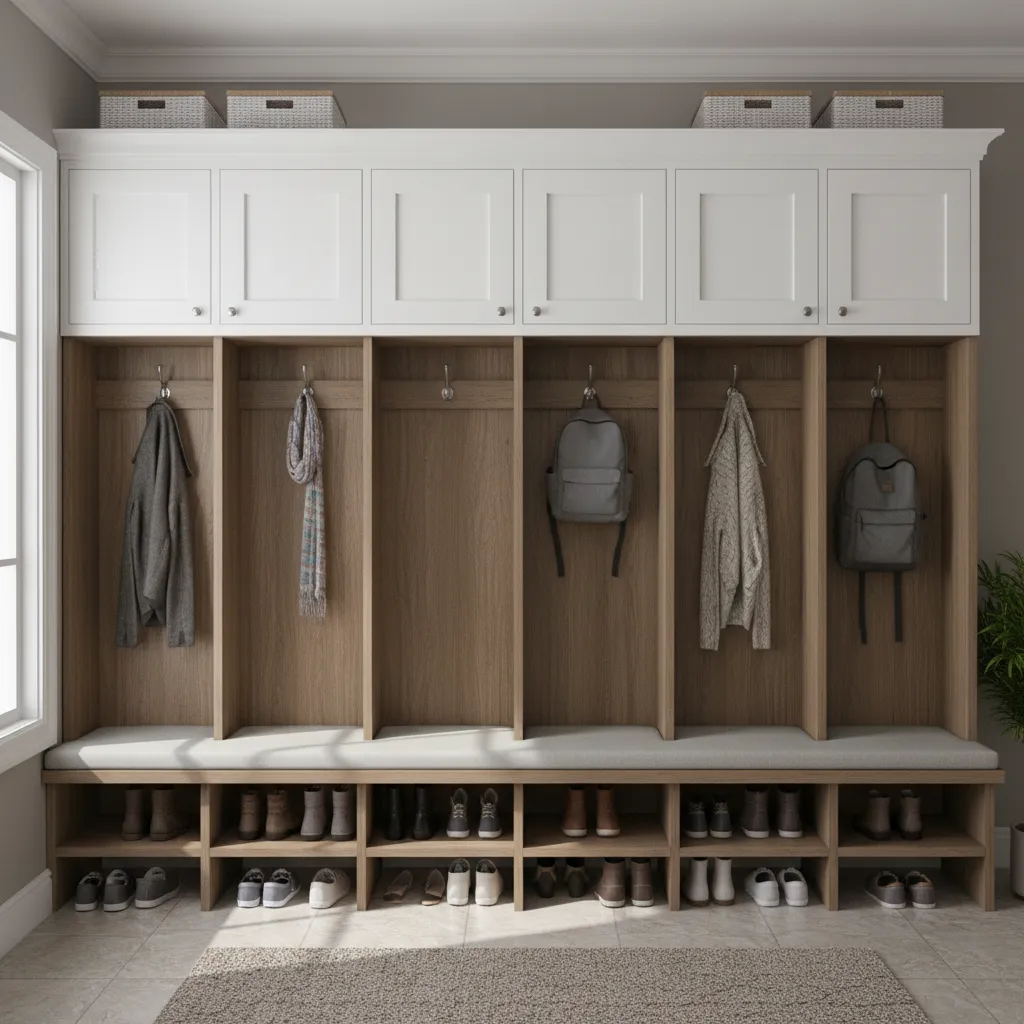

2. Built‑in lockers – structured, family‑friendly, visually clean
3. Upper cabinets – best for laundry supplies
4. Base cabinets – ideal for shoe storage

The hidden tradeoff most guides don't mention: built‑ins can lock you into a layout that stops working as kids grow or routines change.

In several remodels I've worked on, families removed expensive locker systems within five years because storage needs evolved.

My rule of thumb:

1. Permanent cabinetry for laundry zones
2. Flexible storage for entry zones

Balancing Laundry Functions and Mudroom Storage

Key Insight: Laundry work zones should remain clear of daily drop zones.

The biggest design conflict in combined spaces happens when entry clutter interferes with laundry tasks.

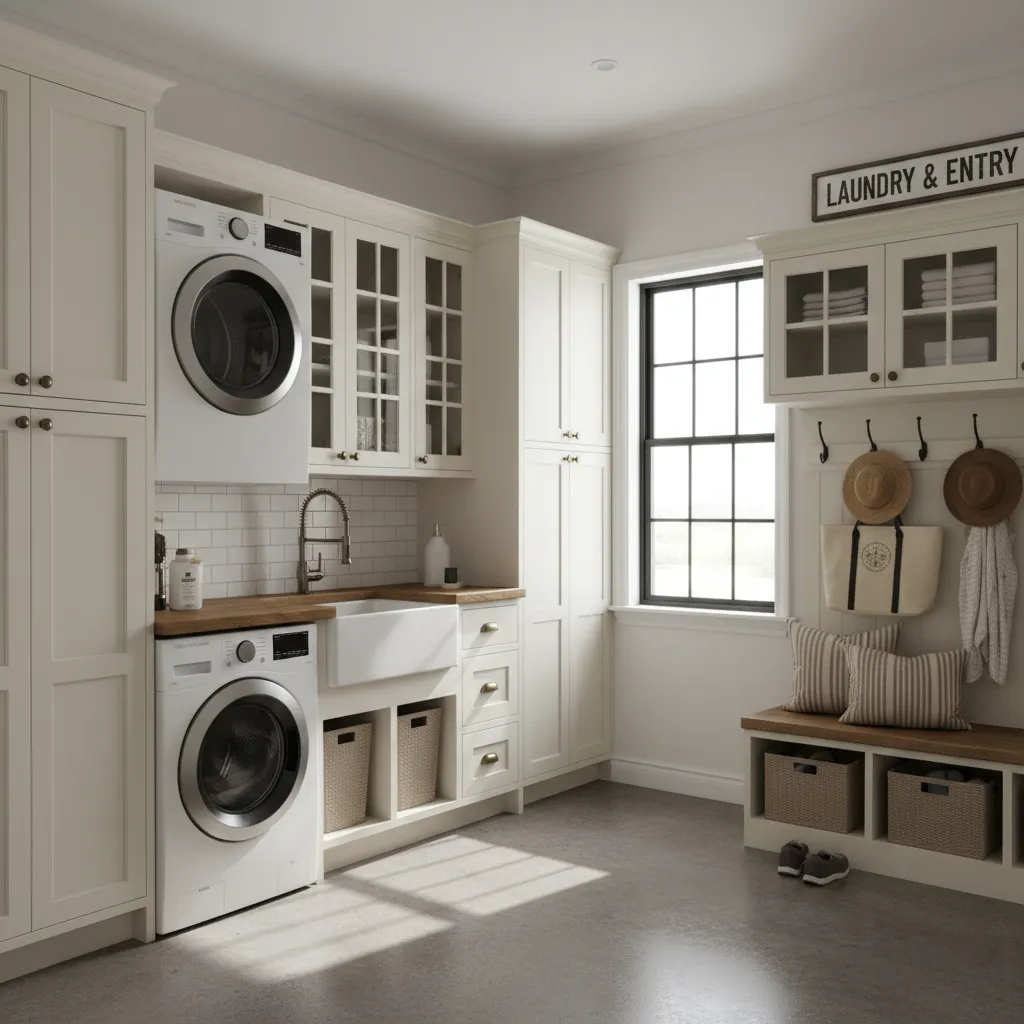

A functional layout usually separates the room into two sides:

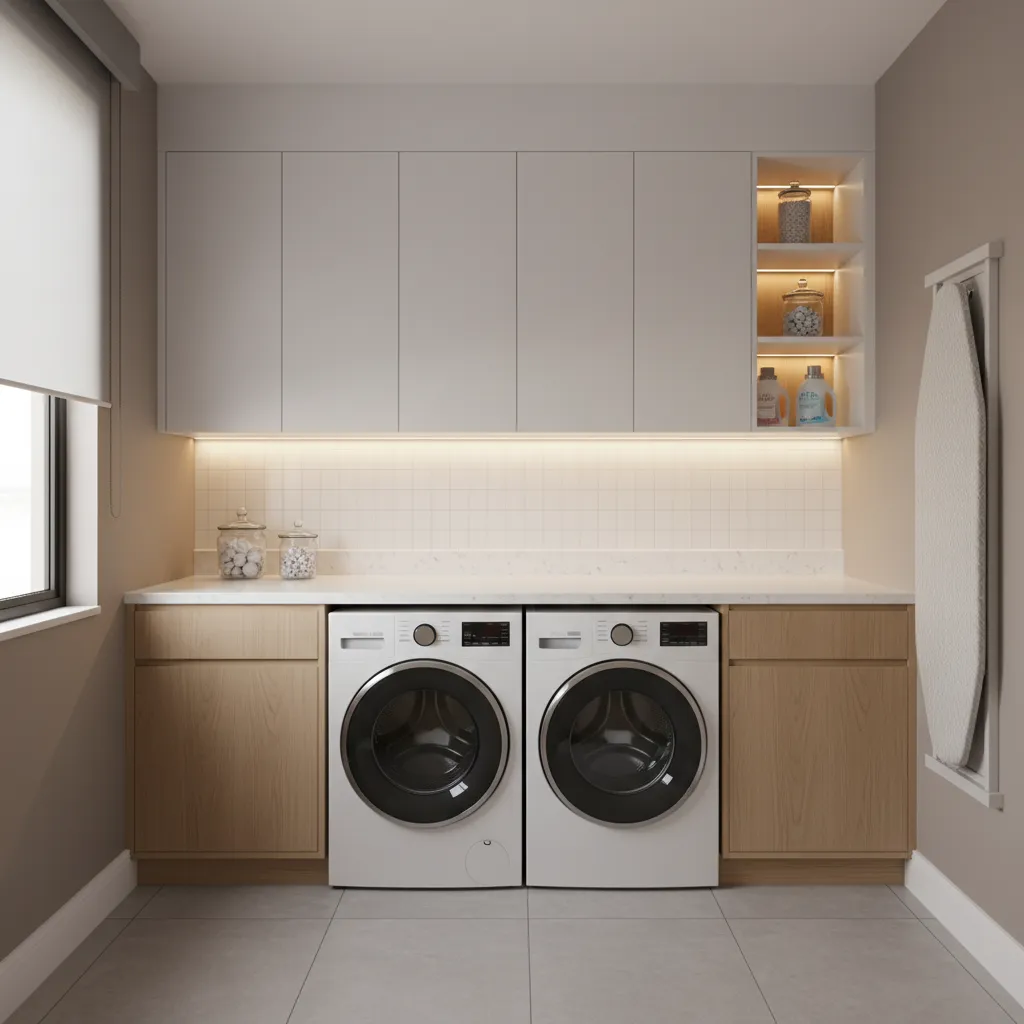

1. Laundry wall – washer, dryer, cabinets, folding counter
2. Mudroom wall – hooks, cubbies, shoe storage

This separation prevents backpacks and coats from piling onto folding counters.

When clients want to test layouts before installing cabinetry, we often map the space using a simple floor plan experiment for mudroom storage placement. Seeing circulation paths visually often reveals layout issues immediately.

save pin

Planning Storage Around Room Dimensions

Key Insight: Narrow rooms benefit from vertical storage, while square rooms benefit from perimeter layouts.

The shape of the room strongly influences layout strategy.

Common layout strategies include:

1. Single‑wall layout – best for narrow utility rooms
2. L‑shape layout – ideal for separating zones
3. U‑shape layout – maximum storage for larger rooms
4. Galley layout – efficient but requires clear traffic flow

Typical clearance guidelines designers use:

1. 36–42 inches walking clearance
2. 18–24 inches folding counter depth
3. 12–16 inches shoe storage depth

Ignoring these dimensions often leads to cramped rooms—even if the storage itself looks good.

Example Layouts for Small Laundry Mudrooms

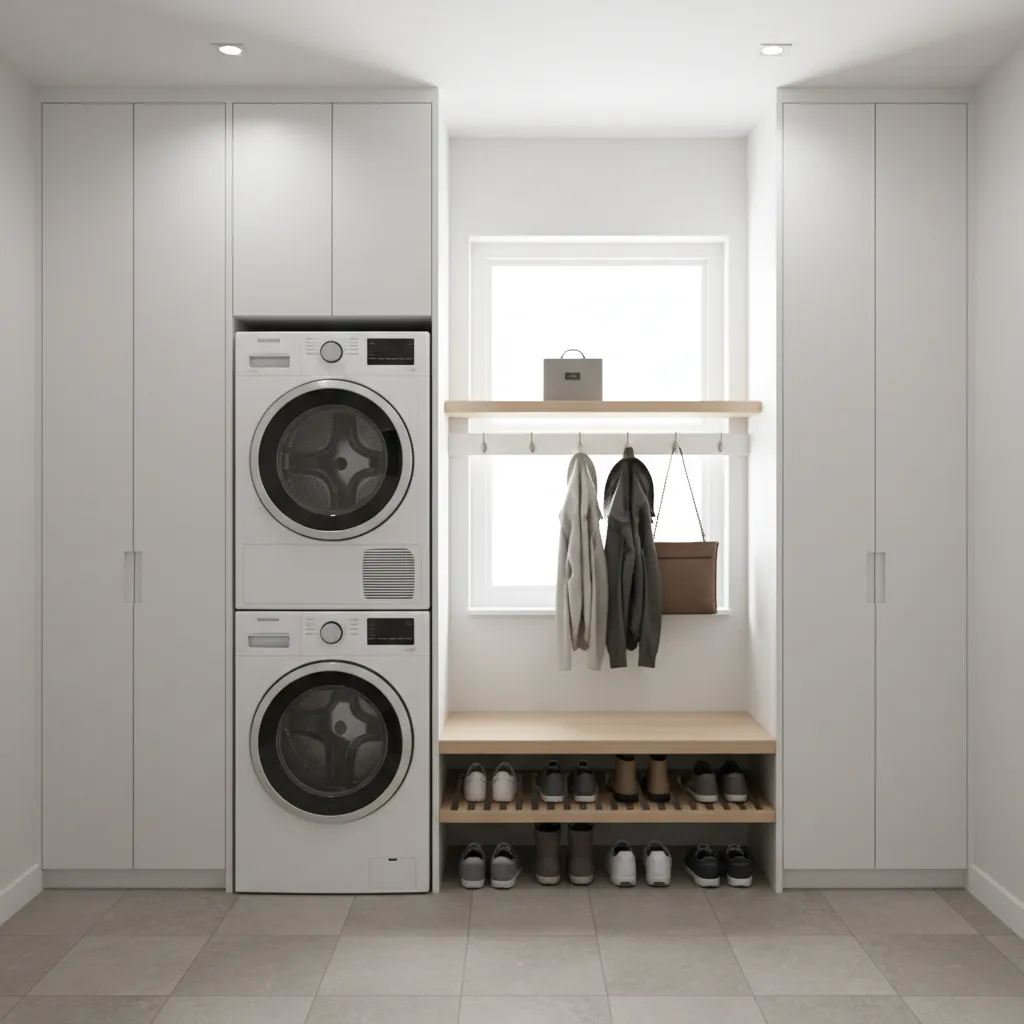

Key Insight: Small rooms work best when storage is layered vertically rather than spread horizontally.

In tight spaces under 80 square feet, designers rely heavily on vertical stacking.

Three layouts that consistently work:

1. Stacked laundry + tall cabinets
2. Washer‑dryer wall with overhead shelving
3. Bench with vertical lockers above

One overlooked trick: floating benches. They visually open the room and create hidden shoe storage underneath.

Many homeowners also preview layout concepts with realistic visuals before committing to construction using a photorealistic interior preview of laundry mudroom layouts.

save pin

Answer Box

The best laundry mudroom storage layout separates entry storage from laundry workflow while maximizing vertical space. Successful designs prioritize traffic flow, clearly defined storage categories, and adaptable storage systems.

Decision Checklist Before Installing Storage

Key Insight: The smartest layouts answer practical questions before construction begins.

Before installing cabinetry or shelving, confirm these design decisions:

1. Where will daily shoes accumulate?
2. Is there a clear folding surface for laundry?
3. Can two people move through the room simultaneously?
4. Are seasonal items stored separately?
5. Is vertical wall space fully used?

If a layout answers these questions clearly, the room will usually stay organized long term.

Final Summary

1. The best laundry mudroom layouts prioritize movement patterns.
2. Storage categories should be defined before designing cabinets.
3. Separate entry clutter from laundry work areas.
4. Vertical storage dramatically improves small mudroom efficiency.
5. Flexible storage prevents future layout problems.

FAQ

What is the best layout for a mudroom laundry combo?

A two‑zone layout works best: one wall dedicated to laundry appliances and folding space, and another for mudroom storage like hooks, benches, and shoe cubbies.

How do you design a laundry mudroom storage layout?

Start by listing storage categories—shoes, coats, bags, cleaning supplies—then map zones around traffic flow and appliance placement.

How much storage should a laundry mudroom have?

Most households need at least four storage types: shoe storage, coat storage, cleaning supply cabinets, and a folding counter area.

Are built‑ins better than shelving in mudrooms?

Built‑ins look cleaner and control clutter, but open shelving offers flexibility as household needs change.

What depth should mudroom cabinets be?

Most mudroom cabinets range from 15 to 24 inches deep depending on whether they store shoes, coats, or laundry supplies.

Can a small laundry room function as a mudroom?

Yes. Vertical storage, stacked appliances, and wall hooks allow even small laundry rooms to support mudroom functions.

How wide should a laundry mudroom walkway be?

Designers recommend at least 36 inches of walking clearance for comfortable movement.

What is the biggest mistake in laundry mudroom design?

Mixing drop zones with folding counters. Entry clutter quickly takes over the workspace.
