How to Decide the Exact Heat Pump Capacity for a 1000 Sq Ft House: A practical decision framework homeowners can use to estimate the right heat pump size without oversizing or wasting energy

Direct Answer

Most 1000 sq ft homes require a heat pump between 18,000 and 24,000 BTU (1.5–2 tons), but the exact capacity depends on climate zone, insulation quality, ceiling height, and air leakage. The most reliable way to decide is to combine a quick square‑foot estimate with adjustments for insulation, climate, and layout before confirming with a load calculation.

Quick Takeaways

1. Most 1000 sq ft homes need a 1.5–2 ton heat pump.
2. Climate zone can shift capacity requirements by 20–40%.
3. Poor insulation often causes undersized systems to fail in winter.
4. Oversizing a heat pump leads to short cycling and humidity problems.
5. A simplified load estimate helps narrow options before calling HVAC professionals.

Introduction

One of the most common questions homeowners ask during a renovation or HVAC replacement is: what size heat pump for a 1000 sq ft house actually works? After more than a decade working with residential layouts and mechanical planning, I've noticed the same pattern over and over again—many small homes get oversized systems simply because contractors rely on rough estimates.

The problem is that oversizing doesn't improve comfort. In fact, it usually makes the system cycle too frequently, wastes electricity, and reduces humidity control. On the other hand, undersizing leads to long runtimes and cold rooms in winter.

Before clients finalize mechanical plans, I often ask them to visualize their layout first using tools that help create a simple floor plan layout for accurate room sizing. Even a quick layout sketch dramatically improves capacity estimates.

In this guide, I'll walk through the exact decision process I use on small-home projects to estimate the right heat pump capacity for a 1000 sq ft house—step by step.

save pin

Understanding BTU and Tonnage for Heat Pumps

Key Insight: Heat pump capacity is measured in BTUs, but most HVAC equipment is sold in tons—where 1 ton equals 12,000 BTU per hour.

Many homeowners get confused because installers use "tons" while energy guides use BTUs. Both describe the same thing: how much heating or cooling the system can deliver.

Typical ranges for small homes:

1. 1 ton = 12,000 BTU
2. 1.5 ton = 18,000 BTU
3. 2 ton = 24,000 BTU
4. 2.5 ton = 30,000 BTU

For a 1000 sq ft home, most systems fall between 18,000 and 24,000 BTU depending on insulation and climate.

Common mistake: Many online calculators assume perfect insulation. Older homes built before modern codes often require 15–25% more capacity.

According to the U.S. Department of Energy, building envelope performance—insulation, windows, and air sealing—can change heating loads dramatically.

Climate Zone Impact on Heat Pump Size

Key Insight: Climate zone is often the single biggest factor affecting heat pump sizing.

A 1000 sq ft home in Arizona needs far less heating capacity than the same house in Minnesota. Cooling loads also vary depending on humidity levels.

General guideline used in early planning:

1. Warm climates: 18 BTU per sq ft
2. Moderate climates: 20 BTU per sq ft
3. Cold climates: 25–30 BTU per sq ft

Example estimate:

1. 1000 sq ft × 20 BTU = 20,000 BTU

This simple calculation already places most homes near a 1.5–2 ton system.

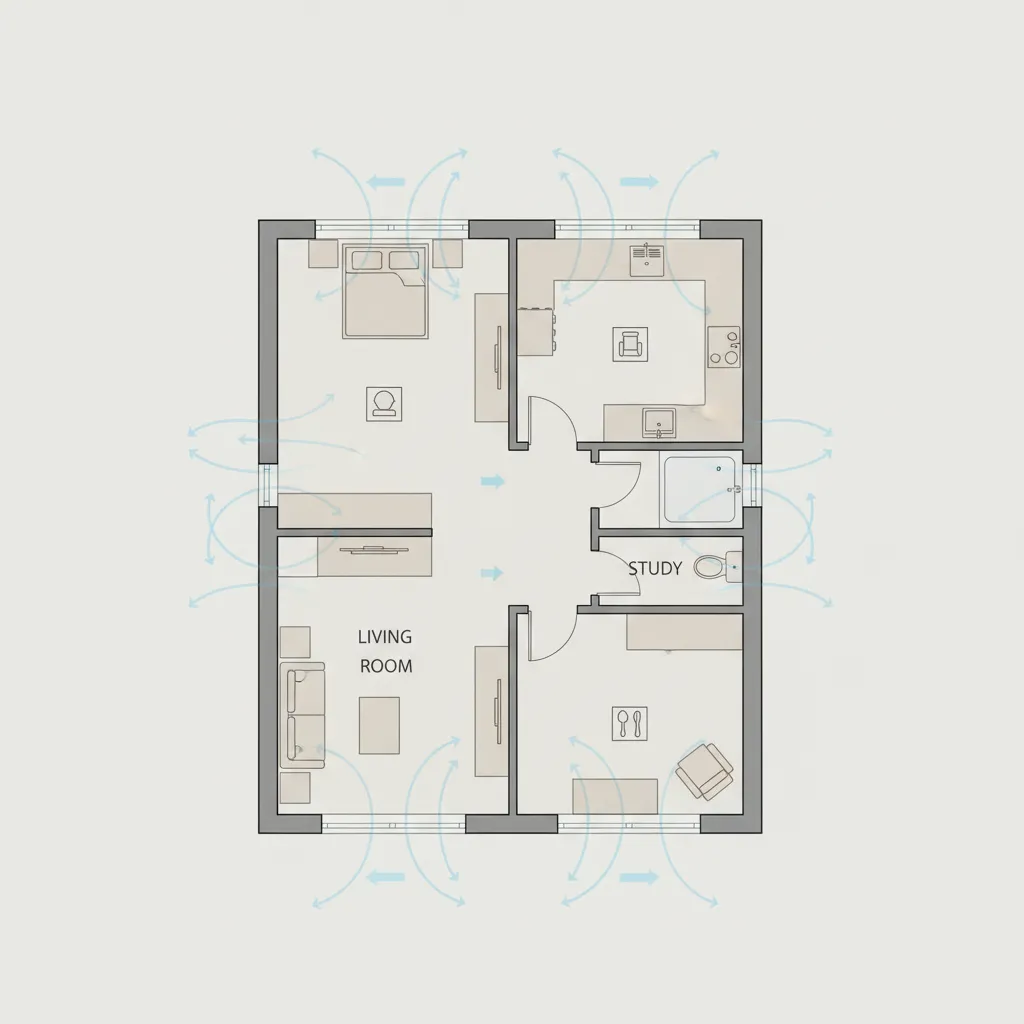

However, layout efficiency also affects heating loads. When planning renovations, I often recommend visualizing airflow paths and room arrangement using tools that help experiment with room layouts and airflow‑friendly space planning. A more open layout often distributes heat better and reduces capacity requirements.

save pin

Insulation and Ceiling Height Considerations

Key Insight: Heat pump sizing depends on the air volume of the home—not just square footage.

A 1000 sq ft home with 8‑foot ceilings behaves very differently from one with vaulted ceilings. Higher ceilings increase air volume and heating load.

Adjustments often used in preliminary estimates:

1. 8 ft ceilings → standard calculation
2. 9–10 ft ceilings → add 10% capacity
3. Vaulted ceilings → add 20% capacity

Insulation level also matters:

1. New construction → standard BTU estimate
2. Average insulation → add 10%
3. Poor insulation → add 20–30%

In older homes I’ve renovated, the hidden issue is usually air leakage around windows and attic hatches. Those losses rarely show up in quick calculators but significantly increase heating demand.

save pin

Step by Step Capacity Estimation Process

Key Insight: A simple five‑step estimate can narrow heat pump capacity before performing a full load calculation.

Here's the quick process I use in early project planning:

1. Start with square footage.
2. 1000 sq ft × 20 BTU = 20,000 BTU baseline.
3. Adjust for climate zone.
4. Cold regions may raise the estimate to 24,000–26,000 BTU.
5. Adjust for ceiling height.
6. Add 10–20% if ceilings exceed 9 ft.
7. Account for insulation quality.
8. Older homes often need an additional 10–20% capacity.
9. Choose the closest equipment size.
10. HVAC units come in standard increments (18k, 24k, etc.).

For many projects, the final result lands between:

1. 18,000 BTU (1.5 ton)
2. 24,000 BTU (2 ton)

If you're planning mechanical upgrades alongside remodeling, it also helps to visualize equipment placement early. Many homeowners use tools that preview HVAC layout within a full 3D home floor plan so ducts, airflow paths, and room placement can be considered together.

Answer Box

For most 1000 sq ft houses, the ideal heat pump capacity ranges from 18,000 to 24,000 BTU (1.5–2 tons). Climate, insulation, and ceiling height can shift this estimate by 10–30%, so final sizing should always be verified with a Manual J load calculation.

When to Consult an HVAC Professional

Key Insight: Rough estimates are helpful, but final system sizing should always use a Manual J load calculation.

Professional load calculations analyze:

1. Window orientation
2. Wall insulation
3. Air leakage
4. Solar heat gain
5. Local weather data

According to ACCA (Air Conditioning Contractors of America), Manual J calculations remain the industry standard for residential HVAC sizing.

If a contractor recommends equipment without performing a load calculation, that’s usually a warning sign.

Final Checklist for Choosing the Correct Size

Key Insight: The correct heat pump size balances efficiency, comfort, and runtime—not just maximum heating power.

Before selecting a system, confirm the following:

1. Climate zone adjustment applied
2. Ceiling height considered
3. Insulation level evaluated
4. Air leakage addressed
5. Manual J load calculation completed

In most real-world cases I've seen, homeowners who follow this process end up choosing a 1.5 or 2‑ton system—and avoid the oversizing problems that plague many small homes.

Final Summary

1. Most 1000 sq ft homes require 18,000–24,000 BTU heat pumps.
2. Climate zone significantly influences heating demand.
3. Ceiling height and insulation change load calculations.
4. Oversizing reduces efficiency and comfort.
5. Manual J calculations provide the most reliable sizing.

FAQ

What size heat pump for a 1000 sq ft house?

Most homes this size need a 1.5–2 ton heat pump (18,000–24,000 BTU), depending on climate and insulation.

How many BTUs for a 1000 sq ft house heat pump?

Typical estimates range from 18,000 to 24,000 BTU. Cold climates may require closer to 24,000 BTU.

Can a 1.5 ton heat pump heat a 1000 sq ft home?

Yes, in moderate climates with good insulation. Colder climates may require a 2‑ton system.

Is a 2 ton heat pump too big for 1000 sq ft?

Not necessarily. Many homes with average insulation and colder winters perform best with 2 tons.

What happens if a heat pump is oversized?

Oversized systems short cycle, waste energy, and struggle to control humidity.

Do ceiling heights affect heat pump sizing?

Yes. Higher ceilings increase air volume and heating demand.

Is a Manual J calculation necessary?

Yes. It’s the most accurate method for determining the correct heat pump capacity.

Are mini‑split heat pumps good for 1000 sq ft homes?

Yes. Many small homes use 18k–24k BTU mini‑split systems effectively.

References

1. U.S. Department of Energy – Heat Pump Systems
2. ACCA Manual J Residential Load Calculation Standard
3. ENERGY STAR Heat Pump Sizing Guidance
