How to Decide the Ideal Steam Room Size for Your Home Bathroom: A practical framework to choose the right home steam room size based on bathroom space, users, and installation limits.

Direct Answer

The ideal steam room size for a home bathroom usually ranges between 3×3 ft and 6×6 ft depending on how many people will use it and how much bathroom space is available. A single‑user steam room can be compact, while two‑person or family setups need larger seating and proper ventilation clearance. The key is balancing comfort, steam efficiency, and installation constraints.

Quick Takeaways

1. Most home steam rooms work best between 9–36 square feet.
2. A two person steam room typically needs at least 4×4 ft of interior space.
3. Oversized steam rooms often perform worse unless the steam generator is upgraded.
4. Bathroom layout often determines shape more than the ideal theoretical size.
5. Comfortable seating depth is usually the hidden factor that drives final dimensions.

Introduction

After working on dozens of residential spa bathrooms, one thing is clear: homeowners rarely struggle with the idea of installing a steam room. The real challenge is figuring out the right steam room size.

Some people assume bigger is automatically better. Others try squeezing a steam enclosure into whatever corner remains after placing the shower and vanity. Both approaches usually lead to problems — either weak steam performance or an uncomfortable interior.

The good news is that choosing the best steam room size for home bathrooms doesn't require complicated math. What you need is a decision framework that considers three real-world factors: bathroom layout, number of users, and installation limitations.

When planning spa-style bathrooms, I usually start by sketching layout scenarios with a visual room layout planning workflow for bathroom remodeling. Seeing how walls, benches, and door clearance interact quickly reveals whether a compact 3×4 layout works or if the room should expand to 5×5.

This guide walks through the same process I use when designing home steam rooms so you can confidently decide how big your steam room should be.

save pin

Factors That Determine the Ideal Home Steam Room Size

Key Insight: The ideal steam room size is determined more by heat efficiency and seating layout than by available bathroom space.

Most online guides focus only on square footage, but steam rooms behave differently than regular showers. Steam must circulate evenly, and interior surfaces must retain heat. When the enclosure becomes too large for the generator capacity, steam thins out quickly.

In residential design, I typically evaluate four sizing factors:

1. Steam generator capacity – Larger rooms require more powerful units.
2. Bench seating layout – Comfortable seating requires 16–20 inches of depth.
3. Ceiling height – Lower ceilings (around 7 ft) improve steam retention.
4. Door and ventilation clearance – Required for safe installation.

Industry installation guides from major steam system manufacturers consistently recommend keeping residential steam rooms under about 45 cubic feet unless generator output increases significantly.

This is why a well-designed 4×4 steam room often performs better than an oversized 6×6 enclosure with the same steam unit.

Matching Steam Room Size to Bathroom Layout

Key Insight: Bathroom layout constraints usually determine steam room shape before final dimensions are decided.

Most home steam rooms are integrated into an existing shower area. Because of that, the shape is often rectangular rather than square.

Common layout-driven steam room sizes include:

1. 3×3 ft – compact single-user steam shower
2. 3×4 ft – small bathroom steam upgrade
3. 4×4 ft – comfortable two-person steam enclosure
4. 4×5 ft – rectangular bench seating layout
5. 5×6 ft – luxury spa-style steam room

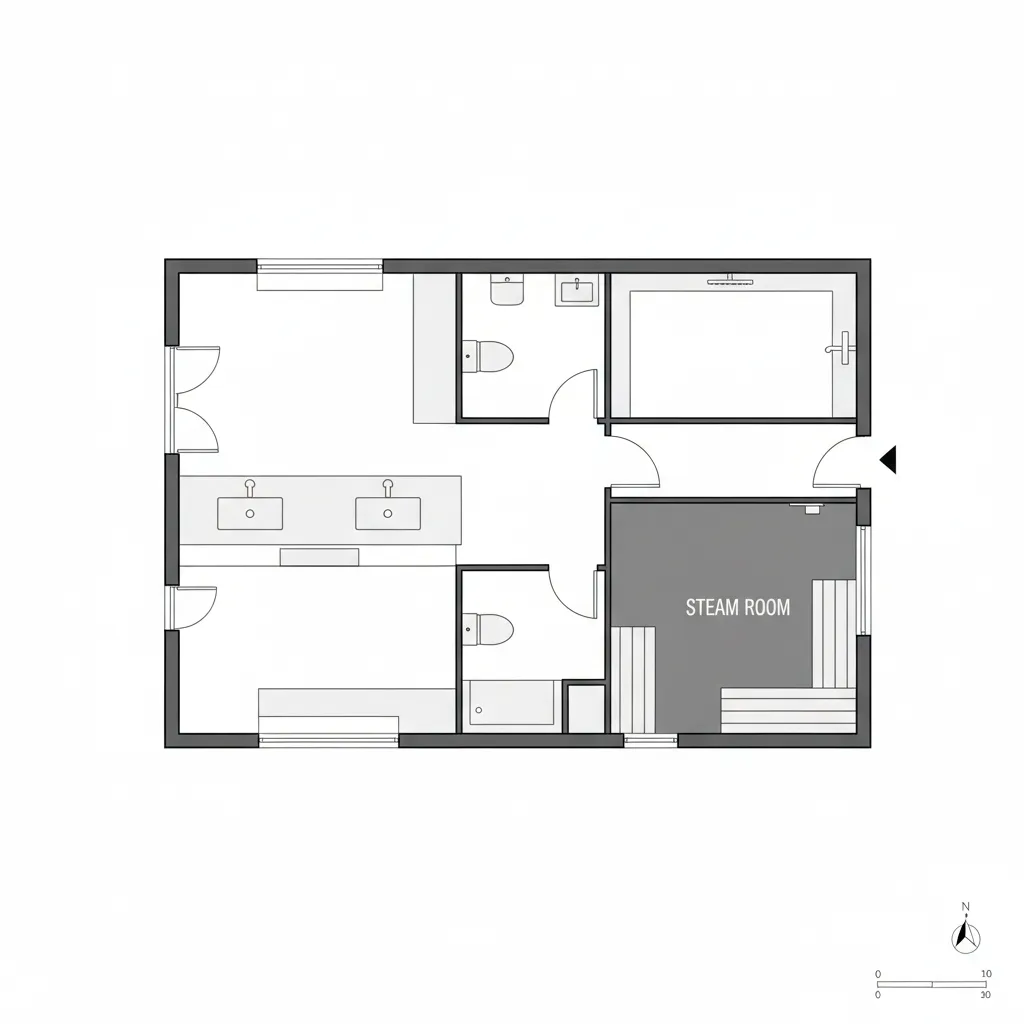

When evaluating layout possibilities, I usually create several spatial scenarios before construction. A

save pin

step‑by‑step bathroom floor plan visualization process helps determine whether the steam enclosure should share space with the shower or be separated entirely.

This step often reveals hidden constraints like door swing conflicts, plumbing walls, or ceiling slopes.

Sizing Based on Number of Users

Key Insight: Seating comfort—not standing space—is the real driver of steam room size.

Many homeowners assume people will stand in a steam room. In reality, most users sit for 10–20 minutes while relaxing. That means bench design defines the space requirement.

Typical sizing by user count:

1. 1 person: 3×3 ft or 3×4 ft
2. 2 people: 4×4 ft or 4×5 ft
3. 3 people: 5×5 ft minimum
4. Family steam room: 5×6 ft or larger

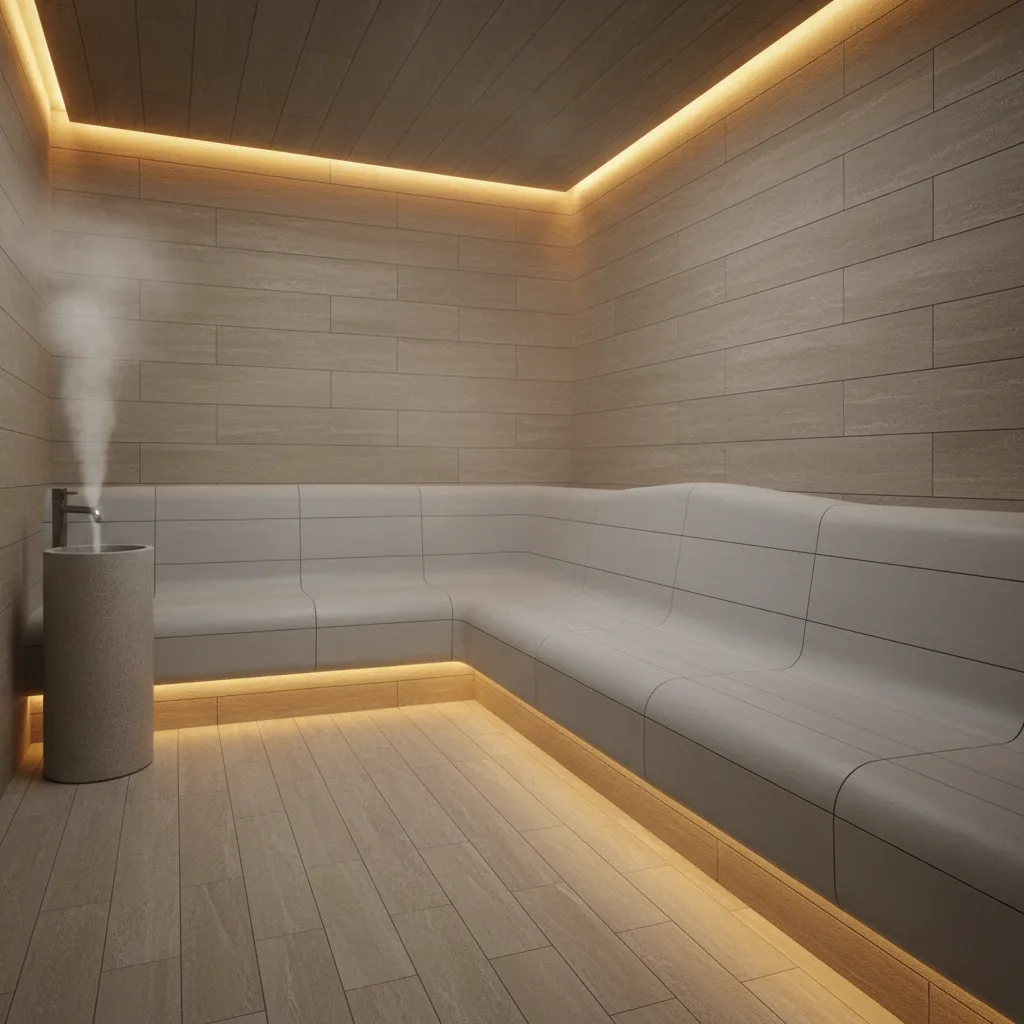

A comfortable steam bench usually needs:

1. 16–20 inch seating depth
2. 18 inch seating height
3. Back support slope

In smaller bathrooms, a corner bench configuration can save significant space while still supporting two users.

save pin

Answer Box

The best steam room size for a home bathroom balances three things: seating comfort, steam generator capacity, and bathroom layout constraints. For most households, a 4×4 ft steam room offers the best mix of comfort, efficiency, and installation flexibility.

Space Requirements for Built In vs Modular Steam Rooms

Key Insight: Modular steam units often require more surrounding clearance than custom built-in steam rooms.

Homeowners sometimes assume prefabricated steam cabins save space. In practice, built‑in steam showers are usually easier to fit inside existing bathrooms.

Key differences:

1. Built‑in steam roomsFlexible sizing
2. Integrated into tile shower
3. Better use of irregular bathroom shapes
4. Modular steam cabinsFixed dimensions
5. Faster installation
6. Often require extra service clearance

In renovation projects, custom enclosures almost always allow better optimization of tight bathroom spaces.

Balancing Comfort and Installation Constraints

Key Insight: The most common design mistake is prioritizing maximum size instead of optimal steam performance.

I have seen many homeowners push for larger steam rooms only to realize later that the steam generator struggles to keep up.

Typical installation constraints include:

1. Steam generator capacity
2. Wall insulation and waterproofing
3. Door sealing and ventilation
4. Ceiling slope to prevent drip condensation

Visualizing the finished environment also matters. A photorealistic home spa rendering workflow before construction helps homeowners confirm that seating, lighting, and tile materials will feel comfortable before committing to final dimensions.

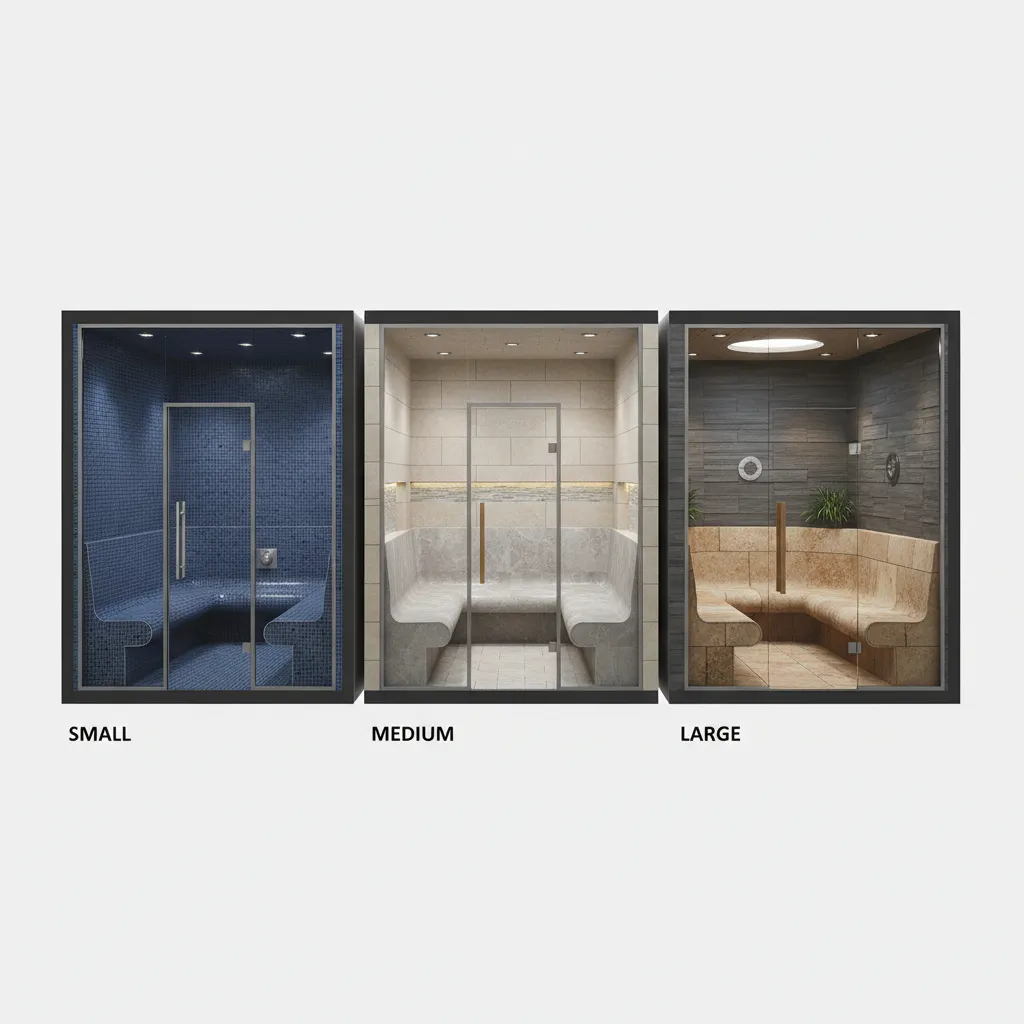

Example Steam Room Size Scenarios for Homes

Key Insight: Real residential projects typically fall into three practical steam room size categories.

Based on residential installations I’ve worked on, most home steam rooms fall into these three size groups:

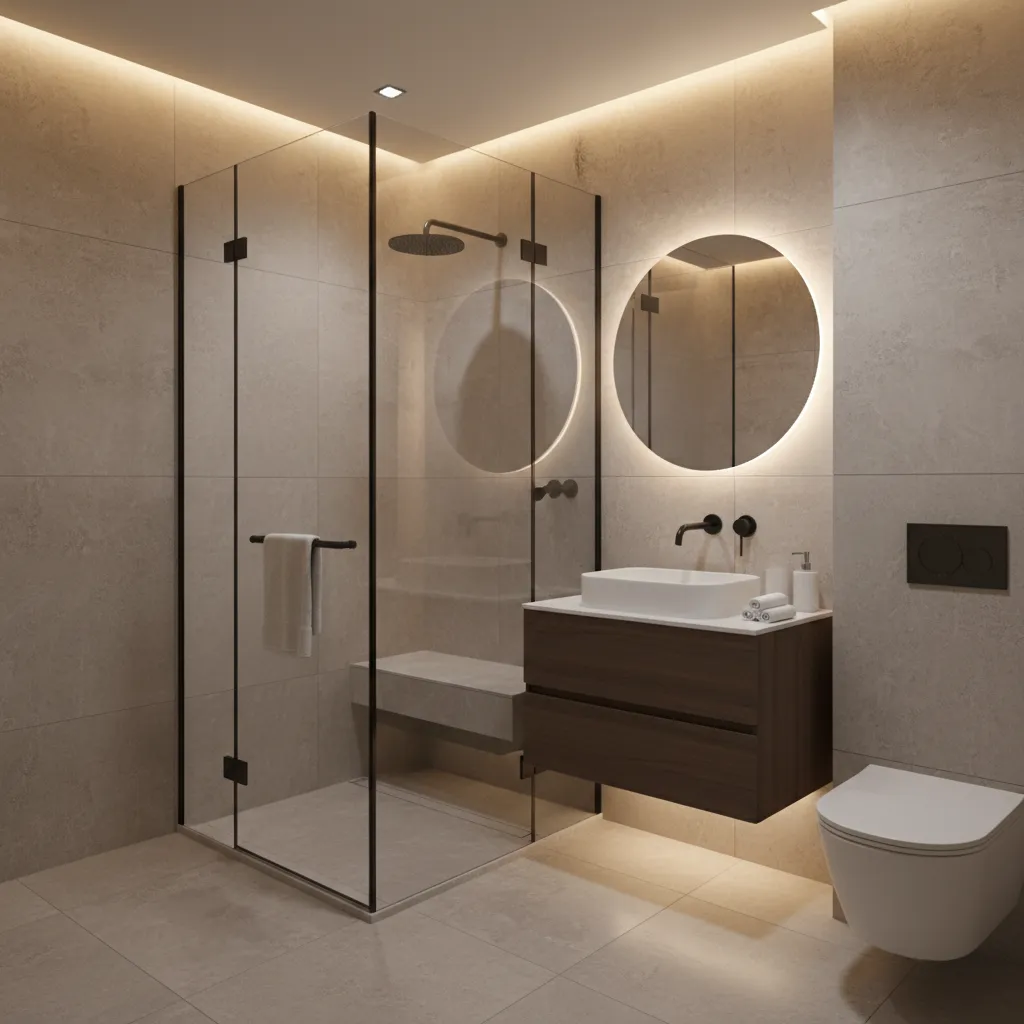

1. Compact steam shower
2. Size: 3×3 or 3×4 ft
3. Best for small bathrooms or condos.
4. Standard home steam room
5. Size: 4×4 or 4×5 ft
6. Best balance of comfort and performance.
7. Luxury spa steam room
8. Size: 5×6 ft or larger
9. Requires stronger steam generator and larger bathrooms.

For most homes, the middle category delivers the best experience without unnecessary installation complexity.

save pin

Final Summary

1. The best steam room size for home bathrooms usually ranges from 9–36 square feet.
2. Two-person steam rooms typically need about 4×4 feet of interior space.
3. Bench seating dimensions often determine the final steam room size.
4. Oversizing a steam room can reduce steam performance.
5. Bathroom layout constraints frequently dictate enclosure shape.

FAQ

How big should a home steam room be?

Most home steam rooms range from 3×3 ft to 6×6 ft. A 4×4 ft layout is often considered the best steam room size for home use.

What is the ideal two person steam room size?

A typical two person steam room measures around 4×4 ft or 4×5 ft, allowing comfortable bench seating for both users.

Can a small bathroom fit a steam room?

Yes. A steam room size for small bathroom installations can be as compact as 3×3 ft when integrated with a shower enclosure.

Does a bigger steam room require a stronger generator?

Yes. Steam generator capacity must match the cubic volume of the room. Larger rooms require higher output systems.

Is ceiling height important for steam rooms?

Yes. Lower ceilings (around 7 ft) help retain steam and maintain consistent temperature.

What is the minimum steam room size?

The minimum practical size is typically around 3×3 ft, suitable for a single seated user.

Can a steam room replace a regular shower?

Yes. Many home installations combine a steam enclosure with a standard shower.

How much space is needed for a home steam room?

Home steam room space requirements usually range between 9 and 36 square feet depending on users and layout.

References

1. Tile Council of North America – Steam Room Installation Guidelines
2. American Society of Heating, Refrigerating and Air‑Conditioning Engineers (ASHRAE)
3. Residential Spa Bathroom Design Standards
