How to Decide the Right Electrical Layout for Different Building Types: A practical framework designers use to match electrical planning with building size, function, and long term technology needs

Direct Answer

The right electrical layout depends on three core variables: building size, functional zones, and future power demand. Small residential buildings typically benefit from centralized panels and moderate outlet density, while large commercial or mixed-use buildings require distributed electrical panels, higher circuit segmentation, and infrastructure designed for expansion.

Choosing correctly means aligning electrical distribution strategy with how people actually use the building—not just its floor area.

Quick Takeaways

1. Electrical layouts must match building function, not just square footage.
2. Centralized panels work best for small homes and simple floor plans.
3. Large buildings usually require distributed electrical distribution.
4. Outlet density should reflect real activity zones and equipment loads.
5. Future expansion planning prevents expensive rewiring later.

Introduction

One of the most common mistakes I see in early building design is treating the electrical layout as something that can be finalized after the architectural plan is complete. In reality, electrical planning decisions often shape how a building functions day to day.

Over the past decade working on residential renovations, office interiors, and mixed‑use developments, I've learned that the right electrical layout is rarely about adding more outlets or bigger panels. It's about distributing power intelligently across the building.

Designers who map circulation, lighting zones, and equipment early almost always end up with cleaner electrical plans. If you're still shaping the layout phase, using a visual planning tool like this guide for creating a detailed building layout before electrical planning beginscan make electrical decisions dramatically easier.

In this guide I'll walk through how professionals evaluate electrical distribution strategies based on building size, functional zones, and long‑term technology requirements. The goal is simple: help you decide which layout approach actually works for your building type.

save pin

Factors That Influence Electrical Layout Decisions

Key Insight: Electrical layouts are driven more by usage patterns than by building size alone.

Two buildings with the same square footage can require completely different electrical distribution strategies. A residential loft, a restaurant, and a small office floor may all be 3,000 square feet—but their power loads behave very differently.

From my project experience, the following factors almost always determine the correct electrical approach:

1. Function of each space (kitchens, server rooms, workshops, living areas)
2. Peak simultaneous power demand
3. Equipment density
4. Operational hours
5. Safety and redundancy requirements

For example, restaurants often require multiple dedicated circuits for refrigeration, cooking equipment, and ventilation systems. Meanwhile, residential homes prioritize distributed lighting and outlet accessibility rather than heavy equipment loads.

The National Electrical Code (NEC) also influences layout decisions by defining minimum circuit requirements for kitchens, bathrooms, and commercial equipment zones.

Understanding Building Size and Power Demand

Key Insight: Larger buildings require layered electrical distribution rather than a single main panel.

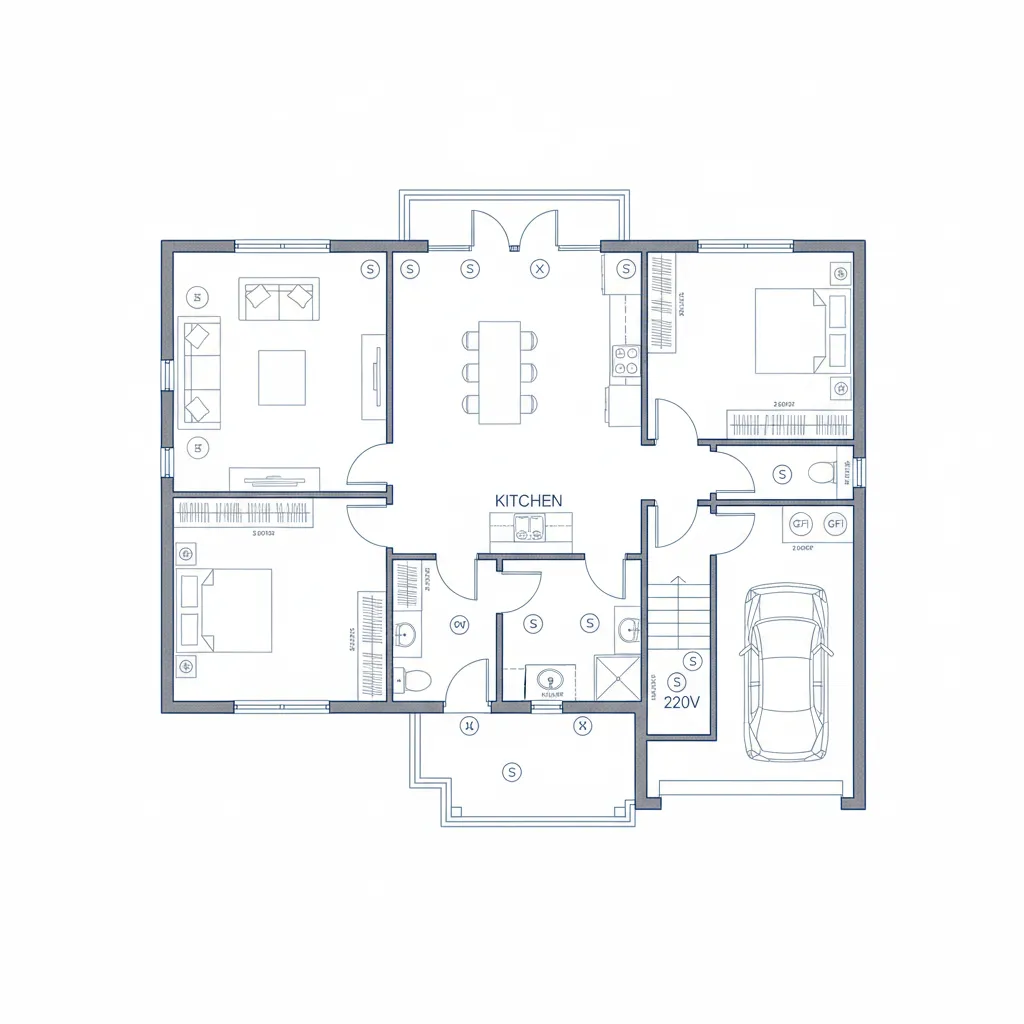

In small homes under 2,000 square feet, a single centralized panel can often manage the entire electrical system efficiently. However, once buildings grow larger or include multiple floors, relying on one central distribution point quickly becomes inefficient.

Typical power planning differences look like this:

1. Small residential homes
2. Single main panel with branch circuits.
3. Large homes or villas
4. Main panel plus subpanels for floors or wings.
5. Commercial buildings
6. Main service distribution feeding multiple electrical rooms.
7. Office floors
8. Distributed panels supporting localized work zones.

A practical rule many electrical engineers use is the "distance efficiency principle": when cable runs become long enough to increase voltage drop or installation complexity, it's time to introduce additional panels.

save pin

Choosing Between Centralized and Distributed Panels

Key Insight: Distributed panels improve efficiency, safety, and maintenance in medium to large buildings.

Centralized electrical systems are simpler and cheaper to install, but they don't scale well as buildings become larger or more complex.

Here's how the two strategies compare:

1. Centralized PanelsLower installation cost
2. Simpler maintenance
3. Best for compact residential layouts
4. Distributed PanelsShorter cable runs
5. Reduced voltage drop
6. Easier maintenance by zone
7. Better load balancing

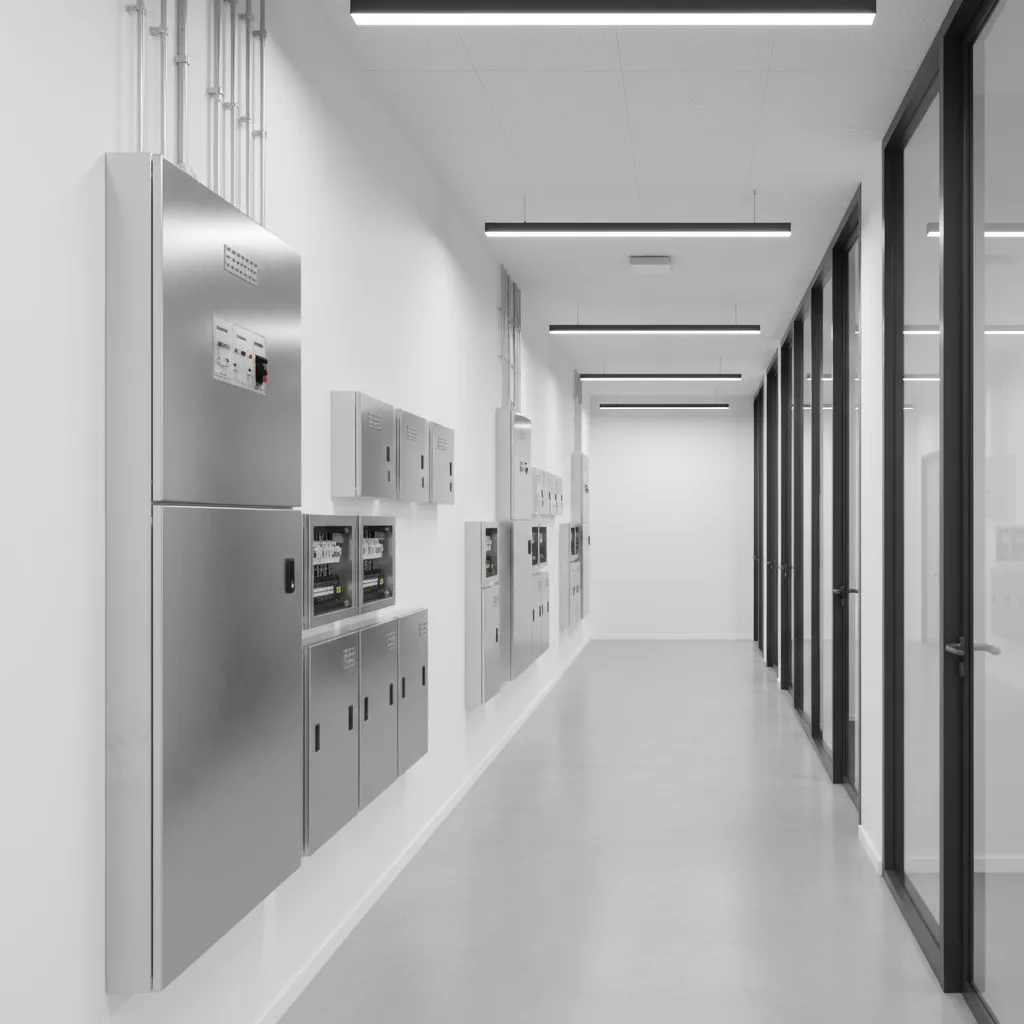

In many modern office projects, designers now place electrical panels near functional clusters like workstations, meeting rooms, or equipment areas.

When teams are mapping zones early, planners often use layout visualization tools like this workflow for mapping functional zones across an office floor plan, which makes electrical distribution decisions much more logical.

Planning Lighting and Outlet Density

Key Insight: The biggest hidden electrical mistake is underestimating outlet and lighting demand.

Minimal outlet planning may pass inspection, but it rarely matches real usage patterns. I've seen countless residential and office spaces where extension cords appeared everywhere within months of occupancy.

Instead of relying solely on code minimums, designers typically plan outlet density around activities.

Typical planning guidelines include:

1. Residential living rooms
2. Outlets every 6–10 feet along walls.
3. Kitchens
4. Dedicated circuits for appliances and countertop outlets.
5. Office workstations
6. Power and data at each desk cluster.
7. Retail environments
8. Floor outlets for flexible display layouts.

Lighting also changes dramatically depending on ceiling height and room function. Restaurants and retail spaces often use layered lighting systems, while homes rely more on ambient plus task lighting.

save pin

Answer Box

The correct electrical layout strategy depends on building function, spatial zones, and projected power demand. Small homes favor centralized panels, while large or commercial buildings benefit from distributed electrical systems designed for flexibility and expansion.

Considering Future Expansion and Technology Needs

Key Insight: Electrical systems should be designed for the building's next decade, not just its opening day.

Technology adoption is accelerating inside buildings—EV chargers, smart systems, advanced HVAC equipment, and server infrastructure are becoming common even in residential projects.

Future‑ready electrical planning typically includes:

1. Spare breaker capacity in main panels
2. Conduit pathways for additional wiring
3. Dedicated circuits for future equipment
4. Flexible distribution panels

I've worked on multiple renovation projects where the electrical system became the most expensive upgrade simply because expansion was never considered during the original design.

Checklist for Selecting the Right Electrical Layout Strategy

Key Insight: A structured checklist prevents costly redesigns later in the construction process.

Before finalizing an electrical layout, professional planners usually review a few key questions:

1. What are the highest‑demand electrical zones?
2. Will equipment loads increase over time?
3. Are cable runs becoming too long from the main panel?
4. Do certain areas require dedicated circuits?
5. Will the building require future technology upgrades?

Mapping these decisions visually helps reveal conflicts early. Many teams start with a spatial planning draft such as this method for generating a quick floor plan layout before electrical routing begins, then layer electrical systems onto that structure.

save pin

Final Summary

1. Electrical layouts must align with building usage patterns.
2. Large buildings benefit from distributed electrical panels.
3. Outlet density should reflect real activity zones.
4. Future technology demand must influence electrical planning.
5. Early spatial planning simplifies electrical system design.

FAQ

1. What is the best electrical layout for large buildings?

Large buildings typically require distributed panels and zoned circuits to reduce cable length, improve load balance, and simplify maintenance.

2. How do you choose electrical layout design for a house?

Residential layouts usually start with a centralized main panel and dedicated circuits for kitchens, bathrooms, and HVAC systems.

3. Why do commercial buildings use multiple electrical panels?

Multiple panels reduce voltage drop, shorten cable runs, and allow electrical maintenance without shutting down the entire building.

4. What affects electrical planning for different building types?

Key factors include building size, equipment load, occupancy patterns, and safety requirements.

5. How many outlets should a room have?

Most building codes recommend outlets every 6–12 feet, but real usage often requires higher density.

6. Can electrical systems be expanded later?

Yes, but expansion becomes expensive if conduit pathways and spare panel capacity weren't planned initially.

7. What is electrical distribution planning?

Electrical distribution planning determines how power flows from the main supply to circuits across a building.

8. Why is electrical layout important in building design?

A well‑planned electrical layout improves safety, supports equipment loads, and reduces long‑term upgrade costs.
