How to Decide Where to Cut a 3D Model for Printing or Assembly: Practical ways to choose smart split points so large or complex 3D prints assemble cleanly and stay structurally strong

Direct Answer

The best place to cut a 3D model for printing is usually along natural boundaries, flat surfaces, or hidden seams where structural stress is low and assembly alignment is easy. Good cut locations also respect printer build volume and allow for strong connectors such as pegs, pins, or dovetails.

In practice, experienced designers evaluate visibility, strength, print orientation, and assembly method before deciding where to split a model.

Quick Takeaways

1. Cut models along natural edges, flat surfaces, or design transitions whenever possible.
2. Avoid splitting through thin structures or load‑bearing sections.
3. Plan alignment features before making the cut.
4. Reducing visible seams usually improves final print quality.
5. Test your cut plan digitally before exporting the final parts.

Introduction

Deciding where to cut a 3D model for printing is one of those steps beginners often underestimate. I’ve seen beautifully designed models fail simply because the split happened in the wrong place. Parts warped, seams became obvious, or the assembled structure was weaker than expected.

After working on many production visualization and modeling projects, I’ve learned that model segmentation is less about software tools and more about planning. The right cut location determines how clean the final assembly looks and how easy the parts are to print.

Before touching the model itself, it helps to think about the final object: how large it is, where viewers will see it, and how it will be assembled. That same type of spatial planning is used when designers map layouts for entire environments—for example when exploring visualizing complete interior layouts before construction begins. The principle is identical: decisions made at the planning stage prevent expensive fixes later.

In this guide I’ll walk through the practical thinking process professionals use to determine smart split points—especially when working with large models, detailed sculptures, or mechanical assemblies.

save pin

Key Factors That Determine Where to Cut a 3D Model

Key Insight: The best cut locations balance four variables simultaneously: visibility, structural strength, assembly method, and printer constraints.

Many tutorials focus only on printer size limits. In reality, experienced modelers evaluate multiple constraints at once before deciding how to segment a model.

The four most important factors are:

1. Visibility: seams should fall in hidden or less noticeable areas.
2. Strength: avoid cutting through thin or load‑bearing sections.
3. Print orientation: the split should allow optimal printing angles.
4. Assembly logic: pieces must align easily and consistently.

A common mistake is cutting exactly at the model’s midpoint. While it seems logical, it often places seams in the most visible areas and weakens structural geometry.

Instead, look for natural design boundaries such as clothing seams on figurines, architectural panel lines, or mechanical joints.

Balancing Print Size Limits and Part Count

Key Insight: Splitting into too many parts solves printer size limits but increases alignment complexity and visible seams.

Most desktop printers have limited build volumes, which is why large models require segmentation. But dividing a model into the minimum number of parts is usually better for assembly and strength.

Here’s a practical decision framework I often use:

1. If the model barely exceeds build volume → split into two major sections.
2. If orientation improves quality → consider three strategic sections.
3. If the model is extremely large → modular sections with structural connectors.

Every additional seam introduces three new problems:

1. alignment difficulty
2. glue surface preparation
3. post‑processing work

In many real projects, reducing the number of parts by even one cut significantly improves assembly reliability.

Hiding Seams in Less Visible Areas

Key Insight: The best split lines often follow natural geometry that visually disguises the seam.

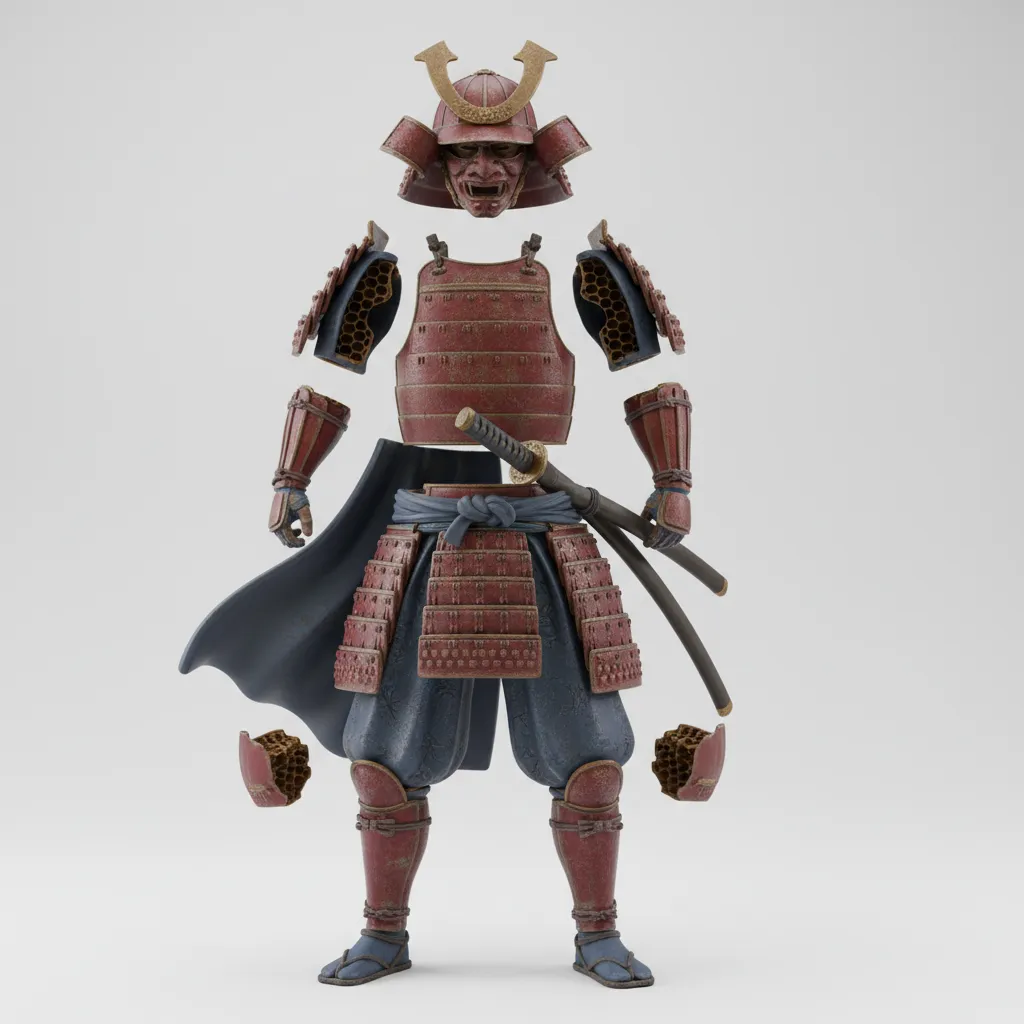

Professional prop makers and miniature designers rarely place cuts across open surfaces. Instead, they align them with existing geometry.

Good seam locations include:

1. along panel edges
2. along clothing folds
3. under bases or platforms
4. behind structural elements
5. along sharp corners

Bad seam locations include:

1. across smooth curved surfaces
2. through facial features or detailed areas
3. across thin structural parts

Visual concealment dramatically reduces post‑processing work such as sanding and filler.

save pin

Planning Mechanical Connections Between Parts

Key Insight: A good cut line is useless without a reliable alignment system.

One hidden mistake I frequently see is designers choosing split locations first and only later thinking about connectors. In reality, connectors should influence the cut placement from the beginning.

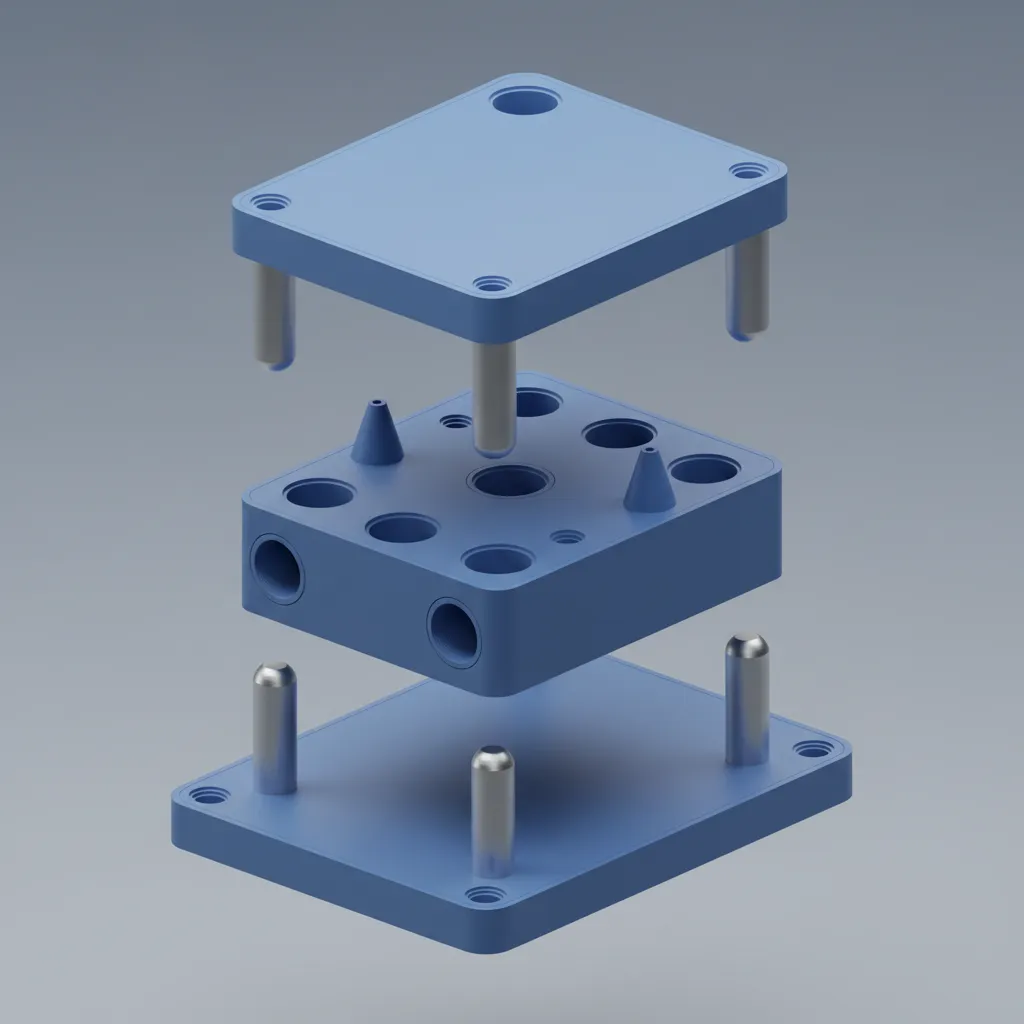

Common connection methods include:

1. Alignment pins – simple cylindrical connectors
2. Dovetail joints – strong mechanical locks
3. Flat glue surfaces – easiest but weakest
4. Magnet sockets – useful for removable parts

For large prints, I often combine flat glue seams with internal pins. This prevents sliding during assembly.

When planning connections, thinking spatially helps. The same spatial logic used in mapping room structure with a 3D floor planning workflowalso applies to designing how model parts interact and align.

save pin

Avoiding Weak Points and Structural Stress Areas

Key Insight: Never place a cut where the final object experiences the most mechanical stress.

This is where many segmentation guides fall short. They focus on visual appearance but ignore structural forces.

Weak cut locations often occur in:

1. thin limbs on figurines
2. load‑bearing arches
3. narrow connection necks
4. long unsupported spans

Instead, try cutting where geometry naturally thickens. Thicker sections provide more bonding area and better alignment stability.

Professional prop designers often reinforce seams with:

1. internal rods
2. hidden pins
3. expanded bonding surfaces

This dramatically improves durability, especially for large display pieces.

Answer Box

The smartest way to decide where to cut a 3D model is to combine three priorities: hide the seam, protect structural strength, and simplify assembly alignment. Cuts that follow natural geometry usually produce the best results.

Testing Cut Strategies Before Final Export

Key Insight: Testing segmentation digitally prevents costly printing mistakes.

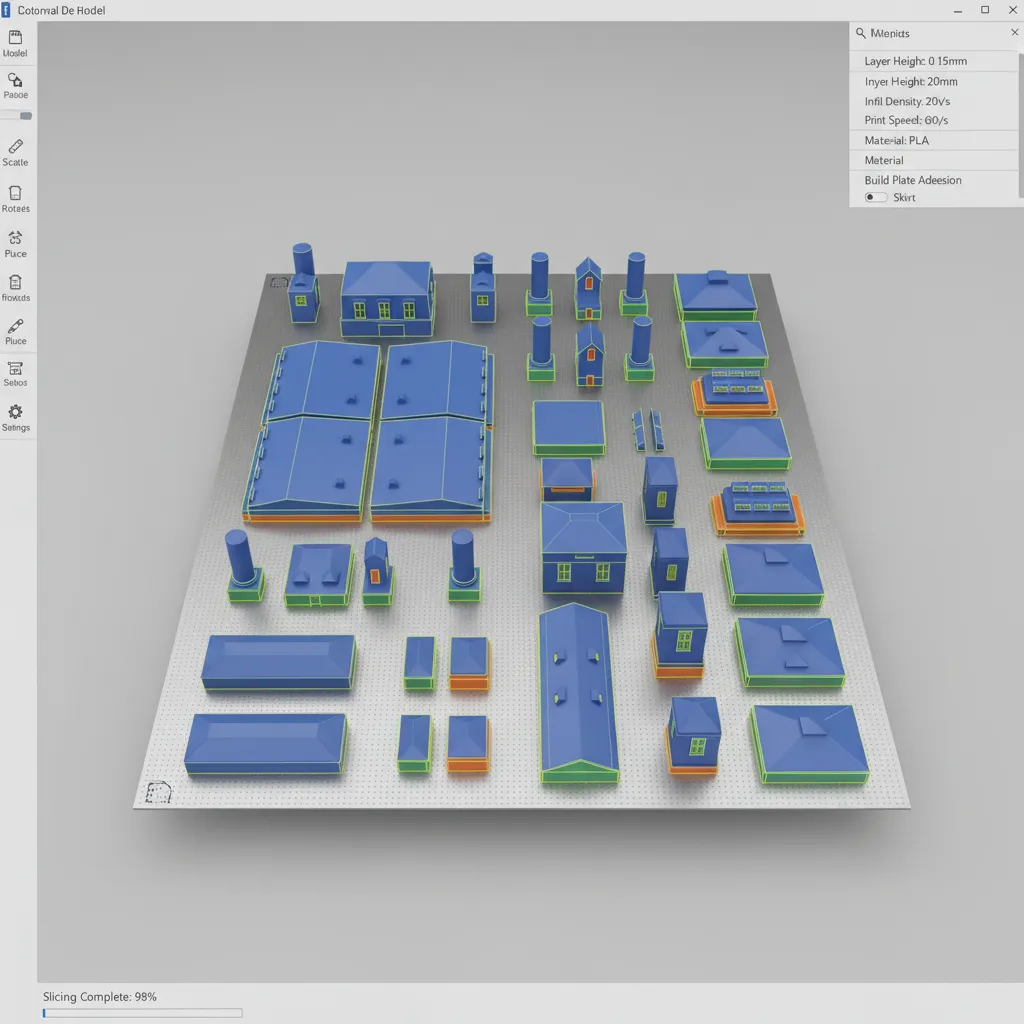

Before exporting parts for printing, always simulate the cut and inspect each section individually.

Checklist before committing to the split:

1. Confirm each piece fits the printer build volume.
2. Check wall thickness around cut areas.
3. Ensure connectors are printable.
4. Preview assembly alignment.
5. Verify there are no floating geometry artifacts.

Visual planning tools are useful here. Some designers prototype structural layouts the same way they preview architectural environments using high‑quality spatial render previews before building.

Testing virtually takes minutes but can save hours of reprinting.

save pin

Final Summary

1. Choose split lines along natural edges or hidden geometry.
2. Avoid cutting through thin or load‑bearing structures.
3. Plan alignment connectors before making the cut.
4. Minimize the total number of parts when possible.
5. Always test segmentation digitally before exporting.

FAQ

Where should I cut a 3D model for printing?

Cut along natural edges, flat surfaces, or hidden seams where assembly is easier and structural stress is low.

What is the best place to divide a 3D model?

The best places to divide a 3D model are thick structural areas, panel lines, or natural boundaries where seams can be hidden.

How do you decide split points in STL models?

Check printer size limits, seam visibility, connection type, and structural strength before selecting split locations.

Can splitting a model weaken the final print?

Yes. Cutting through thin areas or load‑bearing sections can significantly reduce strength.

How many pieces should a large model be split into?

As few as possible while still fitting the printer build volume and maintaining good print orientation.

Do I need connectors when splitting models?

Most assemblies benefit from connectors such as pins, dovetails, or alignment keys to improve positioning and strength.

What tools help plan where to cut a 3D model for printing?

Mesh editing tools, CAD programs, and slicing software can preview cuts and help test segmentation strategies.

What is a good 3D print model segmentation strategy?

Follow natural geometry, minimize seams, reinforce connections, and test the assembly digitally before printing.
