How to Decide Where to Split a 3D Model: A practical guide to choosing the safest and most efficient cut locations before separating a mesh

Direct Answer

The best place to split a 3D model is along natural boundaries in the geometry—areas where parts already separate visually or structurally. Good cut locations follow topology flow, avoid load‑bearing areas, and simplify assembly or printing. Planning the split before editing prevents weak seams, geometry errors, and unnecessary cleanup.

Quick Takeaways

1. Split models along natural seams, panel lines, or component boundaries whenever possible.
2. Avoid cutting through areas that carry structural stress or complex curvature.
3. Topology flow determines how clean and repairable the cut will be.
4. Planning the split early saves hours of mesh repair later.
5. Always preview cuts using visualization tools before committing.

Introduction

Deciding where to split a 3D model is one of those steps that seems trivial—until it causes major problems later. In more than a decade of working with architectural visualization models and complex interior assets, I’ve seen projects lose hours because someone rushed a cut in the wrong place.

A poorly planned split can create weak structural areas, visible seams in renders, or messy topology that becomes difficult to repair. On the other hand, a well‑planned cut feels almost invisible in the final result. The geometry remains clean, assembly becomes easier, and rendering workflows stay predictable.

When teams are designing spatial layouts or preparing large scenes—especially when using tools for visualizing complex interior layouts in 3D—model segmentation often becomes necessary for optimization, collaboration, or printing.

In this guide, I’ll walk through the decision framework I use before splitting any mesh. These principles come directly from production workflows where mistakes are expensive and efficiency matters.

save pin

Why Planning a Model Split Matters

Key Insight: The location of a mesh split directly determines how stable, editable, and visually seamless the final model will be.

Many beginners treat model splitting as a purely technical operation—select faces, run a cut tool, and separate. In practice, the decision is closer to architectural planning than editing. You're defining future boundaries in the model.

Three problems appear frequently when splits are poorly planned:

1. Visible seams in renders – lighting exaggerates tiny geometry differences.
2. Broken topology – uneven edge loops complicate later edits.
3. Structural weakness – critical in 3D printing or modular assembly.

From experience, the biggest hidden cost is repair time. Fixing topology after a bad cut can easily take 3–5 times longer than planning the split correctly from the start.

Large production studios follow a simple rule: plan segmentation before editing begins. It’s the same principle used in architectural modeling and scene planning workflows.

Identifying Natural Separation Points

Key Insight: The safest place to split a model is where the design already suggests a boundary.

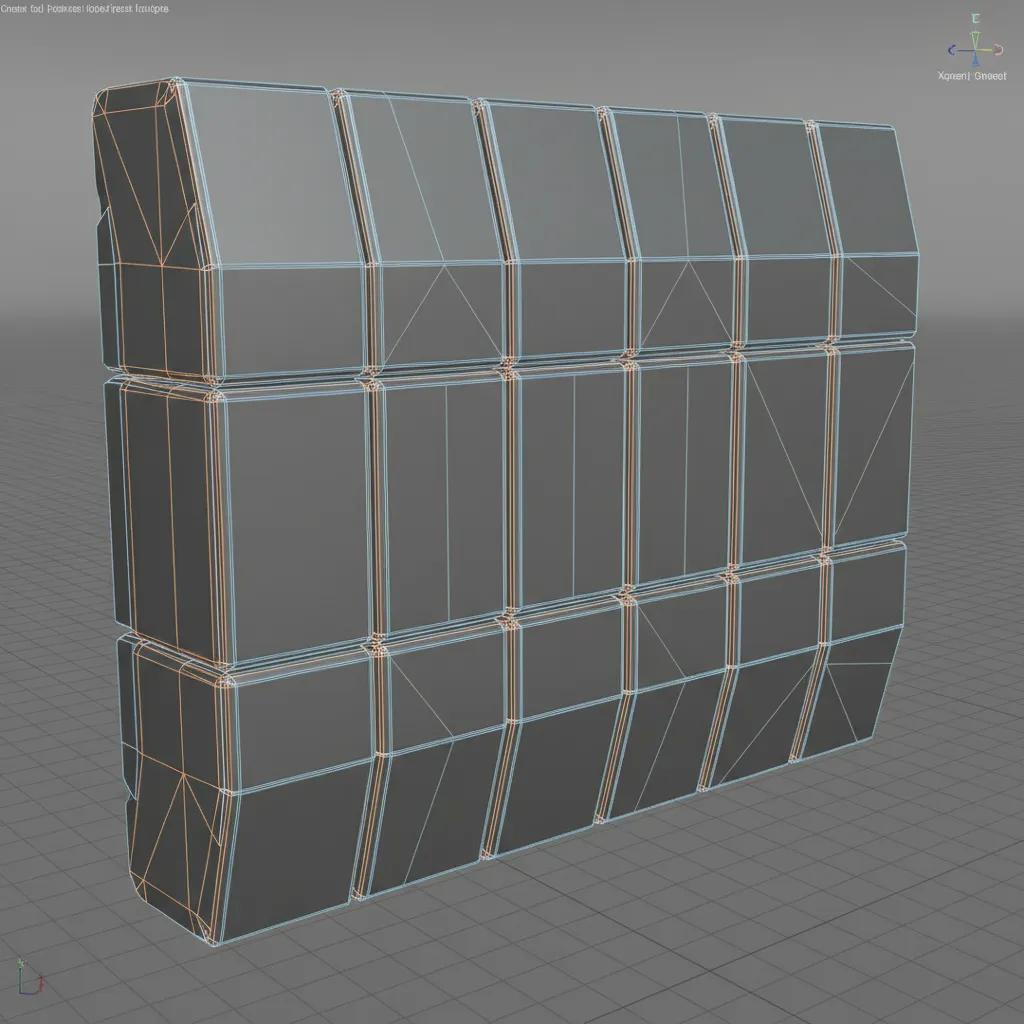

In real objects and environments, parts rarely exist as one continuous surface. Panels, components, and joints create natural seams. Splitting along these boundaries keeps the model believable and easier to edit.

Common natural separation points include:

1. Panel seams
2. Material changes
3. Mechanical joints
4. Edge bevel transitions
5. Component intersections

For example, when separating architectural models, walls, floors, and furniture pieces already define logical boundaries. The same principle applies when working with tools designed for creating editable room layouts from floor plans—each room or structural element naturally becomes a segmentation candidate.

A useful trick I teach junior designers is simple: zoom out and look at the object as if it were physically manufactured. If you were assembling it in the real world, where would the parts join? Those are usually your best split locations.

save pin

Topology Considerations Before Cutting

Key Insight: Clean topology flow determines whether a split will create manageable geometry or chaotic mesh errors.

Topology is often overlooked during early modeling stages, but it becomes critical the moment you begin separating geometry. Poor topology amplifies problems during splitting.

Before cutting a model, check these topology indicators:

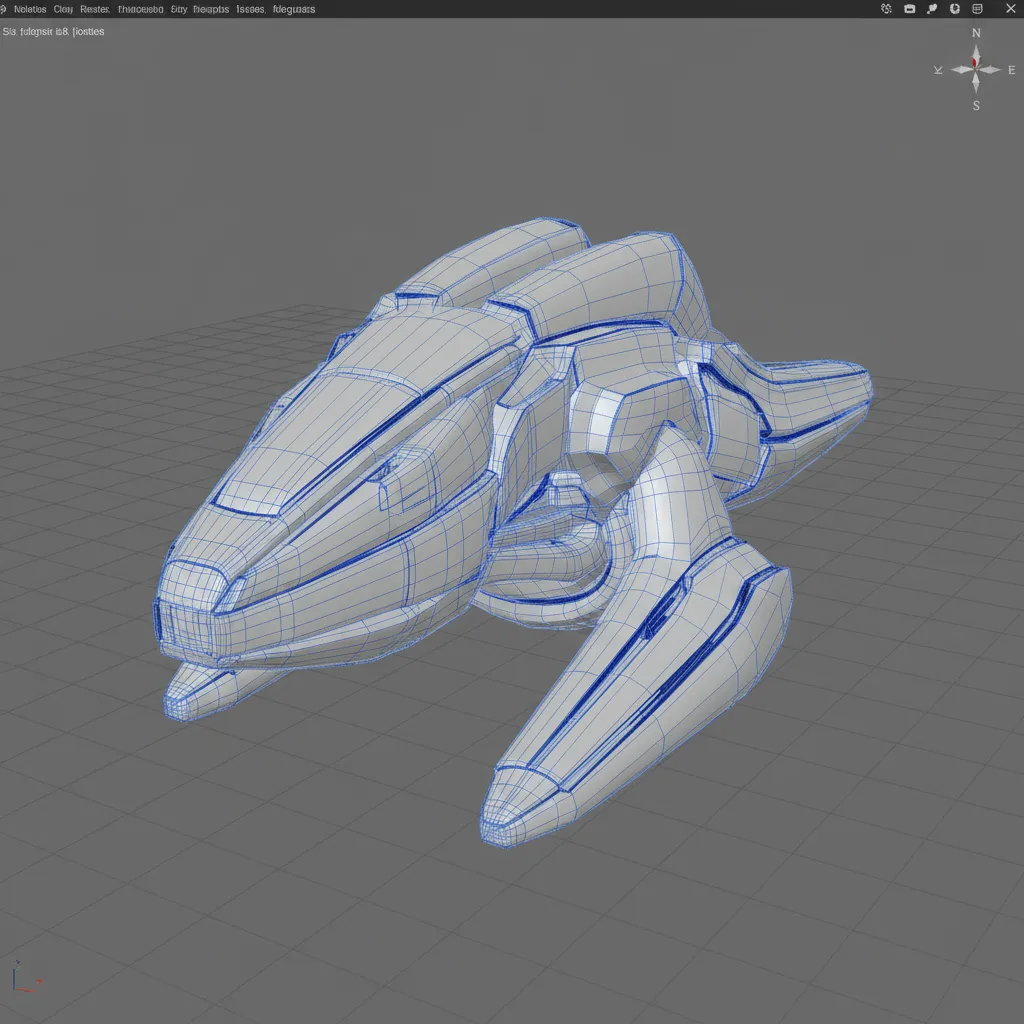

1. Edge loop continuity – loops should follow the cut line cleanly.
2. Quad dominance – quad‑based topology splits more predictably.
3. Minimal poles – vertices with 5+ connecting edges cause distortions.
4. Uniform density – avoid splitting where topology suddenly becomes dense.

Industry modeling guides from Autodesk and Blender documentation consistently emphasize maintaining edge flow before performing destructive mesh operations. When topology aligns with the cut direction, cleanup work becomes minimal.

save pin

Planning Splits for Assembly or Printing

Key Insight: When a model will be assembled or 3D printed, cut locations should prioritize alignment, stability, and ease of joining.

This is where beginners often make a surprising mistake—they split models purely for convenience rather than considering how pieces will reconnect.

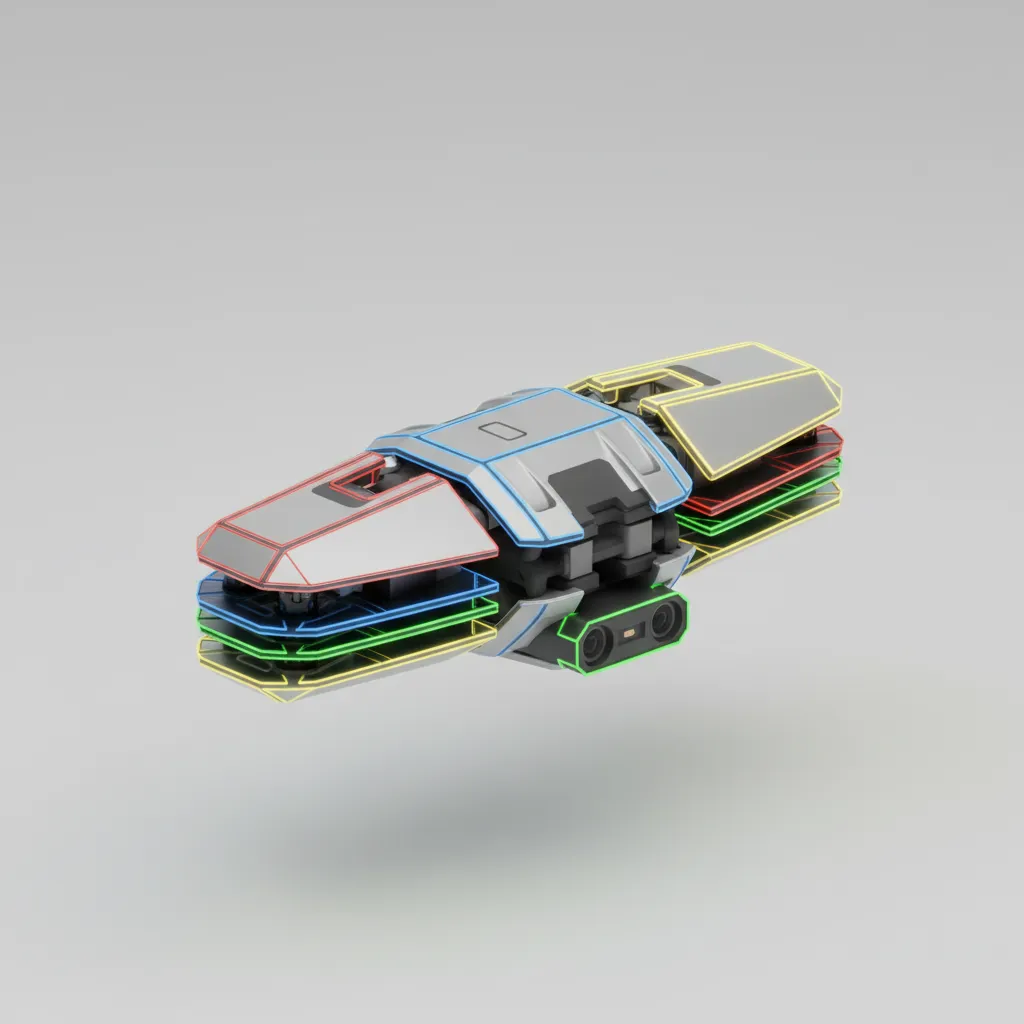

For assembly workflows, prioritize these factors:

1. Flat contact surfaces for reliable bonding
2. Hidden seams that won't appear in final renders
3. Consistent alignment edges
4. Accessible interior surfaces for connectors

In architectural visualization pipelines, models are often segmented to improve rendering efficiency. Teams preparing large scenes frequently rely on workflows used when creating photorealistic 3D home visualizations, where modular components allow scenes to load faster and render more reliably.

save pin

Avoiding Structural Weak Points

Key Insight: Never place a cut line across thin or high‑stress areas of the model.

This is one of the least discussed issues in tutorials, yet it causes the most real‑world failures.

Weak split locations include:

1. Thin rods or narrow connectors
2. Sharp curvature areas
3. Load‑bearing geometry
4. High deformation zones in animation

In 3D printing especially, splitting a model across a thin structure often leads to cracking during assembly. The stronger strategy is to move the seam toward thicker geometry where stress distributes more evenly.

Tools for Visualizing Cut Locations

Key Insight: Visualization tools reduce guesswork by revealing topology flow and structural geometry before cutting.

Experienced modelers rarely cut blindly. They preview potential split locations using analysis tools that highlight structural patterns.

Helpful visualization techniques include:

1. Wireframe mode to inspect topology
2. Edge‑flow highlighting
3. Curvature analysis

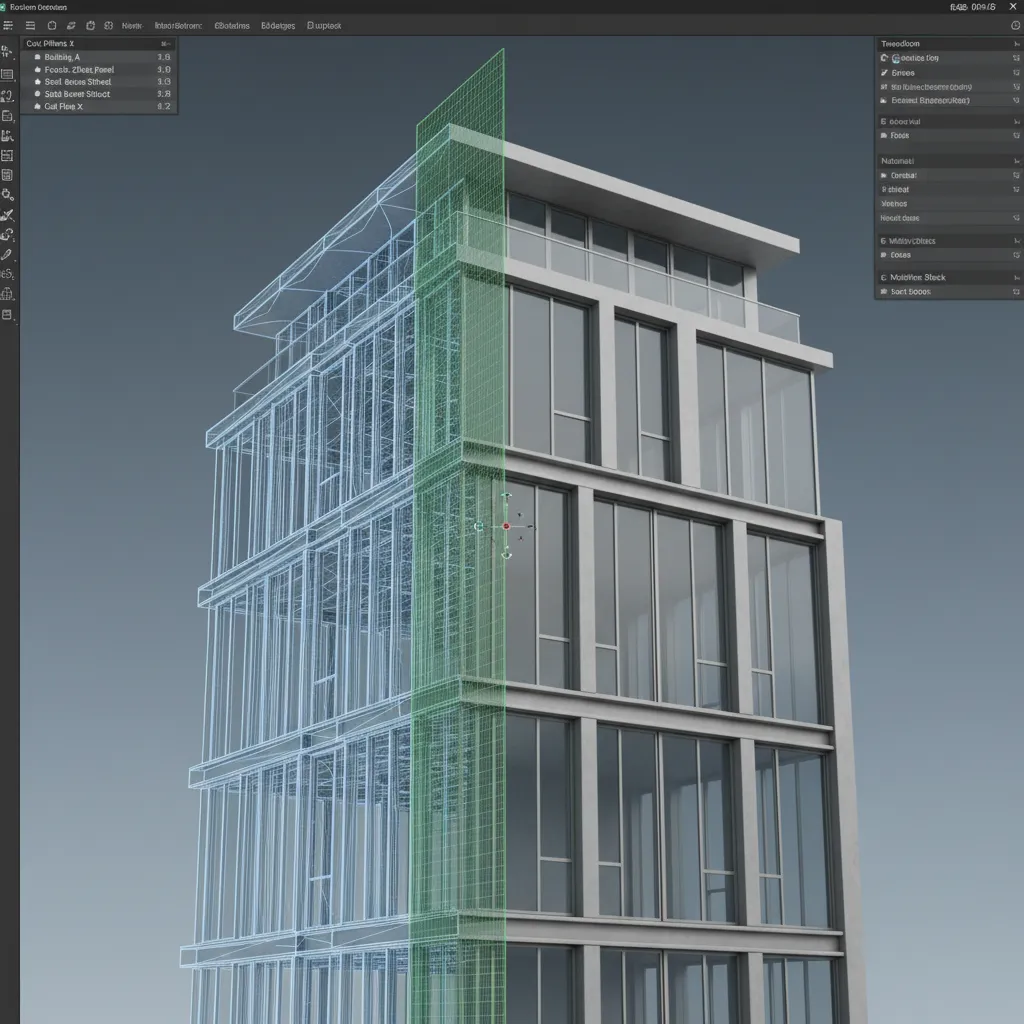

4. Section planes
5. Temporary cut previews

Even simple wireframe inspection can reveal problems that are invisible in shaded view.

Answer Box

The best strategy for deciding where to split a 3D model is to follow natural boundaries, respect topology flow, and avoid structural stress zones. Proper planning prevents weak seams, broken geometry, and extensive mesh repairs later in the workflow.

Final Summary

1. Split models along natural seams whenever possible.
2. Topology flow determines how clean the separation will be.
3. Avoid thin or high‑stress structural areas.
4. Plan cuts based on assembly, printing, or rendering needs.
5. Preview splits using visualization tools before editing.

FAQ

Where should you cut a 3D model?

Cut along natural seams, panel boundaries, or material changes. These areas hide joints and preserve topology integrity.

What is the best place to split a 3D model?

The best place to split a 3D model is where topology flows evenly and the structure remains strong after separation.

Does topology matter when splitting a mesh?

Yes. Clean edge loops allow predictable cuts and reduce geometry errors after separation.

Can splitting a model cause geometry problems?

Yes. Poorly planned splits often create non‑manifold edges, holes, or distorted surfaces.

How do you plan mesh separation before cutting?

Analyze topology flow, locate natural seams, preview cut paths, and check structural thickness before separating geometry.

Is it better to split a model before or after texturing?

Usually before. Splitting after UV mapping often requires remapping and can create texture seams.

Can splitting improve rendering performance?

Yes. Modular models allow better scene management and faster loading in large environments.

What tools help decide where to split a 3D model?

Wireframe view, edge‑flow visualization, curvature analysis, and section plane previews help determine optimal cut locations.
