How to Design an Ergonomic Dental Operatory Layout: Practical layout strategies that reduce dentist fatigue and improve treatment room efficiency

Direct Answer

An ergonomic dental operatory layout places the chair, delivery system, lighting, and cabinetry within a balanced working radius so dentists and assistants can reach instruments without twisting, leaning, or overextending. The most effective layouts organize the room into functional zones, maintain clear assistant access, and allow smooth instrument transfer within the dentist’s natural movement arc.

Quick Takeaways

1. Ergonomic operatories reduce physical strain and improve clinical efficiency.
2. Separate treatment rooms into clear functional zones.
3. Correct dental chair positioning is the foundation of the entire layout.
4. Assistant access often determines real workflow efficiency.
5. Future equipment upgrades should be considered during layout planning.

Introduction

After working on dozens of clinic projects over the past decade, I’ve noticed that the biggest productivity gains rarely come from expensive technology. They come from better spatial decisions. A well planned ergonomic dental operatory layout can dramatically reduce staff fatigue while making procedures faster and more predictable.

Many dental clinics struggle with treatment rooms that feel cramped, inefficient, or awkward to work in. Dentists lean too far to reach tools. Assistants have limited mobility. Equipment blocks circulation paths. These problems aren’t just annoying—they contribute to chronic neck and back injuries across the profession.

In many of my clinic projects, we begin by redesigning treatment room flow before selecting furniture or equipment. If you're exploring how treatment rooms fit into the broader clinic environment, this guide to planning an efficient dental clinic workspace layoutexplains how operatories connect to reception, sterilization, and circulation zones.

In this article, I’ll break down the design principles I rely on when planning ergonomic operatories that support real clinical workflows.

save pin

The Importance of Ergonomics in Dental Operatory Design

Key Insight: Ergonomics is not just about comfort—it directly impacts clinical performance, procedure time, and long‑term health for dental professionals.

According to research published by the American Dental Association, musculoskeletal disorders affect a large percentage of dental professionals due to repetitive movements and poor posture. Many of these issues originate from poorly planned treatment rooms.

Common ergonomic problems I see in clinics include:

1. Delivery units placed outside the dentist’s natural reach
2. Assistant seating blocked by cabinetry
3. Improper dental chair orientation
4. Insufficient clearance behind the chair

When these elements are corrected, teams immediately notice smoother procedures and less physical strain during long appointments.

Key Zones Inside a Dental Treatment Room

Key Insight: The most efficient dental operatories divide the room into clearly defined working zones that support coordinated dentist and assistant movement.

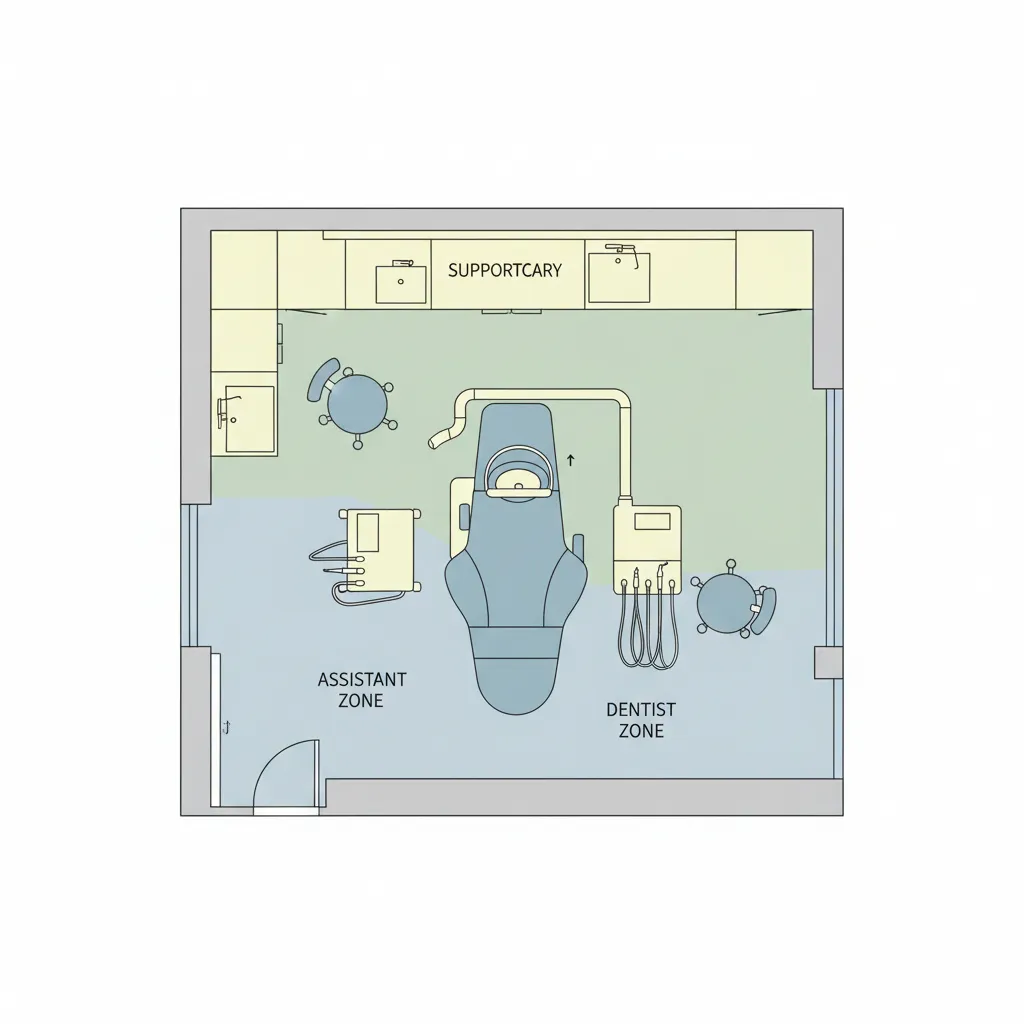

A functional operatory typically includes four primary zones:

1. Doctor zone – usually positioned between the 9 and 12 o’clock working area.
2. Assistant zone – typically between 2 and 4 o’clock with unobstructed access.
3. Patient zone – centered around the dental chair and lighting.
4. Support zone – cabinetry, instrument trays, and delivery systems.

One mistake I frequently see is compressing the assistant zone to add extra cabinetry. That decision often slows down procedures because assistants lose clear movement paths.

Before finalizing cabinetry placement, I often map these zones using simple planning software like a visual dental treatment room layout planning workflowto test circulation and reach distances.

save pin

Optimal Equipment Placement for Dentists and Assistants

Key Insight: Equipment should be positioned inside the clinician’s natural reach envelope to minimize body rotation and repetitive strain.

In ergonomic operatories, instrument transfers should happen within a small working arc rather than requiring long reaches.

Typical placement guidelines I recommend:

1. Delivery unit positioned within 20–25 inches of the dentist.
2. Assistant instrument trays slightly behind the patient head.
3. Suction systems within easy assistant reach.
4. Monitor mounted directly in the patient’s forward viewing angle.

A useful rule I share with clients: if the dentist must rotate their torso more than 30 degrees repeatedly, the equipment placement probably needs adjustment.

Lighting, Chair Positioning, and Workflow Efficiency

Key Insight: Dental chair orientation determines the entire ergonomic structure of the operatory.

The chair should never be treated as just another piece of furniture. Its position defines circulation, lighting angles, assistant access, and equipment placement.

Best practices include:

1. Maintain at least 5 feet of clearance behind the chair.
2. Ensure overhead light aligns with the oral cavity without repositioning.
3. Place monitors where both patient and dentist can view comfortably.
4. Avoid blocking assistant access with cabinets or walls.

save pin

Answer Box

The most effective ergonomic dental operatory layout centers on correct chair placement, clear assistant access, and equipment positioned within the dentist’s natural reach. When these three elements align, workflow becomes faster and physical strain decreases significantly.

Infection Control and Sterilization Considerations

Key Insight: Ergonomic operatories must support strict infection control without slowing down clinical procedures.

Modern clinics integrate sterilization logic directly into operatory design. That means treatment rooms should support efficient instrument flow between procedures.

Important design considerations include:

1. Hands‑free sink access
2. Easy‑clean cabinetry surfaces
3. Clear instrument transport paths
4. Separated clean and contaminated storage zones

When sterilization flow is poorly planned, staff often create informal shortcuts that compromise infection control protocols.

Designing Operatories for Future Equipment Upgrades

Key Insight: The best treatment room layouts anticipate future technology upgrades rather than locking clinics into fixed equipment locations.

Dental technology evolves quickly—new imaging systems, digital scanners, and integrated delivery units appear every few years. Clinics that design rigid operatories often face expensive renovations later.

Flexible design strategies include:

1. Extra electrical and data conduits
2. Modular cabinetry systems
3. Adjustable monitor mounting locations
4. Flexible equipment rails

During design presentations, I often show clients realistic visualizations using a high‑quality 3D treatment room visualization process so teams can test equipment placement before construction begins.

Final Summary

1. An ergonomic dental operatory layout improves both comfort and clinical efficiency.
2. Chair placement determines the structure of the entire room.
3. Clear assistant access is often the most overlooked factor.
4. Equipment should sit within the dentist’s natural reach arc.
5. Future‑ready operatories reduce renovation costs later.

FAQ

What is the ideal size for a dental operatory?

Most clinics design operatories between 120 and 140 square feet to allow proper circulation around the chair and equipment.

What is the most ergonomic dental operatory layout?

An ergonomic dental operatory layout places instruments within a small reach radius and provides clear assistant access around the patient chair.

How much clearance should be behind a dental chair?

Designers typically recommend at least 5 feet of space behind the chair for movement and equipment access.

Why do dentists experience back and neck pain?

Poor operatory ergonomics often force dentists to twist, lean, or overreach repeatedly during procedures.

Should dental monitors face the patient?

Yes. Proper monitor placement improves patient communication and prevents dentists from turning away from the treatment area.

What equipment is essential in a dental operatory?

Typical equipment includes the dental chair, delivery system, overhead light, assistant instruments, and monitor.

How can workflow improve in a dental treatment room?

Optimizing zones and equipment placement within an ergonomic dental operatory layout reduces unnecessary movement.

Can small operatories still be ergonomic?

Yes. Careful zoning, compact cabinetry, and correct equipment placement can create efficient small treatment rooms.
