How to Design Room Online: A Step-by-Step Room Designer Guide

Most people design rooms backwards. They buy the sofa first, fall in love with a rug, then try to make everything fit. The result is a room that looks like a collection of things rather than a designed space — and usually at least one piece that doesn't quite work but cost too much to return.

Designing a room online before you buy anything fixes this problem. You can test whether the sectional fits, see whether the layout creates a usable traffic flow, and change your mind twenty times without moving a single piece of furniture. This guide walks through the process from scratch, using a room designer to do the actual planning work.

Before you open any tool: measure your room

This step gets skipped more than any other, and it's the one that makes everything else useful or useless. An online room design is only as accurate as the measurements you put in.

You need four things:

1. Room dimensions — length and width of every wall, measured in feet and inches (or centimeters). Measure twice. Walls are rarely perfectly square, so note if any wall is slightly shorter or longer than its opposite.
2. Ceiling height — matters more than people expect, especially for bookshelves, pendant lights, and tall furniture.
3. Door and window positions — measure from the nearest corner to the edge of the door or window frame, then note the width. Doors need clearance for swinging open; windows affect where you can place furniture without blocking light.
4. Existing furniture dimensions — if you're keeping any pieces, measure them. A sofa you've had for years may feel like it "fits anywhere" until you map it to scale and discover it takes up 60% of the room.

A phone's tape measure app works fine for this. A $15 laser measure from a hardware store works better and takes about three minutes per room.

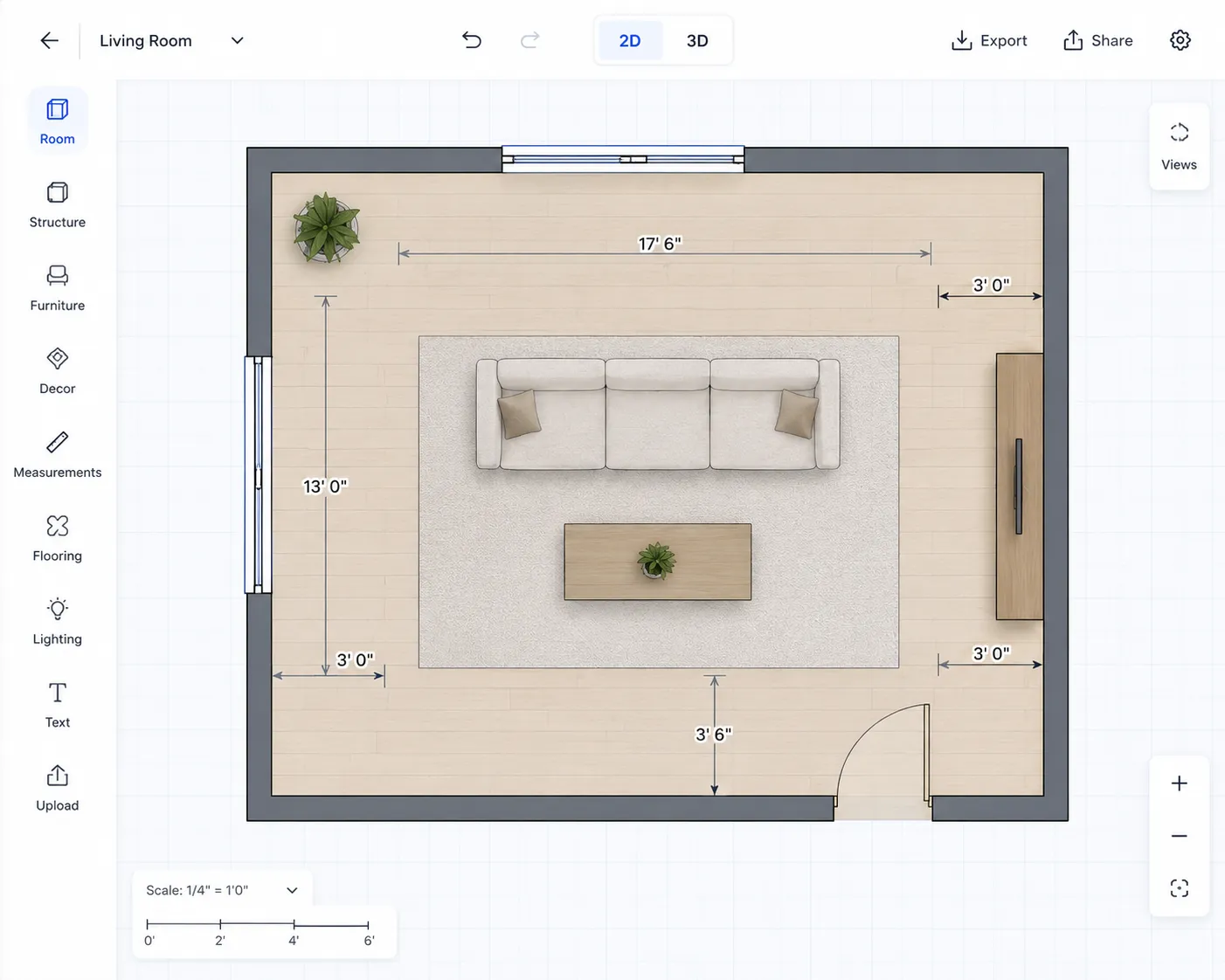

Step 1: Set up your room in a room designer

Open a browser-based room designer — no download required. Start a new project and enter your room's exact dimensions. This is where most tools give you a blank rectangle to start from; better room designers let you enter wall-by-wall measurements so irregular rooms are handled accurately. If you haven't chosen a tool yet, our breakdown of the best room design apps covers the key differences between the main options and which use cases each one actually handles well.

Add your doors and windows. This matters because good furniture arrangement works around fixed architectural features, not against them. A sofa placed in front of your only south-facing window might look fine on paper but will make the room feel darker and smaller in practice.

At this point your room designer should show a to-scale empty space that matches your physical room. If it doesn't match, the rest of the process produces a design that won't work when you try to execute it.

save pin

Step 2: Define the room's purpose before adding any furniture

Before you touch the furniture library, answer one question: what does this room need to do?

A living room that's used for family movie nights has different layout requirements than one used primarily for hosting dinner guests. A bedroom shared by two people needs different storage and circulation space than one occupied by one. A home office that doubles as a guest room needs to solve two different functional problems simultaneously.

Write down the two or three primary activities the room needs to support. These become your layout constraints. Every furniture decision you make should serve at least one of them.

This step feels obvious and gets skipped constantly. Rooms that feel "off" but you can't explain why almost always have a layout that's optimized for how the room looks rather than how it gets used.

save pin

Step 3: Place the largest piece of furniture first

In a living room, this is the sofa. In a bedroom, it's the bed. In a dining room, it's the table. Every other furniture decision flows from this one.

In your room designer, find a piece that matches your actual sofa's dimensions (or the sofa you're considering buying) and drop it into the room. Try it against each wall. In 3D view, walk around the virtual room and see how the sofa relates to the windows, the doorways, and the TV position.

The most common mistake at this stage is placing the sofa against a wall because that's how it's usually done. For most rooms, a sofa floating slightly away from the wall — even six inches — makes the space feel more intentional and creates better traffic flow around it. Test it both ways before committing to either.

One rule that's almost always worth following: the largest piece of seating should face the room's focal point, whether that's a fireplace, a window with a view, or a TV. If your layout forces you to choose between two of these, the one that gets used most wins.

save pin

Step 4: Build the furniture arrangement around traffic flow

Once your anchor piece is placed, add the remaining furniture while keeping one constraint in mind: every part of the room should be reachable without having to walk around or squeeze past furniture.

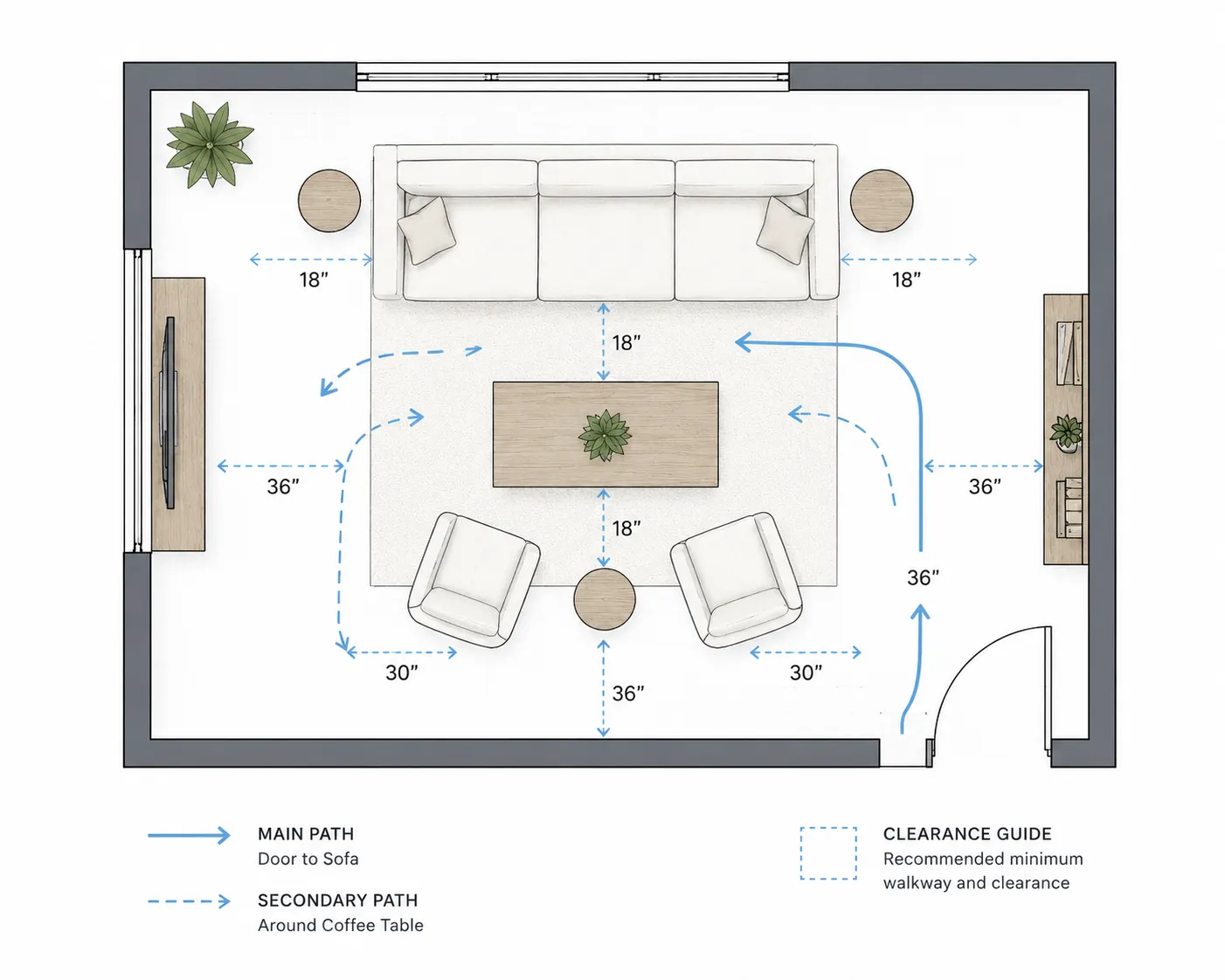

The standard clearance guidelines used by interior designers:

1. Main traffic paths (hallways, routes between rooms): at least 36 inches wide
2. Secondary paths (walking around a coffee table, getting to a chair): at least 18–24 inches
3. In front of a sofa to a coffee table: 12–18 inches — close enough to reach drinks without leaning, far enough to walk past comfortably
4. Around a dining table: at least 36 inches between the table edge and the nearest wall or furniture, with chairs pulled out
5. Bedroom circulation: at least 24 inches on at least one side of the bed, preferably both

In your room designer, switch to top-down 2D view to check these distances accurately. The 3D view tells you how the room feels; the 2D view tells you whether it actually works at real scale.

save pin

Step 5: Use the 3D view to check what the 2D view can't tell you

Floor plans are useful but they flatten everything. Switch to 3D view and walk through the room at eye level. This is where problems that look fine on paper become obvious:

1. A bookshelf that's technically in an open corner but visually blocks natural light from spreading across the room
2. Two chairs that face each other at a distance that feels comfortable for conversation in a floor plan but looks confrontational in 3D
3. A TV positioned at a height that looks fine until you realize it's above eye level from the sofa
4. A rug that's the correct size on paper but looks small in 3D because the furniture around it is taller than expected

The 3D view is also where you check proportions. A room that feels balanced in a floor plan sometimes reveals in 3D that one side is visually heavy — too much large furniture clustered together — while the opposite side feels empty.

Step 6: Use AI layout generation as a starting point, not a final answer

Most modern room designers include some version of AI-generated layout suggestions. These are worth using, with the right expectations.

AI layout tools are good at generating spatially coherent starting points quickly — a furnished room that respects clearance rules and basic design principles. They're not good at understanding how you actually use the space, what you already own, or the specific constraints of your life (a dog that needs floor space, a child who needs clearance to play, a partner who reads late and needs a lamp positioned away from the bed).

The most efficient approach: generate an AI layout, use it as a reference point, then modify it based on your specific requirements. This is faster than starting from scratch and produces better results than accepting the AI output unchanged. For a deeper look at which AI tools are worth using and what separates genuinely useful ones from the gimmicks, see our guide to the best free AI room design tools.

Step 7: Test colors and materials before buying anything

Once your furniture layout is finalized, use your room designer to test wall colors, flooring options, and upholstery before making any purchases. This is where online room design pays for itself most clearly — paint samples cost money and wall paint is a significant commitment; testing five wall colors digitally takes about two minutes.

A few things that consistently surprise people when they test colors in a rendered 3D view:

1. The same paint color looks dramatically different depending on the amount of natural light in the room. A warm gray that works beautifully in a south-facing room can look cold and flat in a north-facing one.
2. Flooring colors affect how furniture reads. Dark floors make light furniture pop; light floors with light furniture can feel washed out.
3. Accent colors that look bold in a swatch feel much more subtle in a full room where they're competing with walls, floors, and furniture.

Step 8: Export or share the design before executing

Before you buy anything or move anything, export your design and look at it away from the screen. Print it out. Share it with whoever else has opinions about the room. Send the floor plan to a contractor if any work is involved.

The distance from the design tool matters. A layout that feels obviously right when you've been staring at it for an hour sometimes reveals problems when you come back to it the next day with fresh eyes. Give it 24 hours before committing to furniture purchases based on it.

If you're working with a contractor or builder, a dimensioned 2D floor plan export is more useful to them than a photorealistic render. Most room designers can produce both; use the right one for the right audience.

Common mistakes that make online room designs fail in practice

Using a room designer that doesn't work at real scale. Some tools let you drag furniture around without requiring dimension input. These produce layouts that look fine on screen but fall apart when you try to execute them. If your room designer doesn't ask for your room's actual measurements, the output is decoration, not planning.

Ignoring door swing clearance. Every door in a room needs clearance to open fully. It's easy to place a dresser or bookshelf in a position that blocks a door — the floor plan doesn't make this obvious until you think to check it. In your room designer, verify that every door has its full swing arc free of furniture.

Designing for the room's best angle rather than its worst. Most people design a room to look good from the main entrance. That's one vantage point. The room also needs to function from the sofa, from the dining chair, from the doorway to the hallway. Check your design from multiple viewpoints in 3D before finalizing anything.

Treating the design as finished. A room design should be treated as a hypothesis, not a final answer. Build in the expectation that once furniture is physically in the room, some things will need adjusting. The goal of the online design phase is to eliminate the expensive and obvious mistakes, not to predict every detail perfectly.

Frequently asked questions

How long does it take to design a room online?

A basic layout for a single room takes 30–60 minutes if you have accurate measurements. A more detailed design with tested color schemes and material choices takes 2–3 hours. The time investment is almost always worth it compared to the cost of buying furniture that doesn't fit or work together.

Do I need design experience to design a room online?

No. The process in this guide doesn't require any design background — it requires measurements, a clear idea of how you use the space, and patience to test more than one layout before committing. Most of the design principles that matter (clearance space, focal points, proportion) are learnable in an afternoon.

What's the best free tool to design a room online?

For accurate floor planning with 3D visualization, Coohom's free room designer is the strongest free option — it works at real scale, includes AI layout generation, and produces photorealistic renders without requiring a paid plan for the core features. Floorplanner is a solid alternative if you specifically need a tool with a very low learning curve.

Can I design a room online without downloading software?

Yes. Coohom, Floorplanner, Planner 5D, and Arcadium all run entirely in a web browser. No installation required on any of them.

How accurate do my measurements need to be?

Within an inch or two is close enough for layout planning. More precision matters if you're designing built-ins or planning furniture against walls with baseboards or trim that affect clearance. For most residential room planning, a standard tape measure and some care is sufficient.

What should I do after I finish the online design?

Export the floor plan and sit with it for at least a day before making purchases. Share it with anyone else who has input on the room. If it involves contractor work, send the dimensioned floor plan to your contractor before work starts. When furniture arrives, refer back to the design rather than improvising placement — the time you spent testing the layout online is only valuable if you execute it.
