How to Diagnose Jacuzzi Bath Installation Problems Before Tearing Everything Apart: A practical troubleshooting process professionals use to pinpoint Jacuzzi tub installation issues before costly demolition.

Direct Answer

To diagnose Jacuzzi bath installation problems, start by checking visible symptoms such as leaks, weak jets, unusual pump noise, or uneven tub support. Most issues can be traced to plumbing alignment, electrical connections, structural support, or sealing errors. A structured inspection often reveals the root cause without removing the entire tub.

Quick Takeaways

1. Most Jacuzzi bath problems after installation come from plumbing alignment or electrical setup mistakes.
2. Uneven support under the tub can cause vibration, pump strain, and premature component failure.
3. Leaks are frequently caused by poor sealing or incorrectly tightened fittings rather than damaged tubs.
4. A systematic inspection can prevent unnecessary demolition or full reinstallation.

Introduction

In more than a decade of residential renovation work, I’ve seen one mistake repeated over and over: homeowners assume something is seriously broken when a Jacuzzi bath installation starts acting up. In reality, most problems show up within the first few weeks simply because something small was misaligned during install.

When a Jacuzzi bath isn't working correctly—maybe the jets are weak, the pump sounds strained, or a small leak appears—the instinct is often to tear the tub out immediately. That’s almost always unnecessary. In many projects I’ve worked on, the real issue turned out to be something simple: a slightly tilted base, a drain pipe under tension, or a pump wired incorrectly.

If you’re still planning your layout or reviewing installation details, it's helpful to visualize how tubs interact with the surrounding space. Many homeowners benefit from tools that allow them to experiment with different bathtub placement and plumbing layouts in a bathroom planbefore construction even begins.

This guide walks through the same diagnostic steps I use on job sites to identify Jacuzzi bath installation problems before major repairs begin.

save pin

Signs Your Jacuzzi Bath Installation May Be Faulty

Key Insight: Installation issues almost always reveal themselves through early operational symptoms.

Before touching plumbing or electrical components, start by observing how the tub behaves during use. Faulty installations tend to produce consistent patterns that point directly to the underlying cause.

Common warning signs include:

1. Jets producing weak or inconsistent pressure
2. Loud humming or grinding from the pump
3. Water pooling under the tub skirt
4. Slow draining after use
5. Tub rocking slightly when filled
6. Gurgling sounds in the plumbing

In my experience, vibration combined with weak jets usually indicates poor leveling or inadequate support beneath the tub base. Meanwhile, slow drainage typically points to a misaligned trap or drain pipe installed under tension.

Professional installers usually run a full operational test before closing the access panel—but during remodels, that step is often skipped.

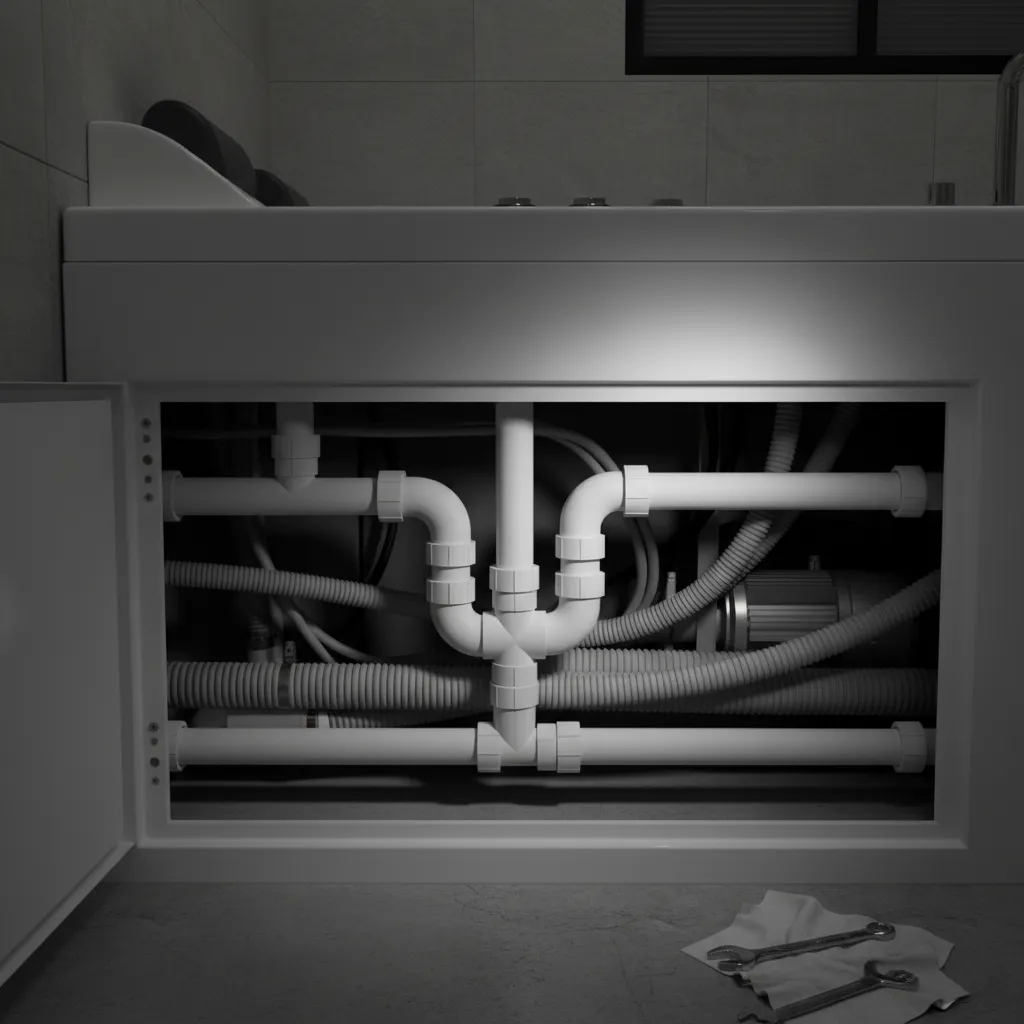

Checking Plumbing Connections and Drain Alignment

Key Insight: Most Jacuzzi tub leaks originate from misaligned drain assemblies rather than cracked plumbing.

Drain systems for whirlpool tubs are more sensitive than standard bathtubs because the pump recirculates water through additional pipes and fittings. If the tub shifts even slightly during installation, the drain alignment can become stressed.

What to inspect:

1. Overflow gasket compression
2. P‑trap alignment with the tub outlet
3. Threaded PVC fittings
4. Jet supply lines connected to the pump

A practical method professionals use is the "full‑tub leak test":

1. Fill the tub completely with cold water.
2. Mark the water level with tape.
3. Leave it for 20 minutes with the pump off.
4. Check for drops in level or visible leaks.

If leaks only appear when the pump runs, the problem is likely in the jet circulation plumbing rather than the drain.

save pin

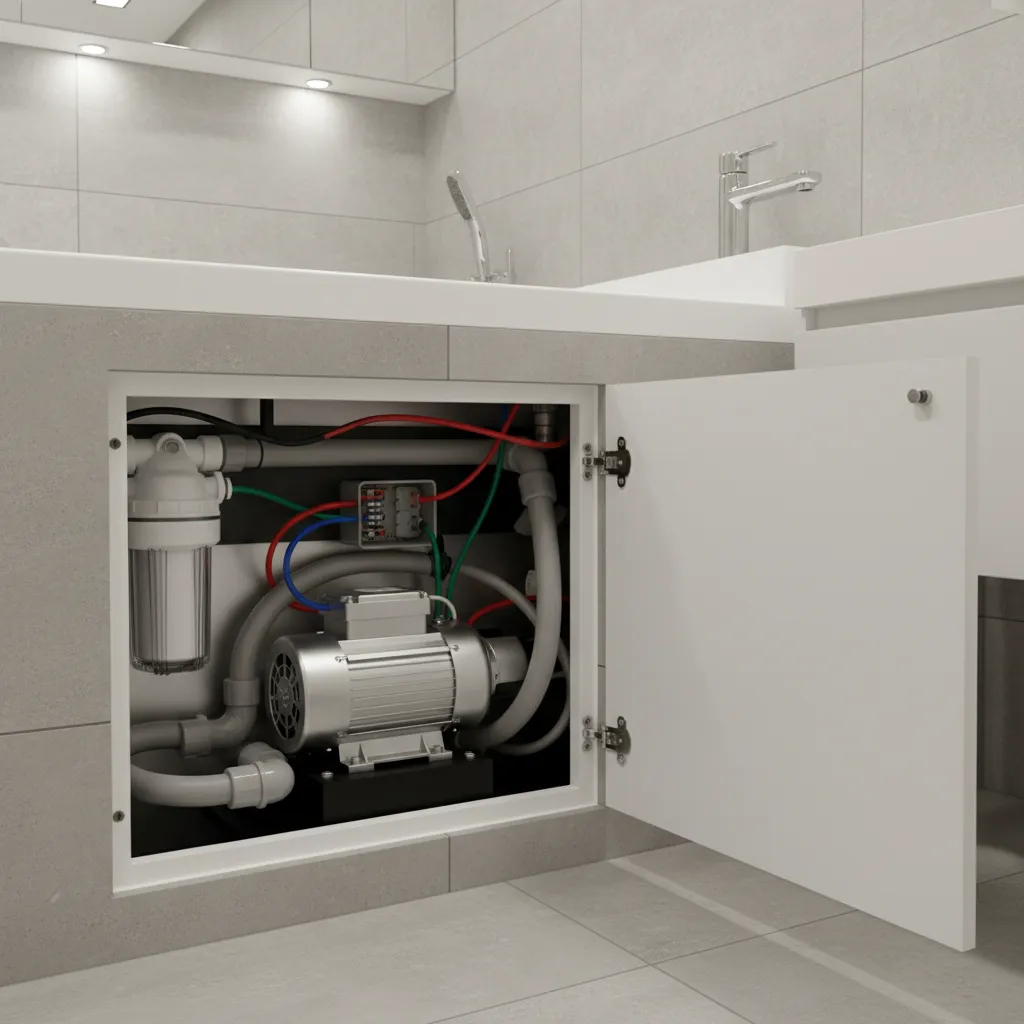

Testing the Pump and Electrical Connections Safely

Key Insight: Many "pump failures" are actually wiring or airlock problems after installation.

Whirlpool pumps depend on both proper electrical supply and unobstructed water flow. During installation, it’s surprisingly easy for installers to reverse wiring polarity, trap air in the system, or partially block intake lines.

Safe diagnostic steps:

1. Verify the GFCI outlet is functioning
2. Listen for pump startup without water flow
3. Check for airlock by briefly cycling the pump
4. Inspect wiring connections inside the access panel

If the motor hums but the jets don't activate, an airlock is the most likely cause. I’ve resolved this in several projects simply by loosening the union fitting slightly to release trapped air.

For homeowners planning a larger remodel, it can help to visualize mechanical clearances using a 3D bathroom layout that shows pump access zones and service space. Lack of access space is one of the hidden mistakes that complicates troubleshooting later.

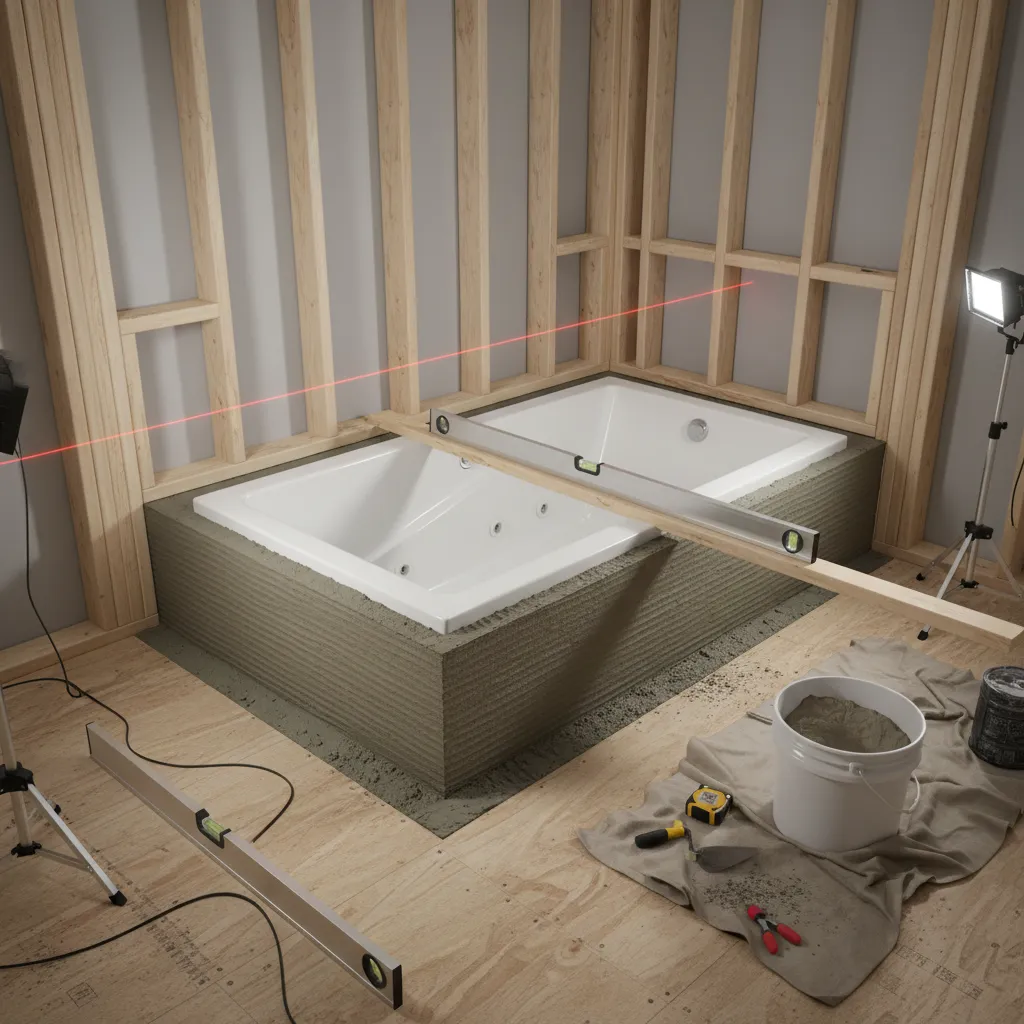

Identifying Structural Support and Leveling Issues

Key Insight: A Jacuzzi bath must be fully supported across its base, not just around the edges.

This is one of the most overlooked installation details. Standard tubs can sometimes tolerate minor framing imperfections, but whirlpool tubs are much heavier when filled with water.

Improper support can lead to:

1. Excess vibration
2. Stress on plumbing joints
3. Hairline cracks in fiberglass shells
4. Reduced pump lifespan

What proper support typically includes:

1. A mortar bed or foam base under the tub
2. Even contact across the entire bottom surface
3. Level framing around the perimeter

On several remodel projects I inspected, the installer relied solely on the tub's flange and frame. Once the tub filled with water, it flexed slightly—creating stress that eventually caused leaks.

save pin

Inspecting Seals, Caulking, and Waterproof Barriers

Key Insight: Many "tub leaks" actually come from failed wall waterproofing rather than the tub itself.

When water appears around a Jacuzzi bath, the assumption is often that the tub plumbing is leaking. But in many bathrooms I've inspected, the real issue was poor waterproofing around the surround.

Common sealing mistakes:

1. Caulking applied before surfaces fully dried
2. Missing waterproof membrane behind tile
3. Gaps around the tub flange
4. Low‑quality silicone sealant

Industry standards from the Tile Council of North America emphasize that waterproofing should exist behind the finished surface, not just at the visible seam.

Answer Box

The fastest way to diagnose Jacuzzi bath installation problems is to inspect four systems in order: visible symptoms, plumbing alignment, pump operation, and structural support. In most cases, the root cause becomes obvious before any demolition is required.

When a Full Reinstallation Might Be Necessary

Key Insight: Full reinstallation is only necessary when structural framing or plumbing layout is fundamentally incorrect.

Fortunately, that situation is relatively rare. In my experience reviewing remodel work, only about one in ten problematic installations actually requires removing the tub.

Reinstallation may be required if:

1. The floor framing cannot support the filled tub weight
2. Drain location is incompatible with the tub outlet
3. Access panels were not installed for pump maintenance
4. The tub was installed before plumbing rough‑ins were completed

For anyone planning layout adjustments during repairs, it's useful to map plumbing fixtures and tub placement in a bathroom floor plan before rebuilding. Seeing the full layout often reveals conflicts that weren't obvious during the initial installation.

save pin

Final Summary

1. Most Jacuzzi installation problems come from alignment, wiring, or support mistakes.
2. Systematic inspection prevents unnecessary demolition.
3. Leaks often originate from drain fittings or wall waterproofing.
4. Proper tub support is critical for whirlpool performance.
5. Full reinstallation is rarely required when issues are diagnosed early.

FAQ

How do I diagnose jacuzzi tub installation problems?

Start with visible symptoms such as leaks, weak jets, or vibration. Then inspect plumbing connections, pump operation, tub leveling, and sealing around the installation.

Why is my jacuzzi bath not working after installation?

Common causes include airlocked pumps, reversed electrical wiring, or improperly connected jet plumbing.

Is it normal for a new jacuzzi tub to make noise?

Some pump noise is normal, but grinding, rattling, or loud humming usually indicates improper mounting or trapped air in the system.

What causes a new jacuzzi tub leaking after install?

Leaks usually come from loose drain fittings, misaligned overflow assemblies, or poorly sealed tub edges.

Can a jacuzzi tub work if it isn't perfectly level?

Minor variation may work, but uneven tubs can cause vibration, poor drainage, and long‑term structural stress.

How can I inspect jacuzzi tub plumbing connections?

Use the access panel to check the drain assembly, jet plumbing, and pump unions while running a full‑tub water test.

Should I remove the tub to fix installation issues?

Not usually. Most problems can be solved through access panels without removing the entire tub.

What is the most common jacuzzi bathtub installation troubleshooting step?

Checking drain alignment and pump airlocks solves a large percentage of early installation problems.
