How to draw a floor plan of your house: Room by Room 2026 Guide

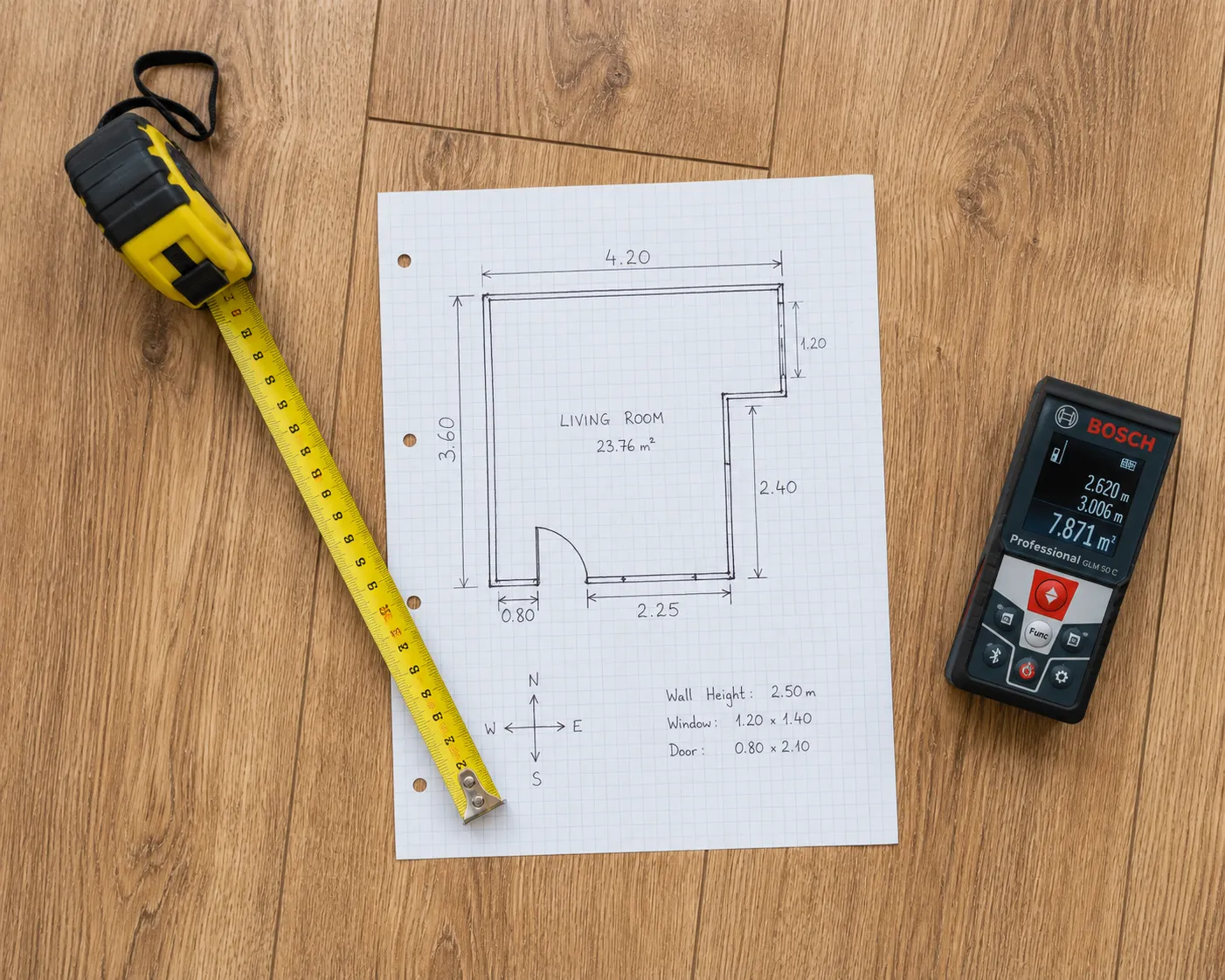

If you've ever tried to plan a renovation, list a property, or just figure out where a new couch will actually fit, you've probably hit the same wall: you don't have an accurate floor plan, and drawing one from scratch feels intimidating. It doesn't have to be. With the right measurements, a clear room-by-room sequence, and a system for handling the odd-shaped spaces every house has somewhere, anyone can produce a floor plan that's accurate enough to renovate, furnish, or sell from — no architecture background required.

This guide covers the entire process end to end: what a usable floor plan actually needs to include, whether to sketch by hand or use a free floor planner, exactly what to measure in every type of room, the order that makes whole-house planning easier, how to handle irregular shapes, the mistakes that quietly throw off an otherwise good layout, and how to pick a tool once you're ready to draw.

What Every Good Floor Plan Needs

Before getting into measuring and drawing, it helps to know what you're aiming for. A floor plan that's actually useful — for a renovation, a listing, or just your own planning — generally includes:

1. A consistent scale, so every wall and room is proportionally accurate to the others, not just individually correct
2. Exterior and interior walls, drawn with their real thickness rather than as single lines
3. Labeled rooms, with each space's name and, ideally, its square footage
4. Doors and windows, including door swing direction and window width
5. Fixed fixtures, such as kitchen islands, bathroom plumbing, fireplaces, and built-in storage
6. Dimension labels, so wall lengths and room sizes are visible at a glance rather than something the viewer has to infer

If your finished plan has all six of these, it'll hold up whether you're handing it to a contractor or just using it to decide if a sectional sofa will actually fit.

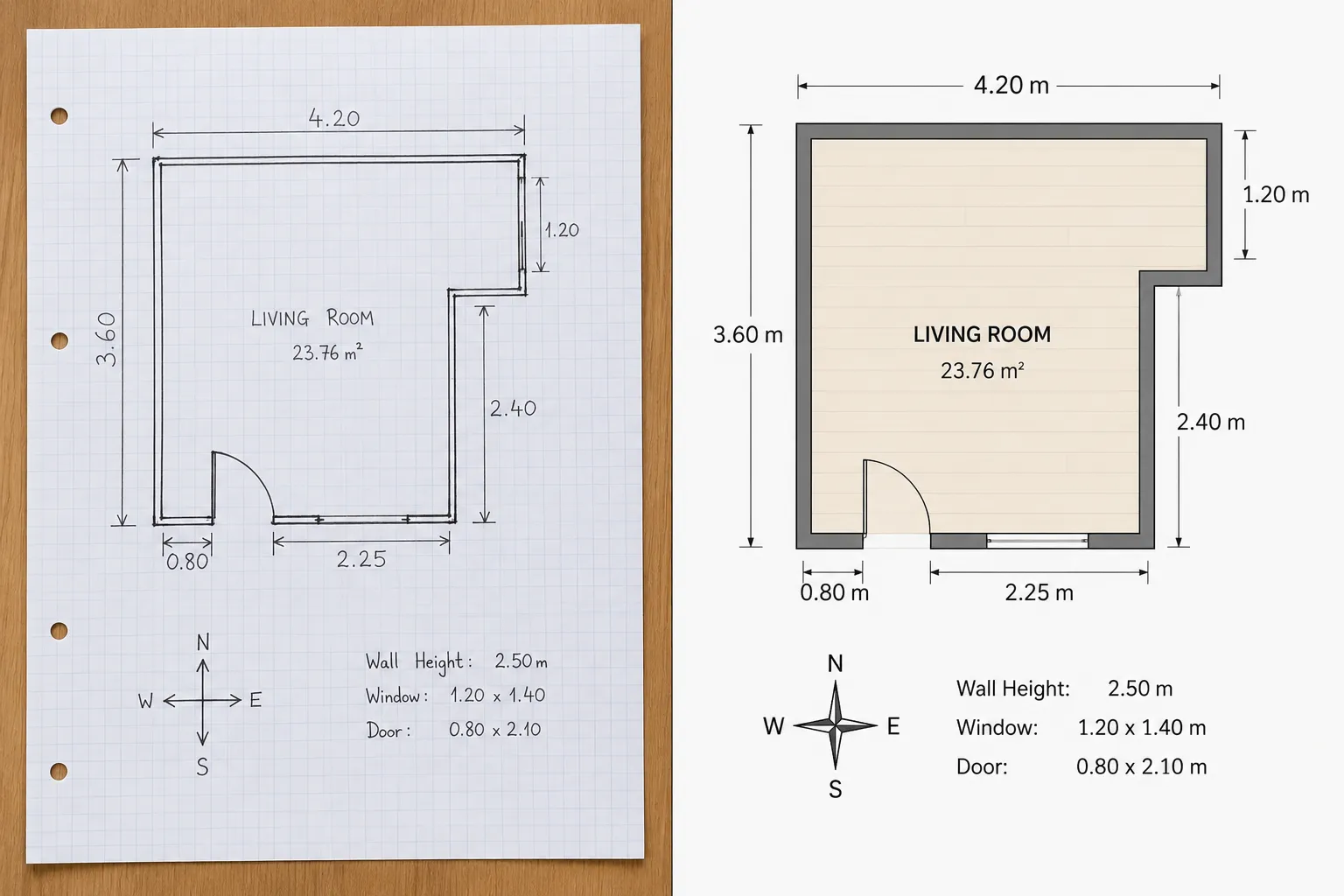

Hand-Drawing vs. Software: Why Digital Wins for Most Homeowners

Graph paper and a tape measure will technically get you a floor plan. The problem isn't whether hand-drawing works — it's how much it costs you in time and accuracy once your house has more than one room with an angle, alcove, or staircase.

To put a number on it: drawing the same 1,200 sq ft single-story layout twice — once on graph paper with a scale ruler, once in floor planning software — took about 50 minutes by hand versus 18 minutes digitally. The hand-drawn version also had three wall-length errors once it was checked against the actual tape measurements, all caused by graph-paper rounding. The software version had none, because the walls snap to the exact dimensions you type in rather than to the nearest gridline you can eyeball.

The bigger advantage shows up after the first draft. Hand sketches are essentially final once inked — moving a wall means starting over or scribbling corrections. Digital plans let you drag a wall, resize a room, or swap a layout option in seconds, and most tools calculate square footage and room area automatically as you go. If you're also trying to visualize furniture placement or natural light, a 3D toggle does in one click what would otherwise require a separate sketch entirely.

The exception is genuinely simple jobs — a single rectangular room with no fixtures to track — where hand-drawing is fast enough that software adds little. For anything spanning multiple rooms, irregular walls, or a layout you'll need to share with a contractor, the time saved by software outweighs the short learning curve.

save pin

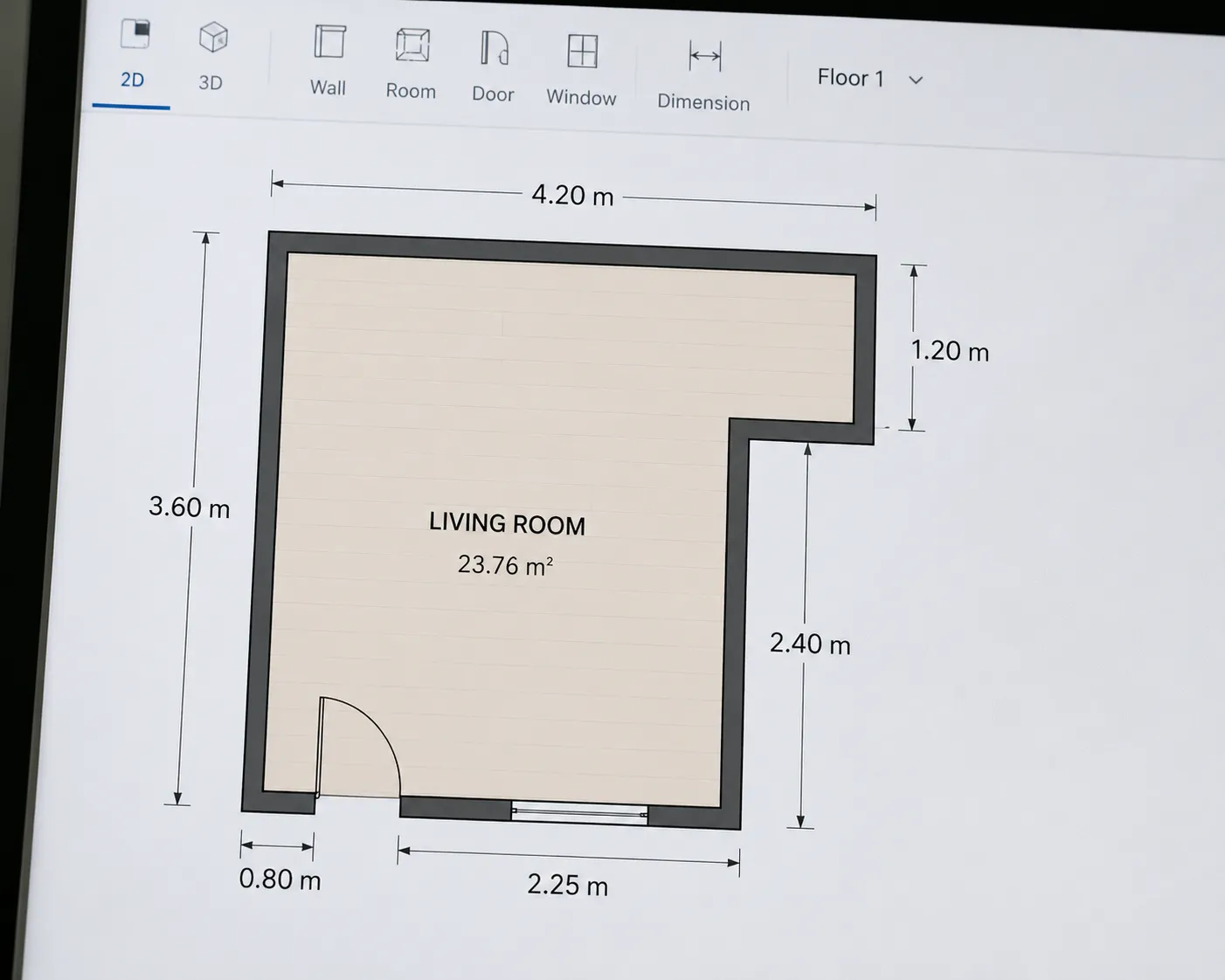

The Room-by-Room Measurement Checklist (What to Measure, Space by Space)

Most floor plan mistakes trace back to incomplete measurements, not bad drawing — and the items worth measuring change depending on what kind of room you're in. Walk the house with a tape measure or laser measure and work through each space using the relevant list below.

save pin

Every room, no exceptions:

1. Wall lengths, measured corner to corner along the floor, including any jogs or offsets in the wall itself
2. Ceiling height, especially in older homes or rooms with sloped ceilings, attic conversions, or dormers
3. Door and window placements, measured from the nearest corner to the edge of the frame, plus opening width and door swing direction
4. A diagonal measurement across the room, corner to corner, used later to confirm the room is actually square

Kitchens:

1. Appliance footprints (range, refrigerator, dishwasher) and the clearance needed in front of each
2. Counter depth and the width of any walkway around an island, ideally 42–48 inches for comfortable movement
3. Plumbing and gas line locations if you're planning to move the sink or range
4. Window placement relative to the sink, since that's a common point of friction during layout changes

Bathrooms:

1. Fixture locations (toilet, sink, tub or shower) and their rough-in distances from the nearest wall
2. Door swing clearance, since bathroom doors are often the tightest fit in the house
3. Window or ventilation fan placement
4. The location of the plumbing stack, which is expensive to relocate and often constrains the whole layout

Bedrooms:

1. Closet depth and door swing (sliding vs. hinged changes how much floor space you actually lose)
2. Window placement, noting size if egress matters for the room's intended use
3. Wall length on the side where a bed will sit, so you can confirm furniture will fit with clearance on both sides

Living and dining areas:

1. Traffic paths between entry points, so seating doesn't end up blocking the main route through the room
2. Fireplace, built-in shelving, or other fixed elements
3. Large openings like sliding doors or picture windows, which often anchor furniture placement
4. Ceiling height if the room is vaulted, since it changes how the space reads in 3D

Hallways and stairs:

1. Hallway width — comfortable circulation generally needs at least 36 inches, more if it's a main thoroughfare
2. Stair run and rise if stairs are part of the plan
3. Landing dimensions at the top and bottom of any staircase

If you're planning a renovation rather than just documenting what exists, also record outlet and switch locations, vent placements, and shutoff valve positions — these are easy to forget and expensive to relocate later.

Take every measurement twice. It's a small amount of extra time that catches the single most common error in beginner floor plans: a wall length that's off by a few inches because the tape measure slipped or the room isn't perfectly square to begin with.

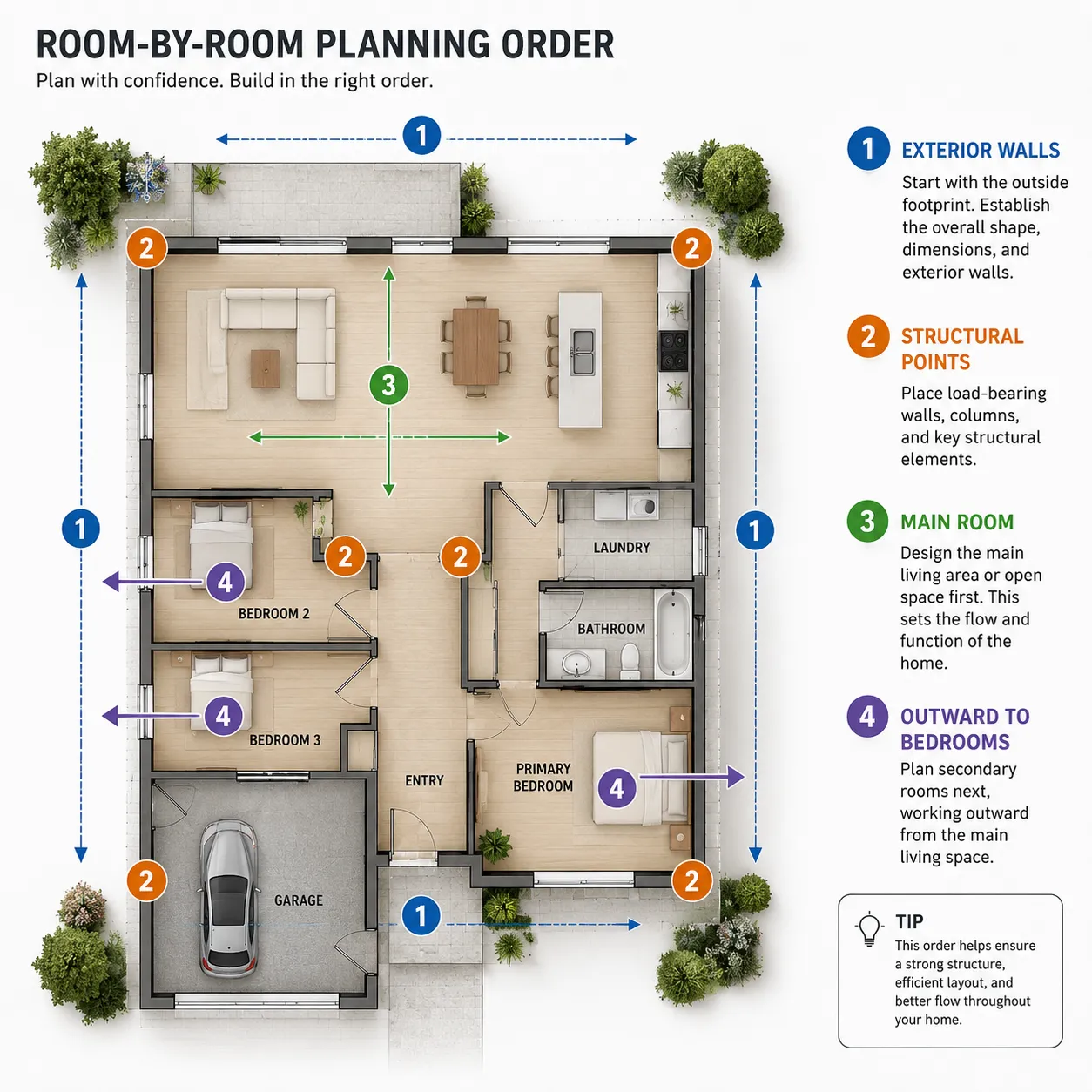

Room-by-Room Planning Order (Where to Start and Why)

Drawing rooms in a random order makes it easy to lose track of how spaces connect. A more reliable sequence:

1. Start with the building's footprint. Measure and draw the exterior walls first, since every interior room has to fit inside that boundary.
2. Place structural fixed points next — load-bearing walls, the staircase, and any plumbing stacks (kitchen, bathrooms). These rarely move and everything else gets positioned relative to them.
3. Draw the largest or most central room — typically the kitchen or living area — since it anchors the layout and makes the remaining rooms easier to place by comparison.
4. Move outward from public to private spaces. Common areas (kitchen, living room, dining room) before bedrooms and bathrooms keeps you working in a logical loop rather than jumping across the house.
5. Add openings last. Once every room is in place, go back and add doors, windows, and closets — it's much easier to position an opening correctly when you can see both rooms it connects.

This order isn't a strict rule, but it mirrors how most houses are actually built: structure first, then layout, then detail. Following it tends to prevent the "I forgot to leave room for the hallway" problem that comes up when rooms are drawn in isolation.

save pin

How to Handle Irregular Room Shapes

Bay windows, angled walls, and rooms with a closet carved out of one corner trip up almost everyone the first time. A few techniques make irregular shapes manageable:

1. Break the room into rectangles. An L-shaped room is really just two rectangles sharing an edge. Measure and draw each rectangle separately, then join them — it's far easier than trying to plot an L-shape as a single irregular polygon.
2. Use diagonal measurements to check angles. If a wall isn't at a clean 90-degree angle, measuring the diagonal between two known corners lets you calculate the actual angle using the triangle the measurements form, rather than guessing.
3. Treat bay windows and alcoves as their own small rectangle or trapezoid attached to the main room, measured independently.
4. For curved walls, take measurements at several points along the curve rather than just the endpoints, so the curve's shape is approximated accurately rather than as a straight line.
5. Let the software grid do the rounding. Most floor planning tools snap walls to a fine grid (often down to the inch), which absorbs small measurement inconsistencies far better than a hand-drawn line ever could.

The underlying principle is the same for any odd shape: decompose it into simple geometry you can measure confidently, rather than trying to eyeball the whole thing at once.

Common Floor Plan Mistakes That Throw Off the Whole Layout

A handful of errors show up again and again, and most of them are easy to avoid once you know to look for them:

1. Skipping the diagonal check. A room that looks square on paper often isn't in real life. Without a diagonal measurement to confirm it, small angle errors compound as you add more rooms.
2. Forgetting wall thickness. Drawing walls as single lines instead of accounting for their actual thickness (typically 4–6 inches) overstates usable floor space, sometimes by a meaningful margin in a small house.
3. Ignoring door and cabinet swing. A door or cabinet that looks fine on a flat 2D plan can hit furniture, another door, or a wall corner in real life if its swing radius wasn't accounted for.
4. Drawing rooms in isolation. Without checking how each room's walls line up with its neighbors, it's easy to end up with overlapping rooms or a hallway that's narrower than intended once everything is assembled.
5. Mixing units mid-drawing. Switching between feet-and-inches and metric partway through, or changing scale without updating every room already drawn, is one of the fastest ways to end up with a plan that doesn't actually match the house.

Choosing the Right Floor Planner (Free vs. Paid, What to Look For)

Once you've got measurements in hand, the tool you use to draw the plan matters less than whether it has a few specific features:

1. Exact-dimension wall drawing, so you can type in a measured length rather than dragging and hoping
2. Automatic area and square footage calculation per room and for the whole house
3. A 2D-to-3D toggle, useful for checking that a layout makes sense spatially, not just on paper
4. A furniture and fixture library if you plan to test layouts beyond just the walls
5. Export options (PDF, image, or shareable link) if you need to send the plan to a contractor, agent, or designer

Free tools generally cover all of this for a single project; paid tiers tend to add things like higher-resolution exports, more furniture catalog items, or multiple saved projects. If you're still weighing which free floor planner to use for your specific project, our comparison breaks down which free floor planner to use based on real user feedback rather than marketing claims.

Whichever tool you choose, the measurement and planning order covered above is what actually determines accuracy — the software just makes drawing it faster and harder to get wrong.

Frequently Asked Questions

Do I need professional training to draw a floor plan? No. A basic, usable floor plan is well within reach for most homeowners using the measurement and sequencing approach above. Complex structural changes or anything involving load-bearing walls are still worth running past a professional before construction begins.

How accurate do my measurements need to be? Aim for accuracy within a quarter inch where possible, especially around doors, windows, and fixed fixtures. Small errors compound as you add more rooms, so it's worth double-checking measurements in tighter spaces like bathrooms and hallways where a half-inch can matter.

Can I convert a hand-drawn sketch into a digital floor plan later? Yes. Most floor planning software lets you import a sketch or photo as a background image and trace over it, which is a common workflow for people who prefer to measure and rough out a layout on paper before finalizing it digitally.

What's the fastest way to draw a floor plan for an entire house? Following the room-by-room order above (footprint, then structural fixed points, then largest room outward to private spaces, then openings last) is generally faster than drawing rooms in whatever order you happen to walk through them, since it avoids redoing rooms that turn out not to align with their neighbors.
