How to Evaluate the Quality of Free CAD Models Before Using Them: A practical engineer‑level checklist to verify geometry accuracy, compatibility, and reliability before integrating downloaded CAD parts into real projects.

Direct Answer

To evaluate the quality of free CAD models, check three things immediately: geometric accuracy, parametric structure, and software compatibility. A reliable CAD model should have clean topology, correct dimensions, editable features, and no missing references.

If any of those fail, the model can break assemblies, distort simulations, or introduce manufacturing errors.

Quick Takeaways

1. Always verify dimensions and reference planes before trusting a downloaded CAD model.
2. Clean feature trees and organized parameters indicate higher‑quality CAD files.
3. Test import compatibility early to avoid assembly failures later.
4. Build a simple validation checklist for every CAD model you download.
5. Never rely on visual appearance alone when judging CAD model quality.

Introduction

After more than a decade working on interior systems, architectural fixtures, and custom fabrication components, I’ve downloaded thousands of CAD files from free libraries. Some were excellent. Others quietly destroyed hours of engineering time.

The tricky part is that a bad CAD model often looks perfectly fine at first glance. The geometry renders well, the shape appears correct, and everything seems usable. But once you try to dimension it, modify a feature, or place it inside an assembly, problems start to surface.

This is why learning how to check CAD model quality before using it is one of the most underrated skills in design workflows.

In fact, many teams now visually prototype layouts first before committing engineering models. For example, when teams sketch spatial concepts using a step‑by‑step 3D layout planning workflow for early design validation, it reduces the risk of importing faulty geometry later.

In this guide, I’ll walk through the exact validation process I use before trusting any downloaded CAD component—whether it’s a mechanical part, fixture model, or architectural object.

save pin

Why CAD Model Quality Matters in Engineering Projects

Key Insight: A single low‑quality CAD model can silently corrupt assemblies, simulation results, and manufacturing drawings.

In real engineering workflows, CAD models rarely live in isolation. They interact with assemblies, parametric constraints, BOM systems, and simulation tools. Poor geometry or broken references can cascade into much larger problems.

Common consequences include:

1. Assembly constraint failures
2. Incorrect mass properties
3. Simulation instability
4. Manufacturing tolerance errors
5. Broken parametric edits

According to engineering workflow studies published by Siemens Digital Industries Software, model repair and geometry cleanup can consume up to 30% of total CAD preparation time in complex projects.

That’s why experienced designers rarely trust a file immediately—even if it comes from a reputable library.

Common Problems with Free CAD Models

Key Insight: Most free CAD models fail not because of shape errors, but because of hidden structural issues.

Here are the problems I encounter most frequently when inspecting downloaded parts:

1. Non‑manifold geometry
2. Missing feature history
3. Broken parametric constraints
4. Incorrect scale or unit systems
5. Overly dense polygon meshes
6. Export‑only "dumb" solids

A model may appear correct visually but still be unusable in engineering workflows if the feature tree is missing.

Interestingly, visualization workflows are often more tolerant of simplified geometry. When teams build conceptual scenes using a visual room layout planning process for early design ideas, they can use lighter geometry while leaving engineering models for later stages.

save pin

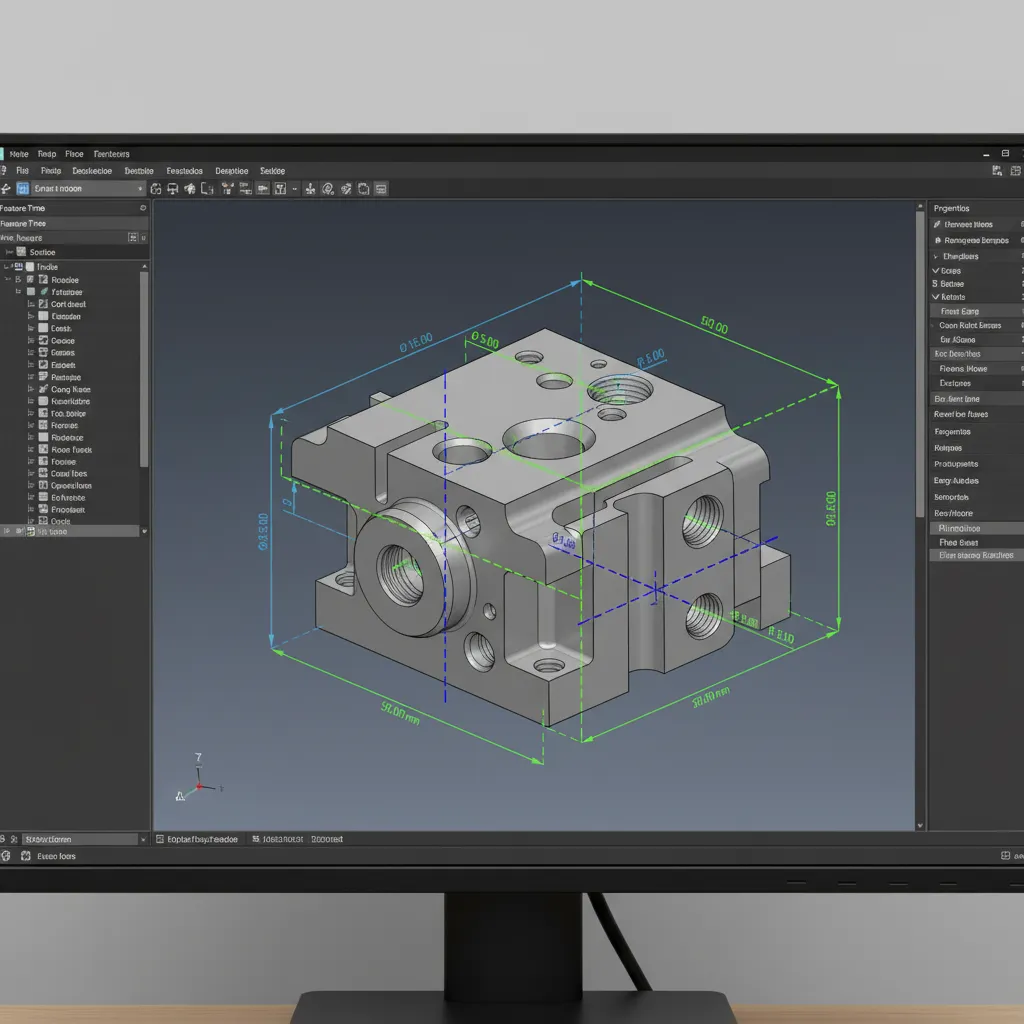

Geometry Accuracy and Dimension Verification

Key Insight: Dimension validation is the fastest way to detect unreliable CAD models.

The first technical step I always perform is measuring critical features.

Verification checklist:

1. Confirm overall dimensions match real‑world specifications
2. Check hole diameters and spacing
3. Verify symmetry and alignment
4. Inspect edge continuity and surface curvature

For example, I once downloaded a lighting fixture housing where the mounting holes were off by 2 mm. The model looked perfect—but the physical prototype couldn’t mount to the bracket.

Quick measurement tools inside CAD software expose these errors instantly.

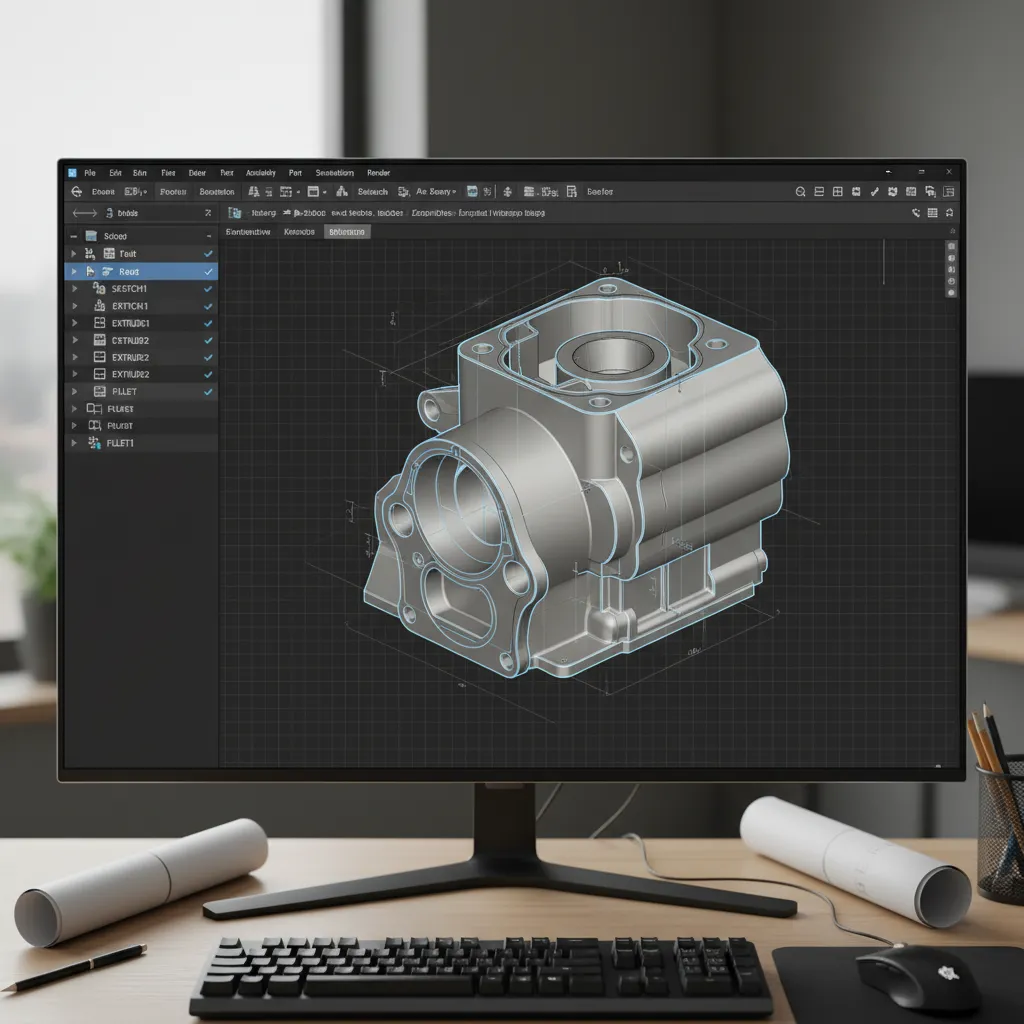

Checking File Structure and Parametric Data

Key Insight: A well‑structured feature tree reveals whether a CAD model was engineered properly or simply exported.

High‑quality CAD files usually include editable parametric history. Poor files often arrive as a single imported body.

Look for these structural indicators:

1. Clean feature tree organization
2. Named sketches and reference planes
3. Logical feature order
4. Editable parameters

Red flags include:

1. One solid body with no history
2. Thousands of tiny surfaces
3. Imported mesh geometry
4. Unresolved sketch errors

When parametric structure is missing, modifying the model later can take longer than rebuilding it from scratch.

save pin

Testing Compatibility with Your CAD Software

Key Insight: Even a perfect CAD model becomes useless if it breaks when imported into your software ecosystem.

Before integrating a file into your project, test a simple compatibility workflow:

1. Import the CAD model into your primary software.
2. Rebuild the feature tree.
3. Run interference checks.
4. Generate a simple drawing view.
5. Apply one parametric modification.

If any of these steps fail, the file will likely create problems later in assemblies.

Many teams also validate spatial relationships visually before engineering integration. Creating quick presentation views using a high‑quality interior rendering workflow for design visualization can help teams confirm proportions before final modeling.

Creating a Quality Control Checklist for CAD Downloads

Key Insight: The most reliable way to prevent CAD problems is to standardize a validation checklist.

Here is the checklist I recommend for every downloaded part.

1. Confirm correct unit system
2. Measure critical dimensions
3. Inspect topology and surfaces
4. Check feature tree structure
5. Test parametric edits
6. Verify assembly compatibility
7. Check mass properties

This process typically takes two minutes, but it prevents hours of troubleshooting later.

save pin

Answer Box

The fastest way to validate free CAD models is to measure dimensions, inspect feature history, and test software compatibility. If the model lacks editable parameters or contains messy geometry, rebuilding it is often faster than fixing it.

Final Summary

1. Visual accuracy does not guarantee engineering reliability.
2. Always verify dimensions before using downloaded CAD parts.
3. Clean parametric structure signals higher‑quality CAD models.
4. Compatibility testing prevents assembly failures later.
5. A simple validation checklist saves hours of engineering time.

FAQ

1. How do I check CAD model quality quickly?

Measure critical dimensions, inspect feature history, and test whether the model supports parametric edits.

2. Are free CAD models reliable?

Some are reliable, but many contain simplified geometry or missing parametric data. Always verify free CAD models before integrating them into assemblies.

3. What is the most common issue with downloaded CAD files?

The most common problem is "dumb solids"—models without editable feature history.

4. Why do CAD models sometimes break assemblies?

Incorrect dimensions, unit mismatches, or corrupted geometry can cause assembly constraints to fail.

5. What file formats are safest for CAD model exchange?

STEP and Parasolid are generally the most stable formats for transferring CAD geometry between platforms.

6. How can I verify free CAD files before using them?

Run dimension checks, rebuild features if possible, and confirm the model behaves correctly during parametric edits.

7. Should I rebuild a bad CAD model instead of fixing it?

If the feature tree is missing and geometry is messy, rebuilding is often faster.

8. What is a CAD model validation checklist?

It is a simple process to inspect geometry, dimensions, feature structure, and compatibility before using a downloaded model.
