How to Evaluate the Quality of Free Landscape CAD Files Before Using Them: A practical designer’s checklist to verify accuracy, scale, and usability before adding CAD blocks to real landscape projects

Direct Answer

To evaluate the quality of free landscape CAD files, check three essentials: accurate scale and units, clean layer structure, and simple but precise geometry. High‑quality CAD blocks load quickly, use organized layers, and maintain correct real‑world dimensions. If a file contains messy layers, excessive line segments, or incorrect scaling, it can slow down your entire landscape design workflow.

Quick Takeaways

1. Clean layer naming and minimal geometry usually indicate professional CAD blocks.
2. Incorrect units or scale are the most common problem in downloaded landscape CAD files.
3. Overly detailed blocks often slow drawings and cause performance issues.
4. Testing CAD blocks in a temporary drawing prevents project corruption.
5. Building a curated CAD library saves hours on future landscape projects.

Introduction

Free landscape CAD files are everywhere online. But after working on residential gardens, commercial courtyards, and urban plaza projects for over a decade, I can tell you something most tutorials skip: the majority of downloaded CAD blocks are not ready for professional use.

I’ve opened files that looked perfect in preview thumbnails but turned out to contain thousands of unnecessary line segments, incorrect units, or chaotic layers. When those blocks get inserted into a real drawing set, they slow down AutoCAD, break scales, or create printing issues.

That’s why experienced designers rarely drop a downloaded block directly into a project. Instead, we run a quick quality check first. If you’re new to sourcing CAD assets, it also helps to start from curated libraries such as a curated collection of ready‑to‑use CAD floor plan assetswhere file structure is typically more reliable.

In this guide, I’ll walk through the exact checks I use in real projects to evaluate free landscape CAD files before they enter my working library. These small steps can prevent hours of debugging later.

save pin

Why CAD File Quality Matters in Landscape Design

Key Insight: Poor CAD block quality doesn’t just look messy—it can dramatically slow drawing performance and introduce scaling errors across an entire project.

Landscape plans often include hundreds of repeated elements: trees, shrubs, paving patterns, irrigation symbols, lighting fixtures, and furniture. If even one of these blocks contains inefficient geometry, the performance cost multiplies quickly.

Common problems I see in downloaded CAD blocks include:

1. Thousands of unnecessary polylines for simple shapes
2. Exploded geometry instead of grouped blocks
3. Random layer names like "Layer1" or "0-copy"
4. Incorrect measurement units

In a commercial plaza project I worked on in Los Angeles, one imported tree block contained over 4,000 line segments. After replacing it with a simplified block, the entire drawing file size dropped by nearly 30%.

That experience changed how I evaluate every new CAD asset.

Key Indicators of High Quality Landscape CAD Blocks

Key Insight: The best landscape CAD blocks are visually clear but geometrically simple.

Good CAD content balances detail with efficiency. Professional blocks represent real objects accurately but avoid unnecessary geometry.

When reviewing a new block, I look for these indicators:

1. Clean geometry

1. Curves drawn with arcs instead of many short segments
2. Closed polylines for shapes
3. No duplicate lines

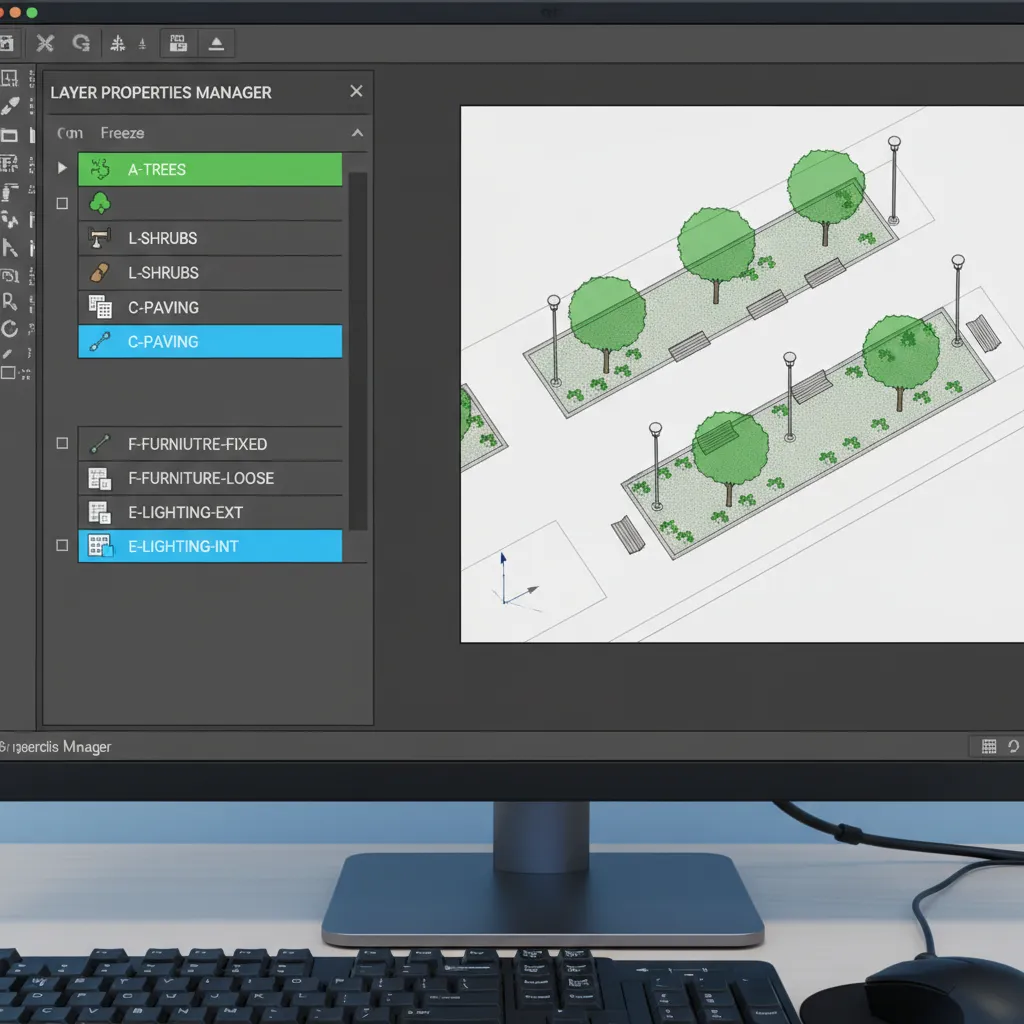

2. Logical layer organization

1. Plants, paving, and furniture on separate layers
2. Consistent naming conventions
3. No excessive unused layers

3. Realistic proportions

1. Trees scaled to typical canopy sizes
2. Furniture matching standard dimensions
3. Plant symbols sized logically within planting plans

If you regularly work with space planning, comparing them with references like interactive 3D floor planning examples used by design professionalscan also help verify real‑world proportions.

save pin

Checking Layer Structure, Scale, and Units

Key Insight: Scale errors are the fastest way to ruin a landscape plan.

One of the first things I check when opening a free CAD file is its unit setup.

Step‑by‑step verification process:

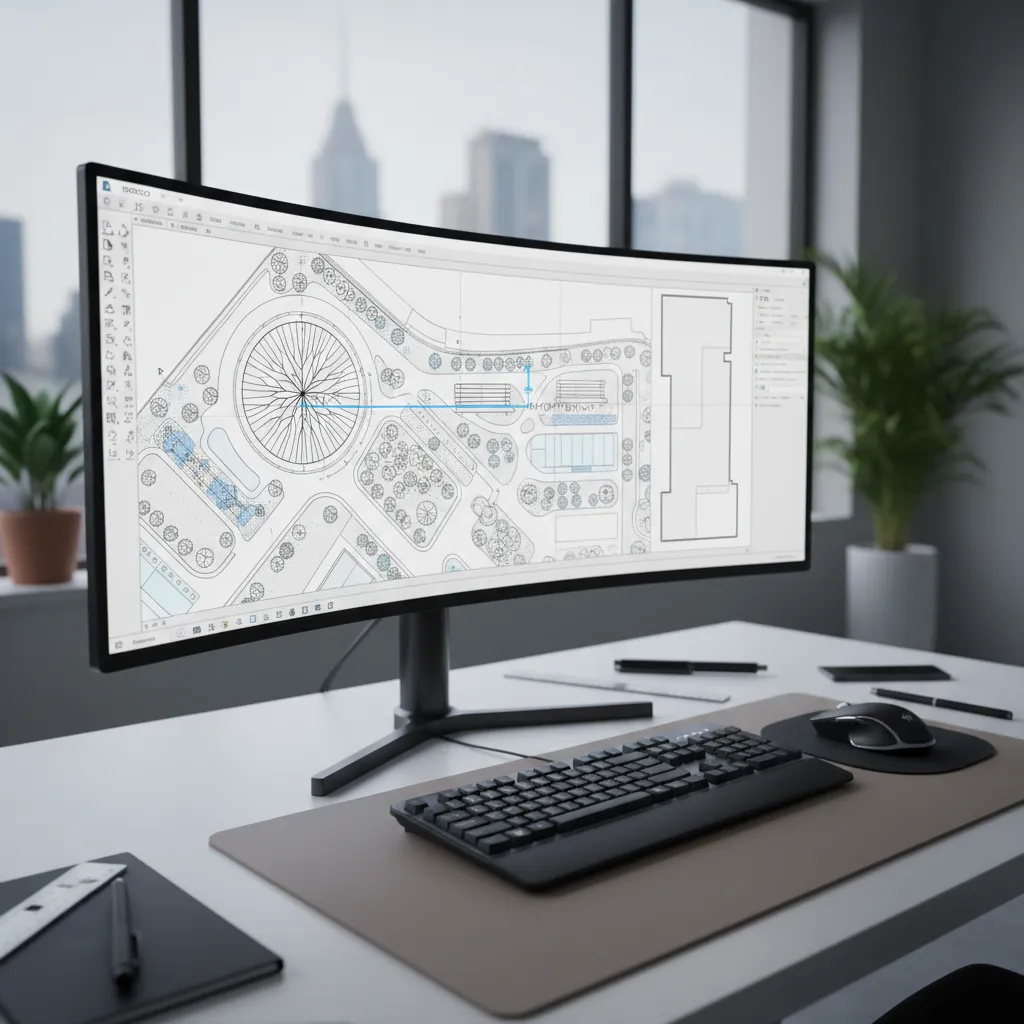

1. Run the UNITS command to confirm measurement type.
2. Measure a known object (for example, a bench or parking space).
3. Compare dimensions with real‑world standards.
4. Check whether blocks were inserted at a scaling factor.

Typical dimension references I use:

1. Park bench: ~1.8 meters (6 feet)
2. Standard tree canopy symbol: 4–8 meters
3. Parking space: 2.5 × 5 meters

If the scale is wrong, the entire file becomes unreliable.

This is also why designers often validate CAD content against spatial planning layouts like visual room layout planning examples used in architectural workflows, which provide realistic spatial proportions.

save pin

Identifying Poorly Drawn or Overly Complex CAD Files

Key Insight: More detail does not mean better CAD quality.

One of the biggest misconceptions among beginners is that highly detailed blocks are superior. In reality, excessive detail often signals inefficient drafting.

Warning signs of low‑quality CAD files include:

1. Hundreds of tiny segments forming simple curves
2. Repeated overlapping lines
3. Exploded blocks instead of reusable components
4. Unnecessary hatch patterns
5. File sizes much larger than expected

A good rule of thumb I teach junior designers:

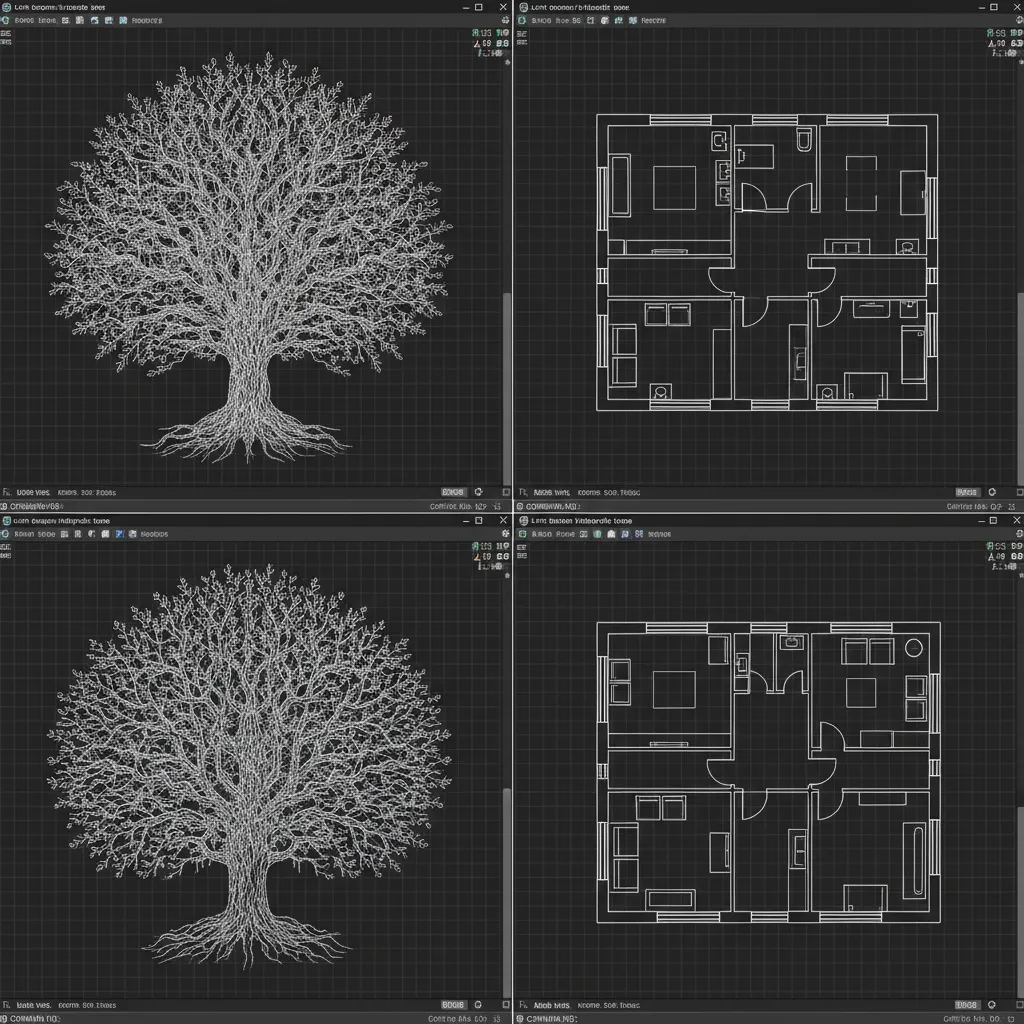

If zooming into a small object reveals thousands of nodes, the block is probably inefficient.

Professional CAD blocks focus on readability at drawing scale, not microscopic detail.

save pin

Testing CAD Blocks Before Using Them in Projects

Key Insight: Always test CAD blocks in a sandbox drawing before inserting them into production files.

Experienced designers rarely import unknown files directly into active projects.

Instead, create a temporary "test drawing" where new blocks are evaluated.

Quick testing workflow:

1. Open a blank CAD file.
2. Insert the downloaded block.
3. Check scale using known dimensions.
4. Explode once to inspect geometry.
5. Purge unused layers and objects.

If the block passes these checks, it can safely enter your main project library.

Building a Reliable Personal CAD Resource Library

Key Insight: The most efficient designers rely on curated libraries, not random downloads.

Over time, I’ve built a personal CAD library organized into categories:

1. Tree symbols
2. Shrubs and planting
3. Hardscape patterns
4. Outdoor furniture
5. Lighting and utilities

Each file in the library has already been tested, cleaned, and scaled correctly.

This dramatically speeds up future projects because you avoid repeating the evaluation process.

Answer Box

The best way to evaluate free landscape CAD files is to check scale accuracy, inspect layer structure, and test blocks in a temporary drawing. Clean geometry and realistic proportions are the strongest indicators of professional‑quality CAD assets.

Final Summary

1. Always verify units and scale before using downloaded CAD files.
2. Clean geometry and logical layers signal professional CAD blocks.
3. Overly complex geometry often harms drawing performance.
4. Test every block in a temporary file first.
5. A curated personal CAD library saves significant time.

FAQ

How do you check CAD block quality quickly?

Zoom into the geometry, inspect layers, and measure known objects. High‑quality blocks use simple geometry and correct real‑world dimensions.

Why are some free landscape CAD files so slow?

Many contain excessive line segments or exploded geometry. These increase file size and slow drawing performance.

What units should landscape CAD files use?

Most professional landscape drawings use meters, millimeters, or feet depending on region. Always verify units before inserting blocks.

How can I evaluate landscape CAD files before using them in projects?

Open them in a blank drawing, measure objects, inspect layers, and purge unused elements to confirm quality.

Are highly detailed CAD blocks better?

No. In most cases they are inefficient. Professional blocks balance clarity and geometric simplicity.

Why do downloaded CAD blocks scale incorrectly?

This usually happens when files use different units or when blocks were inserted with scaling factors.

What is the best way to test downloaded CAD drawings?

Insert them into a sandbox drawing and inspect scale, layers, and geometry before adding them to a real project.

What are quality standards for CAD blocks?

Correct scale, clean layers, minimal geometry, and logical naming conventions are the main professional standards.
