How to Fix an Empty or Blank 3D Window in Archicad: A step‑by‑step troubleshooting guide to quickly restore your Archicad 3D view when the window shows nothing.

Direct Answer

If your Archicad 3D window is blank, the most common causes are hidden layers, active 3D cutaways, a marquee selection restricting the model, or corrupted view settings. In most cases, resetting the 3D window, checking visibility filters, and verifying graphics settings restores the model within minutes.

Quick Takeaways

1. Hidden layers are the most common reason an Archicad 3D window appears blank.
2. A marquee selection may limit the 3D view to an empty area.
3. Active 3D cutaways can unintentionally hide the entire model.
4. Graphics driver or hardware acceleration issues can prevent 3D rendering.
5. Resetting the 3D camera often instantly restores visibility.

Introduction

If your Archicad 3D window blank issue suddenly appears, you're not alone. I’ve seen this happen dozens of times across different project teams—sometimes after importing files, sometimes after switching renovation filters, and occasionally for no obvious reason.

What makes the problem frustrating is that the model still exists. The floor plan works. Elements are selectable. But the 3D window shows absolutely nothing.

After more than a decade working with architectural visualization and BIM workflows, I’ve noticed that most "empty 3D window" cases come down to a handful of hidden settings rather than real model loss. The troubleshooting process below mirrors the exact checklist many design teams use before assuming the file is corrupted.

If you're experimenting with alternate visualization workflows while diagnosing display issues, some teams temporarily rebuild layouts using tools like a browser‑based 3D floor planning environment for quick layout previews, but in most Archicad cases the fix is much simpler.

save pin

What Causes a Blank 3D Window in Archicad

Key Insight: A blank 3D window almost always results from visibility restrictions rather than missing geometry.

Archicad uses multiple visibility layers and filters that control what appears in 3D. When several filters stack together, the result can easily hide everything.

The most common causes I see in practice include:

1. All model layers turned off
2. Incorrect renovation filter
3. Model View Options hiding structural elements
4. 3D cutaway planes enabled
5. Marquee selection restricting the 3D view
6. Corrupted saved view settings

In large office projects with multiple team members editing views, it's surprisingly easy for a saved view configuration to hide the entire building.

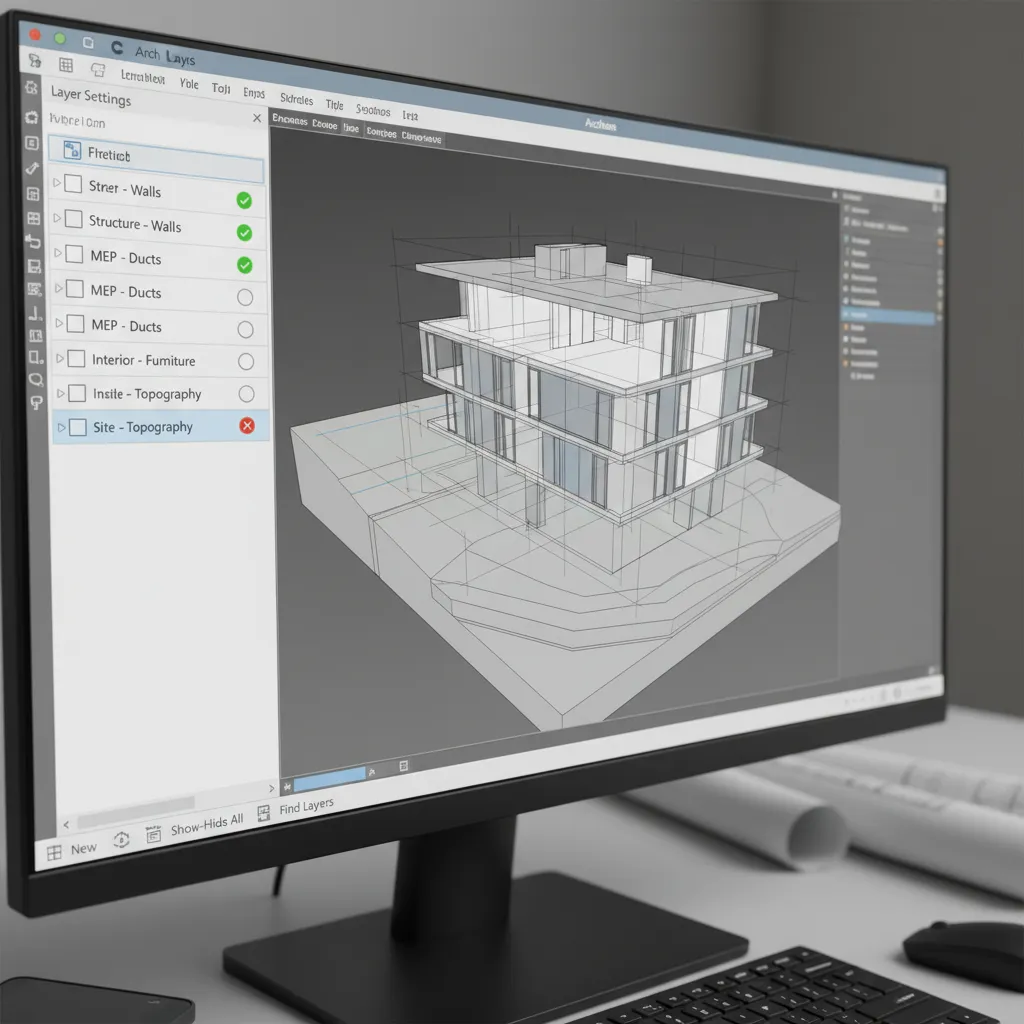

Checking Layers, Renovation Filters, and Model View Options

Key Insight: Visibility filters control whether elements can appear in the 3D window at all.

Before assuming a technical issue, verify that your project visibility settings haven't hidden the model.

Start with this quick checklist:

1. Open the Layer Settings panel and confirm structural layers are visible.
2. Switch the Renovation Filter to "Show All".
3. Check Model View Options for elements set to symbolic display.
4. Reload the saved view if you opened a layout-linked view.

On large BIM files, it's common for demolition or renovation filters to temporarily hide every 3D element in the project.

save pin

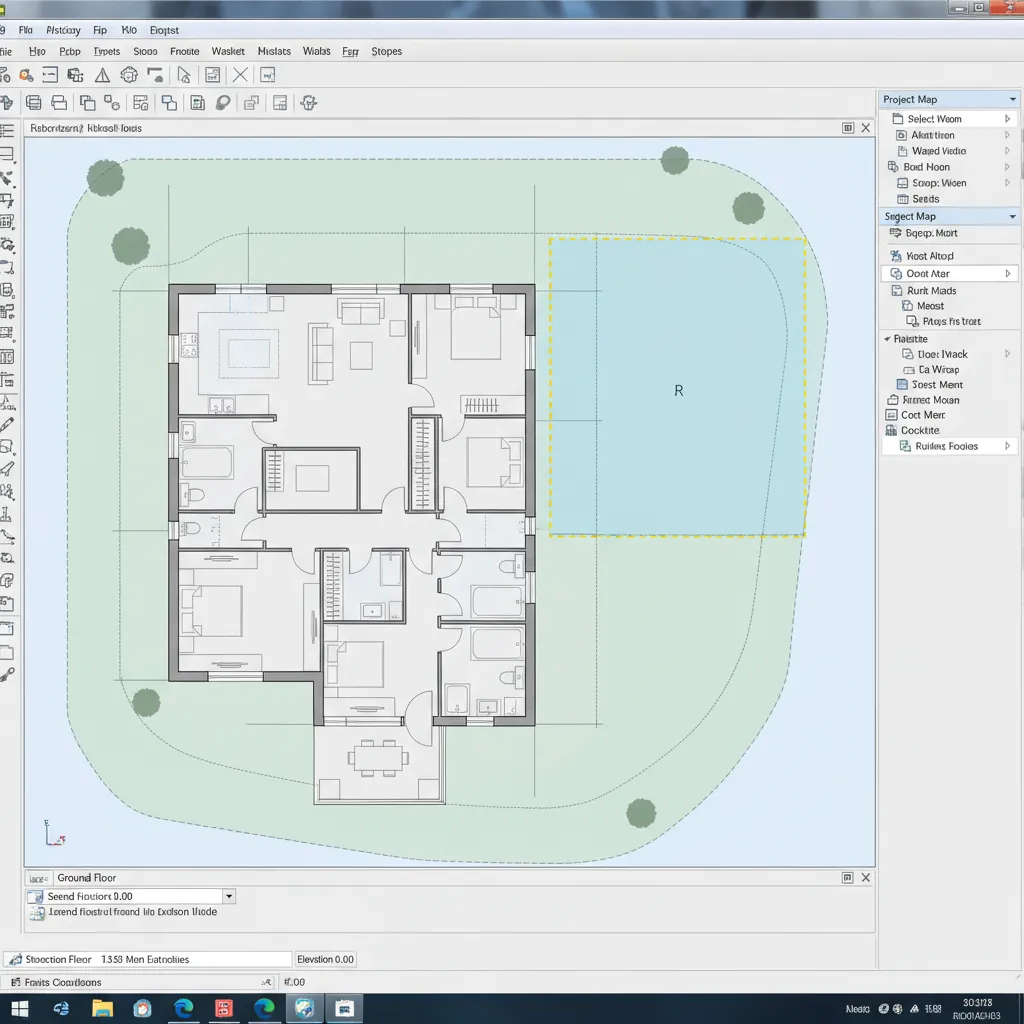

Verifying 3D Cutaways and Marquee Selection Issues

Key Insight: A single active marquee can restrict the 3D window to empty space.

This is one of the most overlooked causes of an Archicad 3D view shows nothing problem.

If a marquee selection exists on the floor plan, Archicad only generates 3D elements inside that region. If the marquee sits outside the building footprint, the 3D window appears empty.

How to fix it:

1. Press ESC to clear any active marquee.
2. Disable all 3D Cutaway planes.
3. Switch to View → Elements in 3D View → Show All in 3D.

Many architects accidentally activate a marquee during site modeling and forget it's still active.

Resetting the 3D Window and Camera Position

Key Insight: Sometimes the camera is simply located far away from the model.

Another surprisingly common scenario is when the 3D camera position moves extremely far from the building geometry. When that happens, the view appears empty even though the model still exists.

Quick reset steps:

1. Open the 3D window.
2. Go to View → 3D Navigation Extras.
3. Select Fit in Window.
4. Switch between Perspective and Axonometric views.

If the camera reset works, your model will instantly reappear.

During conceptual troubleshooting, some teams temporarily rebuild the geometry inside a simple browser‑based floor plan generator used for quick layout reconstructionto confirm whether geometry errors exist.

save pin

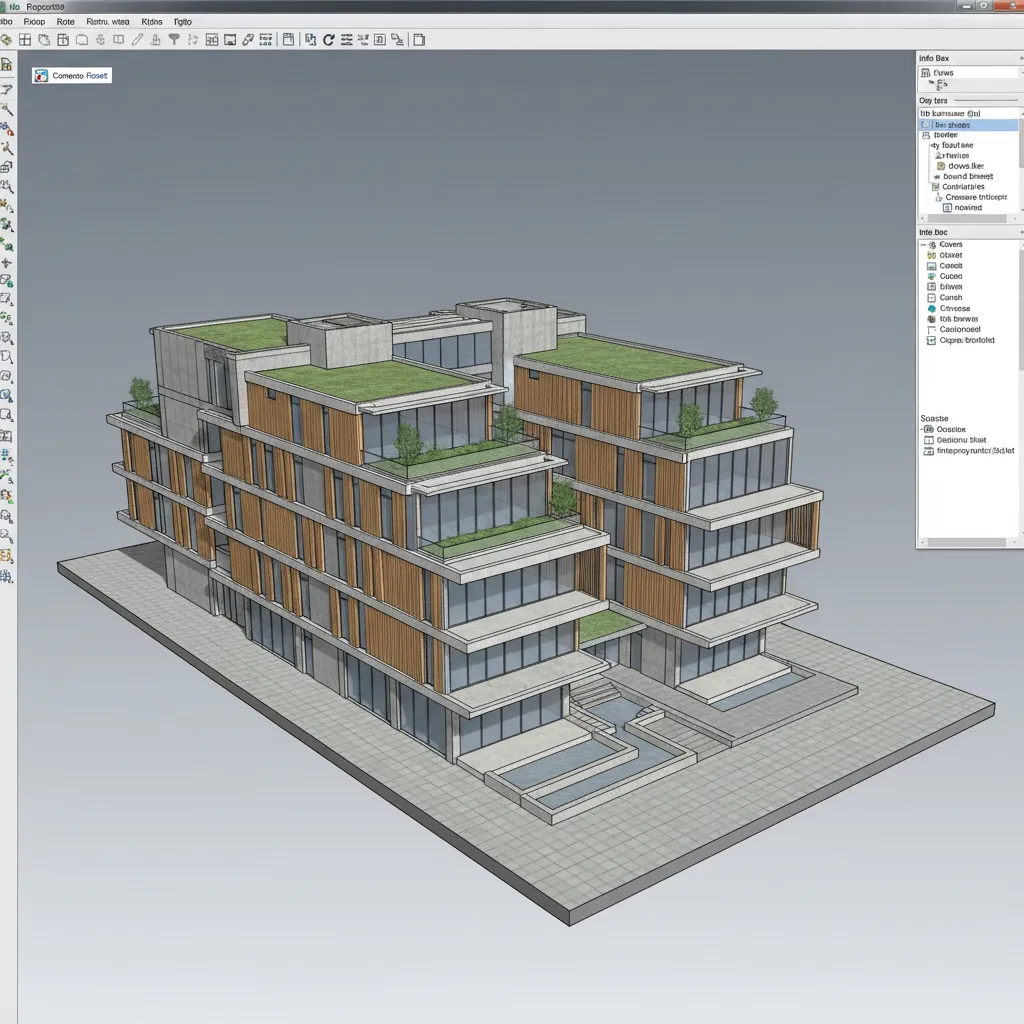

Fixing Display Problems Caused by Graphics Settings

Key Insight: GPU or driver conflicts can prevent the 3D viewport from rendering.

When Archicad cannot access proper GPU acceleration, the 3D window may open but fail to display geometry.

Signs of a graphics-related issue include:

1. 3D window opens but remains gray or black
2. Navigation works but objects never appear
3. Other 3D software on the machine also fails

Recommended fixes:

1. Update your GPU drivers
2. Disable experimental OpenGL options
3. Restart Archicad after changing graphics settings

If the problem persists, exporting the geometry to another renderer or a high‑quality interior rendering environment for quick visualization checkscan help confirm whether the issue is display-related or file-related.

save pin

Answer Box

The fastest way to fix an Archicad 3D window blank issue is to clear any marquee selections, disable 3D cutaways, and reset the camera using "Fit in Window." If the model still does not appear, check layer visibility and graphics driver settings.

When File Corruption or View Settings Are the Cause

Key Insight: Rarely, a saved view configuration or corrupted file state hides the entire model.

This usually happens after heavy teamwork editing or when files migrate between Archicad versions.

Try these recovery steps:

1. Create a brand‑new 3D view instead of opening a saved one
2. Copy the model into a new PLN file
3. Rebuild the project index
4. Use "Open & Repair" when loading the project

In my experience, fewer than 5% of blank 3D window cases are actually caused by corrupted files. Visibility settings are almost always the culprit.

Final Summary

1. Most Archicad 3D window blank issues come from hidden visibility settings.
2. Always check layers, renovation filters, and model view options first.
3. Clear marquees and disable cutaways before deeper troubleshooting.
4. Resetting the camera often restores the model instantly.
5. Graphics drivers can occasionally block 3D rendering.

FAQ

Why is my Archicad 3D window blank?

The most common reason is hidden layers, an active marquee selection, or enabled 3D cutaways restricting the visible model.

How do I fix an empty 3D window in Archicad quickly?

Clear the marquee selection, disable 3D cutaways, and click “Fit in Window” to reset the camera.

Why does my Archicad 3D view show nothing but the floor plan works?

The model likely exists but is hidden by renovation filters, layer settings, or view configurations.

Can graphics drivers cause Archicad 3D view not working?

Yes. Outdated or incompatible GPU drivers can prevent the 3D viewport from rendering geometry.

Does a marquee affect the Archicad 3D window?

Yes. A marquee limits the 3D generation area. If it's outside the building, the 3D window appears empty.

How do I reset the 3D camera in Archicad?

Open the 3D window and use the “Fit in Window” command to automatically locate the model.

Is the Archicad 3D window blank due to file corruption?

Rarely. Most cases are visibility or camera issues rather than file damage.

What if my Archicad model is not visible in 3D view?

Check layers, renovation filters, cutaways, and graphics settings to restore the model.
