How to Fix Common Errors When Converting 3D Models to DAE: Practical solutions for geometry, texture, and animation problems that often appear after exporting to COLLADA DAE.

Direct Answer

Most 3D model to DAE conversion problems come from incompatible geometry, missing texture paths, incorrect scale units, or unsupported animation rigs. Fixing them usually involves cleaning the mesh, relinking textures, applying transforms, and validating the COLLADA structure before export. Once these steps are handled correctly, DAE files typically load reliably in tools like Blender, Unity, or SketchUp.

Quick Takeaways

1. Clean meshes and apply transforms before exporting to avoid broken geometry.
2. Most missing textures in DAE files come from incorrect or relative file paths.
3. Animation issues often happen when rigs use unsupported constraints.
4. Scale problems usually come from mismatched unit systems between software.
5. Validating the COLLADA structure prevents many import errors.

Introduction

After working on dozens of visualization and architecture pipelines, I've seen the same frustration repeat itself: a model looks perfect in the original software, but the moment you export it to DAE, something breaks. Textures disappear. Meshes explode. Animations refuse to play. These are classic symptoms of a failed or unstable 3D model to DAE conversion.

DAE, also known as COLLADA, is widely used for asset exchange between modeling tools, game engines, and visualization platforms. But because it tries to preserve geometry, materials, hierarchies, and animations all at once, small inconsistencies in the source file can cause surprisingly messy results.

I usually run into these issues when preparing architectural assets for visualization platforms. When teams build scenes for interactive layout planning, for example, they often export models from different tools before assembling them in a unified workflow such as a 3D environment used to visualize complete floor layouts. That pipeline only works smoothly if the DAE files are structurally clean.

In this guide I'll walk through the most common DAE conversion failures I encounter in real projects and how to fix them quickly.

save pin

Why 3D Model to DAE Conversions Sometimes Fail

Key Insight: DAE conversions usually fail because the source model contains unsupported features or unclean geometry.

Unlike simpler formats like OBJ, the COLLADA format stores a complex hierarchy of meshes, materials, skeletons, and scene data. If the exporting application includes elements the importer doesn't understand, the result can be broken models or files that refuse to load.

Typical causes include:

1. Non‑manifold or duplicated geometry
2. Unapplied modifiers in Blender or Maya
3. Unsupported rigging constraints
4. External textures stored in inaccessible paths
5. Different coordinate systems between software

One overlooked issue is export settings. Many artists leave default exporter settings enabled, which can embed unnecessary data into the file. In my experience, simplifying export options dramatically reduces conversion failures.

Industry documentation from the Khronos Group (the maintainers of COLLADA) also recommends validating mesh topology before export, because malformed geometry is one of the most frequent causes of import failure.

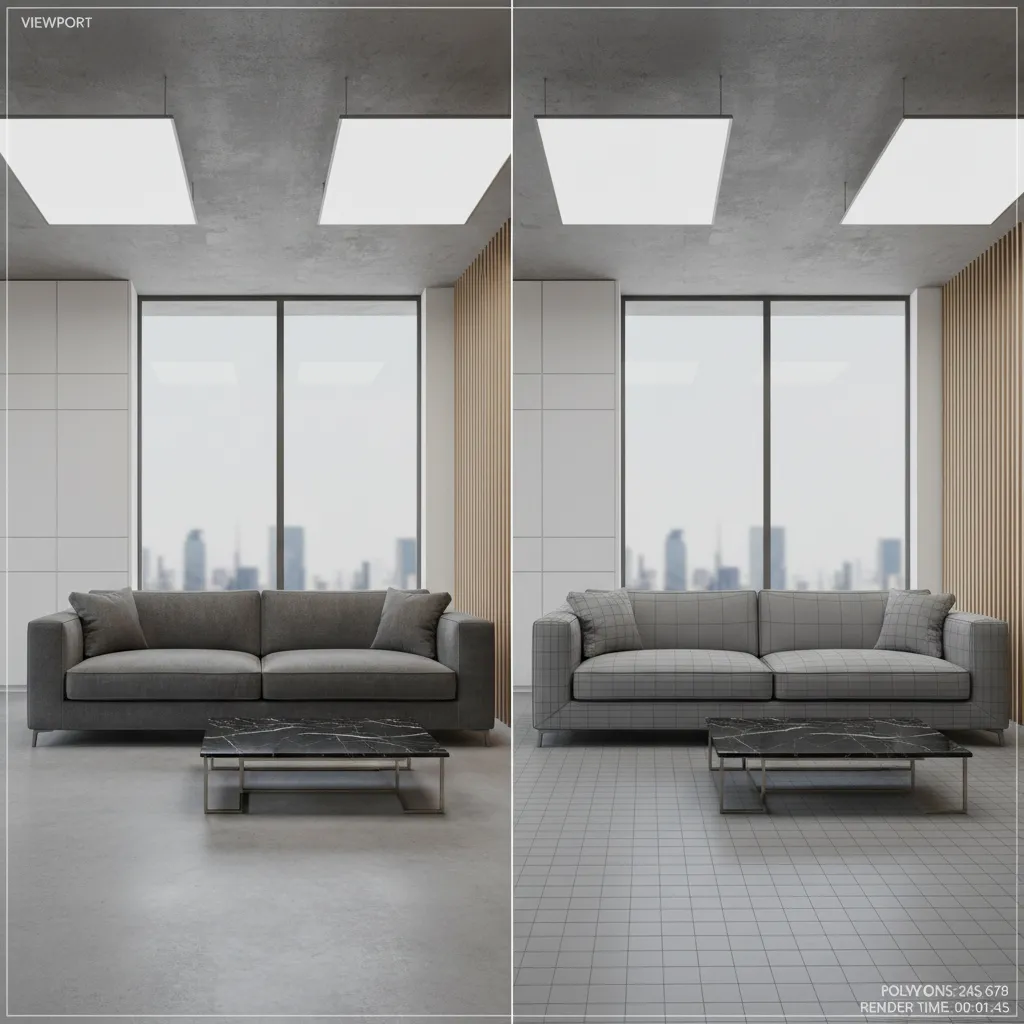

Fixing Missing Textures After DAE Conversion

Key Insight: Missing textures almost always happen because the DAE file cannot find the original texture file path.

This is probably the most common complaint I hear from designers. The model loads, but everything appears gray or flat.

In nearly every case, the texture file simply isn't linked correctly.

Steps that usually solve the issue:

1. Ensure all textures are saved in the same folder as the DAE file.
2. Use relative texture paths instead of absolute paths.
3. Pack textures before export if your software allows it.
4. Check that image formats are supported (PNG and JPG are safest).

Another subtle mistake I see in architectural models is using procedural textures instead of image maps. DAE cannot interpret many procedural materials, so they export as empty materials.

If your workflow involves building interior scenes that will later be rendered or arranged in tools like interactive AI assisted interior layout environments, keeping textures properly referenced is critical because the renderer depends on them.

save pin

Resolving Broken Geometry and Mesh Errors

Key Insight: Broken meshes usually come from non‑manifold geometry or unapplied modifiers before export.

When a model appears distorted after DAE export, the problem typically isn't the converter. It's the mesh structure.

Common geometry problems include:

1. Duplicate vertices
2. Non‑manifold edges
3. Inverted normals
4. Ngons that triangulate incorrectly

My typical cleanup workflow before exporting a DAE file looks like this:

1. Apply scale, rotation, and transforms.
2. Merge duplicate vertices.
3. Recalculate normals.
4. Triangulate complex faces.
5. Apply all modifiers.

This small preparation step often eliminates most "3d model broken after dae export" problems.

save pin

Animation and Rigging Problems in DAE Files

Key Insight: DAE supports basic skeletal animation, but complex rig constraints rarely survive export.

In character or mechanical animation projects, artists often rely on advanced rig features such as IK chains, drivers, or simulation constraints. The COLLADA format doesn't always translate these correctly.

Typical animation failures include:

1. Missing keyframes
2. Frozen skeletons
3. Broken bone hierarchy
4. Animation playing at the wrong speed

The safest workflow is to bake the animation before exporting.

Baking converts all procedural animation into simple keyframes, which the DAE format handles much more reliably.

Game developers frequently rely on this approach when preparing assets for engines that still accept COLLADA pipelines.

Scaling and Coordinate System Issues

Key Insight: Scale problems occur when the exporting and importing programs use different unit systems.

This can cause models to appear extremely tiny or massively oversized.

The most common mismatches look like this:

1. Blender uses meters
2. SketchUp uses inches
3. Game engines often expect meters

Before exporting, always:

1. Apply scale transforms
2. Confirm the scene unit settings
3. Use consistent up-axis orientation (Y-up vs Z-up)

Architectural workflows that rely on spatial accuracy—like planning layouts through a visual room planning workflow used to arrange furniture and walls—are particularly sensitive to these scaling errors.

save pin

How to Validate a COLLADA DAE File

Key Insight: Validation tools reveal structural problems inside the DAE file before you import it elsewhere.

When a file refuses to load or behaves unpredictably, validation is often the fastest way to diagnose the issue.

Good validation steps include:

1. Open the file in a secondary application like Blender.
2. Check the XML structure of the COLLADA file.
3. Confirm texture paths exist.
4. Verify the mesh hierarchy.

The COLLADA format is essentially XML-based, which means errors are sometimes visible directly in the file structure. Even a missing reference tag can break an importer.

Answer Box

The fastest way to fix a failed DAE conversion is to clean the mesh, apply transforms, bake animations, and ensure textures use relative paths. Most broken models result from geometry errors or unsupported animation data rather than the converter itself.

Final Summary

1. Clean mesh topology before exporting any DAE file.
2. Use relative texture paths to prevent missing materials.
3. Bake animations to avoid rig compatibility problems.
4. Apply transforms and confirm scale units.
5. Validate the COLLADA structure when errors appear.

FAQ

Why is my DAE file not loading in Blender?

The most common reason is broken mesh topology or missing external textures. Cleaning the mesh and ensuring all texture paths are valid usually fixes the problem.

How do I fix missing textures in a DAE file?

Place texture files in the same folder as the DAE file and use relative paths. Re‑export the model after relinking the textures.

What causes a DAE conversion to fail?

Unsupported animation rigs, corrupted geometry, missing textures, or incorrect export settings are typical causes of dae conversion failed fix scenarios.

Why does my model look distorted after export?

Distortion usually comes from unapplied modifiers or non‑manifold geometry that triangulates incorrectly during export.

Does DAE support animations?

Yes, but only basic skeletal animations. Complex rig constraints should be baked into keyframes before export.

Why is my DAE model extremely small or huge?

This usually indicates a unit mismatch between the exporting software and the importing software.

Can I edit a COLLADA file directly?

Yes. Since it is XML-based, advanced users can inspect and modify the file structure manually if necessary.

What software supports DAE files?

Blender, SketchUp, Maya, Unity, and many architectural visualization tools support COLLADA DAE import and export.
