How to Fix Common Problems in Second Floor Terrace Design: Practical solutions for drainage, waterproofing, layout, and privacy issues that often appear in second floor terrace projects

Direct Answer

Most second floor terrace problems come from three overlooked design mistakes: poor drainage slope, weak waterproofing layers, and inefficient layout planning. Fixing these issues usually involves improving water flow systems, upgrading waterproof membranes, and redesigning furniture zones to match the terrace structure.

When addressed early, these corrections prevent structural damage, reduce maintenance costs, and dramatically improve how the terrace is used.

Quick Takeaways

1. Most terrace leaks are caused by poor slope or blocked drains rather than faulty materials.
2. Waterproofing failures usually appear at joints, edges, and railing anchors.
3. Privacy problems on upper terraces are often solved with vertical landscaping.
4. Furniture layout must respect drainage paths and structural load zones.
5. Regular inspections prevent 80% of long‑term terrace damage.

Introduction

Second floor terrace design looks simple on paper, but in real projects it's one of the areas where I see the most expensive mistakes. After working on residential renovations for more than a decade, I've repeatedly been called in to fix issues like water pooling, leaks into living rooms, awkward layouts, and terraces that homeowners simply stop using.

The frustrating part is that most of these issues aren't structural disasters. They're design oversights that happen during planning. Drain placement, surface slope, railing height, furniture zones—small decisions that compound into real problems a year later.

Many homeowners start with inspiration images but skip the planning stage where drainage, structure, and circulation are solved. That's why I usually recommend starting with a clear spatial plan before construction. Even a simple digital layout built with a step by step floor plan layout planning guidecan reveal conflicts between seating areas, drains, and walkways.

In this guide I'll walk through the most common second floor terrace design problems I encounter in projects—and more importantly, how to fix them without rebuilding the entire space.

save pin

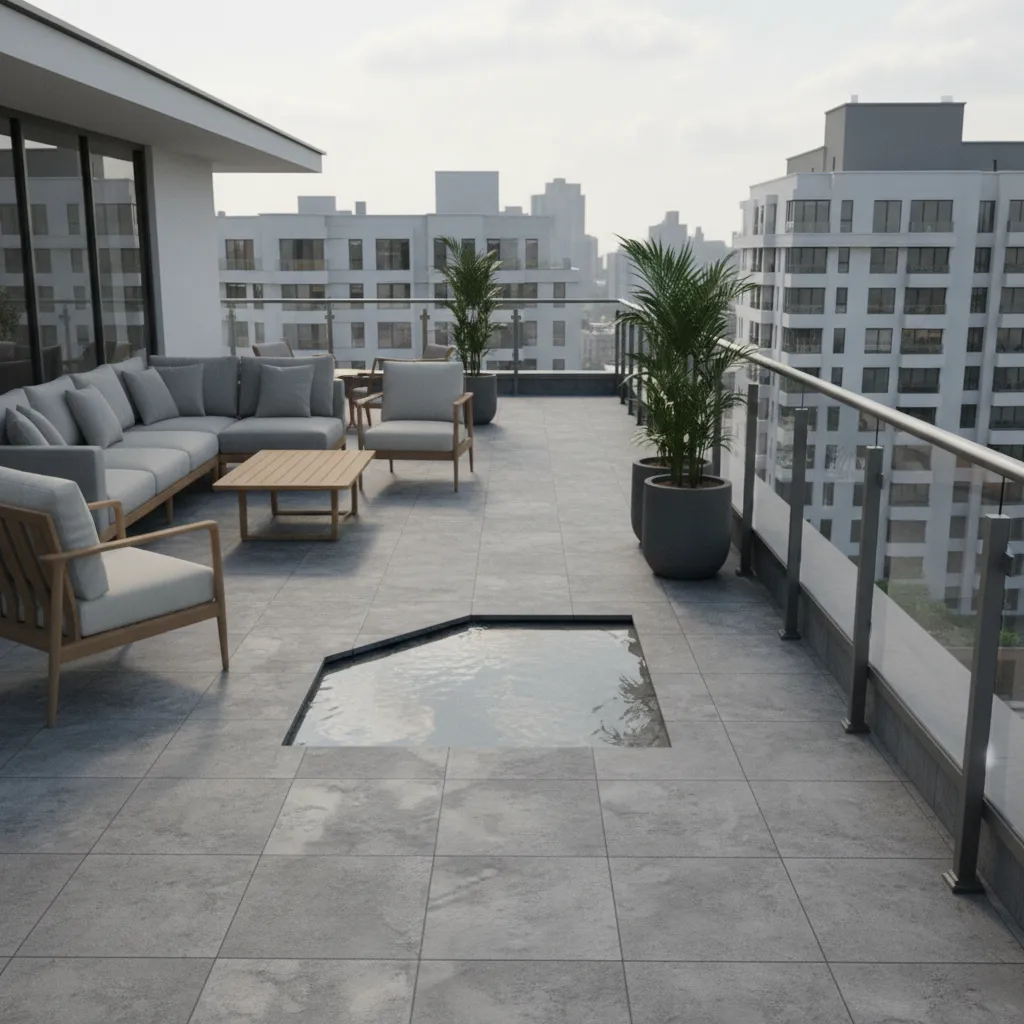

Common Problems in Second Floor Terrace Designs

Key Insight: Most terrace failures aren't construction defects—they're design decisions that ignore water movement, structure, and circulation.

Across dozens of residential terrace projects, the same problems show up again and again. What surprises many homeowners is that these issues often appear months or years after installation.

The most common terrace design mistakes include:

1. Insufficient slope for rainwater drainage
2. Improper waterproofing at wall connections
3. Furniture blocking drainage outlets
4. Lack of privacy from neighboring buildings
5. Overloading areas not designed for heavy planters

Architectural consultants from the International Institute of Building Enclosure Consultants frequently point out that flat roof terraces require extremely precise drainage slopes. Even a small deviation can allow water pooling, which accelerates waterproof membrane deterioration.

Another hidden issue I often see is "design-first planning." Homeowners choose tiles, furniture, and pergolas before confirming drainage direction and waterproofing layers.

The sequence should always be:

1. Structural load evaluation
2. Drainage and slope design
3. Waterproofing system
4. Surface materials
5. Furniture and landscaping

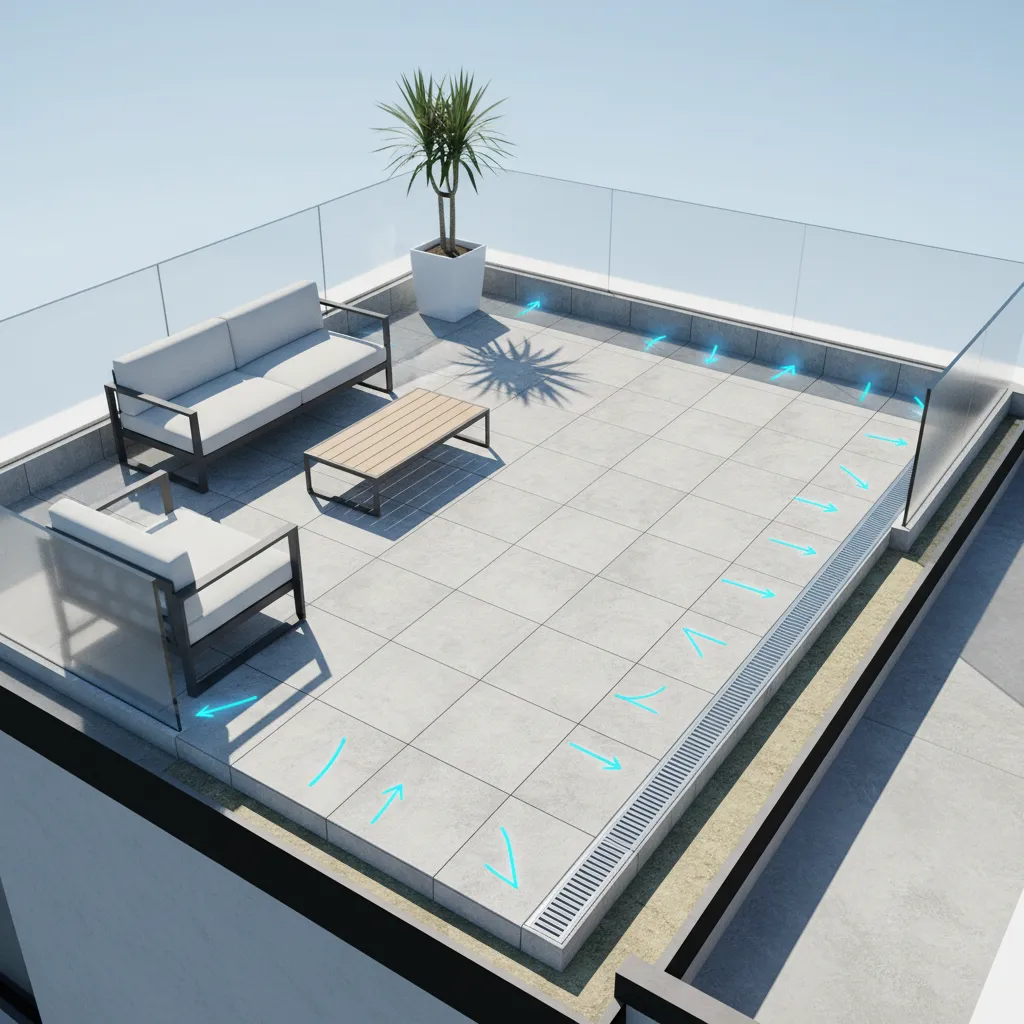

How to Fix Water Drainage Issues on Rooftop Terraces

Key Insight: Correct drainage slope matters more than the drain itself.

Many homeowners assume the drain is the problem. In reality, water pools because the terrace surface doesn't guide water toward the drain.

Professional roof terraces typically follow this rule:

1. Minimum slope: 1/4 inch per foot (about 2%)
2. Multiple drainage points for large terraces
3. Overflow drains for heavy rain

How to fix drainage problems:

1. Check the slope direction using a level.
2. Identify low spots where water accumulates.
3. Rebuild the screed layer to restore slope.
4. Install channel drains along edges if needed.
5. Keep drains clear of furniture and planters.

In one Los Angeles renovation project, a terrace leaked for two years despite multiple sealant repairs. The real issue turned out to be reversed slope tiles installed during a remodel. Correcting the slope solved the problem permanently.

save pin

Preventing Water Leakage and Waterproofing Failures

Key Insight: Waterproofing usually fails at edges, seams, and penetrations—not across the open surface.

In terrace repairs, I almost never see the middle of the membrane fail. The weak points are predictable:

1. Wall to floor junctions
2. Door thresholds
3. Drain penetrations
4. Railing anchor bolts

Reliable waterproofing layers usually include:

1. Primer layer
2. Flexible waterproof membrane
3. Protection board
4. Drainage mat
5. Tile or decking surface

The Tile Council of North America recommends installing flashing membranes at vertical transitions to prevent capillary water movement behind walls.

Another overlooked detail is railing installation. Many terraces develop leaks because metal posts were drilled through waterproofing layers after construction.

The safer method is surface-mounted railings or integrated anchors planned before waterproofing.

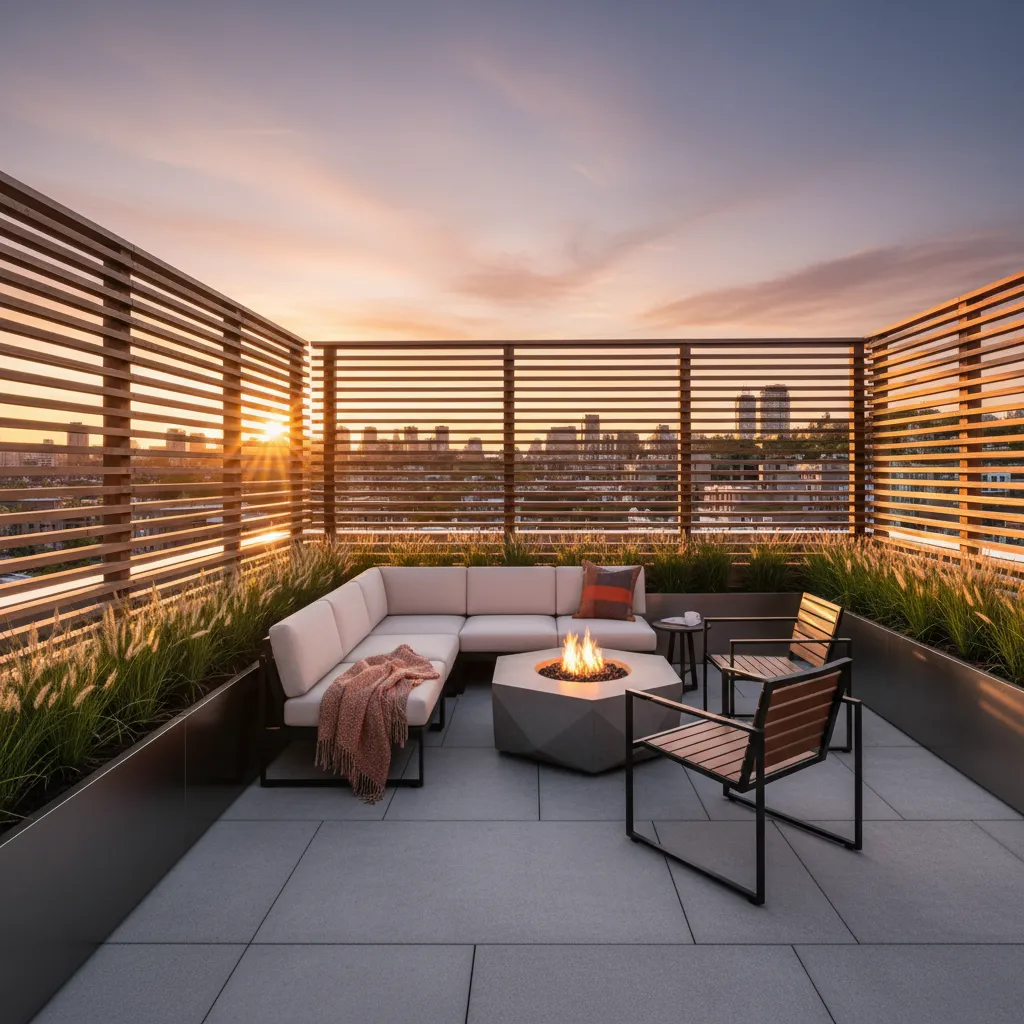

Solving Privacy Problems for Elevated Terraces

Key Insight: Privacy solutions work best when layered rather than relying on a single barrier.

Second floor terraces often overlook privacy during design. But once the space is built, neighbors may have direct sightlines.

Effective terrace privacy solutions include:

1. Vertical planters with tall grasses
2. Slatted wood or aluminum screens
3. Pergolas with adjustable louvers
4. Frosted glass railings

From a design perspective, vertical landscaping usually feels less intrusive than solid walls while still blocking sightlines.

When planning these features, I often visualize them using a visual layout planner for outdoor terrace zonesto test screen placement without blocking views or sunlight.

save pin

Fixing Poor Layout and Furniture Placement

Key Insight: Terrace layouts fail when furniture placement ignores movement paths and drainage flow.

Another issue I see constantly is terraces filled with oversized furniture. The result is blocked walkways, awkward seating zones, and inaccessible drains.

A balanced terrace layout usually includes:

1. Clear circulation path (minimum 36 inches)
2. Separate seating and dining zones
3. Drain access clearance
4. Weight distribution for large planters

A helpful rule is the "three zone method":

1. Entry zone
2. Social seating zone
3. View or relaxation zone

When homeowners struggle to visualize spacing, I often show them a realistic preview using a realistic terrace rendering preview workflow. Seeing furniture scale in context prevents most layout mistakes.

Maintenance Tips to Prevent Future Terrace Issues

Key Insight: Simple seasonal maintenance prevents most expensive terrace repairs.

Once the terrace is repaired or redesigned, maintenance becomes the key factor in long term durability.

Essential terrace maintenance checklist:

1. Clean drains every three months
2. Inspect sealant around doors and railings
3. Check tile grout for cracks
4. Remove standing water after heavy storms
5. Trim plants blocking drainage areas

According to the National Roofing Contractors Association, regular inspection significantly extends waterproof membrane lifespan.

Answer Box

The most effective way to fix second floor terrace problems is correcting drainage slope, strengthening waterproofing layers, and reorganizing furniture zones to keep drains clear. Most leaks originate at edges, seams, or penetrations rather than the terrace surface itself.

Final Summary

1. Poor drainage slope causes most terrace water problems.
2. Waterproofing fails mainly at edges and structural penetrations.
3. Layered privacy solutions improve comfort without blocking views.
4. Furniture layout should protect drainage paths.
5. Regular inspection prevents long term structural damage.

FAQ

What causes water leakage on second floor terraces?

Most leaks come from failed waterproofing at edges, drains, or railing penetrations rather than the main terrace surface.

How do you fix terrace drainage problems?

Correcting the surface slope and clearing drains usually resolves drainage issues. Terraces typically require a 2% slope toward drainage outlets.

What is the best waterproofing for rooftop terraces?

Flexible waterproof membranes combined with flashing at vertical joints provide the most reliable terrace waterproofing.

Can terrace tiles cause leaks?

Tiles themselves rarely cause leaks, but cracked grout or improper waterproofing beneath them can allow water infiltration.

How do I fix privacy issues on rooftop terraces?

Vertical planters, slatted screens, and pergolas create layered privacy without making the terrace feel enclosed.

How often should a terrace be inspected?

Experts recommend inspecting rooftop terraces twice a year and after major storms.

What flooring works best for terraces with water exposure?

Porcelain tiles, stone pavers, and composite decking are durable options when installed over proper drainage systems.

Are drainage problems common in second floor terrace design?

Yes. Improper slope and blocked drains are among the most common terrace design mistakes.
