How to Fix Geometry Errors After Splitting a 3D Model: A practical guide to repairing holes, non‑manifold edges, and shading problems after cutting or splitting 3D meshes.

Direct Answer

Geometry errors after splitting a 3D model usually happen because the cut operation breaks edge loops, flips normals, or leaves open boundaries in the mesh. The fix typically involves sealing holes, repairing non‑manifold edges, recalculating normals, and running mesh validation tools to restore watertight geometry.

In most workflows, repairing the mesh immediately after the cut—before adding new edits—prevents larger topology problems later in rendering, simulation, or fabrication.

Quick Takeaways

1. Most broken meshes after splitting are caused by open boundaries or non‑manifold edges.
2. Always run mesh cleanup and validation before continuing modeling work.
3. Recalculating normals fixes many shading errors instantly.
4. Manual edge bridging often produces cleaner results than automatic hole filling.
5. Early geometry repair prevents rendering and export failures later.

Introduction

In real production work, splitting a 3D model rarely ends as cleanly as tutorials suggest. Even experienced artists run into geometry errors after cutting meshes—holes appear, shading breaks, or entire surfaces disappear when exported.

Over the past decade working on architectural visualization and interior modeling pipelines, I've seen this happen constantly when teams separate large models for rendering, asset reuse, or layout planning. A simple split can turn a clean mesh into something filled with open edges and non‑manifold geometry.

One common scenario appears during spatial planning workflows. When designers generate layouts using tools like a interactive 3D layout planning workflow used for residential spaces, they often separate walls, floors, and furniture meshes for editing. That split frequently introduces broken topology that must be repaired before rendering.

The good news is that most of these problems follow predictable patterns. Once you understand what actually breaks during a mesh split—and why—it becomes much easier to repair the model without rebuilding it from scratch.

save pin

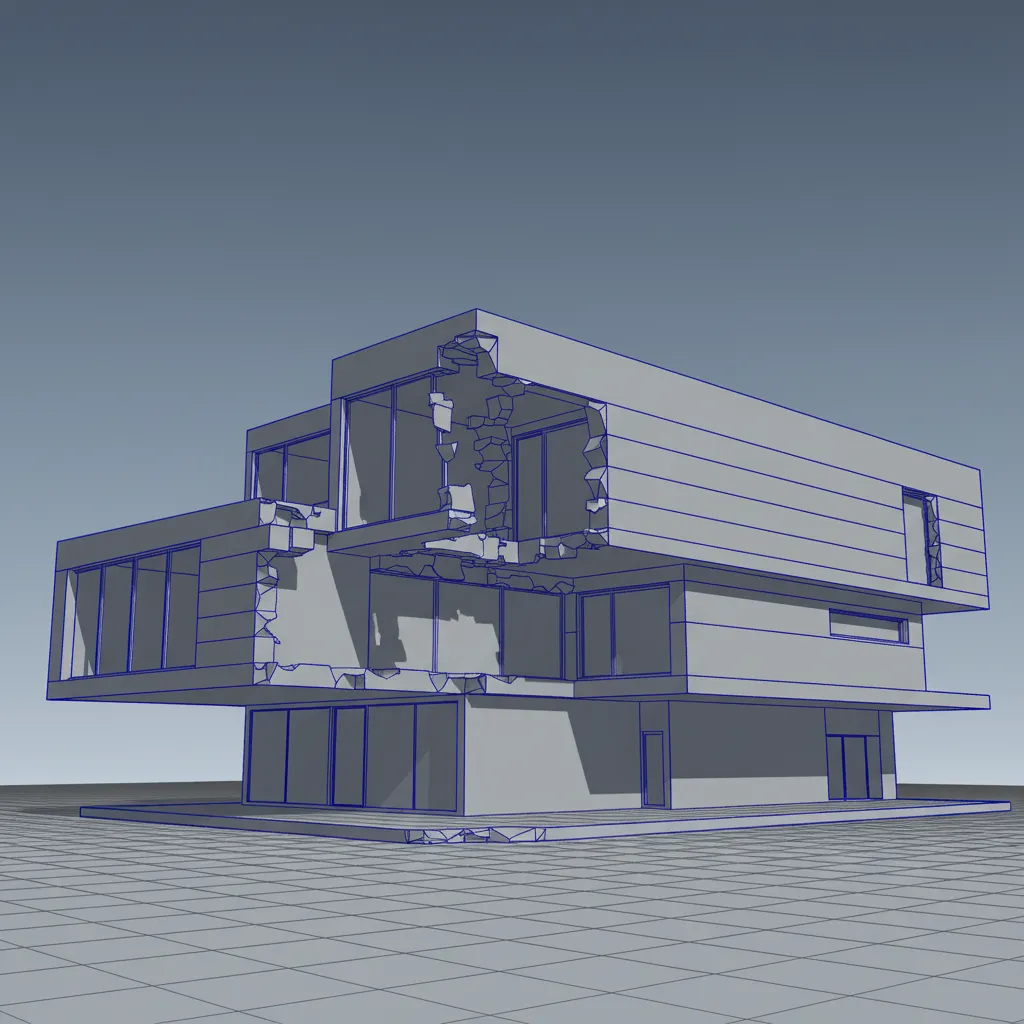

Common Problems After Splitting a 3D Model

Key Insight: Most geometry failures after splitting are not random—they result from broken edge connectivity at the cut boundary.

When a mesh is divided, the software must generate new edges along the cut plane. If those edges don't form clean loops, the result is unstable geometry.

Across many production projects, these are the most frequent issues:

1. Open edges: The mesh becomes non‑watertight where the cut occurred.
2. Missing polygons: Faces fail to generate along the split surface.
3. Non‑manifold edges: Edges connect to more than two faces.
4. Flipped normals: Lighting behaves incorrectly.
5. Mesh artifacts: Tiny floating triangles appear after boolean cuts.

In architectural models especially, boolean cuts across dense wall geometry often produce micro‑triangles that are almost invisible in the viewport but cause rendering errors later.

Many teams avoid these issues entirely by planning cuts earlier using structured layout workflows such as a step‑by‑step process for generating clean floor plan geometry before modeling, which reduces destructive mesh edits later.

Fixing Holes and Open Edges

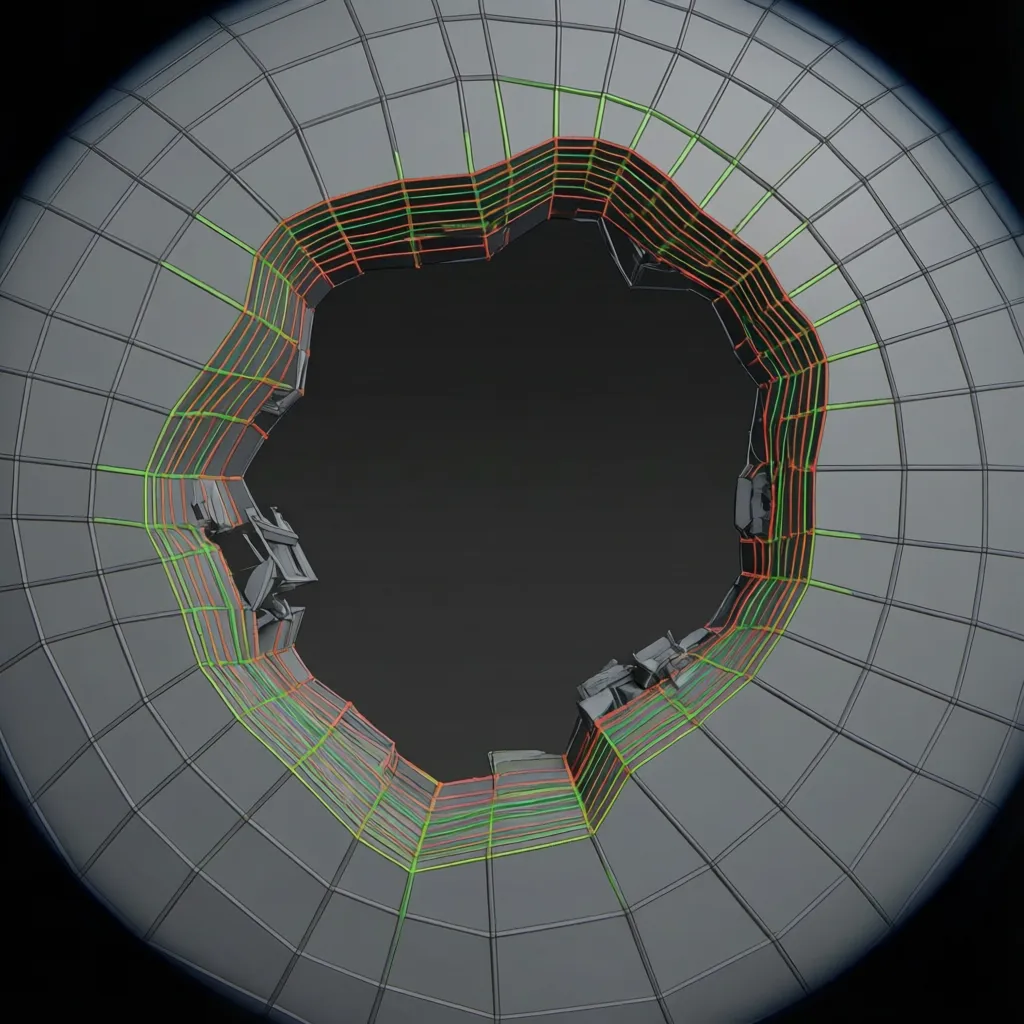

Key Insight: Open boundaries must be closed with clean edge loops to restore a watertight mesh.

Holes usually appear when the cutting algorithm fails to create a complete polygon surface across the split. Automatic hole‑filling tools work in simple cases but often generate messy topology.

My preferred workflow after dozens of architectural mesh repairs:

1. Identify open boundaries using mesh analysis tools.
2. Select the entire edge loop around the hole.
3. Use "bridge" or "fill" tools to generate faces.
4. Convert large n‑gons into clean quads where possible.
5. Merge nearby vertices to eliminate gaps.

Manual edge bridging usually produces cleaner geometry than automatic "fill hole" commands, especially on curved surfaces.

save pin

Repairing Non Manifold Geometry

Key Insight: Non‑manifold edges break most rendering, physics, and 3D printing pipelines, so they must be resolved immediately.

Non‑manifold geometry appears when edges connect to more than two faces or when internal faces overlap. This often happens during boolean splits.

Typical repair workflow:

1. Run a non‑manifold selection tool.
2. Delete internal faces.
3. Merge duplicate vertices.
4. Rebuild problematic edge loops.
5. Retopologize complex intersections.

In large architectural scenes, intersections between walls and floors are a major source of non‑manifold edges because boolean operations stack surfaces on top of each other.

Correcting Normals and Shading Issues

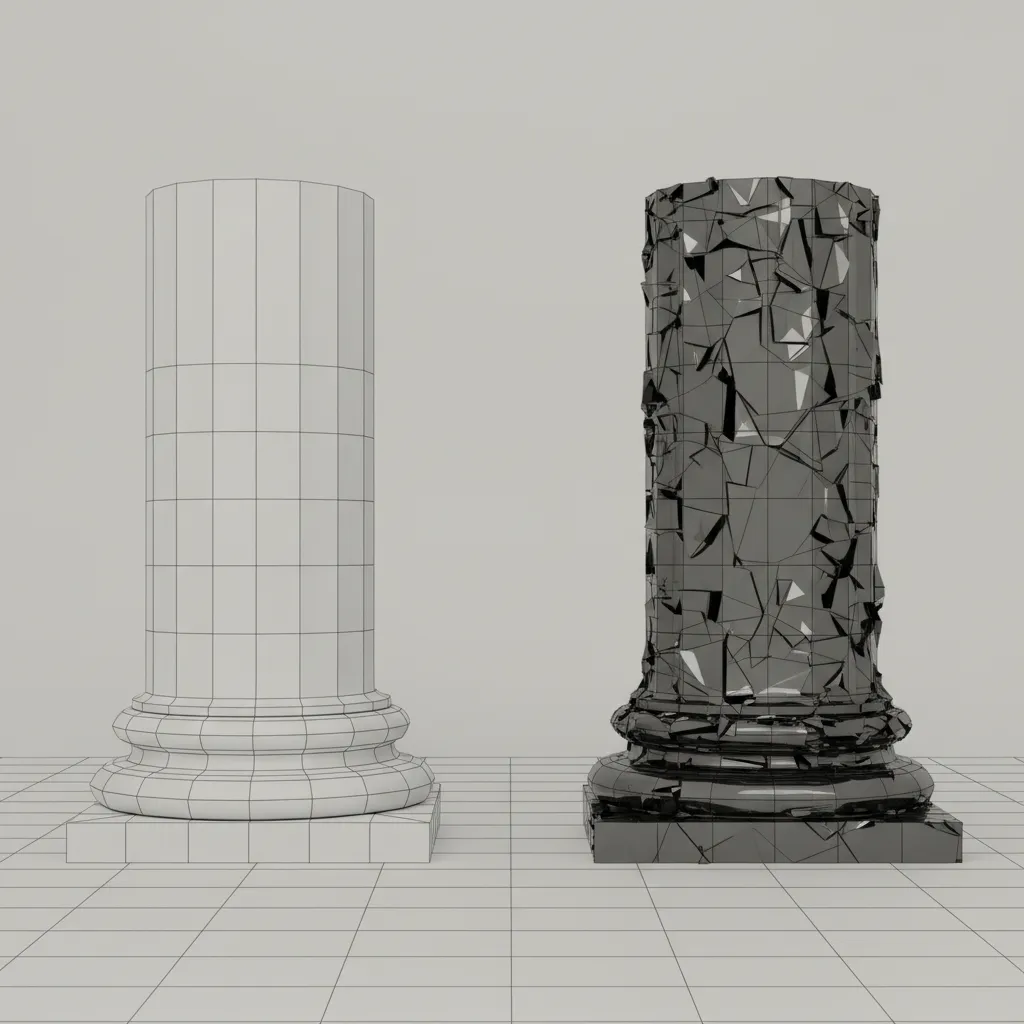

Key Insight: Shading artifacts after splitting are usually caused by flipped or inconsistent normals.

Normals determine how lighting interacts with surfaces. When a model is split, newly created faces sometimes inherit incorrect normal directions.

Steps that usually fix the issue in seconds:

1. Select the entire mesh.
2. Recalculate normals to face outward.
3. Enable face orientation visualization.
4. Manually flip incorrectly oriented polygons.

Another hidden cause of shading issues is duplicated vertices along the cut line. Merging them often resolves lighting glitches immediately.

save pin

Cleaning Up Mesh Artifacts After Cutting

Key Insight: Boolean cuts often leave tiny triangles and floating vertices that degrade model performance.

These artifacts rarely appear in beginner tutorials but show up constantly in production models.

Typical mesh cleanup checklist:

1. Remove isolated vertices
2. Delete zero‑area faces
3. Collapse extremely thin triangles
4. Merge duplicate vertices
5. Simplify overly dense cut areas

In large scenes, these artifacts can multiply quickly and slow down rendering engines or real‑time viewers.

In my experience, geometry cleanup becomes especially important before exporting scenes into visualization pipelines such as a workflow designed for producing high‑quality interior rendering outputs, where messy topology can cause lighting artifacts or texture errors.

Validation Tools to Check Mesh Integrity

Key Insight: A quick mesh validation pass can detect most geometry errors before they become major problems.

Professional modeling workflows almost always include automated mesh checks.

Useful validation checks include:

1. Non‑manifold edge detection
2. Open boundary detection
3. Intersecting faces
4. Duplicate vertex checks
5. Zero‑area face detection

Many modeling platforms include built‑in mesh analysis tools that highlight these issues visually, allowing fast correction before exporting models to other tools.

Answer Box

The fastest way to fix geometry errors after splitting a 3D model is to seal open edges, remove non‑manifold geometry, merge duplicate vertices, and recalculate normals. Running mesh validation tools immediately after the split prevents rendering and export failures later in the workflow.

Final Summary

1. Most mesh errors after splitting come from broken edge loops.
2. Always repair holes and non‑manifold edges first.
3. Recalculate normals to eliminate shading problems.
4. Clean up tiny triangles and duplicate vertices.
5. Run mesh validation before exporting or rendering.

FAQ

Why does my mesh break after splitting a 3D model?

Because the split creates new edges that may not form clean polygons, leading to holes or non‑manifold edges.

How do I fix holes after cutting a 3D model?

Select the boundary edges and use bridge or fill tools to create new faces, then merge nearby vertices for a clean mesh.

What are non manifold edges after splitting model geometry?

They occur when an edge connects to more than two faces, which breaks rendering and simulation systems.

Can recalculating normals fix shading problems?

Yes. Many shading issues after a mesh split are caused by flipped normals and can be corrected instantly.

What is the fastest way to repair mesh after boolean cut?

Delete internal faces, merge duplicate vertices, and rebuild edge loops around the intersection area.

How can I detect broken mesh geometry?

Use mesh validation tools that highlight open boundaries, duplicate vertices, and non‑manifold edges.

Is automatic hole filling reliable?

It works for simple cuts, but manual edge bridging usually produces cleaner topology.

Do geometry errors affect rendering?

Yes. Broken meshes can cause lighting artifacts, missing textures, or export failures in rendering engines.
