How to Fix Hatch Not Showing or Not Filling in AutoCAD: Practical fixes designers use when AutoCAD hatch patterns refuse to appear, fill, or display correctly.

Direct Answer

If hatch is not showing or not filling in AutoCAD, the cause is usually an open boundary, incorrect hatch scale, hidden layers, or a display setting blocking the pattern. In most real projects, fixing boundary gaps, adjusting hatch scale, or regenerating the drawing resolves the issue quickly.

When the hatch still fails to appear, checking layer visibility, annotation settings, and corrupted hatch objects usually reveals the underlying problem.

Quick Takeaways

1. Open boundaries are the most common reason AutoCAD hatch does not fill.
2. Incorrect hatch scale can make patterns appear invisible.
3. Frozen or non‑plot layers often hide hatch patterns.
4. Corrupted hatch objects sometimes require recreation.
5. Display and annotation settings can override hatch visibility.

Introduction

In more than a decade of working with architects and interior designers, the issue I hear about most often is simple: AutoCAD hatch not showing when it should clearly be there.

It usually happens right when a drawing is nearly finished. Walls are complete, materials are defined, and then the hatch refuses to appear—or worse, it previews correctly but disappears after you click.

I have seen this problem on residential layouts, office construction documents, and even high‑end visualization drawings. The frustrating part is that the cause is rarely obvious.

Many designers assume AutoCAD is glitching. In reality, hatch failures almost always trace back to boundary problems, scale mismatches, or display settings that quietly override the pattern.

If you are creating layouts for planning or presentation, tools like this step‑by‑step workflow for generating accurate room layoutscan help prevent structural errors that later break hatch boundaries.

In this guide, I'll walk through the exact troubleshooting steps I use in real projects when hatch patterns refuse to behave.

save pin

Why Hatch May Not Appear in AutoCAD

Key Insight: If a hatch does not appear at all, AutoCAD usually cannot detect a valid closed boundary.

When AutoCAD applies hatch patterns, it scans the surrounding geometry to detect an enclosed area. If the boundary contains even a tiny gap, the system often fails to generate the fill.

What surprises many users is how small the gap can be. I have seen a 0.001‑unit break prevent an entire hatch from appearing.

Common causes include:

1. Lines that look connected but are actually slightly separated
2. Polylines that were exploded during editing
3. Overlapping geometry confusing the boundary detection
4. Objects on locked or hidden layers

Quick diagnostic checklist:

1. Turn on object snaps and inspect corners closely
2. Use the PEDIT command to convert segments into a polyline
3. Use BOUNDARY command to test if AutoCAD can detect the region
4. Zoom deeply into corners to locate gaps

Autodesk documentation consistently notes that hatch requires closed boundaries or explicitly defined regions to function correctly.

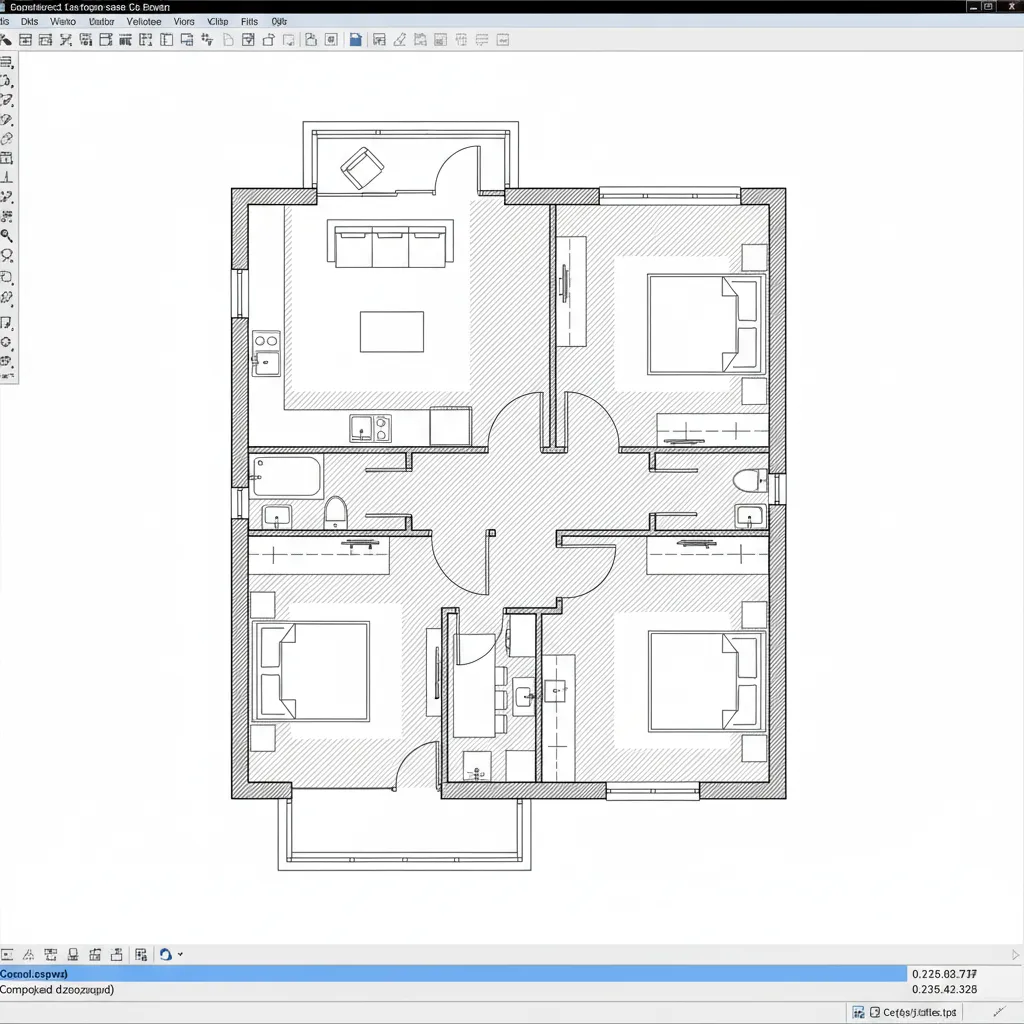

Checking Boundary Gaps and Closed Areas

Key Insight: Converting loose linework into a single polyline fixes a large percentage of hatch boundary problems.

In many architectural drawings, boundaries are created from separate lines rather than one clean shape. That works visually, but hatch detection becomes unreliable.

My typical workflow looks like this:

1. Select boundary lines.
2. Run PEDIT.
3. Choose Join.
4. Set a small fuzz distance.
5. Convert to a closed polyline.

Once the boundary becomes a single polyline, hatch generation becomes dramatically more reliable.

This is especially important in floor plan development. When working with complex layouts, using structured tools such as a visual 3D layout planning environmentoften reduces the chance of fragmented boundaries that break hatching.

save pin

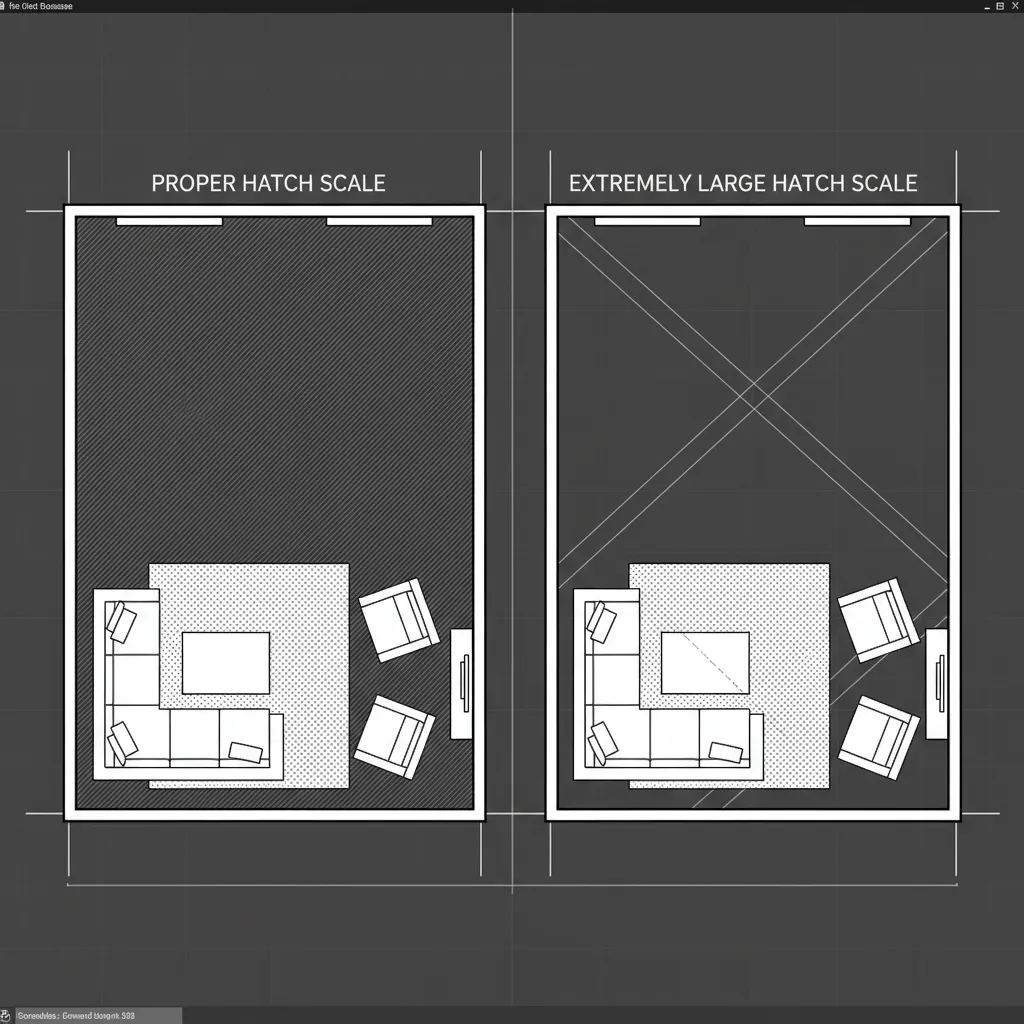

Fixing Hatch Scale and Annotation Issues

Key Insight: Sometimes the hatch is actually present—but the scale makes it appear invisible.

This is one of the most overlooked issues in AutoCAD hatch troubleshooting.

If the hatch scale is too large relative to the drawing units, the pattern spacing may exceed the boundary size. The result: the hatch technically exists but displays as blank.

Common scale troubleshooting steps:

1. Open Hatch Editor
2. Reduce hatch scale dramatically (for example from 100 to 5)
3. Check annotation scaling settings
4. Ensure annotation visibility matches viewport scale

Design teams working across metric and imperial drawings run into this constantly because pattern libraries assume specific unit scales.

One rule I use on real projects: if the hatch preview appears but disappears after placement, scale mismatch is almost always the culprit.

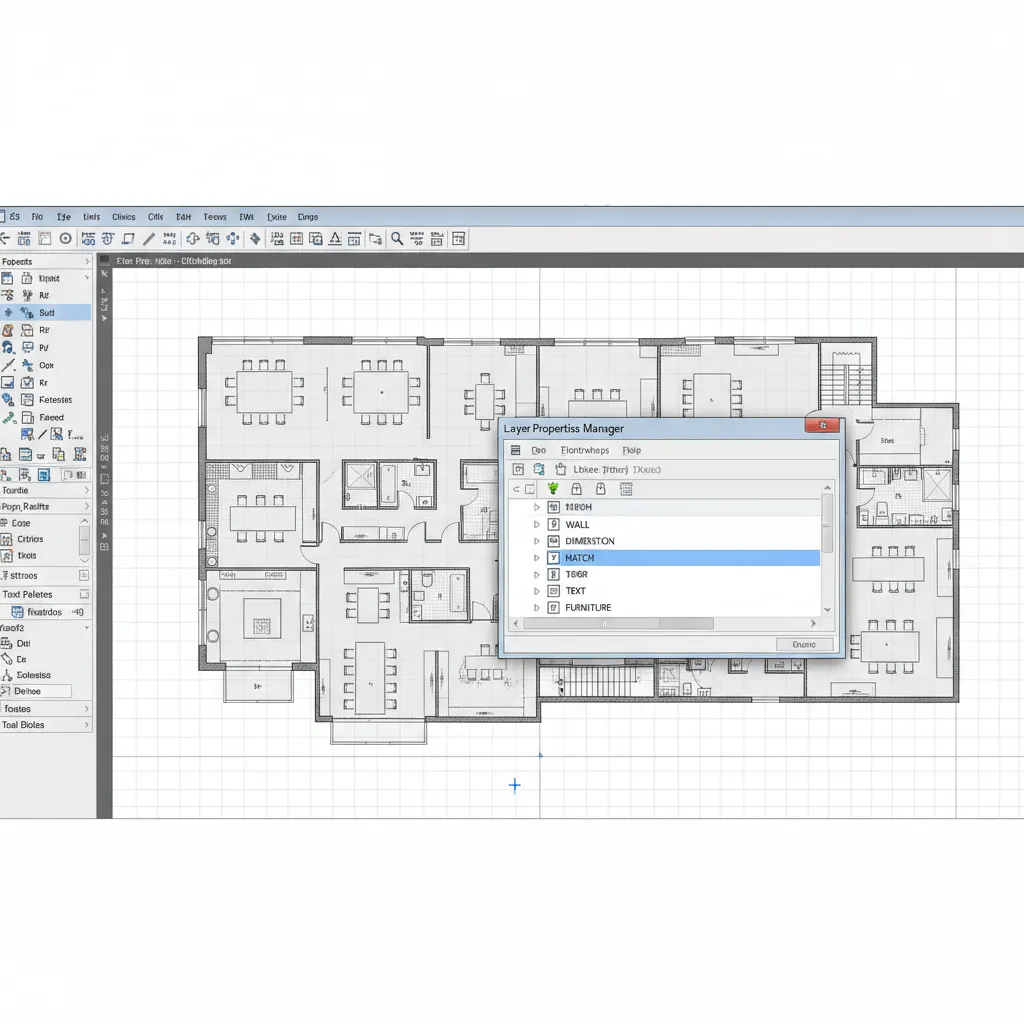

Layer and Display Settings That Affect Hatches

Key Insight: Hatch patterns frequently exist but are hidden by layer controls or display variables.

AutoCAD has several system variables that directly affect hatch visibility.

The most important ones include:

1. FILLMODE
2. HPVISIBILITY
3. Layer freeze or off state
4. Viewport layer overrides

Quick fix workflow:

1. Type FILLMODE and set it to 1
2. Run REGEN to refresh the drawing
3. Confirm hatch layer is not frozen
4. Check viewport overrides in layout tabs

This becomes especially relevant when teams share drawings across multiple environments. A hatch visible in Model Space may disappear in Layout due to viewport layer settings.

save pin

Resolving Hatch Preview Problems

Key Insight: When hatch preview works but the final hatch disappears, the issue usually involves preview settings or hardware acceleration.

AutoCAD's hatch preview is GPU‑assisted. In some workstations, graphics drivers interfere with the final hatch render.

Try these steps:

1. Turn hardware acceleration off temporarily
2. Update graphics drivers
3. Set HPQUICKPREVIEW to 0
4. Regenerate the drawing

Another overlooked factor is drawing complexity. Large files with thousands of objects sometimes suppress hatch rendering to maintain performance.

When developing large plans, structured planning environments like a visual room layout planning workspace can help maintain cleaner geometry before importing drawings into AutoCAD.

Answer Box

The fastest way to fix AutoCAD hatch not showing is to verify closed boundaries, reduce hatch scale, ensure FILLMODE is enabled, and regenerate the drawing. If the hatch still fails, recreate the boundary as a closed polyline or delete and rebuild the hatch object.

Advanced Fixes for Corrupted Hatch Objects

Key Insight: In rare cases, the hatch itself becomes corrupted and must be recreated.

I usually suspect corruption when:

1. The hatch worked previously but suddenly disappears
2. Editing the hatch causes AutoCAD lag
3. The hatch cannot be selected normally

Professional troubleshooting sequence:

1. Explode the hatch object.
2. Purge unused objects.
3. Audit the drawing.
4. Recreate the hatch with a clean boundary.

Autodesk recommends running the AUDIT and PURGEcommands regularly in large production drawings because corrupted objects often accumulate over time.

save pin

Final Summary

1. Most hatch failures come from open or broken boundaries.
2. Incorrect hatch scale often makes patterns appear invisible.
3. Layer controls and FILLMODE frequently hide valid hatches.
4. Preview issues can stem from graphics settings.
5. Corrupted hatch objects sometimes require recreation.

FAQ

Why is my AutoCAD hatch not showing after I apply it?

The most common reason is an open boundary. Even tiny gaps prevent AutoCAD from detecting a closed region for the hatch.

Why does hatch preview appear but disappear after clicking?

This usually indicates a hatch scale problem or annotation mismatch. Try reducing the hatch scale dramatically.

How do I fix AutoCAD hatch not filling an area?

Convert the boundary into a closed polyline using PEDIT and then recreate the hatch. This resolves many "autocad hatch not filling area" issues.

What command checks for drawing errors affecting hatch?

Use the AUDIT command to detect and repair drawing corruption that may affect hatch objects.

Why is hatch not visible in layout view?

Viewport layer overrides or frozen layers often hide hatch patterns in layouts even when they appear in model space.

Can hatch scale make a pattern invisible?

Yes. If the scale is too large, pattern spacing exceeds the boundary and the hatch appears blank.

How do I repair an AutoCAD hatch display problem?

Check FILLMODE, regenerate the drawing, verify layers are visible, and confirm the boundary is closed.

What causes AutoCAD hatch not showing in complex drawings?

Large files with dense geometry sometimes suppress hatch rendering. Simplifying boundaries or regenerating the drawing often fixes it.
