How to Fix Siding Not Showing Correctly in Floor Planner: A practical troubleshooting guide to restore missing siding textures and materials in 2D and 3D floor planner views

Direct Answer

If siding is not showing correctly in a floor planner, the issue is usually caused by the siding being applied to the wrong wall surface, incorrect exterior wall settings, texture scaling errors, or the 3D rendering view not refreshing properly. Fixing the problem typically involves reassigning the wall material, confirming the exterior face of the wall, and adjusting texture scale or render settings.

Quick Takeaways

1. Siding often disappears because the material is applied to the interior wall face instead of the exterior.
2. Texture scale that is too large or too small can make siding appear invisible.
3. 3D rendering modes sometimes cache materials and require a refresh.
4. Incorrect wall layers or exterior surface settings frequently hide siding materials.
5. A quick wall-material reset solves many siding display problems.

Introduction

One of the most common issues I see when designers start using a floor planner is siding not showing correctly. Someone applies a siding texture, switches to 3D view, and suddenly the walls look plain or completely wrong.

After working on residential exterior visualizations for more than a decade, I can tell you this usually isn't a "software bug." It's almost always a small setup detail inside the wall system. The tricky part is that siding problems can come from several different places: wall orientation, texture scaling, rendering settings, or surface assignments.

If you're still learning how exterior materials behave in planning tools, it helps to look at a full step‑by‑step example of creating exterior walls and materials in an AI powered floor planner workflow. Seeing the entire process makes troubleshooting much easier.

In this guide I'll walk through the exact diagnostic process I use when siding fails to appear in a model. These fixes come directly from real project workflows—especially when preparing exterior renders for clients.

save pin

Common Reasons Siding Does Not Appear in Floor Planner

Key Insight: In most cases, siding is invisible because the material is applied to the wrong surface or the wall orientation is reversed.

Floor planners treat each wall as a layered object with separate interior and exterior faces. If siding is applied to the interior face, it won't appear on the outside of the building in 3D view.

From my experience, these are the four most frequent causes:

1. Material assigned to interior wall surface
2. Exterior wall direction flipped
3. Texture scale set incorrectly
4. 3D view rendering not refreshed

Another hidden issue many beginners miss is camera position. If you're viewing the interior side of the wall, the siding simply won't be visible.

In professional visualization workflows, exterior materials are always verified in both orthographic and perspective views to catch these mistakes early.

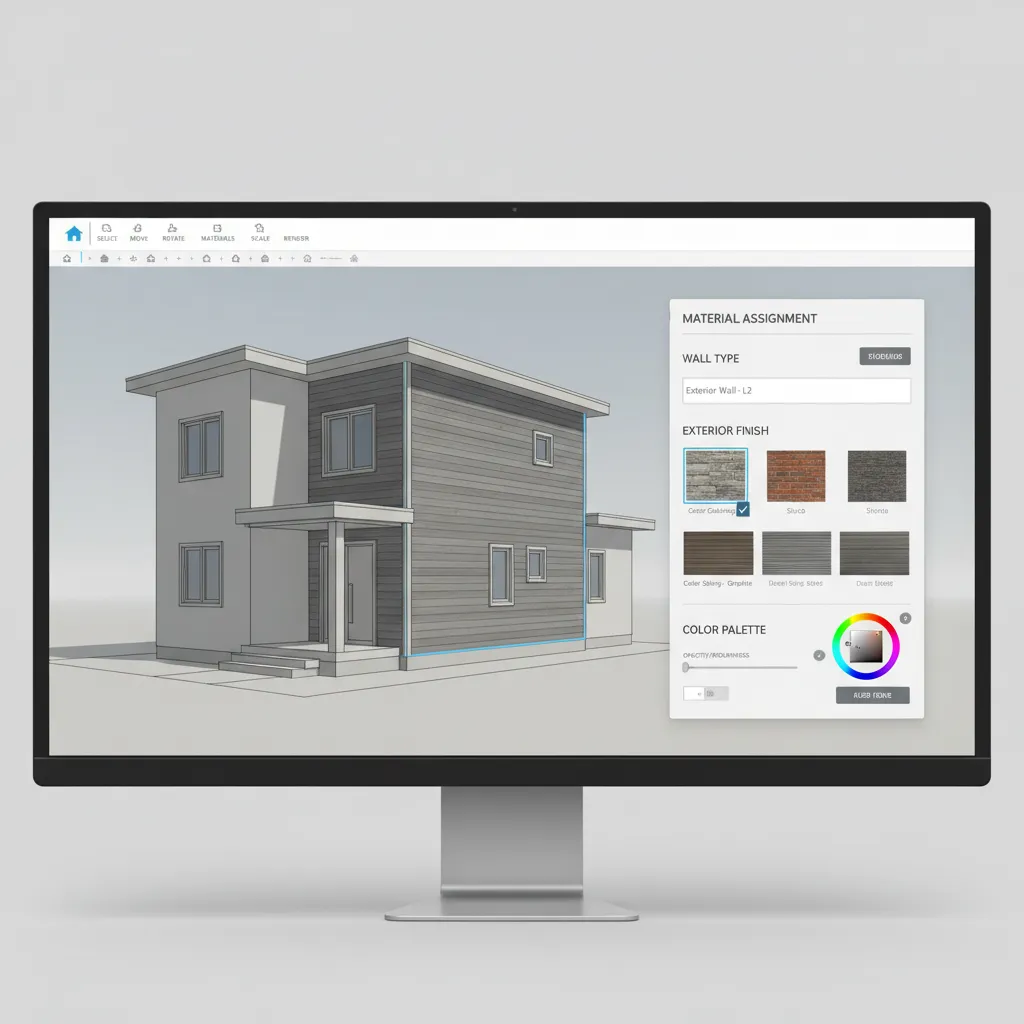

Checking Wall Surface and Material Assignments

Key Insight: Siding must be applied specifically to the exterior wall surface layer—not just the wall object.

Many planners allow multiple surfaces per wall: interior finish, structural layer, and exterior cladding. Applying siding at the wrong level causes it to disappear in the final render.

Follow this quick verification process:

1. Select the wall segment.
2. Open the wall material panel.
3. Locate the exterior surface setting.
4. Apply the siding material to that layer.
5. Confirm the preview updates.

When working on large projects, I often toggle between material preview and full render modes to confirm siding placement. If you're creating realistic exterior visuals, it's helpful to study examples of high‑quality exterior render workflows for residential designs, because they show how properly layered materials behave under lighting.

save pin

Fixing Texture Scaling and Alignment Problems

Key Insight: Incorrect texture scale can make siding appear blank or stretched, even when the material is applied correctly.

Siding textures rely heavily on correct scale. If the scale is 10x larger than intended, the repeating pattern may stretch across the entire wall, making the texture look like a flat color.

Typical siding scale ranges:

1. Horizontal lap siding: 0.15m – 0.25m height repetition
2. Vertical panel siding: 0.30m – 0.60m panel width
3. Shingle siding: 0.10m – 0.18m shingle height

Another alignment issue occurs when textures are projected incorrectly across multiple wall segments. Resetting UV alignment or reapplying the material usually fixes the issue.

Professional rendering teams often standardize siding texture scales across entire projects to prevent visual inconsistencies.

save pin

Answer Box

The fastest way to fix siding not showing in a floor planner is to confirm the material is applied to the exterior wall surface, verify wall orientation, and reset the texture scale. Most display issues come from these three settings.

Resolving 3D View Rendering Issues

Key Insight: Sometimes siding is correctly applied but hidden due to rendering mode or cached materials.

This happens more often than people realize. When working on large projects, rendering engines sometimes delay updating material changes.

Try this quick refresh process:

1. Switch from 3D view back to 2D plan
2. Save the project
3. Reopen the 3D viewer
4. Force a material refresh

Another overlooked factor is lighting mode. In preview lighting, subtle siding textures may appear flat. In high-quality rendering, the surface depth becomes visible.

Many designers also compare how materials appear between tools using a professional 3D floor planner environment used for architectural visualization. Different rendering engines highlight siding depth differently.

save pin

Correcting Wall Layer or Exterior Surface Settings

Key Insight: If exterior wall layers are disabled or misconfigured, siding materials cannot display.

Advanced planners allow walls to include structural layers like insulation, framing, and exterior cladding. If the exterior layer is turned off, siding simply has nowhere to appear.

Check these wall settings:

1. Exterior wall layer enabled
2. Correct wall thickness
3. Exterior surface visible in 3D
4. Material assigned to outer layer

In real-world architecture modeling, separating wall layers also improves realism because lighting interacts differently with each material surface.

Quick Diagnostic Checklist for Siding Display Problems

Key Insight: A structured checklist prevents hours of trial‑and‑error when siding fails to appear.

When troubleshooting client projects, I run through this exact sequence:

1. Confirm siding is assigned to the exterior surface
2. Check wall orientation
3. Verify texture scale
4. Refresh 3D rendering mode
5. Inspect wall layer settings
6. Reapply the siding material if needed

This six‑step check resolves the vast majority of floor planner siding problems in under five minutes.

Final Summary

1. Most siding issues come from applying materials to the wrong wall surface.
2. Texture scaling mistakes frequently make siding appear invisible.
3. Rendering refresh problems can hide correct materials.
4. Exterior wall layers must be enabled for siding to display.
5. A structured diagnostic checklist speeds up troubleshooting.

FAQ

Why is my siding not visible in floor planner 3D view?

Usually the siding is applied to the interior wall surface instead of the exterior. Check the wall material settings and confirm the exterior face is selected.

How do I fix siding texture problems in floor planner?

Adjust the texture scale and alignment settings. Incorrect scaling often causes siding textures to appear stretched or invisible.

Why does my wall look blank after adding siding?

The texture may be too large or too small. Resetting the material scale usually restores the visible siding pattern.

Can rendering settings hide siding materials?

Yes. Low‑quality preview modes sometimes flatten textures. Switching to high‑quality rendering usually reveals siding depth.

Does wall direction affect siding visibility?

Yes. If the wall orientation is reversed, the siding may be facing inward rather than outward.

What is the fastest way to troubleshoot floor planner siding not showing?

Check exterior surface assignment, wall direction, and texture scale. These three settings solve most floor planner siding not showing issues.

Do different siding materials require different texture scales?

Yes. Horizontal siding, shingles, and vertical panels all use different repeating texture dimensions.

Is this a common floor planner wall texture problem?

Very common. Many floor planner wall texture problems with siding come from surface layer confusion rather than software errors.
