Direct Answer

Text extrusion problems in 3D models usually happen because fonts are not converted to geometry, curves contain overlaps, or the resulting mesh becomes non‑manifold. Fixing the issue typically involves converting text to curves or meshes, cleaning overlapping paths, and repairing mesh topology before performing the extrusion or boolean operation again.

Once the geometry is clean and watertight, most text extrusion failures disappear across major modeling tools.

Quick Takeaways

1. Most extrusion failures happen because text is still a font object instead of real geometry.
2. Overlapping curves or tiny path errors often break extrusion operations.
3. Boolean operations fail when the text mesh is non‑manifold.
4. Cleaning geometry before extrusion prevents 90% of text modeling errors.
5. Always test the model with a quick render or mesh analysis after fixing text.

Introduction

Text extrusion problems in 3D models show up more often than people expect. After working on dozens of architectural visualization and product mockup projects, I’ve seen the same pattern repeatedly: the text looks perfect in the viewport, but the moment you try to extrude, convert, or boolean it into the model, everything breaks.

Sometimes the extrusion simply fails. Other times the mesh becomes distorted, or the boolean operation leaves holes in the surface.

The frustrating part is that the problem usually isn’t the extrusion tool itself. It’s the geometry behind the text.

If you're still learning the full workflow of integrating lettering into models, it's worth reviewing a complete workflow for creating realistic 3D environments and visual scenes for rendered projects, because text elements often interact with the same mesh rules used in architectural modeling.

In this guide I’ll walk through the real reasons text extrusion fails, how to fix broken text meshes, and how professionals test models to make sure the problem is actually solved.

save pin

Why Text Fails to Extrude in 3D Modeling Software

Key Insight: Text fails to extrude mainly because the object is not clean geometry yet.

Most modeling tools treat text as a special object type. Until you convert it, the software sees it as typography data rather than editable geometry.

When extrusion tools encounter unconverted text objects, overlapping curves, or self‑intersecting paths, the operation either fails or produces broken geometry.

Common causes include:

1. Text object not converted to curves or mesh
2. Fonts with overlapping outlines
3. Very thin strokes that collapse during extrusion
4. Self‑intersecting curves
5. Hidden duplicate paths

Many decorative fonts are especially problematic. Script fonts often contain layered shapes that confuse extrusion algorithms.

Industry tip: Most professional modeling pipelines convert text into curves immediately after typing it. That removes font dependency and exposes geometry problems earlier.

Fixing Font Conversion and Geometry Errors

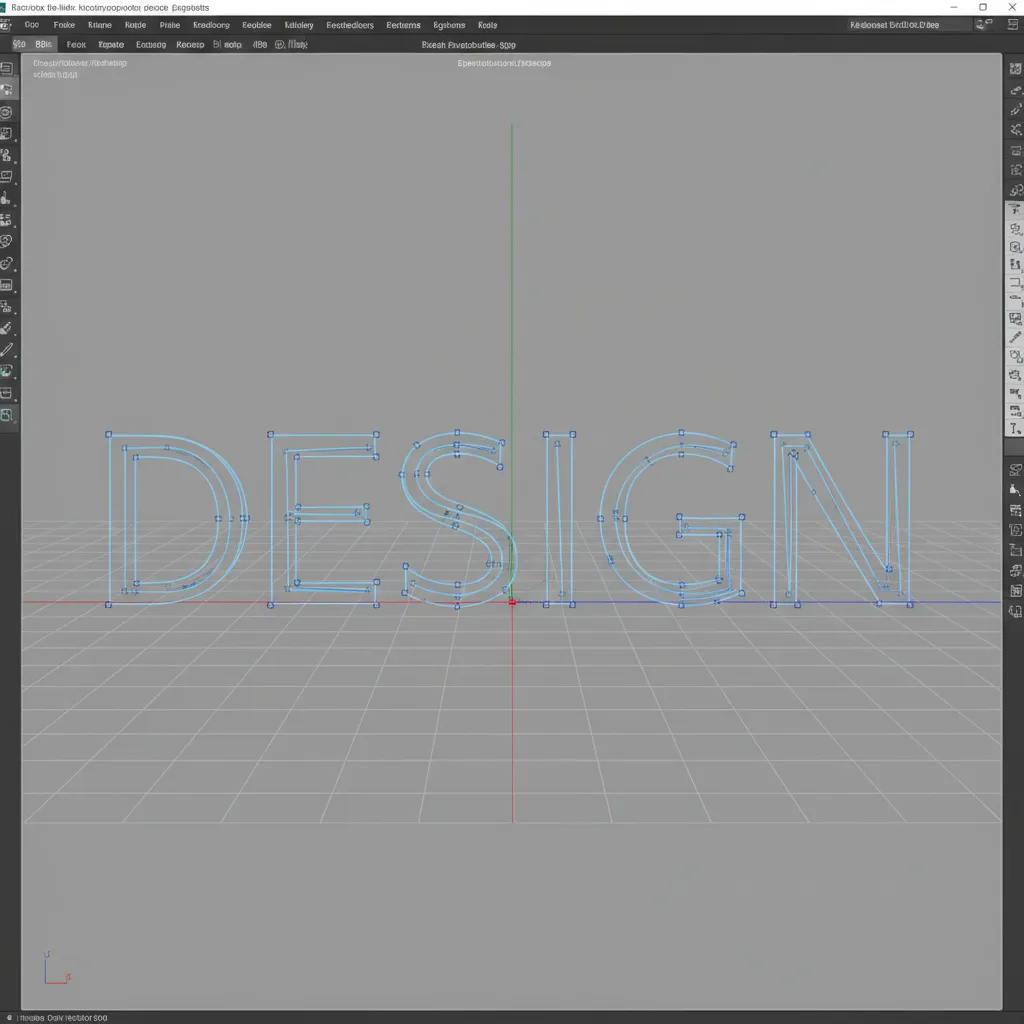

Key Insight: Converting text to clean curves or meshes before extrusion solves the majority of failures.

The safest workflow is to convert text objects into editable geometry before performing any 3D operations.

Typical repair workflow:

1. Convert the text object to curves or mesh.
2. Inspect each letter's outline.
3. Remove overlapping paths.
4. Merge duplicate vertices.
5. Re‑extrude the cleaned shape.

In production visualization projects, I also simplify the curves slightly. Fonts sometimes contain hundreds of control points, which can create unstable geometry when extruded.

Reducing unnecessary points makes extrusion cleaner and boolean operations far more predictable.

save pin

Resolving Non Manifold or Broken Mesh After Adding Text

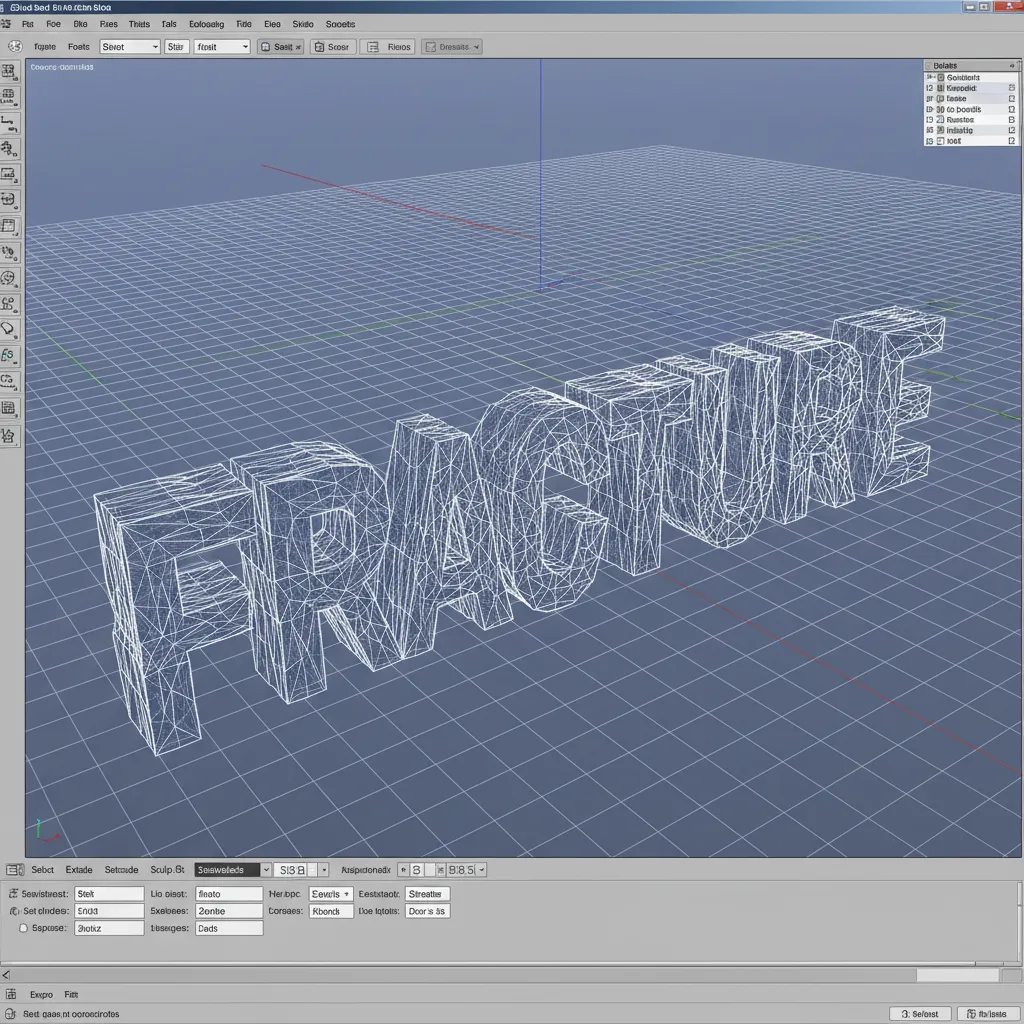

Key Insight: Boolean operations fail when the text mesh produces non‑manifold geometry.

Non‑manifold geometry means the mesh cannot exist as a solid object in 3D space. This often happens after extruding text and merging it into another model.

Typical symptoms:

1. Holes appearing in the mesh
2. Faces disappearing after boolean operations
3. Export errors during 3D printing
4. Lighting artifacts in rendering

To fix it:

1. Run a mesh analysis tool.
2. Remove internal faces.
3. Merge overlapping vertices.
4. Recalculate normals.
5. Fill holes created during boolean operations.

These same mesh repair principles are used when preparing architectural models for rendering pipelines like those used in high quality 3D home rendering workflows, where broken topology can ruin lighting calculations.

How to Repair Overlapping or Distorted Text Geometry

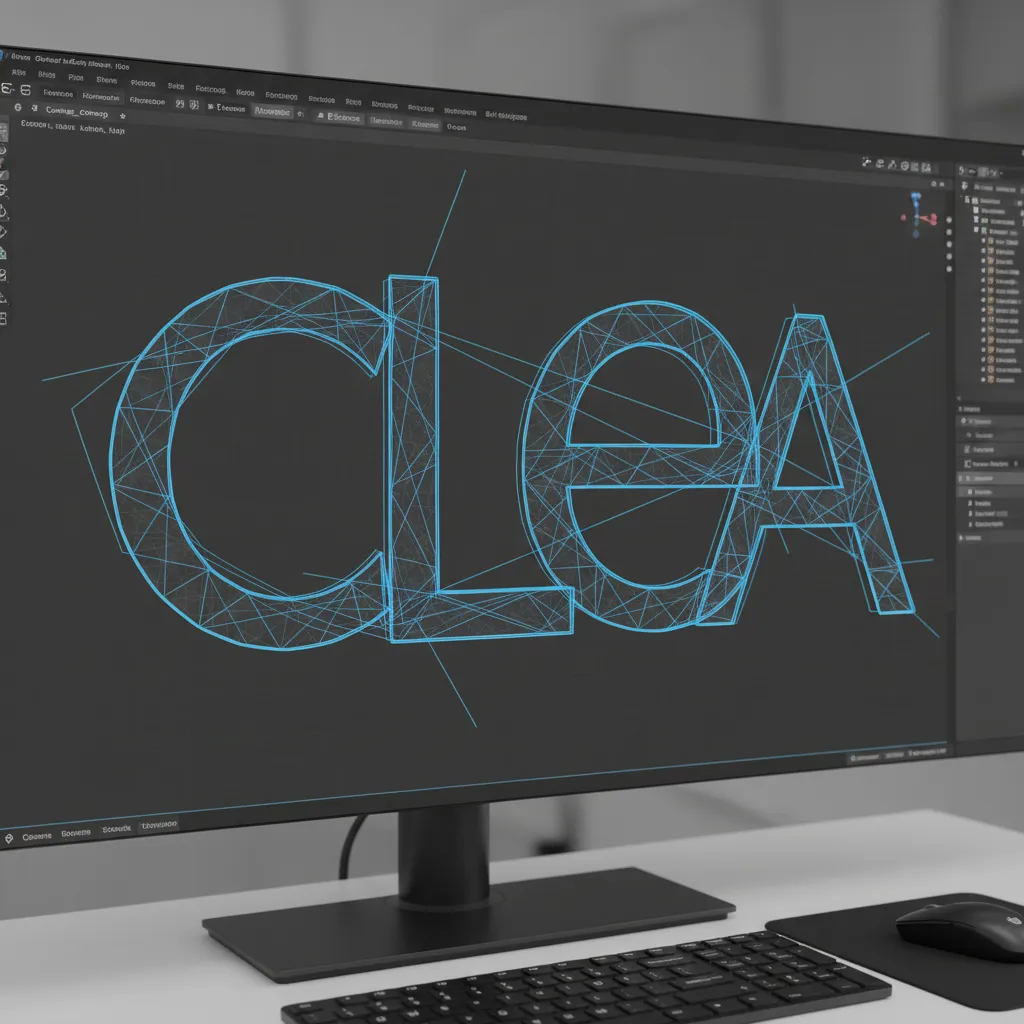

Key Insight: Distorted extrusions usually come from overlapping curves inside letters.

Characters such as B, O, A, and R contain inner shapes. If those shapes intersect or duplicate during conversion, extrusion becomes unpredictable.

Common repair methods:

1. Delete duplicate curves
2. Use a curve union or merge tool
3. Separate inner and outer shapes
4. Rebuild the curve path

One overlooked mistake is scaling text too small before extrusion. Extremely tiny geometry can cause numerical precision errors in many modeling engines.

The workaround is simple: extrude the text at a larger scale, then resize the finished object.

save pin

Software Settings That Cause Text Extrusion Issues

Key Insight: Certain modeling settings silently break extrusion operations even when geometry is correct.

Across tools like Blender, Fusion, SketchUp, and CAD systems, several settings frequently interfere with text extrusion.

Settings to check:

1. Extrusion depth set to zero
2. Normals flipped inward
3. Boolean solver set to fast mode
4. Subdivision modifiers applied before boolean
5. Incorrect object scale values

Professional modelers often reset object transforms before performing boolean operations. Resetting scale and rotation prevents calculation errors during extrusion.

When building scenes that combine text with architecture or layouts, workflows similar to those used in planning complex 3D layouts for spatial visualization can help keep geometry structured and predictable.

Testing the Model After Fixing Text Problems

Key Insight: Always validate the mesh after fixing extrusion issues to avoid hidden geometry errors.

Even if the extrusion looks correct in the viewport, hidden topology issues may remain.

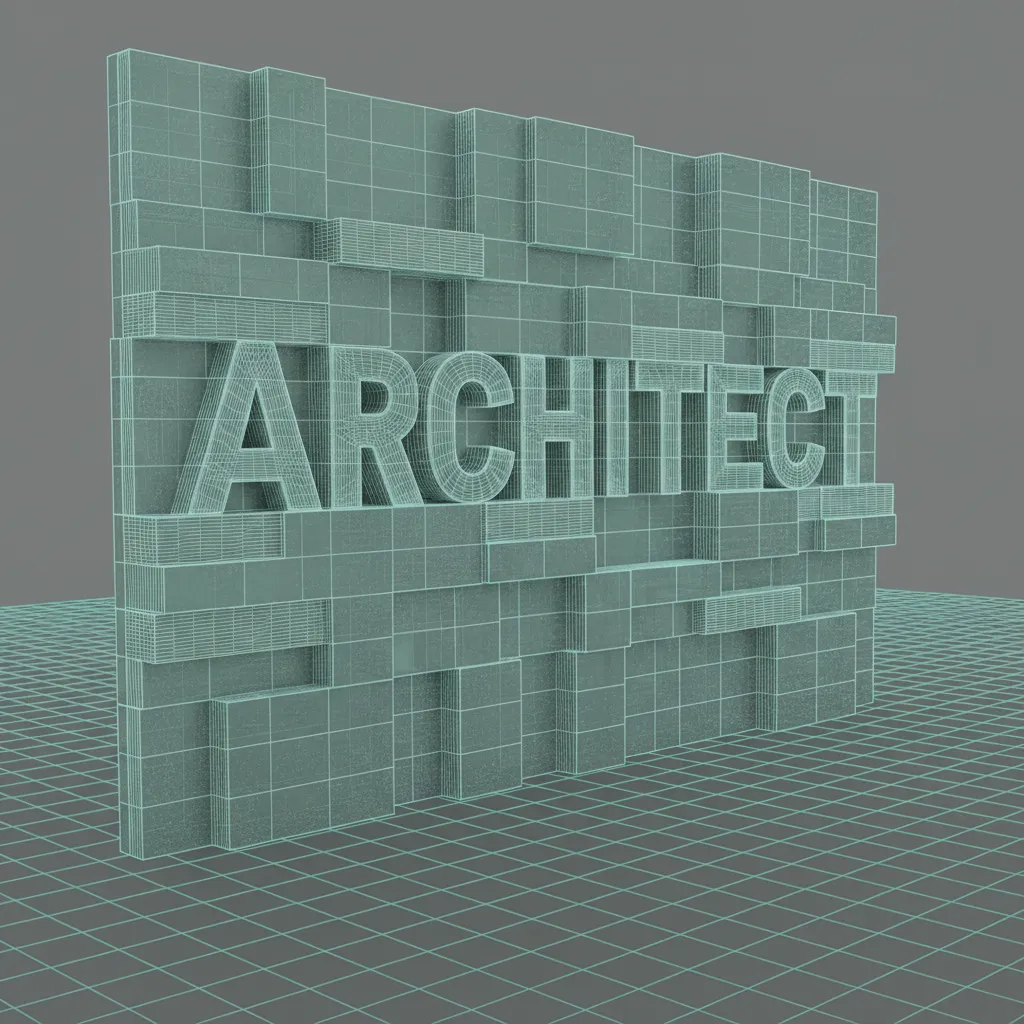

Quick validation checklist:

1. Run a mesh integrity check
2. Enable wireframe view to inspect topology
3. Perform a test boolean operation
4. Export and re‑import the model
5. Run a quick render to verify shading

Export testing is particularly important if the model will be used for 3D printing or game engines.

save pin

Answer Box

The fastest way to fix text extrusion problems in 3D models is to convert the text into clean curves or mesh, remove overlapping paths, and repair non‑manifold geometry before extrusion. Most extrusion errors originate from messy font geometry rather than software bugs.

Final Summary

1. Convert text to curves or mesh before extrusion.
2. Remove overlapping paths inside letters.
3. Repair non‑manifold geometry before boolean operations.
4. Check extrusion and boolean settings inside the software.
5. Always validate the mesh after fixing the problem.

FAQ

Why does text extrusion fail in 3D modeling software?

The most common reason is that the text is still a font object instead of converted geometry. Overlapping curves and font path errors can also break extrusion operations.

How do I fix a broken text mesh in a 3D model?

Convert the text to a mesh, remove duplicate vertices, delete internal faces, and repair non‑manifold edges using the software’s mesh analysis tools.

Why will my text not extrude after converting to mesh?

The mesh likely contains overlapping edges or incorrect normals. Cleaning the mesh and recalculating normals usually fixes the problem.

What causes non manifold text geometry?

Non‑manifold geometry appears when edges belong to more than two faces or internal surfaces exist inside the mesh after extrusion or boolean operations.

How do I repair non manifold text geometry?

Use mesh cleanup tools to remove internal faces, merge vertices, and fill holes so the text becomes a watertight solid object.

Why does boolean text engraving fail?

Boolean operations fail when the text mesh intersects poorly with the base surface or contains non‑manifold edges.

What fonts work best for 3D extrusion?

Simple sans serif fonts usually extrude cleanly because they contain fewer overlapping curves and simpler outlines.

Can text extrusion problems affect 3D printing?

Yes. Broken text meshes can produce slicing errors or holes in the print because the model is not a closed manifold surface.
